Comprehensive Guide to Ampoule Filling Machines: Technology, Working Principle, and Industrial Applications
In the high-precision world of pharmaceutical manufacturing, maintaining the integrity and sterility of injectable medications is paramount. At the heart of this process lies the Ampoule Filling and Sealing Machine. This guide provides an in-depth exploration of how these machines function, their technical components, and why they are indispensable for modern aseptic packaging.
What is an Ampoule?
Before diving into the machinery, it is essential to understand the container. An ampoule is a small, hermetically sealed vial made of glass, used to contain and preserve a sample, usually a solid or liquid. Unlike standard vials, ampoules are sealed by melting the thin glass neck with an open flame and are opened by snapping off the neck. This ensures the contents remain 100% tamper-proof and sterile until the moment of use.
What is an Ampoule Filling and Sealing Machine?
An Ampoule Filling and Sealing Machine is an automated equipment used in the pharmaceutical industry to fill liquid or powder medications into glass ampoules and subsequently seal them. These machines are designed to operate under strict sterile conditions, often integrated within a cleanroom environment or under a Laminar Air Flow (LAF) unit to prevent contamination.
The technology has evolved from manual hand-filling processes to high-speed, multi-head fully automatic systems capable of processing thousands of units per hour with milligram-level precision.

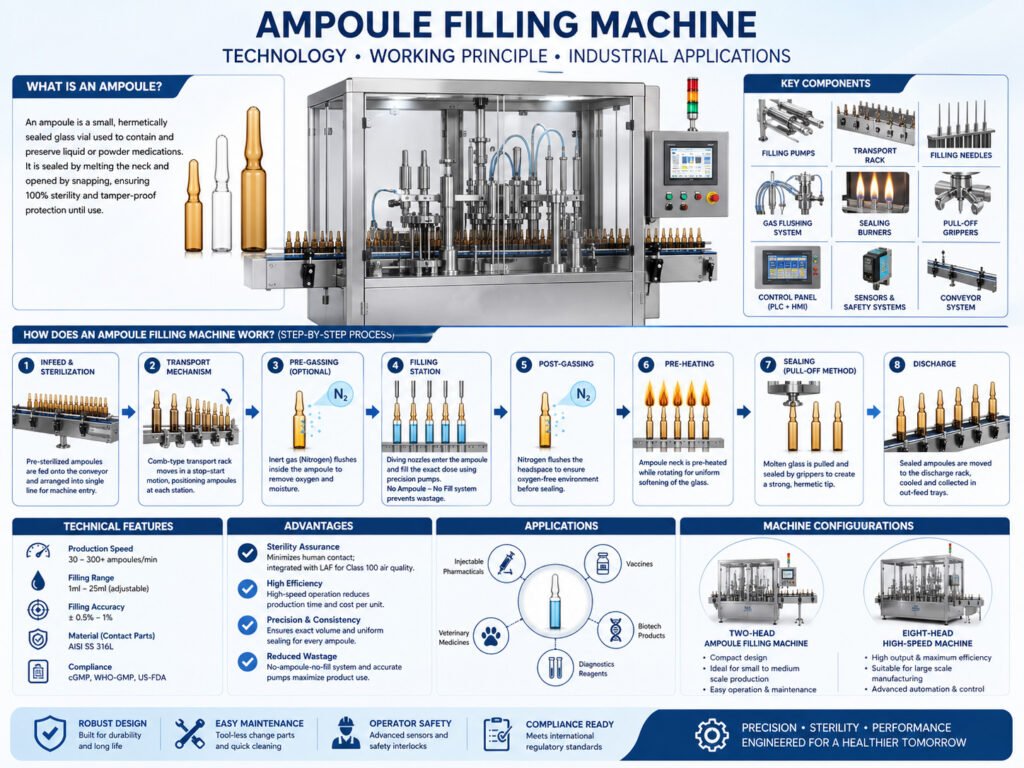

How Does an Ampoule Filling Machine Work? (The Step-by-Step Process)
The working principle of an automatic ampoule filling machine follows a synchronized sequence of mechanical and pneumatic movements. Here is the detailed breakdown:
1. Infeed and Sterilization
Ampoules are typically pre-sterilized in a dry heat sterilizing tunnel before reaching the machine. They are fed onto a stainless steel conveyor belt or a wire mesh belt from the left side of the machine. A loading tray or a hopper organizes the ampoules into a single line for entry into the transport rack.
2. Transport Mechanism
The “Heart” of the machine is the transport rack (often a comb-type or star-wheel mechanism). This rack moves the ampoules through different stations in a “Stop-Start” motion. While the rack moves, the ampoules are shifted to the next station; when it stops, the specific operation (filling or sealing) occurs.
3. Pre-Gassing (Optional but Recommended)
To maintain the stability of oxygen-sensitive drugs, many machines include a pre-gassing station. Here, an inert gas like Nitrogen is flushed into the empty ampoule to displace the ambient air and moisture.
4. The Filling Station
This is the most critical stage. The machine uses high-precision volumetric syringes or peristaltic pumps to deliver the exact dosage.
- Diving Nozzles: The filling needles descend deep into the neck of the ampoule. This “bottom-up” filling prevents the liquid from splashing onto the neck walls, which is vital because any residue on the neck could cause “charring” or black spots during the sealing process.
- No-Ampoule-No-Fill System: Modern sensors ensure that if a slot is empty, the pump will not trigger, preventing wastage and machinery contamination.
5. Post-Gassing
After filling, another round of Nitrogen flushing may occur. This ensures that the headspace between the liquid and the top of the ampoule is free of oxygen before the seal is formed.
6. Pre-Heating and Sealing
Sealing is a two-stage process:
- Pre-heating: The ampoule neck is exposed to intense flames (oxygen and LPG/Hydrogen) to soften the glass. The ampoule is often rotated at this stage to ensure uniform heating.
- Sealing (Pull-off Method): Once the glass is molten, a pair of stainless steel grippers or “clippers” grabs the top portion of the neck and pulls it upward while the flame continues to melt the glass. This creates a rounded, hermetic tip.
7. Discharge
Once sealed, the ampoules are moved to the discharge cooling rack and eventually collected in out-feed trays for inspection and labeling.
Technical Features of High-Performance Machines
When evaluating an ampoule filler for industrial use, several technical specifications define the quality of the output:
- Production Speed: Ranging from 30 ampoules per minute (for lab-scale) to over 300 per minute (for mass production).
- Filling Range: Most machines are versatile, handling sizes from 1ml to 25ml with minor adjustments to the syringes and combs.
- Material of Construction: All contact parts must be made of AISI SS 316L, while non-contact parts are typically SS 304 to meet cGMP (Current Good Manufacturing Practice) standards.
- Accuracy: Advanced systems achieve a filling accuracy of +/- 0.5% to 1%, minimizing the loss of expensive pharmaceutical ingredients.
Key Components of the Machine
- Filling Pumps: Responsible for the precision of the dose.
- Stainless Steel Conveyor: Ensures smooth, vibration-free movement of fragile glass.
- Burners & Flow Meters: Precise control of gas and oxygen levels is required for a clean seal without black spots.
- PLC Control Panel: A centralized touchscreen interface (HMI) allows operators to monitor speed, batch counts, and error logs.
- Emergency Sensors: Safety features that stop the machine in case of glass breakage or jammed ampoules.
Advantages of Using Automatic Ampoule Filling Technology
1. Sterility Assurance
By automating the process, human contact—the primary source of contamination—is virtually eliminated. The integration of LAF units ensures the air surrounding the open ampoules is Class 100 quality.
2. High Efficiency
Manual filling is slow and prone to error. An automatic 4-head or 8-head machine can process a whole batch in a fraction of the time, significantly reducing the cost per unit.
3. Precision and Consistency
With mechanical synchronization, every ampoule receives the exact same volume of liquid and the exact same flame exposure, leading to a uniform product appearance.
4. Reduced Wastage
Features like “No-Ampoule-No-Fill” and high-accuracy syringes ensure that every drop of the medicinal formulation is utilized effectively.
Why Choose Harsiddh Unimach Pvt. Ltd.?
In the competitive landscape of pharmaceutical packaging, Harsiddh Unimach Pvt. Ltd. has established itself as a leader in providing high-end industrial solutions. Our machines are engineered with a focus on durability, compliance, and ease of maintenance.
Our Specialized Range Includes:
- Automatic Two-Head Ampoule Filling & Sealing Machines: Ideal for medium-scale production with compact footprints.
- High-Speed Eight-Head Systems: Designed for large-scale manufacturing facilities requiring maximum throughput.
- Customized Aseptic Lines: Integration with washing, sterilization, and labeling units for a complete “Turnkey” solution.
We understand the rigors of regulatory audits. Therefore, our equipment is designed to comply with international standards including WHO-GMP and US-FDA requirements.
Maintenance and Safety Tips
To ensure the longevity of your ampoule filling line, regular maintenance is required:
- Daily Cleaning: Sterilize all contact parts before and after every batch.
- Lubrication: Keep the moving transport combs and gears lubricated to prevent friction-induced glass breakage.
- Flame Calibration: Periodically check the gas-to-oxygen ratio to ensure the sealing flames remain sharp and clean.
- Safety Gear: Operators should always use heat-resistant gloves and eye protection when working near the sealing station.
Conclusion
The Ampoule Filling and Sealing Machine is a masterpiece of precision engineering. It bridges the gap between a liquid formulation and a safe, life-saving injectable product. As the pharmaceutical industry continues to grow, the demand for machines that offer higher speeds, better accuracy, and uncompromising sterility will only increase.
At Harsiddh Unimach Pvt. Ltd., we are committed to driving this innovation forward. Whether you are looking for a standalone machine or a fully integrated production line, our expertise ensures that your facility operates at the peak of efficiency.
For technical datasheets, pricing, and customized consultations, visit our official website: www.harsiddhunimach.com or contact our engineering team at info@harsiddhunimach.com.
