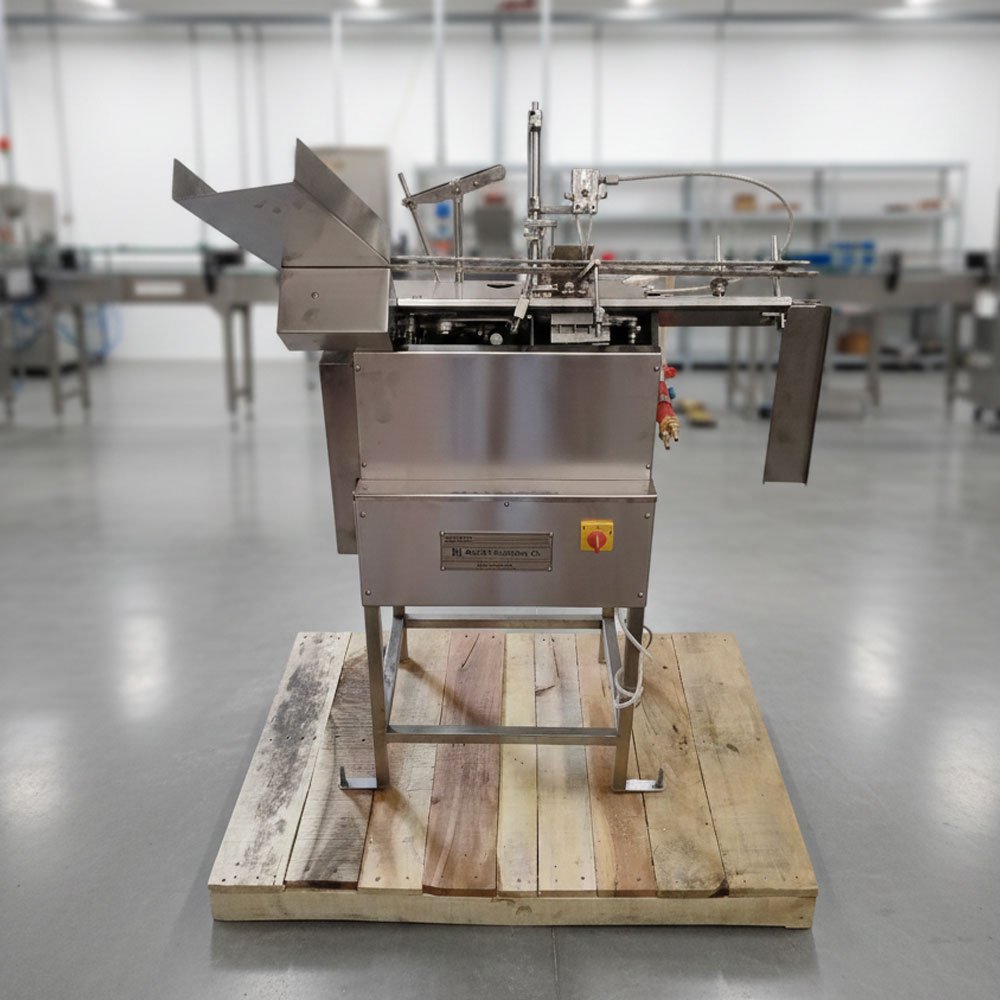

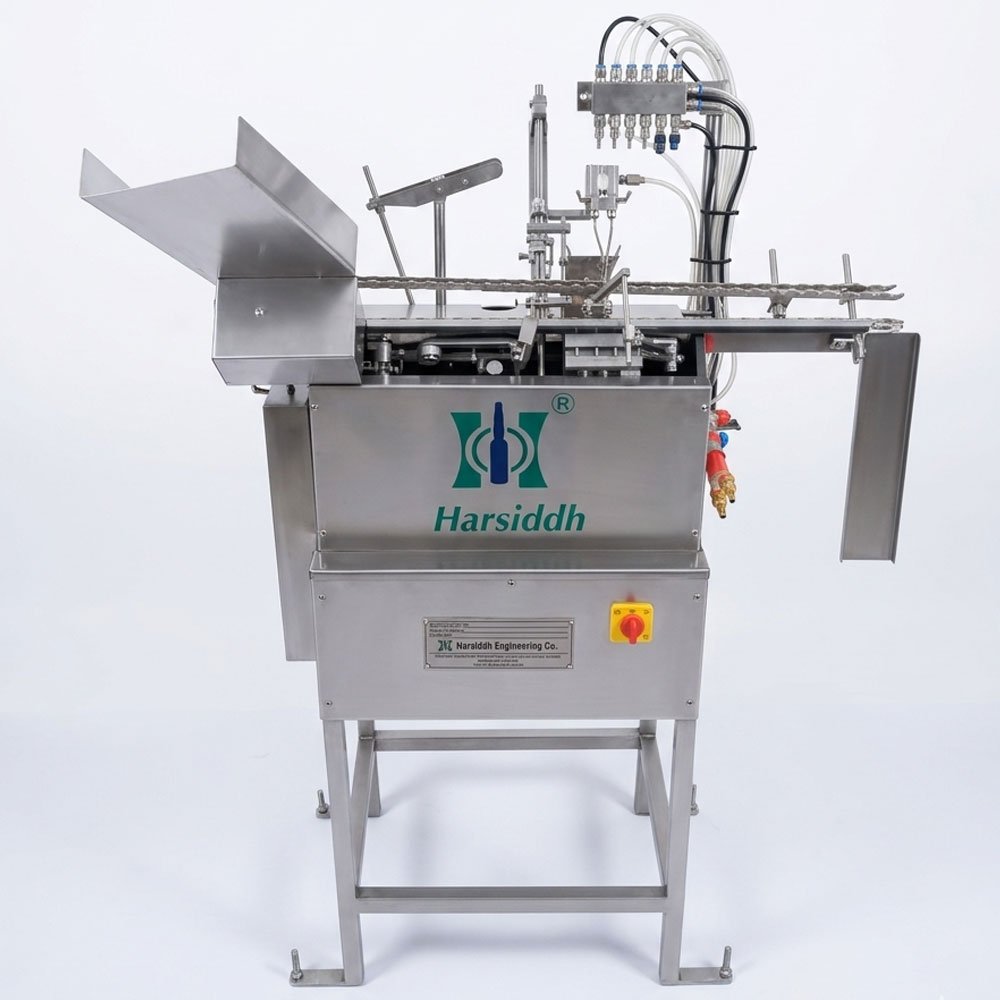

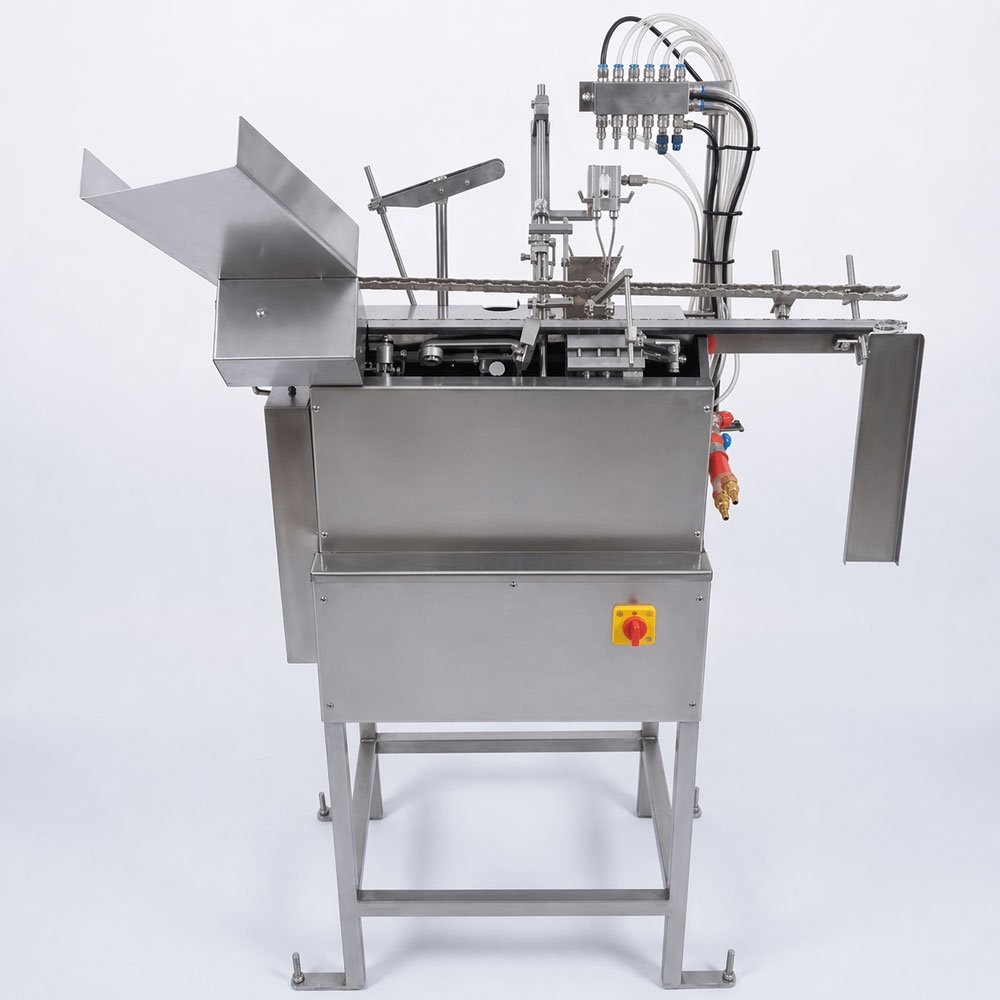

Automatic Single Head Ampoule Filling & Sealing Machine

High-Precision Sterile Packaging Solution for R&D, Pilot Plants, and Small-Scale Batch Production

In the highly regulated pharmaceutical and biotechnology industries, precision, sterility, and material integrity are paramount. The Harsiddh Unimach Automatic Single Head Ampoule Filling and Sealing Machine is a masterfully engineered, compact tabletop solution designed specifically to meet the rigorous demands of Research & Development (R&D) laboratories, clinical trial batch manufacturing, and boutique small-scale production facilities.

This advanced system bridges the gap between manual laboratory filling and massive commercial production lines. It delivers the exact same levels of accuracy, hermetic sealing quality, and sterile safety found in large-scale industrial machinery, but within a compact, highly efficient footprint optimized for low-volume, high-value liquid injectables.

The Core Philosophy: Slant-Travel Principle for Maximum Glass Safety

At the heart of our machine’s structural engineering is the advanced slant-travel principle. Traditional vertical transport mechanisms often subject delicate glass ampoules to excessive vibration, friction, and sudden mechanical shocks, leading to micro-cracks or catastrophic breakage.

By utilizing a precisely calculated sloped orientation during transit, our single-head machine ensures incredibly smooth, gravity-assisted handling of open-mouth glass ampoules. This slant-travel design self-compensates for the minor structural variations inherently found in glass manufacturing, such as subtle differences in wall thickness, base uniformity, or neck dimensions. The result is a seamless, friction-reduced journey through the entire processing cycle that drastically minimizes glass reject rates.

Fully Integrated, Sterile Processing Cycle

To guarantee aseptic compliance and prevent contamination, the Harsiddh Unimach Single Head Machine unifies multiple critical processing phases into a single, automated, and continuous workflow. Instead of transferring delicate containers between disconnected modules, an ampoule undergoes a comprehensive, synchronized sequence on a single synchronized line:

1. Precision Feeding: Ampoules are introduced smoothly into the active processing track.
2. Pre-Nitrogen Purging: Displaces ambient oxygen within the empty ampoule to protect oxidation-sensitive active pharmaceutical ingredients (APIs).
3. Sterile Liquid Filling: A high-accuracy dosing pump delivers the exact volume of product deep into the ampoule body.
4. Post-Nitrogen Purging: A second inert gas flush ensures the remaining headspace is entirely clear of atmospheric air before closure.
5. Pre-Heating & Burn-Off Sealing: Precision gas burners heat the ampoule neck to its softening point, followed by a mechanical draw-off or tip-sealing mechanism to create a perfect, tamper-evident, hermetic seal.

Key Technical Innovations & Operational Enhancements

We have analyzed the common pain points experienced by laboratory technicians using traditional filling equipment and engineered robust, modern solutions directly into this single-head model.

1. Next-Generation Rectangular Feeding System

Older-generation laboratory machines rely on rotary dials or unstable star-wheel feeding systems that can cause ampoules to wobble, tip over, or jam. Harsiddh Unimach has replaced these outdated methods with a cutting-edge Rectangular Feeding System. This linear, structured transport mechanism provides continuous, multi-point physical support to every single ampoule. By keeping the glass perfectly upright and stable during the crucial transfer into the filling station, this feature virtually eliminates structural stress, glass-on-glass impacts, and unexpected operational downtime.

2. Intelligent “No Ampoule – No Filling” Waste Prevention

When dealing with experimental drugs, high-potency active ingredients, rare biologics, or expensive personalized medicines, every single drop of liquid is incredibly valuable. Our machine features an integrated optical/mechanical sensor system that continuously scans the active filling station. If a slot is empty or an ampoule fails to feed correctly, the machine instantly bypasses the dosing cycle for that specific station. This “No Ampoule – No Filling” protocol completely eliminates material spillages, protects the machine’s internal mechanics from corrosive liquids, and saves thousands of dollars in wasted pharmaceutical formulations.

3. Highly Adaptable Dosing & Toolless Adjustments

Versatility is essential in an R&D environment where container sizes change daily. This machine is exceptionally competent at processing a wide spectrum of open-mouth glass ampoules ranging from 1ml up to 25ml. Swapping between different ampoule volumes requires minimal changeover parts, and most calibrations can be done quickly, reducing setup times between different experimental batches.

Performance Metrics & Technical Specifications

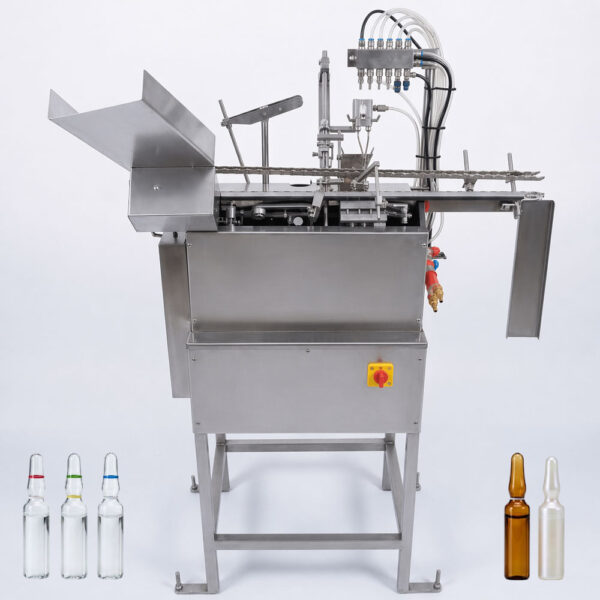

• Processing Capacity (Container Size): Standard open-mouth glass ampoules from 1 ml to 25 ml.
• Dosing Range: 0.5 ml to 25 ml achievable in a single, highly repeatable stroke.
• Production Output Speed: Consistent delivery of 10 to 15 ampoules per minute. (Note: Actual output varies dynamically based on the specific physical characteristics of the liquid, such as viscosity and foaming tendencies, as well as the chosen ampoule dimensions).
• Dosing Accuracy: Exceptional volumetric repeatability engineered to comply with strict pharmacopeial standards for injection volume tolerances.
• MOC (Materials of Construction): All contact parts are manufactured from premium, corrosion-resistant AISI 316L Stainless Steel, while non-contact external structures utilize AISI 304 Stainless Steel to facilitate easy wipe-downs and strict cleanroom compliance.

Target Applications & Industry Use Cases

The Harsiddh Unimach Automatic Single Head Ampoule Filling and Sealing Machine is the ideal asset for several critical sectors:

• Pharmaceutical R&D Laboratories: Perfect for formulation scientists developing new liquid injectables, conducting stability testing, or establishing initial baseline data for scaling up production.
• Biotechnology & Life Sciences: Safely packages delicate proteins, enzymes, monoclonal antibodies, and genetic materials under pristine, nitrogen-inerted conditions.
• Clinical Trial Supplies (Phase I & II): Enables the rapid, compliant manufacturing of small, specialized batches required for human clinical trials without occupying large-scale commercial production lines.
• Veterinary Medicines: Compact and agile enough for small-batch manufacturing of specialized animal healthcare injectables and vaccines.
• Cosmeceuticals & High-End Skincare: Ideal for premium, single-use, preservative-free cosmetic serums, vitamins, and anti-aging compounds requiring hermetic glass sealing to maintain active ingredient potency.

Technical Specification

Why Choose Harsiddh Unimach?

When you invest in a Harsiddh Unimach machine, you are investing in a legacy of uncompromising precision and engineering excellence. We understand that laboratory equipment must be reliable, easy to clean, simple to validate, and completely operator-safe.

Our Automatic Single Head Ampoule Filling & Sealing Machine features an intuitive, user-friendly control interface, enclosed safety guards to protect operators from high-temperature sealing flames, and a clean, open-tabletop layout that simplifies regular maintenance and sterilization protocols. By bringing this powerful, small-batch automation into your facility, you gain absolute control over your liquid packaging quality, accelerate your product time-to-market, and guarantee flawless hermetic seals every single time.

Contact our engineering and sales consultancy team today to request a customized quote, discuss material compatibility, or schedule a virtual equipment demonstration tailored to your exact production requirements.
