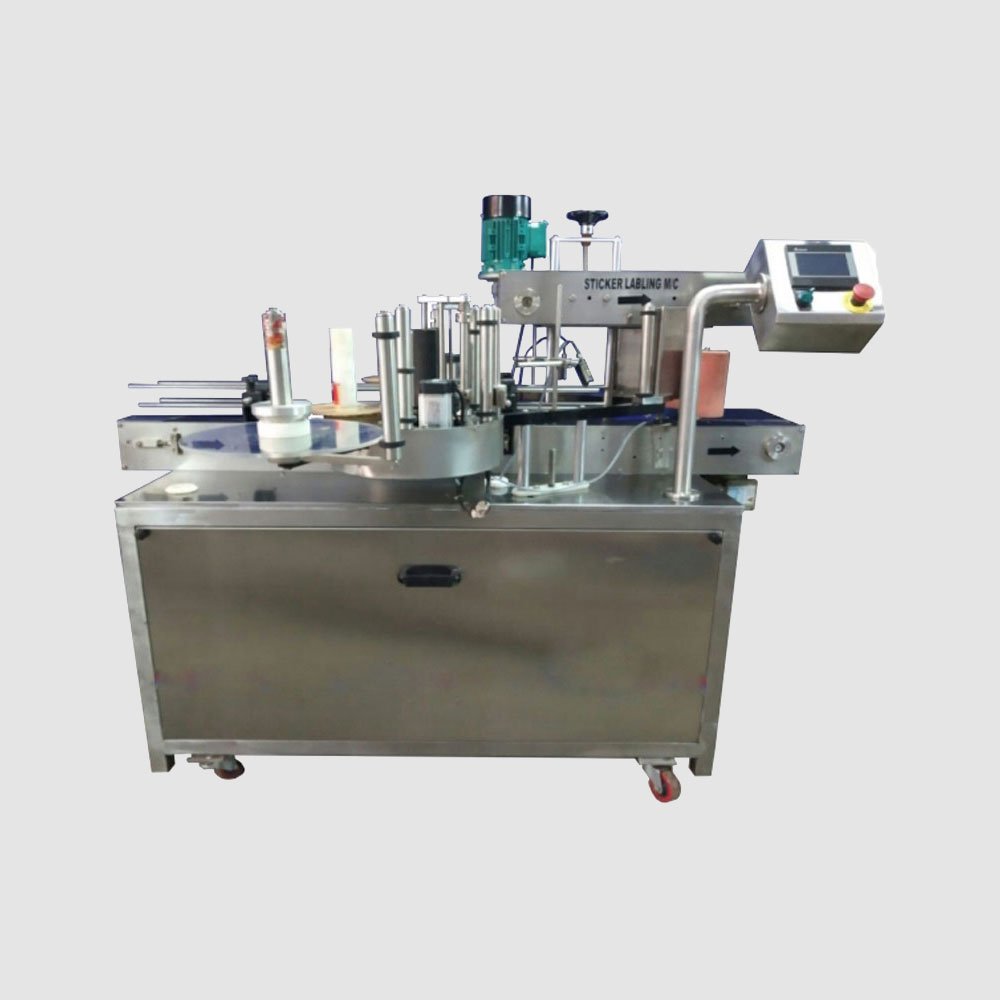

Automatic Double Side Flat Bottle Sticker Labeling Machine
High-Precision, High-Velocity Dual Labeling for Flat and Oval Containers
In modern manufacturing, product presentation is everything. The Harsiddh Automatic Double-Side Flat Bottle Sticker Labeler (Model: HDSL-150) represents the pinnacle of industrial labeling technology, specifically engineered to meet the sophisticated demands of non-cylindrical container packaging. If your production line handles flat, oval, square, or rectangular bottles, this CE-certified, heavy-duty machine is built to deliver flawless label application, unmatched throughput, and continuous operational efficiency.
Designed with an advanced inline architecture, the HDSL-150 effortlessly integrates into existing production frameworks or functions as a powerful standalone unit. From high-end cosmetics to strict pharmaceutical compliance standards, this automated dual-sided sticker labeling machine provides the speed, accuracy, and reliability necessary to elevate your brand packaging.
Why Choose the HDSL-150 Double-Sided Labeling System?
Applying stickers to flat or contoured surfaces introduces unique challenges—including air bubbles, wrinkling, and misalignment—that standard wrap-around labelers cannot solve. The Harsiddh HDSL-150 overcomes these challenges through an engineered synchronization system that stabilizes the container while simultaneously applying front and back labels with surgical precision.
Key Performance Benefits:
- Dual-Sided Efficiency: Apply two distinct labels (front and back) to a single container in one continuous pass, effectively doubling your production capacity compared to single-side labeling methods.
- CE-Certified Reliability: Manufactured under strict international safety and quality guidelines, ensuring long-term mechanical durability and operator safety.
- Material Versatility: Whether your containers are made of HDPE, PET, PP, Glass, or PVC, the HDSL-150 handles them without scuffing or damaging the surface.

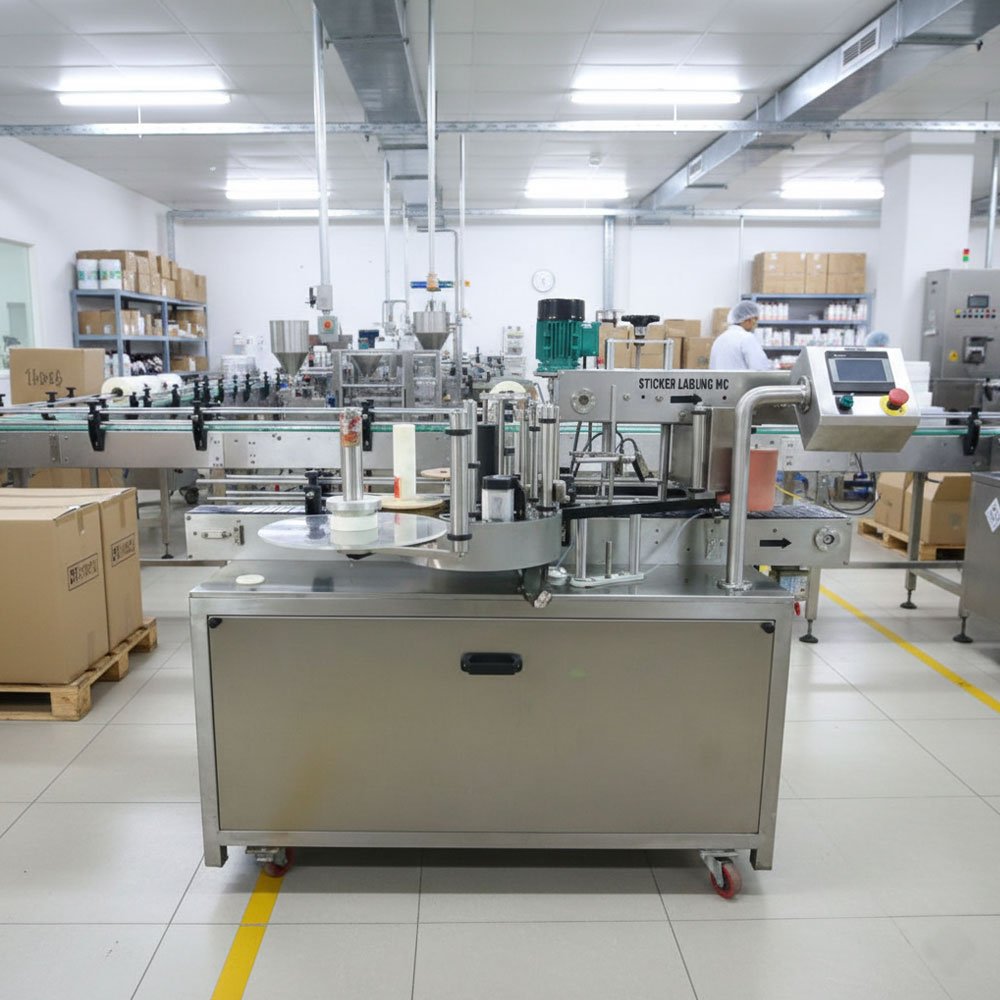

- Seamless Integration: Featuring a heavy-duty Delrin slat conveyor belt, the machine smoothly moves containers from filling and capping stations straight through to the final packaging stage.
Technical Specifications & Features That Drive Success
The mechanical and electronic architecture of the Harsiddh Automatic Double-Side Flat Bottle Sticker Labeling Machine is engineered for minimal downtime and maximal output. Below is an in-depth breakdown of the features that make the HDSL-150 an industry leader:
1. Advanced Container Stabilization System
Flat and oval bottles are prone to shifting or wobbling while moving down a high-speed conveyor. The HDSL-150 utilizes a top synchronized hold-down belt system. This mechanism secures the top of each bottle, maintaining its exact center line and orientation as it passes the labeling heads, guaranteeing that every sticker is placed symmetrically.
2. State-of-the-Art Microprocessor Control & Sensing
Equipped with cutting-edge microcontrollers and premium optoelectronic sensors, the machine detects the precise edge of both the container and the label. This eliminates label wastage and prevents “missed labels,” even when running at maximum operational velocity.
3. Delrin® Slat Conveyor Bed
The foundation of the HDSL-150 is its ultra-smooth Delrin conveyor line. Known for low friction, high wear resistance, and hygienic properties, the Delrin slat layout ensures that even lightweight or top-heavy plastic bottles glide stably without tipping over.
4. Toolless Changeovers for Diverse Product Portfolios
In modern manufacturing, versatility is mandatory. The HDSL-150 features an ergonomic, tool-free adjustment system. Operators can rapidly modify the machine settings to accommodate different bottle heights, widths, and label dimensions, slashing changeover times from hours to mere minutes.

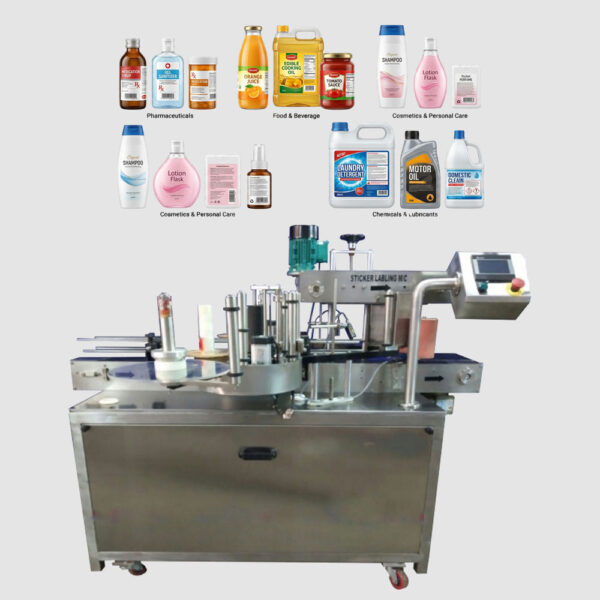

Cross-Industry Applications
The flexibility of the Automatic Double Side Flat Bottle Sticker Labeling Machine makes it an indispensable asset across a diverse range of commercial sectors:
Pharmaceutical & Nutraceutical Industries
In the medical sector, accuracy is non-negotiable. The HDSL-150 ensures that critical dosage information, batch numbers, and ingredient lists on rectangular syrup bottles or oval supplement jars are perfectly legible, securely adhered, and correctly aligned to meet regulatory standards.
Cosmetics & Personal Care
Aesthetics dictate consumer choices in personal care. Whether it is a flat shampoo bottle, an oval body lotion container, or a square perfume flask, this machine applies transparent or opaque stickers smoothly without micro-bubbles, preserving the premium look of your brand.
Food & Beverage Industry
From flat olive oil tins and square sauce bottles to oval juice containers, the HDSL-150 handles high-speed food packaging lines effortlessly. Its washdown-friendly design components ensure compliance with strict food safety hygiene protocols.
Chemical & Agro-Chemical Production
Heavy-duty plastic jerrycans, motor oil containers, and pesticide bottles require robust, resilient labeling. The HDSL-150 provides the rugged mechanical force needed to apply large labels uniformly onto industrial-grade containers.
Optimized Workflow: How It Works
- Feeding Zone: Bottles arrive from the upstream conveyor line and enter the spacing device, which ensures an optimal, uniform gap between each container.
- Orientation & Alignment: The top hold-down belt engages, stabilizing the container and correcting any slight skewing.
- Sensor Detection: An advanced product sensor detects the container, instantly triggering the dual servo/stepper motor-driven labeling heads.
- Label Dispensing & Application: The front and back labels are accurately dispensed and peeled onto the moving surfaces of the container simultaneously.
- Brushing & Pressing: The container passes through specialized foam rollers or flexible brushes that firmly press the labels, wiping out any trapped air to achieve a seamless, premium finish.
Boost Your ROI with Harsiddh Engineering
Investing in the Harsiddh HDSL-150 means investing in the future scalability of your business. By automating your dual-sided labeling process, you eliminate manual labor errors, drastically reduce material waste, and accelerate your time-to-market. Built using premium-grade stainless steel (SS 304/316) and anodized aluminum, this machine promises a long service life with minimal maintenance overheads.
Summary of Technical Capabilities:
- Container Shape Suitability: Flat, Oval, Square, Rectangular
- Operation Mode: Completely Automatic / In-Line
- Safety Compliance: CE Certified
- Conveyor System: Delrin Slat Chain
Technical Specification
| Feature | Details (HDSL-150) |
|---|---|
| Output Speed | Custom Rate (Up to 150/min) |
| Container Type | Flat, Oval, Square, Rectangular |
| Holding Device | Top and Side Stabilization |
| Applicator System | Dual Applicator Heads |
| Label Roll Diameter | 300 mm / 400 mm |
| Core Diameter | 75 mm / 76 mm |
| Power Requirements | 1 H.P., 220 Volts, Single Phase |
| Overall Dimensions | 2700mm (L) x 1300mm (W) x 1200mm (H) |
Elevate Your Production Line Today
Don’t let inefficient labeling slow down your operational throughput or compromise your brand’s visual identity. The Harsiddh Automatic Double Side Flat Bottle Sticker Labeling Machine (HDSL-150) delivers the speed, precision, and multi-industry versatility your company needs to stay ahead of the competition.
Frequently Asked Questions
Can the machine handle different bottle shapes, such as oval or square?
Yes. While optimized for flat bottles, the machine is highly versatile. By adjusting the conveyor guides and using a specialized alignment chain or "orienting" belt, it can accurately label oval, rectangular, and even some square containers. The labeling heads are mounted on 4-axis pillars, allowing for tilt and height adjustments to match the specific contour of your packaging.
Does the machine support "Wrap-Around" labeling for round bottles?
The standard Double Side model is designed for front and back application. However, Harsiddh offers an optional Wrap-Around attachment. By adding a motorized vertical foam roller (wrap station), the machine can be converted to apply single labels that wrap around the circumference of round bottles, making it a "3-in-1" solution for facilities with diverse product lines.
How does the machine manage different label and bottle sizes during a batch change?
Changeovers are designed to be "tool-less" and efficient:
Digital Position Indicators: Calibrated handwheels allow operators to record and return to specific settings for different bottle widths.
PLC Recipe Storage: Through the Touchscreen HMI, you can save the dispensing speeds and delay timings for various SKUs, enabling one-touch setup for recurring production runs.
Speed: Depending on the label length and bottle size, the machine can achieve an output of 40 to 120 bottles per minute.
What happens if a bottle is missing or a label roll runs out?
The machine is equipped with "Smart" sensors to prevent waste and downtime:
"No Bottle – No Label" System: Photoelectric sensors ensure that labels are only dispensed when a bottle is detected, preventing "sticky" messes on the conveyor.
Label Gap & End Sensors: The machine automatically detects the gap between stickers. If a label roll breaks or reaches its end, the system triggers an alarm and can be set to automatically pause the conveyor to prevent unlabelled products from passing through.
