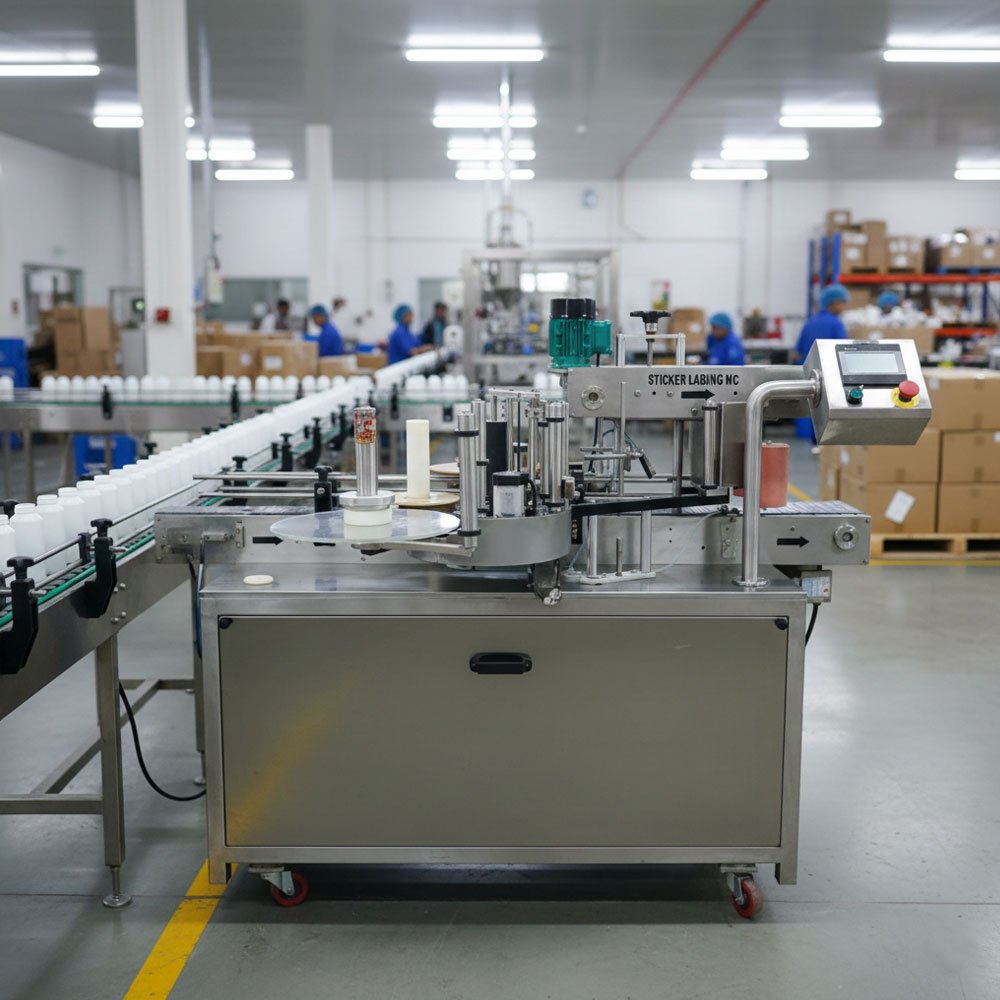

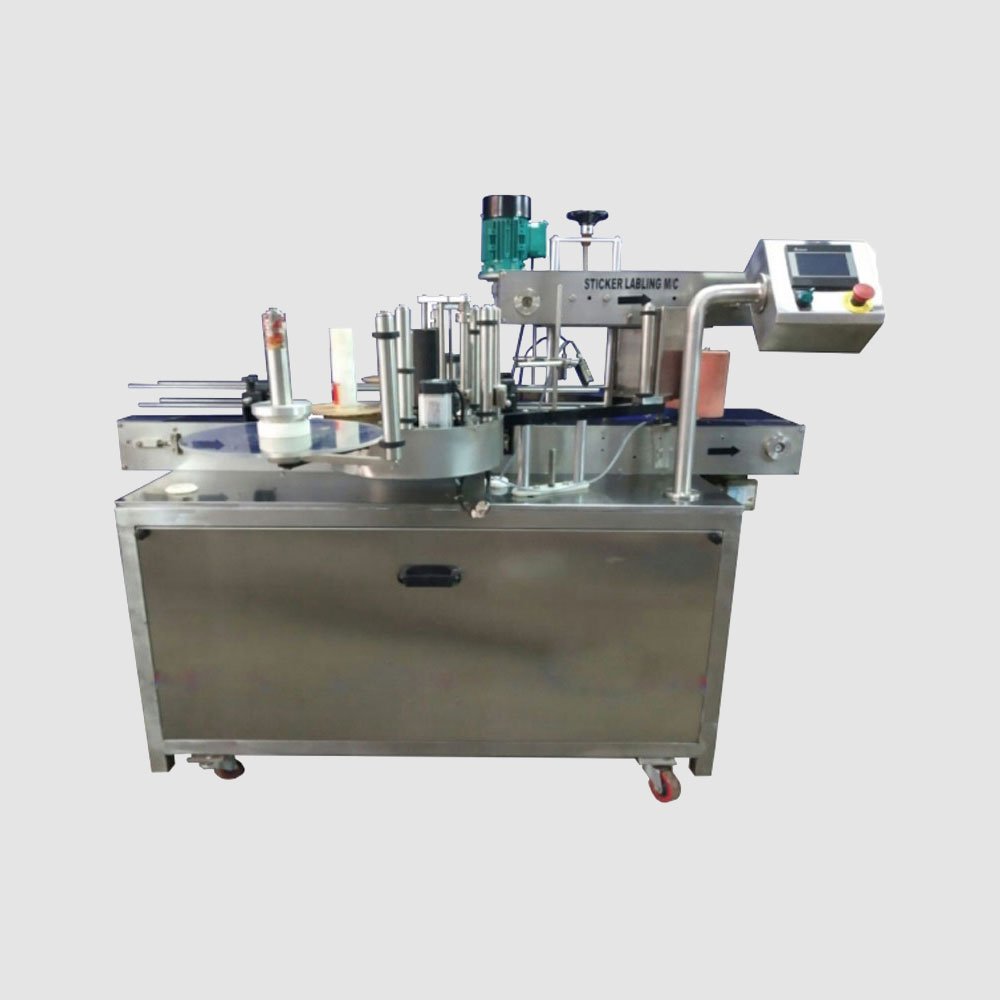

Automatic Flat Bottle Sticker Labeling Machine
Elevate Your Packaging Efficiency with High-Performance Flat & Oval Container Labeling
In the modern manufacturing landscape, precision, speed, and versatility are the cornerstones of an efficient packaging line. The Harsiddh Automatic Double-Side Flat Bottle Sticker Labeler stands as the industry-leading benchmark for seamlessly applying pressure-sensitive labels to non-cylindrical containers. Engineered for high-throughput environments, this state-of-the-art machinery eliminates the bottlenecks of manual alignment, delivering flawless, bubble-free, and high-speed dual-sided labeling.
Whether you are looking to label sleek cosmetic flasks, rugged chemical jerricans, or daily consumer goods, this machine adapts dynamically to your production needs. Its sleek, inline linear design guarantees a minimal footprint while offering effortless integration into your pre-existing downstream packaging systems.
Why Choose the Harsiddh Automatic Flat Bottle Labeling System?
1. Dual-Sided Precision in a Single Pass
Why invest in separate setups for front and back labels? Our automatic sticker labeler features synchronized dual-dispensing heads that apply both the front and rear labels simultaneously. This advanced mechanism ensures perfect horizontal and vertical alignment every single time, drastically reducing cycle times and increasing your daily output.
2. Universal Container Compatibility
While optimized primarily for flat, square, rectangular, and oval containers, this system boasts incredible versatility. With minor adjustments and modular add-ons, the machine can be reconfigured to handle wrap-around labeling for round bottles. This multi-functional capability makes it a future-proof investment for facilities handling diverse product portfolios.
3. Advanced Stabilization Technology
Lightweight plastic bottles or top-heavy containers can easily wobble or shift at high speeds. To counter this, our machine is equipped with a synchronized top-pressing conveyor belt. By securely holding each container from the upper cap or neck during the application phase, it guarantees zero tilting, leading to pinpoint label placement accuracy.
4. User-Friendly Automation & Controls
Built for modern smart factories, the system is integrated with an intuitive Human-Machine Interface (HMI) paired with a robust Programmable Logic Controller (PLC). Operators can easily store multiple product recipes, adjust conveyor speeds, fine-tune label dispensing lengths, and monitor real-time diagnostics with just a few taps on the touchscreen.
A Reliable, High-Efficiency Operational Workflow
The Harsiddh Automatic Flat Bottle Sticker Labeler operates on a continuous, automated workflow designed to maximize uptime and eliminate product damage. Here is a step-by-step breakdown of its operational cycle:
- Step 1: In-feed & Automated Spacing: Containers enter the robust conveyor belt smoothly. To prevent bottlenecking and ensure flawless timing, a specialized rotary worm gear or pocket wheel system separates the containers, creating uniform, precise gaps before they reach the labeling zone.
- Step 2: Dual-Point Stabilization: As the spaced containers move forward, an adjustable top-holding conveyor matches the speed of the main belt exactly, clamping the bottles gently but firmly to neutralize any vibrations.
- Step 3: Precision Sensing & Dual Dispensing: High-accuracy photoelectric sensors detect the exact leading edge of the container. Instantly, the dual label applicators dispense the front and back stickers precisely onto the target surface.
- Step 4: Wrinkle-Free Pressing & Finishing: Immediately after application, the containers pass through specialized flexible brushes or high-density foam rollers. These finishing elements apply uniform pressure across the label surface, squeezing out trapped air to ensure a pristine, bubble-free, and completely flat finish.
- Step 5: Smooth Discharge: The perfectly labeled containers are moved to the end of the conveyor line, where they are effortlessly transitioned to a collection tray, accumulating turntable, or directly to an automatic inspection and packing station.

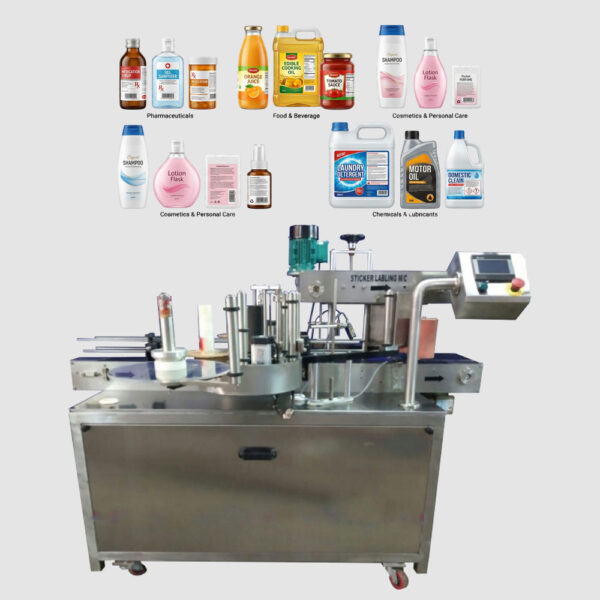

Cross-Industry Applications
Our high-performance flat bottle labeling machine is a versatile asset engineered to meet the stringent quality compliance standards of multiple industrial sectors:
- Pharmaceuticals & Healthcare: Ideal for labeling cough syrups, flat supplement bottles, medical alcohol containers, and hand sanitizers requiring clear, unblemished regulatory and dosage information.
- Cosmetics & Personal Care: Perfect for premium shampoo bottles, body lotions, face washes, and perfume flasks where aesthetic appeal and pristine label alignment directly impact brand value.
- Food & Beverage: Used extensively for dressing bottles, cooking oil cans, fruit juice flasks, and condiment jars, supporting both glass and HDPE/PET plastics.
- Agrochemicals & Household Chemicals: Built to handle heavy-duty jerrycans, engine oil containers, pesticides, and liquid detergents with durable, chemical-resistant label application.
Key Technical Specifications & Features
- Heavy-Duty Construction: Fabricated entirely from premium-grade AISI 304 Stainless Steel and anodized aluminum to withstand harsh industrial environments and ensure long-term durability Simon.
- No Bottle – No Label System: Integrated smart sensors ensure that if there is a gap in the production line and no bottle passes through, the machine will not dispense a label, preventing material wastage and sticky conveyor belts.
- Microprocessor/PLC-Driven Control: Features advanced stepper or servo-motor-driven label dispensing heads for unmatched accuracy at varying operational speeds.
- Flexible Adjustments: No tool changes are required for standard container variations. Hand-wheel mechanisms allow quick width, height, and tilt adjustments for different bottle sizes.
- Optional Upgrades Available: Can be integrated with hot-foil coding systems, inkjet printers, thermal transfer overprinters (TTO) for batch coding, and vision inspection systems with automatic reject mechanisms.
Technical Specification
| Feature | Details (HBDL-100DS) |
|---|---|
| Production Output | Up to 80 – 120 Bottles/Min |
| Container Type | Flat, Oval, Square, Rectangular |
| Label Height | 10 mm to 160 mm |
| Label Length | 12 mm to Unlimited |
| Accuracy | ± 1 mm |
| Power Drive | 2.0 H.P. |
| Electrical Supply | 230V, Single Phase, 50 Hz |
| Dimensions (LxWxH) | 1900 mm x 1400 mm x 1200 mm |
Frequently Asked Questions
How does the machine ensure the label is applied straight and without bubbles?
Precision is achieved through a multi-stage stabilization process:
Top Hold-Down Belt: A motorized overhead belt stabilizes the bottle from the top to prevent vibrating or tilting as it moves along the conveyor.
Synchronized Dispensing: The stepper or servo motor ensures the label is released at the exact speed of the bottle's travel.
Foam Pressing Rollers: After application, the bottle passes through flexible foam rollers or nylon brushes that "wipe" the label onto the surface, ensuring 100% adhesion and a wrinkle-free finish.
Can this machine perform both single-side and double-side labeling?
The standard Flat Bottle Sticker Labeling Machine is typically configured for single-side (front or back) application. However, Harsiddh offers a Double-Side model equipped with two independent labeling heads. This allows for the simultaneous application of a front "brand" label and a back "ingredients" label in a single pass, significantly increasing production efficiency for retail-ready products.
How difficult is it to switch between different bottle sizes?
The machine is designed for rapid "tool-less" changeovers. It features calibrated handwheels and scales that allow operators to adjust the height of the labeling head and the width of the conveyor guides in minutes. Furthermore, the PLC-based Touchscreen HMI allows you to save "recipes" or specific speed and timing settings for different bottle sizes, making it easy to switch from a 100ml bottle to a 500ml container.
What are the key "Smart" features for quality control and waste reduction?
To ensure high-speed reliability and cost-effectiveness, the Harsiddh machine includes:
"No Bottle – No Label" System: An electronic sensor ensures that a label is only dispensed when a bottle is detected, preventing adhesive buildup on the conveyor.
Label Gap & End Sensors: The machine automatically detects the gap between stickers and triggers an alarm if the label roll is empty or if a label is missing from the roll.
Optional Coding Integration: The machine can be fitted with a TIJ (Inkjet) or Hot Foil Coder to print Batch Numbers and Expiry Dates directly onto the labels during the labeling process.
