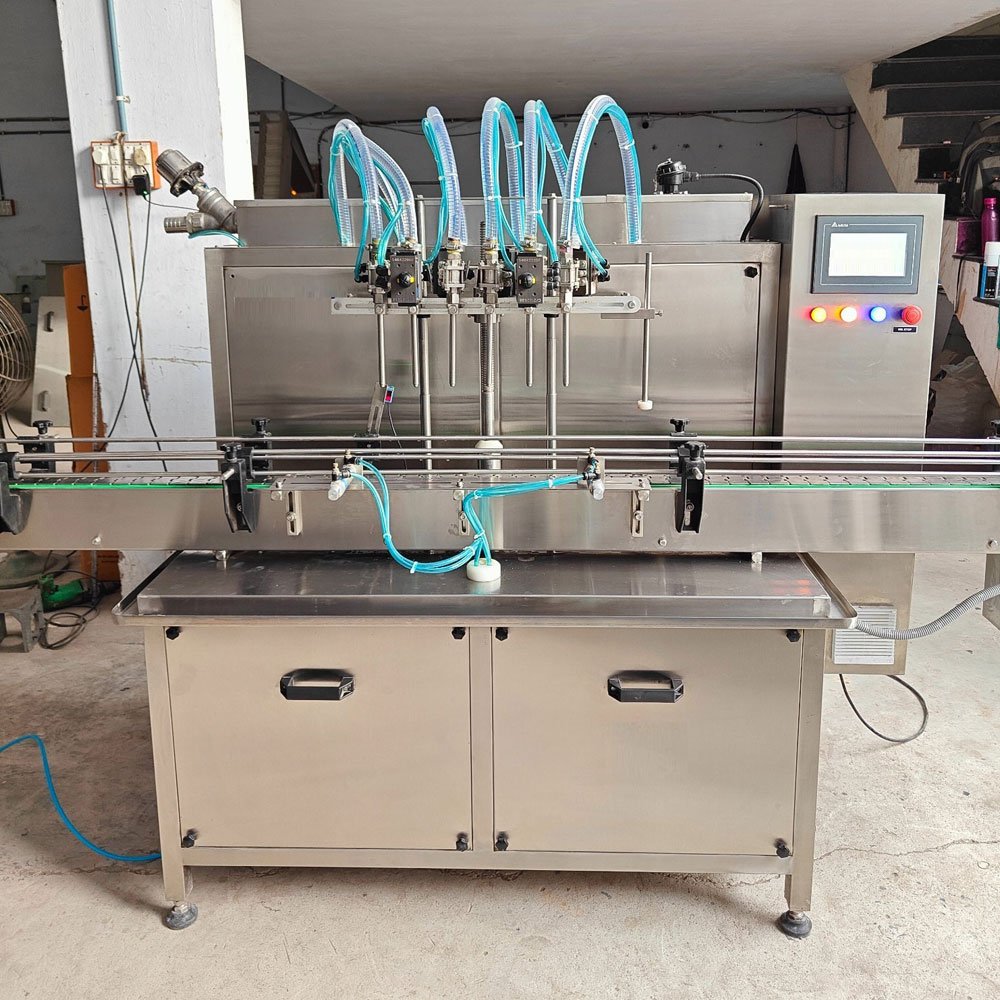

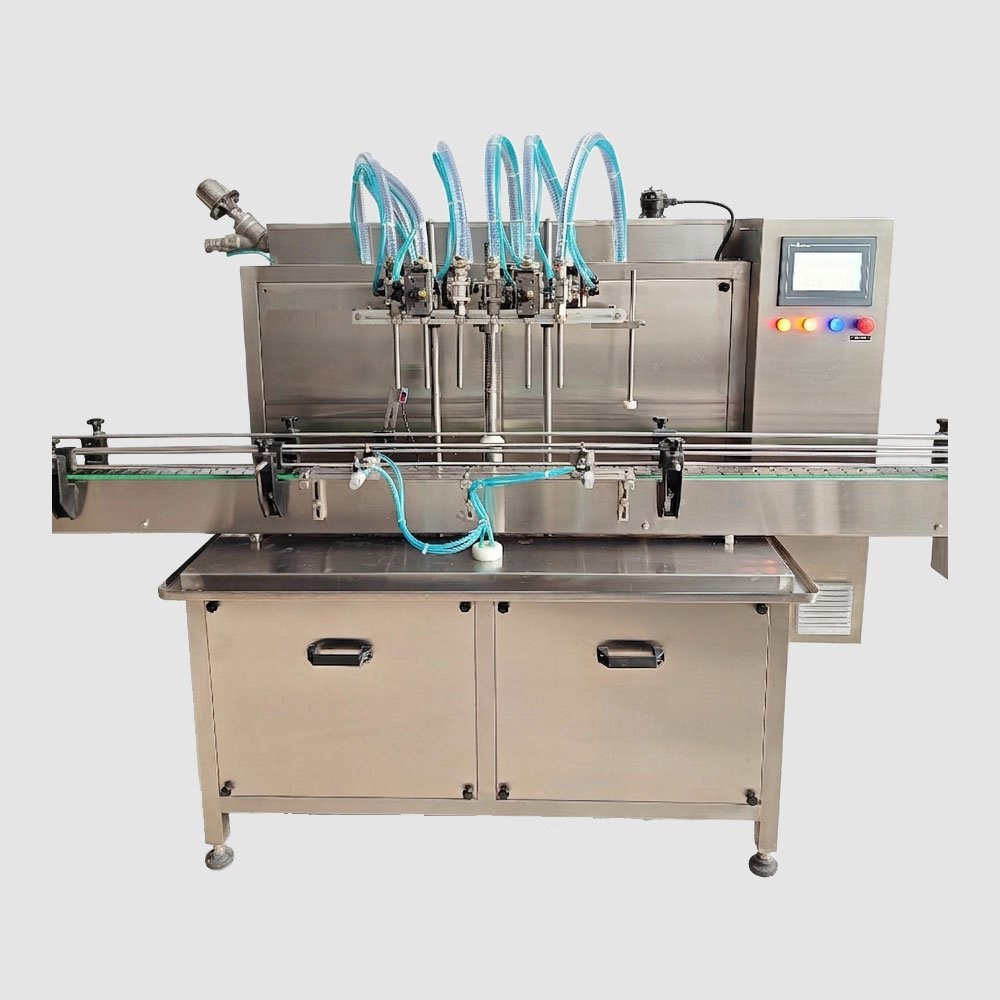

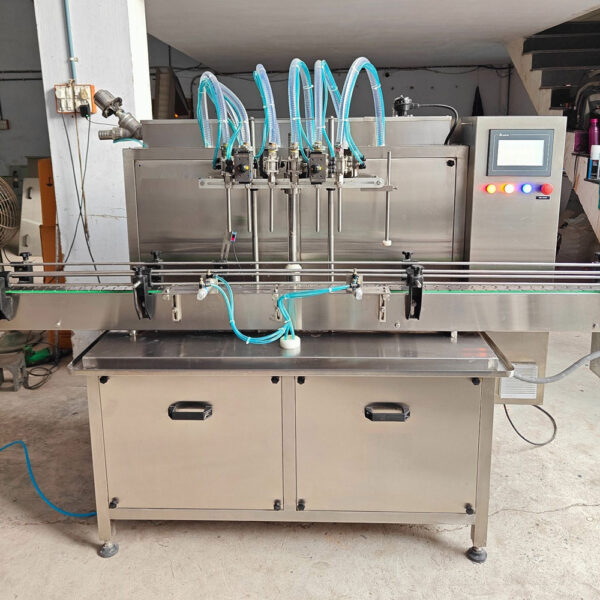

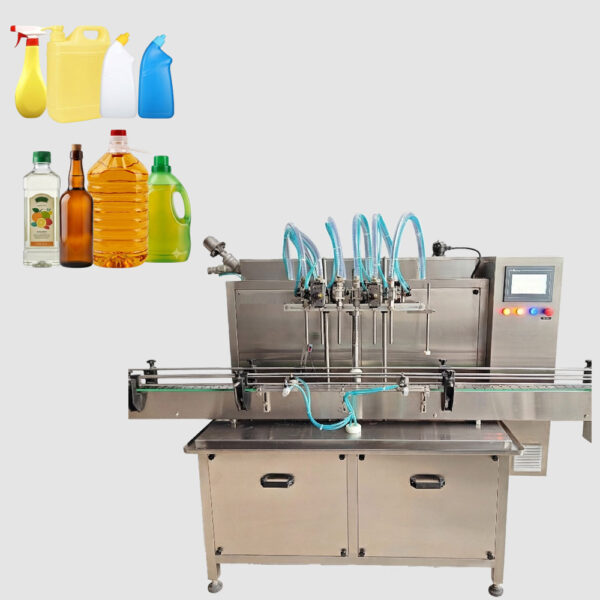

Automatic Viscous Liquid Filling Machine

High-Precision Volumetric Dosing for Thick, Semi-Solid, and High-Viscosity Products

In the industrial manufacturing and packaging landscape, handling high-viscosity, dense, or semi-solid materials presents a distinct set of operational challenges. Standard gravity or vacuum filling systems often fail to manage thick consistencies, resulting in uneven dosing, persistent dripping, and extensive production downtime.

The Automatic Viscous Liquid Filling Machine designed and manufactured by Harsiddh Unimach Pvt. Ltd. represents a significant advancement in heavy-duty packaging technology. Specifically engineered to bypass the limitations of traditional filling equipment, this high-performance system delivers exact volumetric accuracy, smooth container handling, and exceptionally clean operation across a wide variety of dense formulations.

Technical Architecture and Core Mechanics

The efficiency of handling highly viscous materials relies heavily on the mechanical delivery system. Rather than forcing dense materials through standard pneumatic valves, this machinery utilizes a combination of advanced servo-driven gear pumps and a strategically elevated, high-capacity product storage tank.

1. Servo-Driven Precision Dosing

At the heart of the system is an advanced servo motor configuration that directly controls heavy-duty gear pumps. Unlike pneumatic cylinders that are prone to subtle fluctuations in air pressure, a servo-driven mechanical architecture offers absolute rotational control. The onboard PLC programs the exact number of pump rotations required for each fill cycle down to a fraction of a millimeter. This ensures that even when dealing with products where density changes with factory temperature ambient shifts, the target volumetric weight remains consistently precise.

2. High-Capacity Stabilizing Storage Tank

Viscous products require consistent head pressure to feed cleanly into a dosing assembly. The integrated high-capacity storage buffer tank serves as a centralized product reservoir. It stabilizes material pressure prior to entering the pump manifold, effectively eliminating air pockets, cavitation, and structural shearing of sensitive semi-solid emulsions.

3. Diving Nozzle Architecture & Anti-Drip Technology

To combat the natural tendency of thick liquids to string, tail, or overflow around container openings, the machine features a sophisticated diving nozzle array. Controlled by a synchronized mechanical lift, the nozzles descend deep into the base of the container before dispensing begins. As the liquid levels rise, the nozzles smoothly retract in tandem (bottom-up filling). This motion prevents air entrapment, eliminates foaming, and cuts off the product flow cleanly. An active pneumatic cut-off and fluid-scavenging suck-back mechanism ensures zero product dripping onto the conveyor lines.

Fully Automated Sequence of Operation

Engineered for seamless integration into high-speed, continuous packaging lines, the machine operates through a strictly synchronized, sensor-monitored automation workflow.

[Automatic In-Feed via Conveyor]
               │
               ▼
   [Smart Indexing & Gating]
               │
               ▼
[Pneumatic Diving Nozzles Descend] ◄─── (No Container, No Fill Sensor)
               │
               ▼
[Servo Gear Pump Volumetric Dispensing]
               │
               ▼
[Clean Cut-off & Nozzle Retraction]
               │
               ▼
[Downstream Discharge to Capping/Labeling]

Step 1: Automatic In-Feed System

Empty containers—whether constructed of fragile glass, lightweight PET, heavy HDPE, or aluminum jars—are smoothly introduced onto the system’s primary conveyor line. The system can easily interface directly with an upstream rotary feeding turntable or accept containers arriving continuously from a previous cleaning or air-washing station.

Step 2: Smart Indexing and Optical Gating

As containers approach the filling zone, a highly precise pneumatic indexing gate system manages their entry. Advanced photoelectric sensors detect the exact physical profile of the incoming containers. The indexing pins align the bottles perfectly beneath the multi-head dispensing manifold, stopping them firmly in place without structural stress or risk of tipping.

Step 3: “No Container, No Fill” Protection

To completely avoid material waste and time-consuming cleanups, the control system employs a rigorous optical cross-check. If a gap occurs in the incoming bottle feed, or if a container is missing from a specific slot beneath the manifold, the individual sensor flags the PLC. The corresponding servo pump remains idle for that cycle, while the surrounding active heads continue normal operations.

Step 4: Synchronized Volumetric Dispensing

Once the containers are confirmed in position, the diving nozzles lower into the necks. The servo gear pumps engage instantly, moving the heavy, semi-solid material from the upper stabilization tank through the fluid path and into the container. The rate of extrusion is fully programmable via the human-machine interface (HMI), allowing operators to slow down or speed up specific phases of a single filling stroke to manage complex product characteristics.

Step 5: Clean Discharge and Downstream Transfer

Following a precise bottom-up fill cycle, the nozzles pull away cleanly with an automated suck-back sequence to catch any residual product. The exit indexing gate retracts, and the filled containers are smoothly accelerated down the sanitary conveyor belt. The line delivers them directly to downstream operations, such as automatic capping, induction sealing, and high-speed labeling machinery. This synchronized motion enables the system to reliably maintain a high-volume throughput of up to 100 containers per minute, depending on total volume fills and material flow dynamics.

Industrial Applications Across Critical Sectors

The versatile, highly adaptable design of this filling equipment makes it an essential asset across multiple highly regulated industrial sectors:

• Pharmaceutical & Biomedical: Ideal for packaging high-viscosity medicated ointments, oral suspensions, concentrated syrups, topical gels, and sterile creams into amber bottles or jars where strict volumetric dosage adherence is mandatory.
• Cosmetics & Personal Care: Perfectly suited for processing heavy body lotions, thick hair conditioners, skin creams, face masks, petroleum jellies, shampoos, and liquid foundations without altering product texture or introducing air bubbles.
• Food & Beverage Processing: Capable of handling dense, high-viscosity food items including honey, chocolate syrups, heavy sauces, spreads, peanut butter, fruit pulps, purees, and salad dressings with complete hygienic compliance.
• Chemical & Industrial Fluids: Smoothly handles aggressive or dense chemical formulations such as engine oils, industrial lubricants, liquid detergents, adhesives, specialized resins, liquid polishes, and paints.

Technical Specification

Key Benefits of Partnering with Harsiddh Unimach Pvt. Ltd.

Investing in automation from Harsiddh Unimach Pvt. Ltd. guarantees a balance of rugged durability, modern engineering, and long-term cost efficiency:

• Premium Material Construction: All contact parts are meticulously crafted from high-grade Stainless Steel (SS 316) to ensure complete chemical compatibility, prevent corrosion, and comply fully with international cGMP sanitation standards.
• Toolless Product Changeover: Recognizing that modern factories need to run multiple product lines, our machine features a toolless disassembly path for the fluid manifold, pumps, and nozzles, which dramatically reduces product batch changeover times.
• User-Friendly PLC & HMI Interface: The system features an intuitive touch-screen interface where operators can save unique recipe parameters for various product densities and container sizes, allowing for rapid settings recall.
• Reduced Product Giveaway: The extreme precision of the servo-driven gear pumps eliminates overfilling margins, conserving valuable raw materials and directly enhancing bottom-line profitability.
