Premium Industrial Grade: Automatic Rotary Ampoule Washing Machine

Advanced High-Speed Sterile Cleaning Solutions for Large-Scale Pharmaceutical Operations

In modern pharmaceutical manufacturing and high-output chemical packaging, maintaining uncompromising sterility while preserving container integrity is paramount. The modern production ecosystem demands speed, repeatable precision, and stringent compliance with global regulatory frameworks. Engineering teams require robust, high-performance machinery capable of seamlessly processing high volumes of delicate glass containers without risking micro-fractures, contamination, or mechanical downtime.

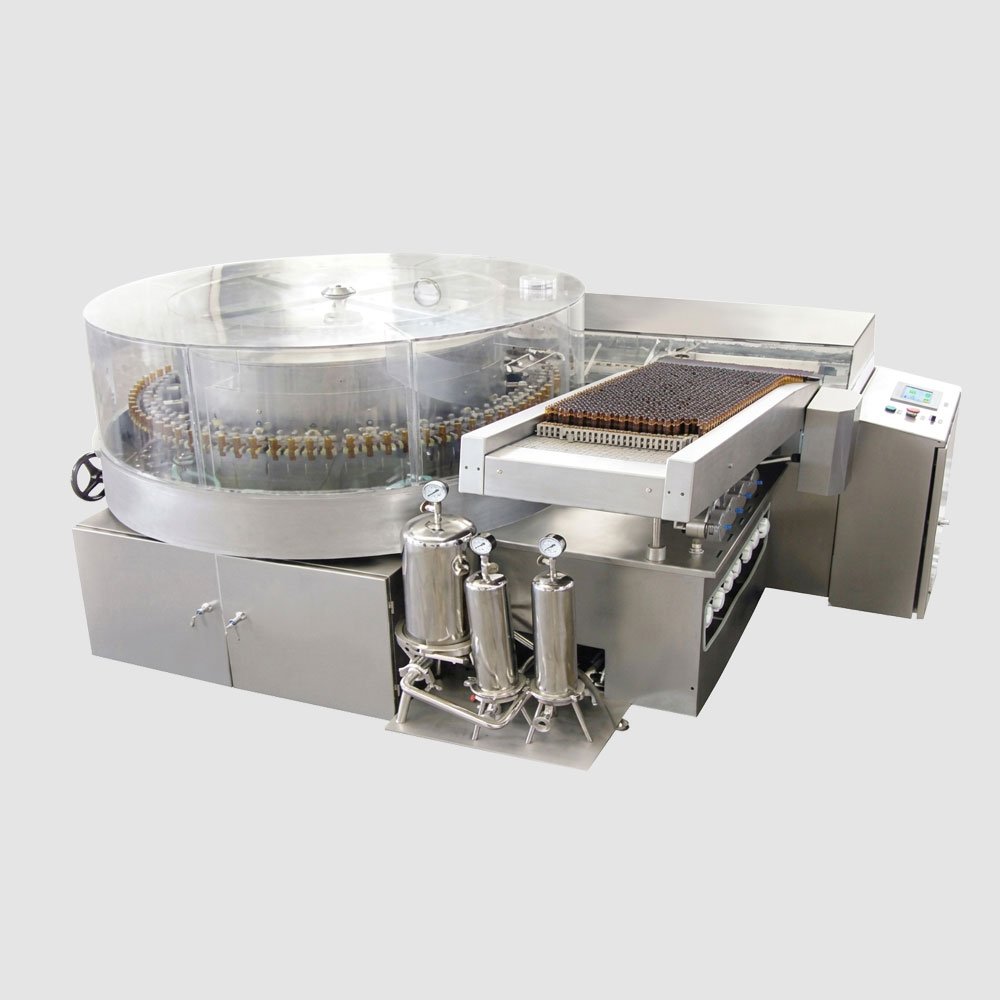

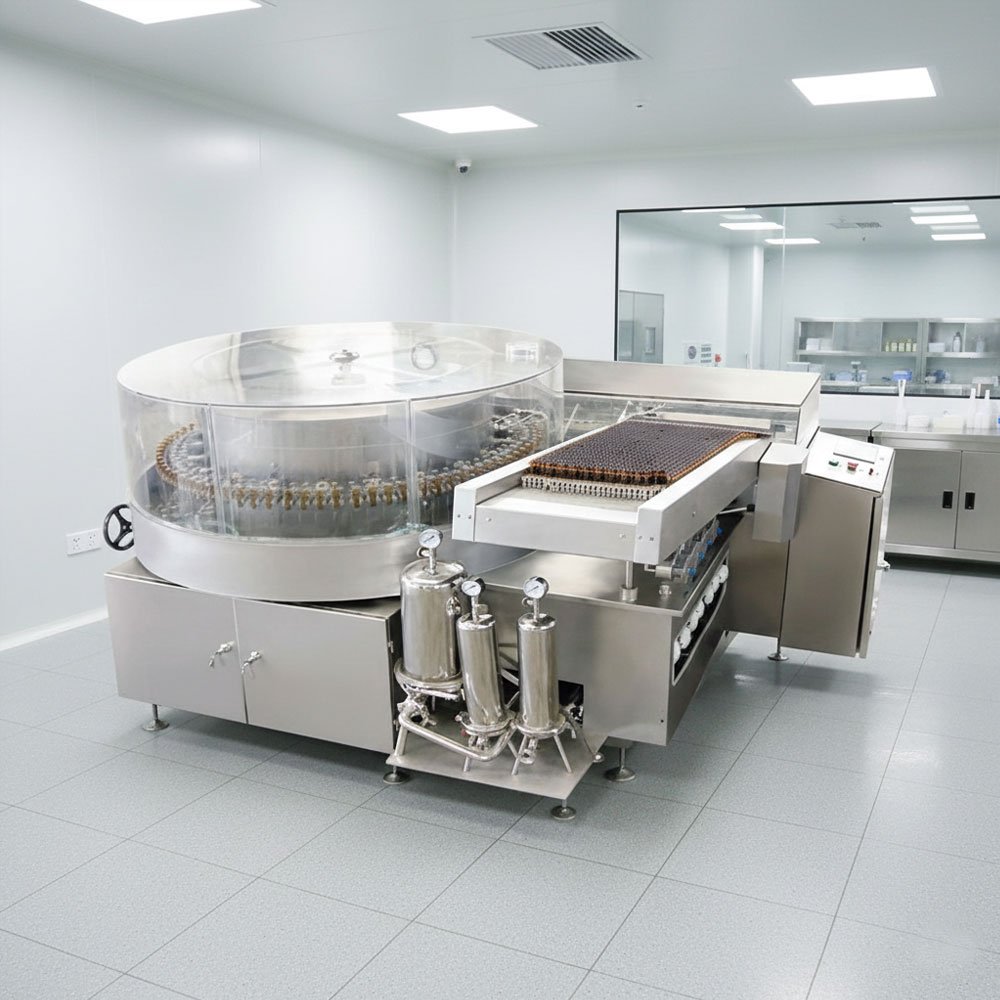

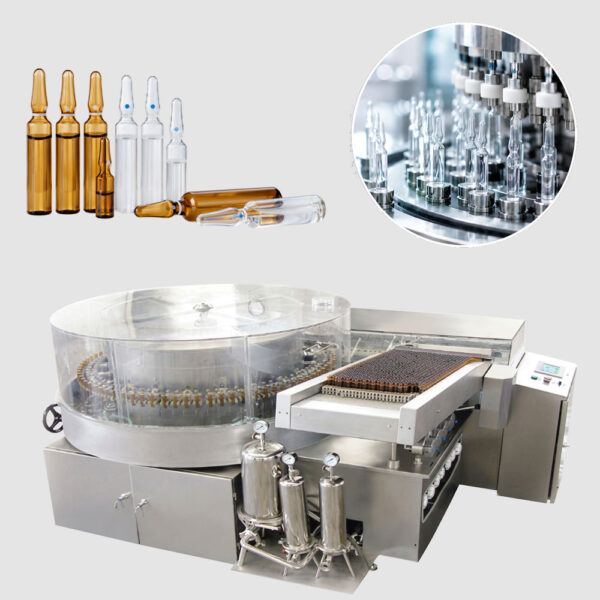

The Advanced Automatic Rotary Ampoule Washing Machine stands as a pinnacle of engineering excellence, specifically designed to address the complex requirements of high-capacity sterile processing lines. Engineered for seamless integration into fully automated parenteral production setups, this machine provides an ultra-reliable, continuous, and highly efficient solution for multi-stage internal and external container decontamination. By combining intelligent mechanical automation with customizable fluid dynamics, it ensures that every processed container surpasses the rigorous particle-free criteria demanded by regulatory institutions worldwide.

State-of-the-Art Neck-Gripping & Inversion Mechanism

Traditional container washing systems often rely on bulk handling or rigid mechanical channels that exert unnecessary friction on delicate glass surfaces. Such methods frequently lead to cosmetic defects, hairline cracks, or structural failures during high-temperature sterilization cycles later in the production line.

To overcome these structural risks, this advanced rotary washing system utilizes a proprietary, highly sophisticated automatic neck-gripping mechanism. This innovative technology represents a paradigm shift in how delicate primary packaging components are handled:

1. Precision Pick-and-Place Synchronization: As containers advance through the initial feed system, the specialized, non-marring gripping arms smoothly secure each ampoule precisely by its neck. This localized grip isolates mechanical pressure to the sturdiest part of the container.
2. Complete 180-Degree Inversion: Once secured, the mechanical assembly performs a synchronized inversion, turning the containers completely upside down. This alignment places the container opening directly above the high-pressure cleaning nozzles, ensuring optimal gravity-assisted drainage of particulates and fluids.
3. Contactless Body Handling: Throughout the intensive wash cycles, the body of the container remains entirely untouched by metal or abrasive components. This structural isolation eliminates the risk of scuffing, cracking, or thermal stress, preserving the absolute cosmetic and physical integrity of the glass.
4. Upright Discharging Workflow: Following the completion of the multi-stage decontamination process, the mechanism returns the containers to their upright position. They are then smoothly transferred into a precision-engineered discharge worm system, which channels them forward into downstream sterilization tunnels or filling units without manual intervention.

High-Performance Operational & Structural Attributes

This industrial-grade machinery is designed to optimize operational throughput while minimizing resource consumption. Every mechanical feature is engineered to provide continuous, high-volume performance under heavy-duty shifts.

Ultimate Throughput for High-Volume Production

Time is a critical asset in commercial pharmaceutical production. This rotary washer boasts an exceptional processing capacity, capable of handling up to 240 ampoules per minute. This high-speed operational envelope ensures that the pre-filling preparation phase never becomes a bottleneck, enabling manufacturing facilities to maximize daily output and effortlessly scale their production workflows.

Comprehensive Multi-Stage Decontamination Profile

To guarantee an absolute particulate-free environment, the machine features a sophisticated layout of 6 specialized washing stations. This multi-tiered cleansing matrix ensures that every container undergoes a comprehensive cleaning process:

• Targeted Fluid Delivery: Each station is integrated with 3 specialized liquid needles designed to inject cleaning solutions or water for injection (WFI) deep into the container core.
• High-Pressure Purging: Complementing the liquid needles are 3 high-velocity air-blowing needles. These deliver sterile, filtered compressed air to purge residual moisture, loosen adherent particulates, and accelerate drying.
• Iterative Internal Washing: This alternating matrix of fluid washing and air purging ensures that the inner contours of the container are completely scrubbed of manufacturing dust, glass micro-shards, and chemical residues.

Multi-Media Architecture & Fluid Management

Different processing protocols demand the sequential use of distinct cleaning media—such as recycled water, demineralized water, fresh distilled water, or compressed gas. This machine accommodates these specialized recipes through an advanced, self-contained fluid infrastructure:

• Independent Reservoirs: The unit features three separate 25-liter storage tanks, allowing operators to isolate different cleaning solutions without risking cross-contamination.
• Dedicated High-Pressure Pumps: Supported by three independent, heavy-duty pumps, the system maintains consistent, calibrated pressure zones across all washing loops. This ensures that every cleaning fluid is delivered at the exact pressure required for optimal kinetic decontamination.

Universal Dimensional Flexibility

Modern contract manufacturing organizations (CMOs) and flexible pharmaceutical plants must adapt to varying batch requirements. This rotary series offers extensive processing versatility, handling container capacities ranging from 1ml up to 10ml with absolute precision. Changeovers between different container sizes are streamlined, minimizing mechanical adjustments and reducing system downtime between validation batches.

Industrial Engineering Excellence & Strict cGMP Compliance

In sterile processing environments, the design and material composition of machinery are just as critical as its functional performance. This system is fabricated to meet and exceed contemporary international manufacturing standards.

Advanced Automation and Contamination Mitigation

Human intervention is statistically the leading source of contamination in sterile packaging environments. To eliminate this variable, this machine features an entirely automated in-feed and exit system. Containers move directly from tray-loading zones or manufacturing steps through integrated conveyor belts, guiding worms, and rotary dials without being touched by operators. This hands-free workflow reduces the potential for biological contamination and safeguards line operators from potential glass breakage injuries.

Technical Specification

Why Choose the Advanced Rotary Series?

Selecting primary packaging equipment requires analyzing long-term return on investment (ROI), machine reliability, and validation ease. This Automatic Rotary Ampoule Washing Machine stands out as the premier market solution for several reasons:

• Unrivaled Sterility Assurance: The combination of dedicated mechanical inversion, independent fluid lines, and multi-stage air/water purging cycles ensures that containers consistently exceed strict particulate and microbial control limits.
• Lower Total Cost of Ownership (TCO): Built using robust components and premium stainless steel, this machinery minimizes wear and tear. Its low-maintenance design ensures a long operational lifespan with minimal replacement part costs.
• Simplified Regulatory Validation: Every weld, surface finish, and mechanical path complies strictly with cGMP criteria. This thorough design simplifies the creation of IQ/OQ (Installation Qualification/Operational Qualification) documentation, accelerating the system’s time-to-market.
• Enhanced Production Flexibility: The ability to handle 1ml to 10ml volumes combined with rapid changeover parameters makes this system an invaluable asset for facilities handling diverse product lines and varying batch scales.

When speed, process reliability, and absolute sterility are non-negotiable requirements for your parenteral manufacturing line, this Automatic Rotary Ampoule Washing Machine delivers the advanced performance, structural longevity, and operational safety your facility requires to thrive in a highly regulated global market.
