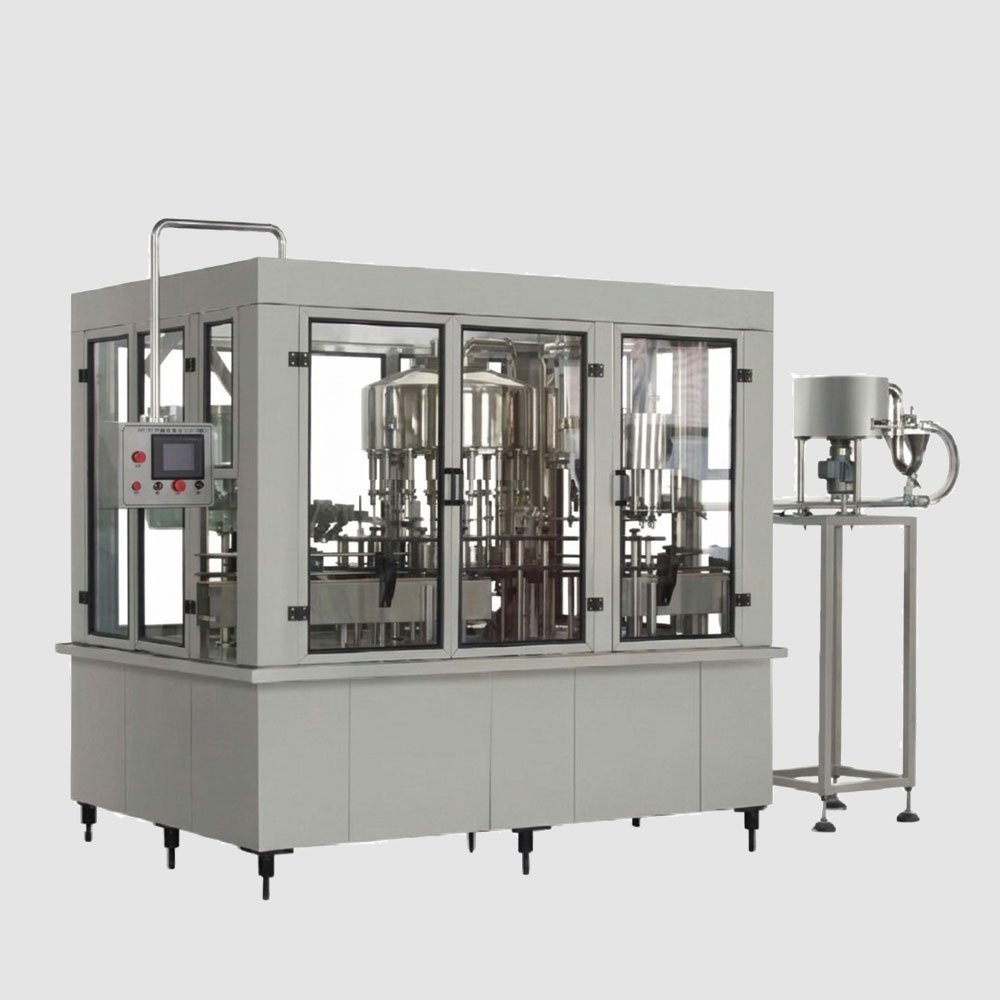

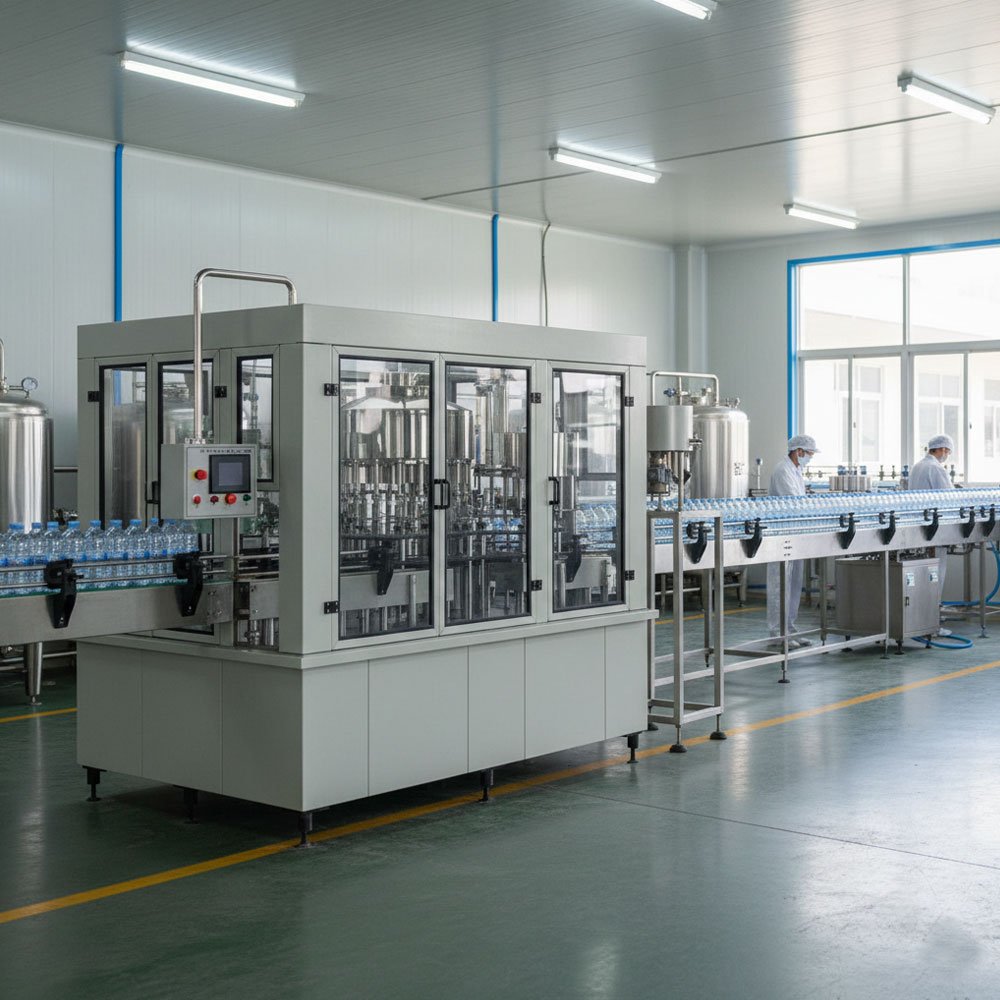

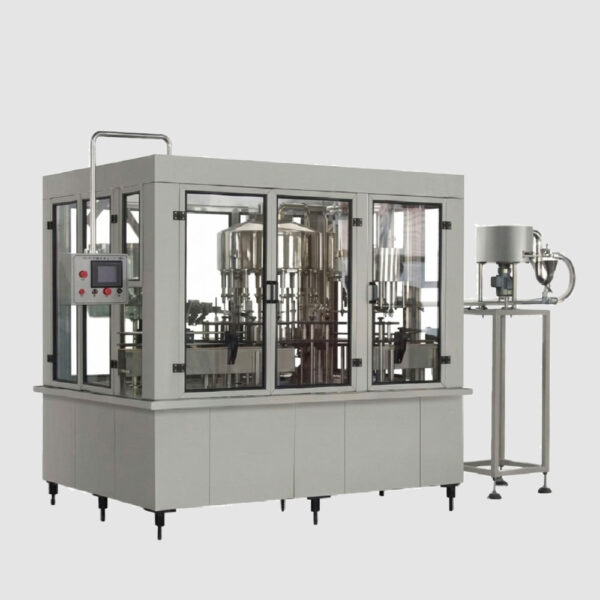

Automatic Mineral Water Bottle Filling Machine

High-Efficiency Bottling Solutions

In the modern commercial beverage and packaged drinking water industry, maintaining product purity while scaling up production speed is the ultimate key to profitability. Harsiddh Unimach Pvt. Ltd. offers an advanced, industrial-grade Automatic Mineral Water Bottle Filling Machine—a definitive engineering breakthrough tailored for high-speed, contamination-free bottling.

Engineered specifically to cater to turnkey mineral water projects, large-scale commercial packaging facilities, and strict ISI-standard purification plants, this Monoblock system integrates three core manufacturing phases into a single, seamless, automated footprint. By combining rigorous rinsing, high-precision gravity filling, and hermetic capping within an isolated environment, this machinery eliminates human intervention, drastically cuts operational overhead, and optimizes floor space utilization.

The Monoblock Advantage: Synchronized Rinsing, Filling & Capping

Traditional, multi-stage bottling configurations rely on expansive conveyor setups that expose open containers to ambient environment risks, increasing the potential for particulate or microbiological contamination. The Harsiddh Automatic Mineral Water Bottle Filling Machine counters this vulnerability using an integrated 3-in-1 Monoblock architecture.

By housing the washing, volumetric filling, and torque-controlled sealing mechanisms inside a unified structural enclosure, the bottles move through a highly controlled, high-speed cycle. This minimized transit time between stations ensures that from the moment a bottle is sanitized, it is immediately filled and sealed, preserving the pristine quality of your processed mineral water.

Engineering Excellence: Comprehensive Product Features

1. Robust Sanitary Construction

Built entirely from premium-grade Stainless Steel (SS 304/SS 316 structural components and contact parts), the machine offers exceptional resistance against corrosion, moisture oxidation, and intensive chemical cleaning agents. The smooth, polished surfaces prevent bacterial adherence, making the entire system compliant with stringent national and international food-grade hygiene benchmarks.

2. Advanced Neck-Holding Star Wheel Technology

To prevent bottle deformation during high-speed handling—especially crucial when utilizing lightweight, cost-effective PET bottles—the machine employs an advanced pneumatic air conveyor paired with mechanical neck-holding star wheels. The bottles are securely suspended and guided by their collars rather than their bases, allowing seamless processing of multiple bottle volumes with minimal changeover components.

3. Smart PLC and Touchscreen Interface

The automation backbone features an industrial PLC system paired with an intuitive touchscreen Human-Machine Interface (HMI). Operators can monitor production metrics in real-time, modify filling cycle parameters, track output metrics, and troubleshoot via automated on-screen diagnostics, reducing the need for specialized technical oversight.

4. Zero-Drip, High-Precision Filling Valves

Equipped with specialized gravity-fed filling nozzles, the machine achieves uniform fill heights across every batch. The advanced sensor array ensures a “No Bottle, No Fill” protocol, eliminating product wastage, keeping the conveyor assembly dry, and maintaining absolute cleanliness across the production floor.

Reliable Operational Workflow: Step-by-Step

The machine maintains an exceptionally stable, vibration-free flow across three distinct automated zones. The sequence of operation is meticulously timed to ensure maximum efficiency:

[ Air Conveyor Feed ] ➔ [ 1. Internal Rinsing Zone ] ➔ [ 2. Gravity Precision Filling ] ➔ [ 3. High-Torque Automatic Capping ] ➔ [ Slat Conveyor Discharge ]

Zone 1: Infeed and High-Pressure Rinsing

Empty PET bottles are fed into the system through an aerodynamic air conveyance line. Upon entry, custom-engineered gripping star wheels mechanically secure each bottle by the neck and invert them precisely 180 degrees over high-pressure water indexing jets. These nozzles spray treated water deep into the interior of each container, instantly dislodging and flushing away fine airborne dust, static micro-particles, or manufacturing residues. Post-rinse, the bottles are drained and inverted back to an upright position.

Zone 2: Precision Gravity Filling

The sanitized, upright bottles transfer directly to the filling carousel. Here, individual gravity filling valves lower into the neck of the bottles. The water is dispensed evenly, relying on stable gravity principles that prevent splashing or turbulence-induced aeration. Integrated level-sensing probes detect when the liquid reaches the precise pre-configured fill height, instantly shutting off the valve. This guarantees strict volume consistency, ensuring every bottle matches retail packaging mandates.

Zone 3: High-Torque Automatic Capping

Once filled, the open bottles advance immediately to the capping station to eliminate open-air exposure. Meanwhile, an automated rotary cap elevator and orienter sort, align, and feed caps into an organized delivery chute. As a bottle passes underneath, it picks up a cap, which is then engaged by a specialized magnetic hysteresis capping head. The head applies an exact, adjustable torque, tightening the cap to establish a tamper-evident, leak-proof hermetic seal without risking thread striping or bottle neck distortion.

Final Zone: Discharge Line

Sealed bottles are transferred smoothly from the capping star wheel onto a continuous-motion, variable-speed stainless steel slat conveyor. From this stage, the completed products move forward to secondary downstream packaging processes, including online batch coding, automated labeling, shrink-sleeve application, and final case packing.

Technical Specifications & Integration Capabilities

Designed to serve as the core engine of your packaging plant, this machinery is built for seamless upstream and downstream integration.

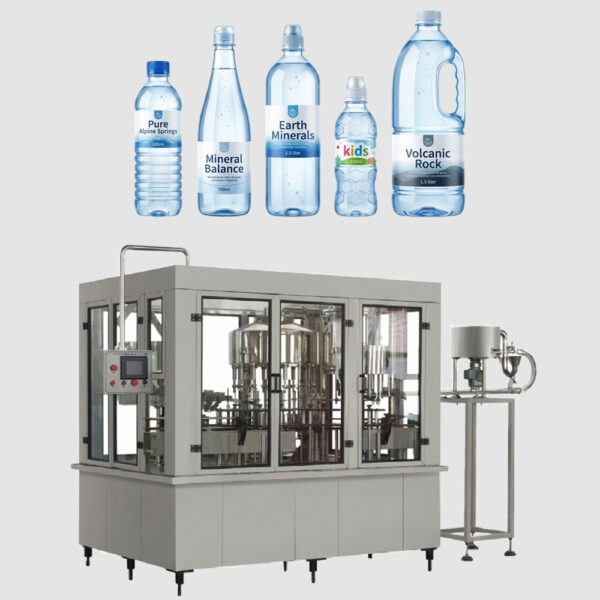

• Supported Container Types: PET, HDPE, and rigid plastic bottles.
• Liquid Compatibility: Mineral water, purified drinking water, plain spring water, and non-carbonated clear liquids.
• Control Mechanism: Microprocessor-based PLC with integrated sensory feedback loops.
• Conveyor Support: Integrated synchronization with automated air infeed conveyors and variable-frequency drive (VFD) slat discharge conveyors.
• Safety Systems: Enclosed acrylic safety doors with automatic emergency interlocks that stop operations instantly if opened during a production cycle.

Strategic Advantages for Water Packaging Plants

• ISI-Standard Plant Compliance: The fully automated, hands-free workflow satisfies the stringent clean-room parameters required to secure and sustain Bureau of Indian Standards (BIS) and ISI certifications.
• Minimized Operational Overhead: By automating rinsing, filling, and capping into a single mechanical unit managed by a single operator, your plant drastically cuts down on manual labor costs and associated human error.
• Drastically Reduced Failure Rates: The mechanical synchronization of star wheels eliminates standard conveyor bottlenecks, jams, and tip-overs, guaranteeing a consistently low failure rate and maximized equipment uptime.
• Footprint Optimization: Its compact Monoblock footprint takes up less than half the floor space compared to traditional linear modular configurations, maximizing the layout efficiency of your factory.

Technical Specification

Trust Harsiddh Unimach Pvt. Ltd. for Industrial Scalability

At Harsiddh Unimach Pvt. Ltd., we understand that equipment reliability directly dictates your market profitability. Every machine undergoes exhaustive factory acceptance testing (FAT) under simulated production loads to ensure structural integrity, component synchronization, and long-term operational durability.

Whether you are expanding an existing commercial bottling plant or establishing a grassroots turnkey mineral water project, our high-efficiency bottling solutions provide the perfect balance of speed, accuracy, and absolute hygiene. Partner with us to scale your production capabilities, minimize product wastage, and deliver uncompromised purity in every bottle.
