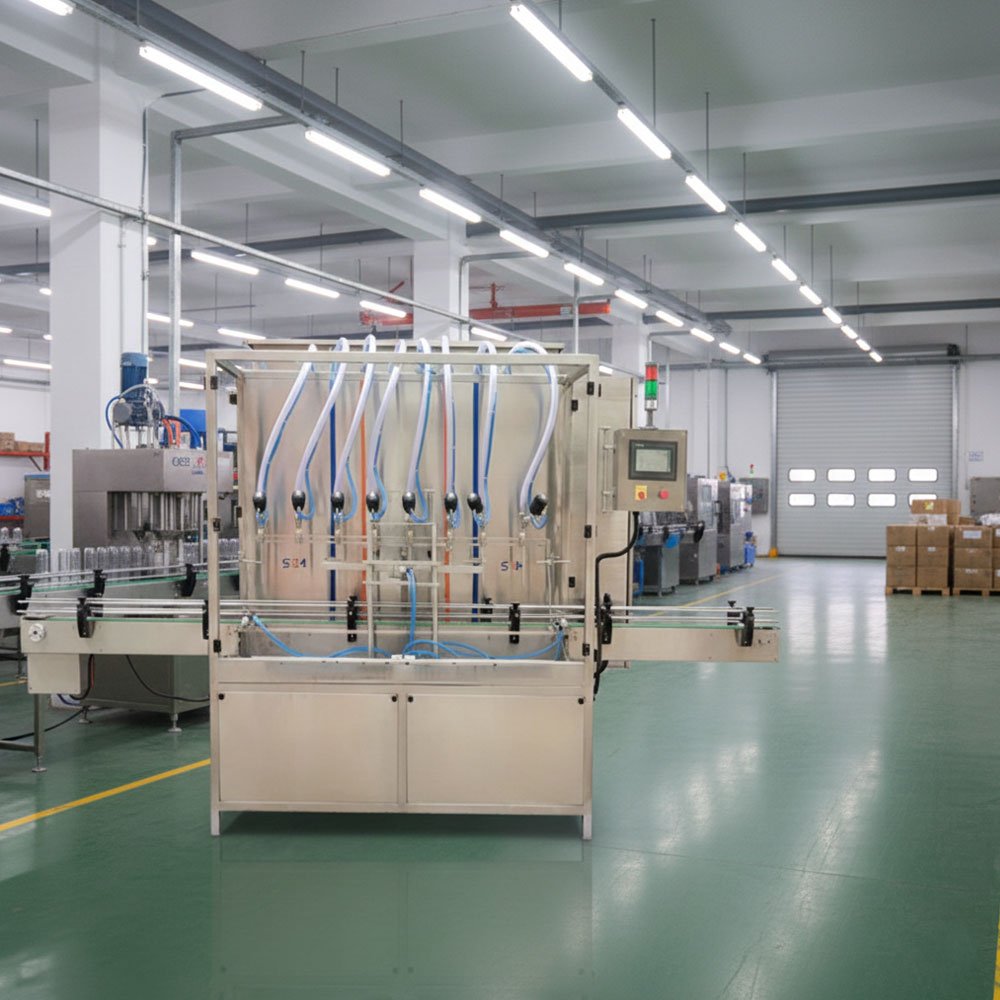

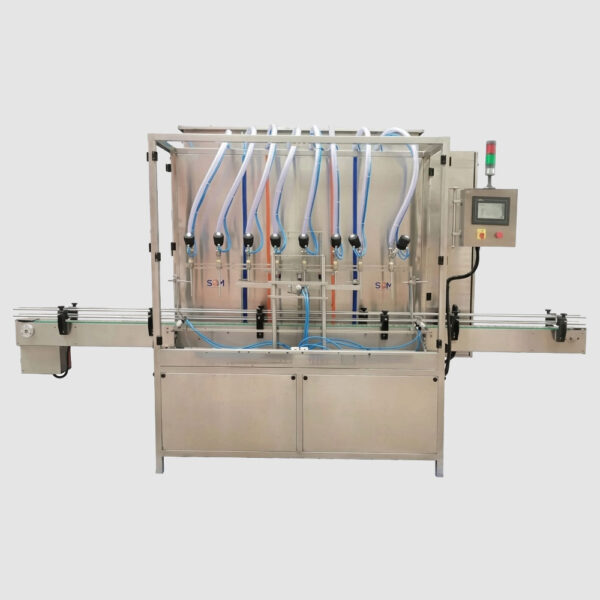

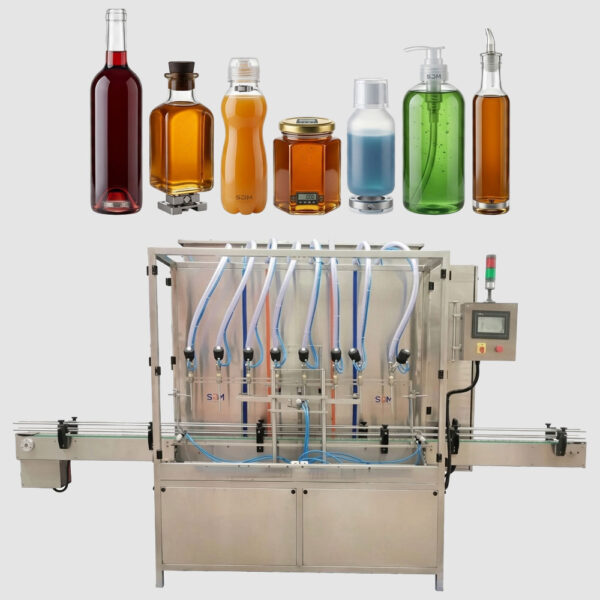

Automatic Load Cell Based Liquid Filling Machine
High-Precision Net Weight Filling Technology for Premium, High-Value Liquids
In liquid packaging, certain products demand an elevated level of dosing accuracy that traditional volumetric or piston fillers simply cannot guarantee. Liquids whose density changes with temperature fluctuations, or high-value formulations where even a fractional milliliter of overfill translates to significant financial loss, require weight-based precision.
The Automatic Load Cell-Based Liquid Filling Machine manufactured by Harsiddh Unimach Pvt. Ltd. is an advanced net-weight filling system engineered precisely for these demanding applications. By utilizing ultra-sensitive digital weighing sensors under each container, this machine measures the actual mass of the liquid being dispensed in real time. This ensures absolute compliance with international legal metrology standards, eliminates product giveaway, and provides an uncompromised level of quality control for premium liquids.
Engineered to meet stringent GMP and CE standards, this high-performance system is the definitive choice for packaging expensive edible oils, specialized agrochemicals, pharmaceutical syrups, hazardous solvents, and high-end specialty chemicals.
The Precision of Weight Dosing vs. Volumetric Filling
Volumetric filling methods measure the space a liquid occupies, which is highly susceptible to external variables. If your factory floor temperature shifts throughout the day, the density and volume of your liquid change, leading to inconsistent fills by weight.
The electronic load cell engineering from Harsiddh Unimach Pvt. Ltd. bypasses these physical limitations entirely:
- Density-Independent Accuracy: Whether your product expands in the midday heat or thickens in cooler temperatures, the net weight delivered into the container remains identical every single time.
- Elimination of Product Giveaway: For high-cost fluids like premium lubricants, concentrated pesticides, or essential oils, overfilling to ensure compliance is a drain on profitability. Net-weight filling allows you to tune your tolerances down to fractions of a gram.
- Compensating for Bottle Variations: Glass and heavy-duty plastic containers often vary slightly in their internal volume and empty tare weight. A load cell system compensates for these inconsistencies by calculating the precise fluid mass added, ignoring the weight of the container itself.
Intelligent Real-Time Operational Workflow
Maximized throughput is achieved through a perfectly synchronized electronic and mechanical sequence. The Automatic Load Cell-Based Liquid Filling Machine features a multi-stage, dynamic weighing cycle designed to balance high operational speeds with meticulous accuracy.
[Bottle Entry] ➔ [Automatic Tare Weighing] ➔ [High-Speed Coarse Fill] ➔ [Precision Fine Tune] ➔ [Instant Cut-off & Discharge]1. Individual Container Taring
Empty bottles are transported along a premium-grade Stainless Steel (SS) conveyor line and systematically indexed onto isolated weighing platforms embedded with industrial load cells. Before a single drop of liquid is released, the digital control system measures the weight of the empty container and automatically tares it to zero. This ensures that variations in container glass or plastic thickness never alter the final liquid weight.
2. Dual-Stage Dosing: High-Speed “Coarse” Cycle
To maintain competitive production line speeds, the filling cycle initializes in “Coarse” mode. The heavy-duty pneumatic filling nozzles open completely, dispensing the bulk of the liquid volume (typically up to 85–90% of the target weight) at a rapid flow rate.
3. Real-Time Optimization: Precision “Fine” Mode
As the real-time weight feedback approaches the programmed target, the intelligent Programmable Logic Controller (PLC) instantly adjusts the valve position to switch to “Fine” mode. The liquid flow is restricted to a controlled trickle, allowing the system to monitor weight accumulation millisecond by millisecond and prevent any overshooting due to fluid momentum.
4. Instantaneous Positive Cut-Off
The precise millisecond the load cell registers the exact programmed net weight, the system triggers an instantaneous, dripless pneumatic shut-off nozzle. This prevents any trailing droplets from contaminating the bottle threads or altering the final verified weight.
5. Verification and Downstream Discharge
Once the weight is locked and verified by the system, the indexing gates release the container. The filled bottle travels smoothly down the conveyor toward capping, induction sealing, and automated labeling systems, while the next empty container immediately takes its place.
Advanced Engineering and Technical Features
- Ultra-Precise Industrial Load Cells: Outfitted with world-class, high-speed digital load cells that offer exceptional repeatability and are securely shielded against moisture, dust, and washdown environments.
- Sanitary SS 316 Contact Parts: To comply with strict chemical and pharmaceutical safety regulations, all components that come into direct contact with the liquid are constructed from premium Stainless Steel 316, resisting corrosion and chemical degradation.
- Advanced PLC & Touchscreen HMI Controls: The centralized touchscreen interface allows production managers to store, edit, and recall multi-product recipes. Changing target weights from 500 grams to 5 kilograms takes just a few taps on the screen.
- Dynamic Foam Control (Diving Nozzles): Optional servo-driven or pneumatic diving nozzle configurations allow bottom-up filling, minimizing turbulence and foaming for delicate or highly viscous liquids.
Strategic Industry Applications
The versatile net-weight architecture makes this equipment indispensable across highly regulated industrial sectors:
- Agrochemicals & Crop Protection: Perfect for filling high-value pesticides, liquid fertilizers, and herbicides where exact chemical dosing is legally mandated.
- Specialty Chemicals & Solvents: Handles corrosive liquids, paints, varnishes, and industrial acids cleanly and safely by eliminating manual handling risks.
- Premium Edible & Specialty Oils: Ideal for high-end olive oils, cold-pressed organic oils, and concentrated flavorings where product giveaway must be strictly policed.
- Pharmaceuticals & Nutraceuticals: Ensures absolute dosing uniformity for large-batch liquid medications, wellness syrups, and liquid supplements.
Business Benefits of Weight-Based Automation
Partnering with Harsiddh Unimach Pvt. Ltd. for your liquid packaging needs provides distinct commercial advantages:
- Legal Metrology Compliance: Sleep easy knowing every single bottle leaving your facility meets or exceeds strict national and international weight-and-measure packaging regulations.
- Rapid Return on Investment (ROI): By eliminating overfill habits to compensate for volumetric drift, the raw material savings generated over high-volume production runs rapidly pay back the initial machinery investment.
- Reduced Rejection Rates: Downstream rejection due to under-filled or messy, over-filled bottles is virtually eliminated, streamlining your logistics and preserving brand integrity.
Technical Specification
| Specification | Details (Load Cell Series) |
|---|---|
| Output / Minute | 20 to 60 Bottles (Model Dependent) |
| Filling Range | 100ml to 15,000ml (Weight-Based) |
| Filling Accuracy | ± 0.1% to ± 0.5% |
| No. of Filling Heads | 2, 4, 6, or 8 Heads |
| Control System | PLC with Color Touchscreen HMI |
| Load Cell Brand | High-Precision (Omron/Schneider/Mettler Toledo Compatible) |
| Power Supply | 230V / 415V, 3 Phase |
Partner with Harsiddh Unimach Pvt. Ltd.
At Harsiddh Unimach Pvt. Ltd., we understand that accuracy equals profitability. Our Automatic Load Cell-Based Liquid Filling Machine provides the rugged reliability required for industrial factory floors alongside the delicate precision of digital weighing technology.
Transform your liquid packaging line into a model of efficiency and exactness. To discuss custom nozzle counts, integrated capping systems, or to request a comprehensive technical quotation based on your unique product viscosities, reach out to our application engineers today.
- Product URL: https://www.harsiddhunimach.com/product/automatic-load-cell-based-liquid-filling-machine/
- Official Website: www.harsiddhunimach.com
- Inquiries & Technical Support: info@harsiddhunimach.com
Frequently Asked Questions
What types of products are best suited for load cell filling?
This machine is ideal for high-value liquids where precision is critical to avoid product giveaway. It is commonly used for filling cooking oils, lubricants, agrochemicals, expensive solvents, and specialty chemicals. It is particularly effective for large containers where traditional volumetric accuracy might fluctuate.
What is the filling range and accuracy of this machine?
The Harsiddh Load Cell series is designed for extreme precision, typically offering a filling accuracy of ± 0.1% to 0.5% of the target weight. Depending on the model, it can handle a wide range of volumes, from 1 liter up to 30 liters (or even 200kg drums), making it a versatile choice for various packaging scales.
How does the machine handle "tare" weight for different containers?
The integrated PLC system features an automatic tare function. Before each fill cycle begins, the load cell weighs the empty container and "tares" it to zero. This ensures that variations in bottle or jar weight do not affect the final net weight of the liquid dispensed.
Can the machine handle foaming liquids during the weighing process?
Yes. To ensure the foam does not interfere with the weighing accuracy or cause spillage, the machine is equipped with diving nozzles and a multi-stage filling speed (fast-fill for the bulk and slow-fill for the top-off). This "dribble-feed" technique at the end of the cycle ensures the machine hits the target weight precisely without splashing or foam overflow.
