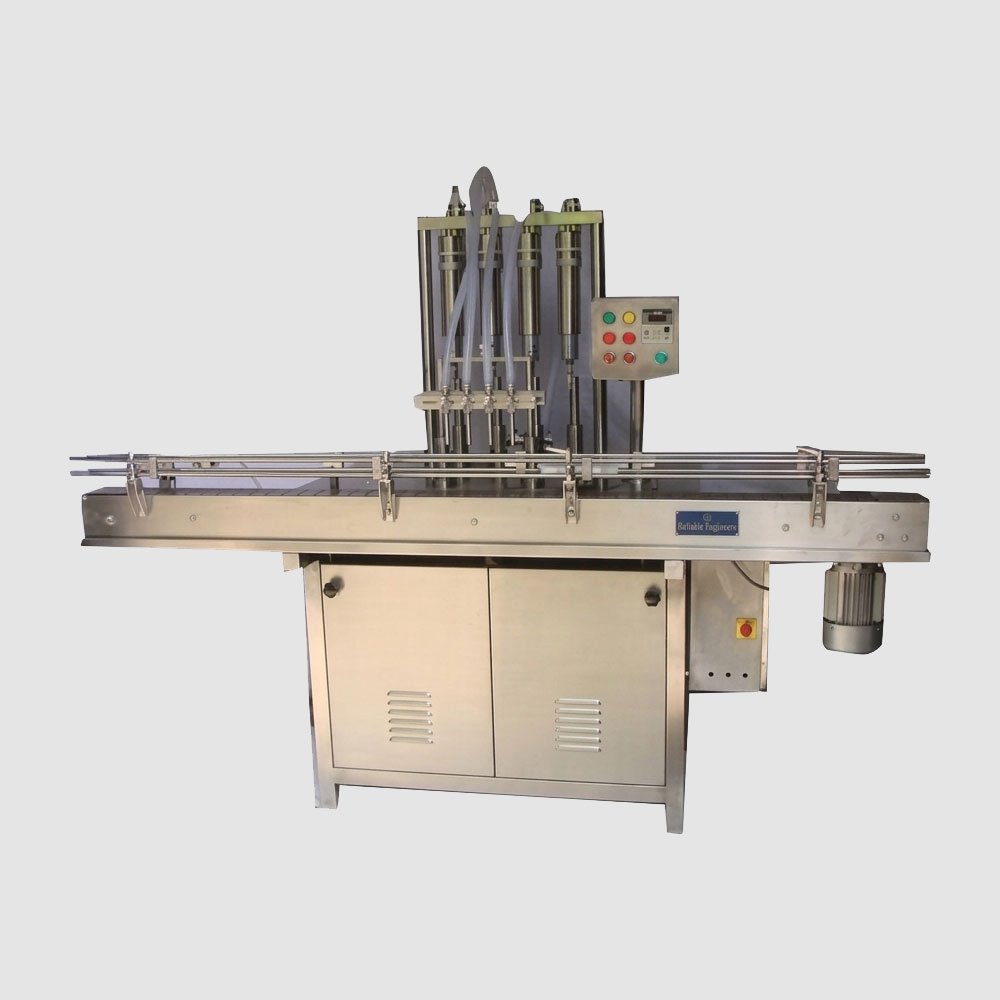

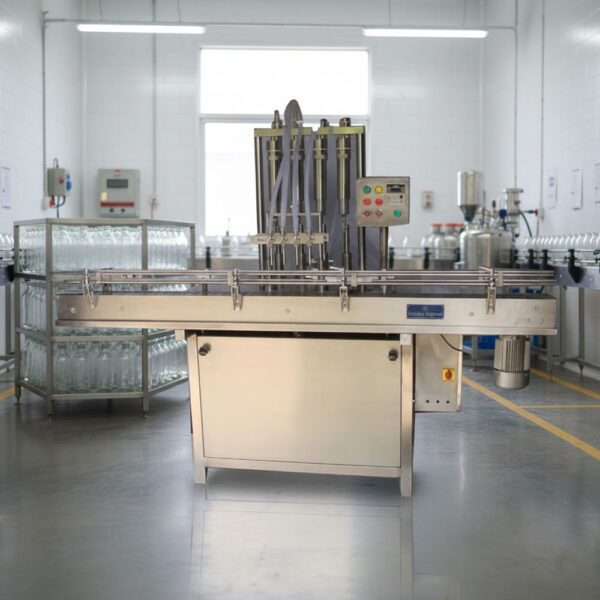

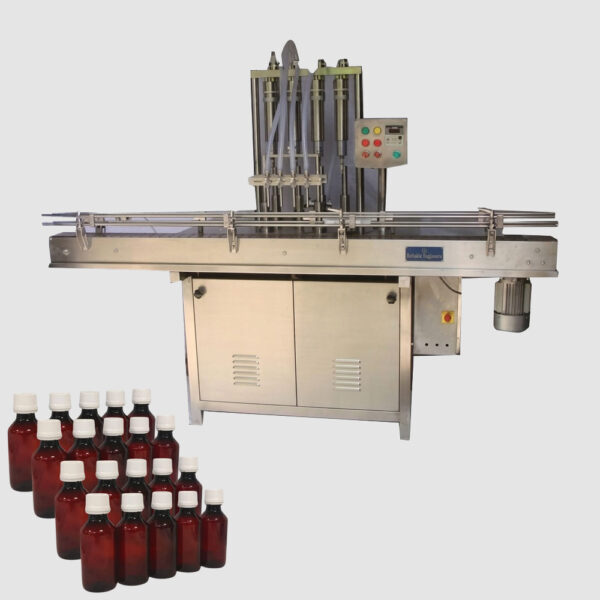

Automatic Liquid Syrup Filling Machine
High-Precision Volumetric Dosing for Pharmaceutical and Oral Liquid Manufacturing
In pharmaceutical and healthcare manufacturing, precision, hygiene, and absolute consistency are non-negotiable. The Automatic Liquid Syrup Filling Machine designed and manufactured by Harsiddh Unimach Pvt. Ltd. stands as an industry-leading solution for high-speed, sterile packaging of oral liquids, suspensions, drops, and medicinal syrups. Engineered to meet the stringent demands of modern production environments, this advanced machinery effortlessly handles a diverse range of liquid viscosities while maintaining zero-contamination integrity.
Whether your facility processes low-viscosity pediatric drops, thick medicated syrups, herbal formulations, or nutrient-dense nutraceuticals, this high-efficiency system automates the critical operational path with flawless accuracy. Built in strict compliance with international GMP, cGMP, and CE standards, it ensures that your production line delivers exact therapeutic dosing while maximizing daily manufacturing output.
Engineering Excellence for Sterile Production Environments
Pharmaceutical liquid filling demands specialized architecture to prevent cross-contamination, protect product integrity, and withstand rigorous sanitization protocols. The engineering layout from Harsiddh Unimach Pvt. Ltd. addresses these specific needs through high-grade material selection and advanced automation features:
- Superior Sanitary Construction: Every single component that comes into direct contact with the liquid product is crafted from top-tier Stainless Steel 316 (SS 316). The outer structures, safety guards, and conveyor assemblies are constructed from robust Stainless Steel 304 (SS 304), providing exceptional resistance against chemical corrosion and heavy-duty wear.
- Bubble-Free & Foam-Suppressed Dosing: High-viscosity oral syrups and formulations often create dense foaming or air bubbles when dispensed at high speeds, which can cause volumetric inaccuracies and sealing failures. Our specialized filling nozzle design mitigates this problem entirely, guaranteeing clean, dense fills every single cycle.
- Minimal Mechanical Friction: By optimizing the internal pump and syringe assemblies, the machine minimizes friction-induced heat. This protects heat-sensitive pharmaceutical active ingredients (APIs) and vitamins from degrading during the packaging process.
Seamless & Reliable Operational Workflow
The core strength of the Automatic Liquid Syrup Filling Machine lies in its synchronized, linear operational sequence. Every phase—from raw bottle input to final fluid discharge—is meticulously tracked and managed by intelligent sensors and control systems.
[Infeed Conveyor] ➔ [Pneumatic Centering] ➔ [Sub-Surface Filling] ➔ [Drip-Free Cutoff] ➔ [Outfeed to Capping]1. Automated Feeding and Conveying
Empty containers (glass or rigid plastic PET bottles) are systematically introduced via an automated turntable or directly from a bottle unscrambler onto a heavy-duty SS slat conveyor. The variable-speed conveyor guides the bottles smoothly toward the core processing zone, maintaining uniform spacing to prevent container clashing or tipping.
2. Precision Positioning and Centering
As the containers enter the filling station, an advanced pneumatic or mechanical bottle-stopping gate mechanism engages. This system locks the containers into a rigid, perfectly centered alignment directly beneath the multi-head filling nozzles. This exact centering is crucial to ensure that fluid enters the narrow neck of pharmaceutical bottles without touching the external lip or threads.
3. Controlled Sub-Surface Dosing (Diving Nozzles)
To combat foaming and liquid splashing, the machine employs an intelligent diving nozzle system. At the start of the fill cycle, the nozzles lower deeply into the neck of the bottle, initiating a sub-surface discharge. As the liquid level steadily rises, the nozzles lift in perfect harmony with the fluid level. This bottom-up filling technique prevents air entrapment and maintains an exceptionally clean operation.
4. Sensor-Driven Process Monitoring
Equipped with an smart “No Bottle, No Fill” security system, the machine continuously monitors the production floor via optical sensors. If a gap is detected in the line or a container is missing from its designated position, the volumetric syringes or pumps for that specific nozzle are instantly deactivated. This prevents costly product wastage, keeps the conveyor line clean, and avoids unexpected operational downtime.
5. Smooth Outfeed and Line Integration
Once the precise volumetric dose is completed, the positive-shutoff nozzles close instantly with zero dripping. The indexing gate opens, and the filled bottles are transferred smoothly down the line toward automated capping, induction sealing, and high-speed labeling systems for final processing.
Key Technical Attributes & User Benefits
- High Volumetric Accuracy: Utilizing highly polished, precisely calibrated volumetric syringes or rotary piston pumps, the machine achieves an impressive dosing accuracy of ±1% or better, adhering strictly to pharmacopeia standards.
- Intuitive PLC Control Panel: The centralized Programmable Logic Controller (PLC) features a vibrant touchscreen Human-Machine Interface (HMI). Operators can rapidly modify fill volumes, adjust conveyor speeds, and store multiple product recipes for instant recall during product transitions.
- Toolless Adjustments & Quick Changeovers: Designed with the operational reality of multi-product facilities in mind, the machine allows quick changeovers between different bottle sizes and liquid volumes with minimal downtime and without requiring specialized tools.
- Comprehensive Safety Interlocks: Features clear polycarbonate safety enclosures that protect operators from moving parts while allowing full visibility of the filling process. If an enclosure door is opened during operation, the machine halts immediately.
Tailored for Diverse Liquid Formulations
The adaptive technology integrated into this filling line makes it highly versatile across multiple sectors within the liquid packaging industry:
- Pharmaceutical Oral Liquids: Ideal for cough syrups, liquid antibiotics, antacid suspensions, pediatric drops, and analgesics.
- Nutraceuticals & Dietary Supplements: Perfectly suited for liquid vitamins, mineral supplements, herbal extracts, and wellness tonics.
- Food & Beverage Sectors: Highly capable of packing concentrated fruit juices, liquid flavorings, squashes, and viscous honey blends.
Technical Specification
| Specification | HLBF-60 (2 Head) | HLBF-100 (4 Head) | HLBF-200 (8 Head) |
|---|---|---|---|
| Output / Minute | 30 to 50 Bottles | 40 to 80 Bottles | 60 to 150 Bottles |
| Filling Range | 10ml to 1000ml | 10ml to 1000ml | 10ml to 1000ml |
| Filling Accuracy | ± 1% | ± 1% | ± 1% |
| Nozzle Type | Diving (Drip-Free) | Diving (Drip-Free) | Diving (Drip-Free) |
| Contact Parts | SS 316L | SS 316L | SS 316L |
| Container Diameter | 25mm to 100mm | 25mm to 100mm | 25mm to 100mm |
| Power Supply | 1.0 H.P., 220V/415V | 1.5 H.P., 220V/415V | 2.5 H.P., 220V/415V |
Why Choose Harsiddh Unimach Pvt. Ltd.?
At Harsiddh Unimach Pvt. Ltd., we understand that manufacturing pharmaceutical packaging machinery carries a profound responsibility. Our Automatic Liquid Syrup Filling Machine combines heavy-duty industrial reliability with advanced digital control to provide a future-proof investment for your production facility. By reducing manual interventions, maximizing dosing precision, and enforcing absolute hygienic boundaries, we help your business scale operations seamlessly while minimizing product giveaway.
Enhance your line speed, ensure regulatory compliance, and establish an uncompromised standard of product purity. For specialized multi-nozzle setups, custom layout configurations, or to receive a comprehensive technical proposal tailored to your specific plant blueprint, reach out to our specialist engineering team today.
- Official Product URL: https://www.harsiddhunimach.com/product/automatic-liquid-syrup-filling-machine/
- Inquiries & Technical Support: info@harsiddhunimach.com
Frequently Asked Questions
How does the machine ensure high filling accuracy for medicinal dosages?
To meet strict pharmaceutical regulations, the machine uses a high-precision volumetric piston pump or servo-driven filling system. This allows for an exceptional filling accuracy of ± 1%, ensuring that each bottle receives the exact medicinal dosage required, which is critical for patient safety and regulatory compliance.
Can the machine handle different bottle sizes and shapes?
Yes. The machine is highly flexible and can process glass, PET, and HDPE bottles ranging from 30ml to 1000ml. It features adjustable guide rails and a twin-pneumatic stopper system that can be quickly reconfigured to accommodate round, flat, or oval bottles with minimal changeover time.
How does the machine prevent foaming in sugary or surfactant-based syrups?
Many syrups tend to foam during high-speed filling. To solve this, the machine is equipped with reciprocating "diving" nozzles. These nozzles descend into the bottle and rise slowly during the filling cycle (bottom-up filling). This technique minimizes air entrapment and turbulence, ensuring a clean, foam-free fill every time.
Is the machine compliant with cGMP hygiene standards?
Absolutely. The machine is a fully cGMP-compliant model. All contact parts are manufactured from AISI Stainless Steel 316L, which is resistant to the corrosive nature of certain chemical compositions and easy to sterilize. The main frame is made of SS 304, providing a rust-free, long-lasting, and hygienic production environment.
