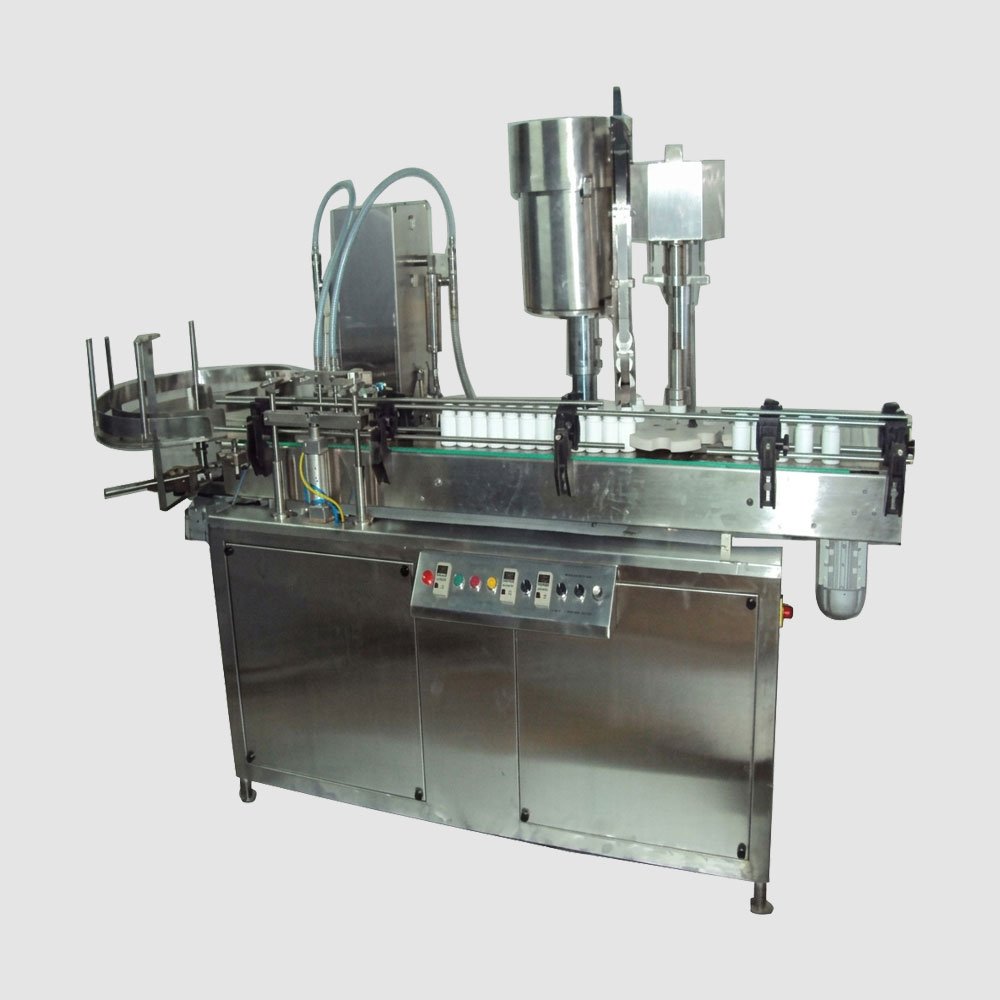

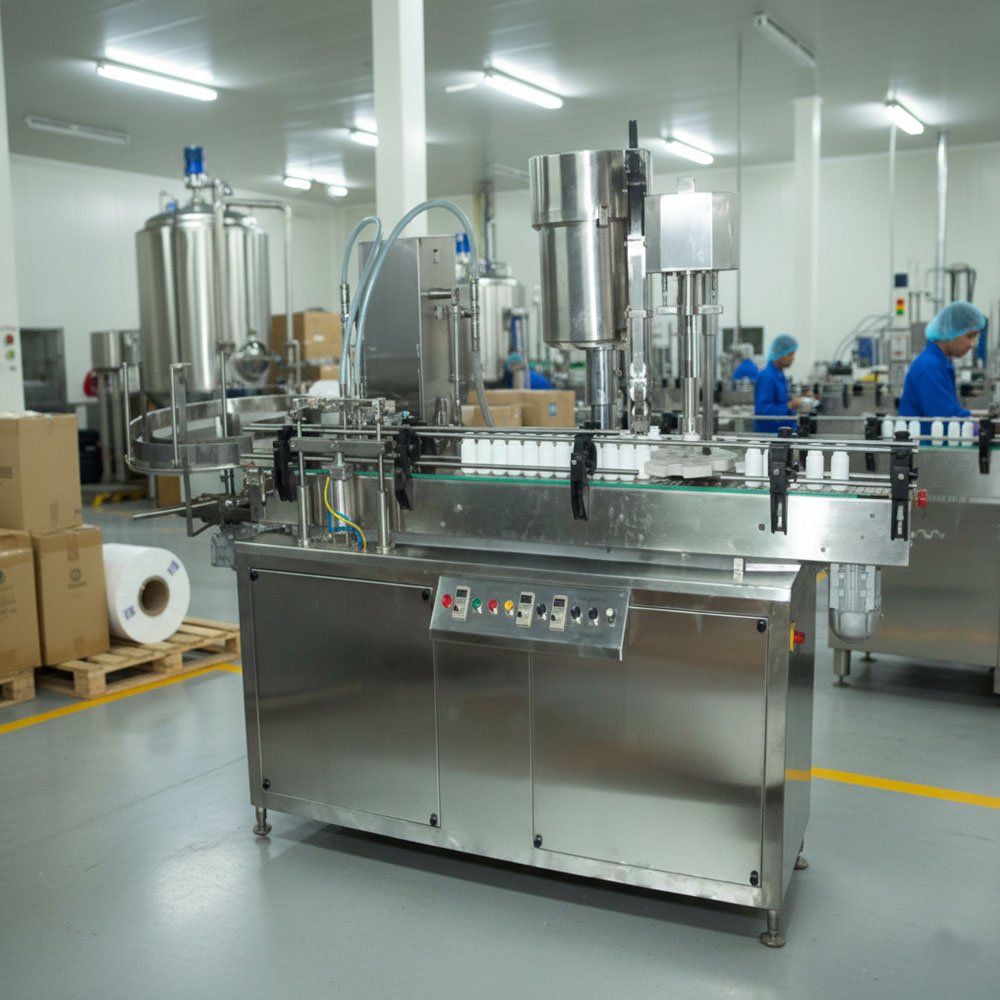

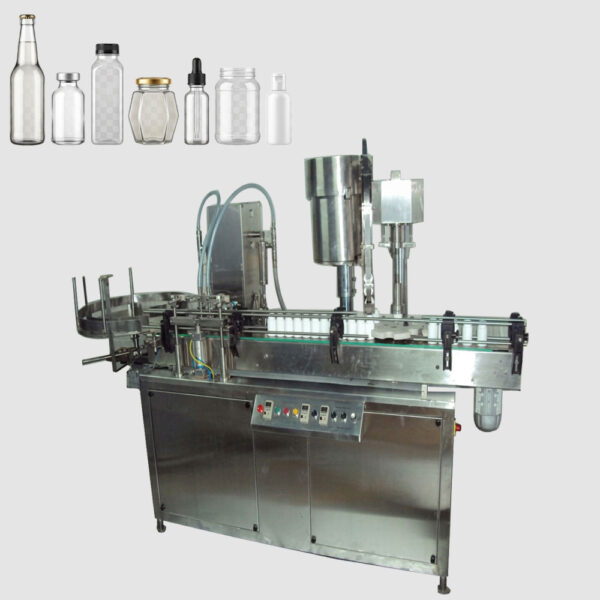

Automatic Liquid Bottle Filling & Capping Machine (Monoblock)
High-Speed Integrated Liquid Packaging Solutions for Modern Production Lines
In high-throughput industrial environments, line efficiency, spatial optimization, and cross-contamination prevention are key drivers of profitability. The Automatic Liquid Bottle Filling & Capping Machine (Monoblock) from Harsiddh Unimach Pvt. Ltd. is an elite, space-saving engineering marvel designed to streamline your liquid packaging workflow. By integrating precision dosing and airtight container capping onto a single, synchronized structural chassis, this monoblock system eliminates the need for extensive intermediate conveyors, drastically reducing your cleanroom or factory footprint while boosting total throughput.
Engineered to meet the stringent demands of the pharmaceutical, cosmetic, beverage, agrochemical, and specialized chemical sectors, this machine delivers consistent volumetric accuracy and reliable cap application. Built in complete compliance with international GMP and CE standards, it represents the ideal upgrade for companies looking to maximize automation efficiency with minimal manual intervention.
The Power of Monoblock Integration: Maximizing Floor Space & Efficiency
Traditional packaging lines require separate, standalone units for liquid filling and bottle capping, connected by long tracking conveyors. This decentralized setup introduces several operational liabilities: higher risks of bottle tipping, exposure of unsealed liquid to ambient air for longer durations, and massive floor space requirements.
The unified monoblock engineering from Harsiddh Unimach Pvt. Ltd. addresses these challenges directly:
- Compact Footprint: By merging filling and capping into a single machine frame, you save up to 40% of premium factory floor space compared to conventional modular lines.
- Minimized Contamination Risks: Because the open container moves almost instantaneously from the filling station to the capping head, the window of exposure for the product is virtually eliminated. This is critical for sterile pharmaceutical liquids and sensitive cosmetic formulations.
- Flawless Mechanical Synchronization: A single, centralized drive system coordinates both the filling and capping stations. This mechanical harmony eliminates timing errors between processes, resulting in smoother transitions and dramatically reduced container wear.
Step-by-Step Synchronized Workflow
From the moment empty containers enter the line until they emerge perfectly filled and sealed, the entire process flows through a continuous, heavily monitored automation sequence.
[Turn Table Feeding] ➔ [Volumetric Liquid Filling] ➔ [Instant Cap Sorting & Application] ➔ [Continuous Sensor Monitoring] ➔ [Discharge to Labeling]1. Automated Feeding & Unscrambling
Empty containers are loaded onto a heavy-duty rotary turn table (unscrambler) that smoothly orients and aligns them. The bottles are then automatically transferred onto a high-grade Stainless Steel (SS) slat conveyor line, which channels them into the main star-wheel indexing system of the monoblock.
2. Precision Volumetric Filling
The indexed containers are locked into position beneath the filling heads. Advanced diving nozzles plunge deep into the neck of the bottles to initiate a bottom-up dosing profile. This diving motion is carefully calibrated to eliminate fluid splashing, minimize turbulence, and prevent the formation of surface foam. The machine can be configured with volumetric pistons, peristaltic pumps, or servo-driven systems depending on your specific liquid viscosity.
3. Immediate Capping Stage
The moment a container receives its precise liquid dose, the indexing wheel instantly rotates it to the capping station. Concurrently, an automated cap elevator and sorting vibrator align caps in the correct orientation, feeding them down a delivery chute. The capping head—whether utilizing a magnetic hysteresis clutch for screw caps, a ROPP threading system, or a press-on mechanism—picks up the cap and applies the exact preset torque required for an airtight, leak-proof seal.
4. Real-Time Automatic Monitoring
The entire system is continuously audited by a network of high-precision electronic sensors. The system operates on a strict “No Bottle – No Fill” and “No Bottle – No Cap” logical loop. If an empty slot is detected in the star wheel, the respective filling nozzle and capping head will not actuate, entirely eliminating liquid spillage and component wastage.
5. Smooth Line Discharge
Perfectly filled and sealed bottles are gently guided out of the central indexing system and back onto the discharge conveyor. The containers are then smoothly transported to downstream packaging phases, such as continuous labeling machines, induction sealers, batch coding systems, or final cartoning stations.
Technical Highlights & Premium Material Construction
- Heavy-Duty Hygienic Design: To ensure complete compliance with food and pharmaceutical regulations, all components that come into direct contact with your liquid product are manufactured from premium Stainless Steel 316. The structural enclosure, support frame, and safety panels are built from robust SS 304.
- Advanced PLC & Touchscreen HMI: The entire monoblock operation is managed via a centralized Programmable Logic Controller (PLC) with an intuitive graphical touchscreen interface. Operators can adjust filling speeds, dosing volumes, indexing times, and monitor real-time production statistics from a single screen.
- Variable Speed Control: Built-in AC frequency drives allow operators to perfectly synchronize conveyor, indexing wheel, and filling pump speeds to match different bottle shapes, sizes, and liquid viscosities.
- Fast, Toolless Changeovers: The monoblock is designed with quick-release change parts (star wheels, back guides, and cap chutes), allowing your team to switch between different bottle profiles and cap sizes with minimal tool usage and downtime.
Versatile Across Multiple Industrial Sectors
The flexible engineering behind our Monoblock Liquid Filling & Capping system makes it the machine of choice for a diverse range of liquid products:
- Pharmaceuticals & Healthcare: Ideal for high-speed filling of syrups, liquid oral suspensions, eye drops, nasal sprays, antiseptics, and dietary supplements.
- Cosmetics & Personal Care: Perfectly suited for handling liquid soaps, body washes, skin toners, hair serums, perfumes, and essential oils.
- Food & Beverage: Efficiently packages juices, flavored syrups, liquid dairy, sauces, extracts, and vinegar variations into glass or plastic containers.
- Agrochemicals & Specialty Chemicals: Safely processes liquid fertilizers, household cleaners, chemical reagents, and specialized lubricants.
Strategic Financial & Operational Advantages
Investing in monoblock technology from Harsiddh Unimach Pvt. Ltd. delivers definitive business advantages that strengthen your manufacturing bottom line:
- Lower Capital Investment: Purchasing an integrated monoblock system is far more cost-effective than buying, installing, and wiring independent filling and capping machines along with their necessary connecting conveyor links.
- Reduced Labor Overhead: Because the system operates as a single automated unit, fewer production line operators are required to monitor, clean, and manage the packaging process.
- Minimal Maintenance Expenses: Fewer independent motors, belts, and moving conveyor segments mean fewer wear-and-tear points. This drastically slashes routine maintenance costs and reduces unplanned line stoppages.
Technical Specification
| Specification | HMBLF-2X1 (2 Fill + 1 Cap) | HMBLF-4X1 (4 Fill + 1 Cap) |
|---|---|---|
| Output / Hour | 1,500 to 2,000 Bottles | 2,500 to 4,500 Bottles |
| Filling Range | 30ml to 1000ml | 30ml to 1000ml |
| Filling Accuracy | ± 1% | ± 1% |
| Capping Station | Single Head Rotary | Single Head Rotary |
| Contact Parts | Stainless Steel 316L | Stainless Steel 316L |
| Container Diameter | 25mm to 100mm | 25mm to 100mm |
| Power Supply | 2.0 H.P., 220V | 3.0 H.P., 220V |
Partner with Harsiddh Unimach Pvt. Ltd. for Packaging Excellence
At Harsiddh Unimach Pvt. Ltd., we engineering systems that combine heavy-duty structural reliability with smart digital control. Our Automatic Liquid Bottle Filling & Capping Machine (Monoblock) provides the exact blend of high-speed throughput, precision dosing, and compact reliability needed to confidently scale your production capabilities.
Optimize your space, protect your product purity, and maximize your output. For custom configurations, multi-head configurations, or to discuss your specific container and liquid specifications with an application expert, reach out to our team today.
- Official Product URL: https://www.harsiddhunimach.com/product/automatic-liquid-bottle-filling-and-capping-machine-monoblock/
- Inquiries & Technical Quotes: info@harsiddhunimach.com
Frequently Asked Questions
What range of bottle sizes and fill volumes can this machine handle?
The HMBLF series is highly versatile, supporting a filling range from 30ml to 1000ml. It can accommodate bottles with diameters ranging from 25mm to 100mm. Its adjustable self-centering devices allow it to process various container shapes and sizes with minimal changeover time.
How does the machine ensure accurate and foam-free filling?
The machine features high-precision diving nozzles that plunge into the bottle and fill from the bottom up. This "bottom-up" filling technique prevents air entrapment and splashing, which is essential for managing liquids that tend to foam. It maintains a consistent filling accuracy of ± 1%.
What types of caps can be used with the capping station?
The integrated rotary capping station is designed for versatility. It includes a directional vibratory bowl that sorts and feeds caps automatically. It is suitable for a wide variety of closures, including screw caps, plastic caps, and ROPP caps, ensuring a reliable and airtight seal every time.
Does the machine include safety features to prevent product wastage?
Yes. To ensure efficient operation, the machine is equipped with advanced smart sensors. This includes a “No Bottle – No Fill” system to prevent liquid spillage and a “No Cap – No Capping” mechanism to ensure the machine only performs sealing actions when a container is properly positioned with a cap.
