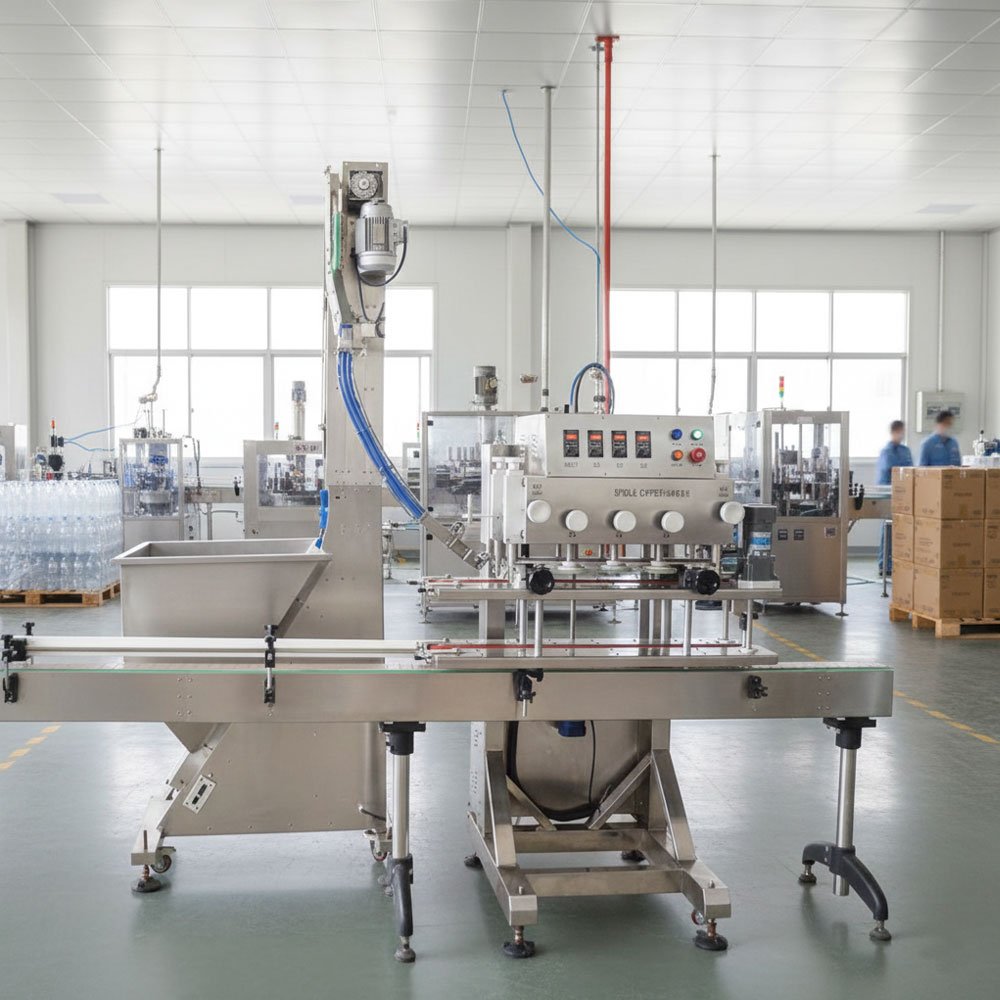

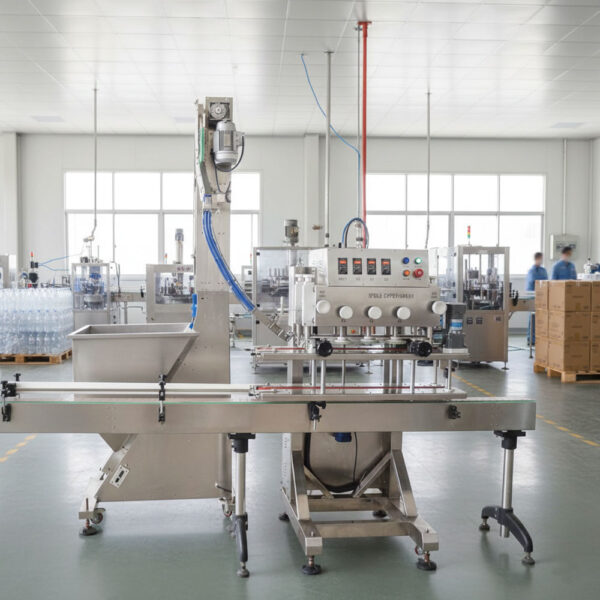

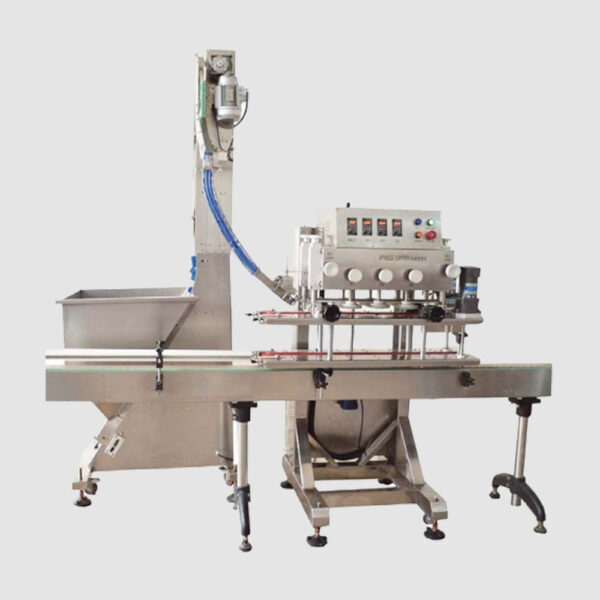

Automatic Linear Capping Machine

Precision Inline Bottle Sealing Systems for Scalable Production Lines

In the modern manufacturing landscape, operational speed must go hand-in-hand with flexibility. The Harsiddh Automatic Linear Capping Machine represents the pinnacle of inline sealing technology, engineered specifically to satisfy the rigorous demands of high-throughput production environments. Whether you operate in the strict regulatory framework of pharmaceuticals or manage the high-velocity requirements of the food and beverage industry, this continuous-motion linear capping system provides unyielding reliability, tight torque control, and unmatched container adaptability.

Unlike rigid rotary capping configurations that demand extensive, format-specific change parts for every minor bottle variation, our linear approach focuses on universal adjustments. This modern architecture guarantees that your line stays active longer, transitions faster between batches, and maintains a highly polished, secure seal on every single container.

Why Choose a Linear Capping System Over Rotary Options?

For facilities processing a diverse inventory of products, a rotary capper can quickly become a bottleneck due to its lengthy changeover requirements. The Harsiddh Automatic Linear Capping Machine breaks away from these constraints through an intelligent, adjustable design philosophy.

• Universal Tool-Less Adjustments: Say goodbye to specialized tools and expensive change parts. Switching from a small pharmaceutical vial to a large cosmetic container is achieved simply by turning calibrated handwheels and adjusting the width of the gripping belts and tightening rollers.

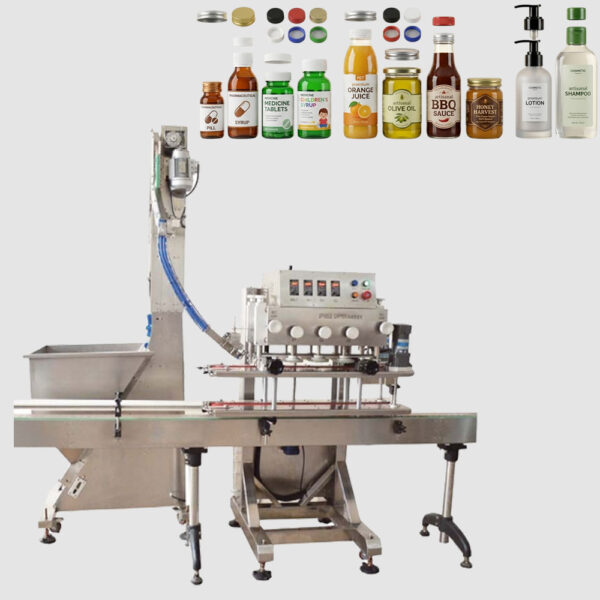

• Reduced Capital Expenditure (CAPEX): Because one linear machine can accommodate a vast array of bottle shapes (round, oval, square, rectangular) and cap dimensions without requiring a library of custom star-wheels, your initial and long-term machinery costs are dramatically minimized.
• Compact Footprint: Floor space is a premium asset in any production facility. The inline geometry of this machine integrates seamlessly into existing conveyor networks without requiring the extensive layout restructuring often needed for bulky rotary turrets.

Engineering Excellence Across Key Sectors

Our Automatic Linear Capping Machine is built to comply with global manufacturing standards, making it the perfect fit for a multitude of industrial applications:

• Pharmaceuticals & Nutraceuticals: Built with superior sanitary standards, smooth surfaces, and explicit torque control to guarantee contamination-free sealing for medicine bottles, syrups, and supplement jars.
• Cosmetics & Personal Care: Perfectly handles delicate, uniquely shaped bottles for shampoos, lotions, and oils without scuffing premium closures or marring polished surfaces.
• Food & Beverage: Resistant to spills and washdown environments, ensuring airtight seals for sauces, condiments, juices, and specialized spreads to preserve maximum product shelf-life.
• Agrochemicals & Household Chemicals: Constructed with heavy-duty components capable of withstanding harsh chemical environments while safely securing child-resistant (CRC) or industrial-grade caps.

The Step-by-Step Reliable Operational Workflow

The secret behind the machine’s efficiency lies in its fluid, continuous operational sequence. By eliminating start-stop motion, the container experience is smooth, preventing liquid splashing and ensuring exact mechanical alignment from entry to exit.

Phase 1: In-feed, Spacing, and Side-Belt Stabilization

The process begins as containers are transferred from the upstream manufacturing line onto the heavy-duty stainless steel (SS) slat conveyor. To prevent collisions and ensure uniform processing, an integrated spacing wheel or indexing pin system separates the incoming containers. Once spaced, the bottles are immediately grasped by dual, synchronized side-gripping belts. These soft yet firm rubber belts hold the container bodies securely, keeping them perfectly vertical and preventing any rotation or wobbling as they advance.

Phase 2: Automated Cap Sorting & Continuous Pick-up

Simultaneously, bulk caps are fed into a high-capacity sorting hopper (vibratory bowl or mechanical elevator), which correctly orients them face-up. The oriented caps travel down a custom-machined delivery chute, suspending the bottom cap directly over the path of the incoming bottles. As the stabilized bottle passes underneath the chute, the neck of the container catches the edge of the cap, smoothly “picking” it up in a continuous motion.

Phase 3: Multi-Stage Linear Sealing & Tightening

With the cap resting loosely on the neck, the container passes beneath a series of synchronized, motorized tightening rollers (or a heavy-duty pressing belt for snap-on closures). For screw caps, multiple pairs of spinning rollers progressively apply rotational force. The initial pairs gently thread the cap onto the bottle neck, while the final pair applies the exact, calibrated target torque. This multi-stage progression prevents cross-threading and eliminates the shock damage common in single-stage capping units.

Phase 4: Intelligent PLC Security Monitoring

To guarantee a zero-defect output, the machine features an active control loop managed by an intuitive Programmable Logic Controller (PLC). Strategic sensor arrays continuously scan the line for operational anomalies. If a container enters without a cap, if a bottle jams down the line, or if the feeding chute runs empty, the security system flags the error instantly. Depending on your configuration, it will either trigger a pneumatic reject arm to isolate the faulty product or halt the line automatically to prevent resource waste.

Phase 5: Smooth Out-feed & Discharge

Once perfectly sealed, the gripping belts gently release the container, allowing it to transition seamlessly to the out-feed section of the conveyor. The stabilized products move forward sequentially, prepared for downstream processes such as high-definition labeling, batch coding, induction sealing, or secondary cartoning.

Prominent Features and Structural Highlights

• Stainless Steel Construction: Crafted using high-grade SS 304/316 materials, ensuring excellent durability, resistance to oxidation, and compliance with Good Manufacturing Practices (GMP).
• Variable Speed Controls: Equipped with independent Variable Frequency Drives (VFD) for the main conveyor, side-gripping belts, and tightening rollers, allowing you to synchronize speeds perfectly to match up-and-downstream machinery.
• Gentle Cap Handling: The feeding and sorting mechanisms are engineered to minimize friction, preventing scratches, dents, or aesthetic damage to decorative or metallic closures.
• Adjustable Torque Clutching: Features adjustable mechanical or magnetic clutches on the final tightening discs to prevent over-tightening, stripping of plastic threads, or under-tightened leaks.

Technical Specification

Specification	Details
Output Speed	Up to 150 Bottles Per Minute (Speed varies by size)
Bottle Diameter	Up to 85 mm (Linear – No Change Parts)
Bottle Height	300 mm Maximum
Cap Size	As per customer specifications
Power Consumption	2.0 H.P. / 415 V / 3 Phase (or 230 V Single Phase)
Working Height	850 mm to 950 mm (Adjustable)
Dimensions (L x W x H)	Approx. 1750 mm x 780 mm x 1875 mm
Net Weight	Approx. 550 Kgs

Elevate Your Packaging Line Efficiency

Investing in the Harsiddh Automatic Linear Capping Machine is an investment in long-term manufacturing agility. By combining robust structural design with a flexible, tool-less methodology, this system ensures your packaging line can pivot as rapidly as market demands change. Optimize your throughput, reduce human error, and achieve an uncompromised seal standard with a machine built for the future of automated packaging.
