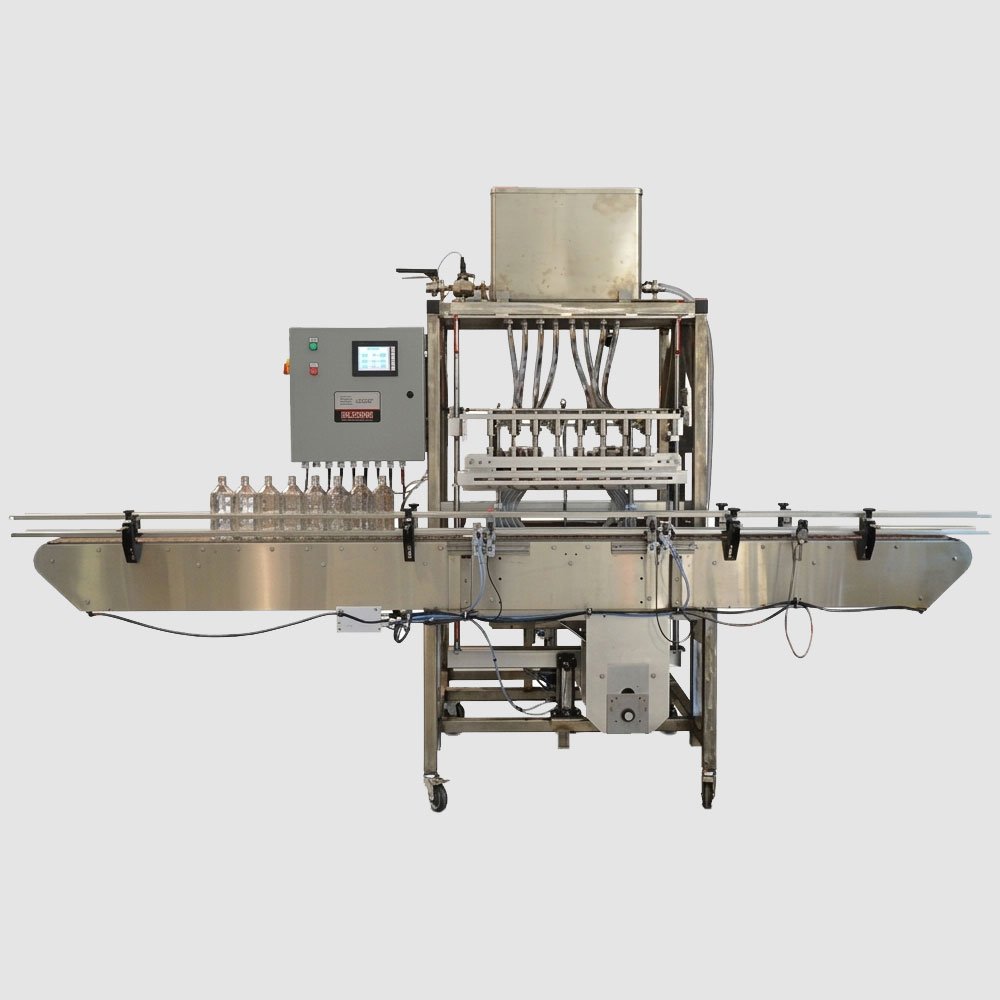

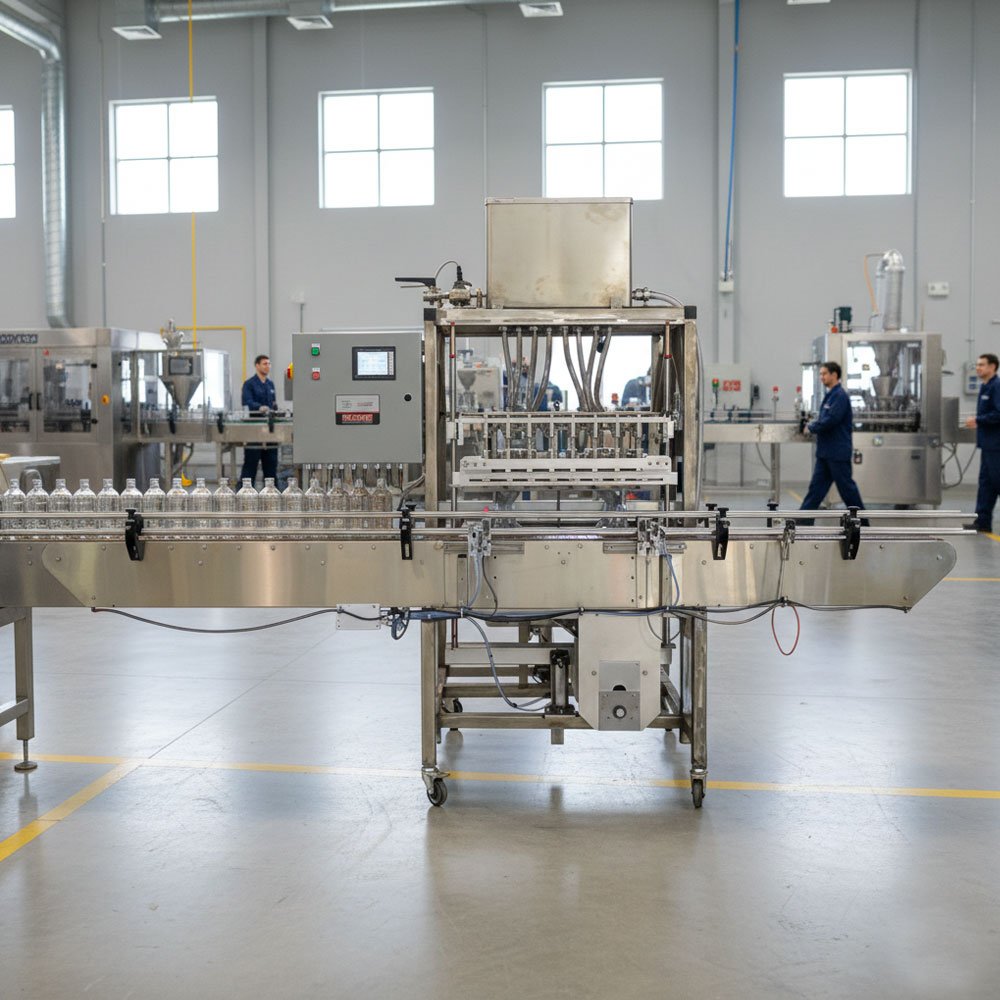

Automatic Gravity Based Liquid Filling Machine

Cost-Effective, High-Accuracy Volumetric Dosing for Free-Flowing, Low-Viscosity Liquids

In high-volume liquid packaging, selecting the right dosing technology is critical to balancing operational costs with production accuracy. The Automatic Gravity-Based Liquid Filling Machine manufactured by Harsiddh Unimach Pvt. Ltd. stands as the most efficient, reliable, and cost-effective solution for packaging water-thin, free-flowing liquids. By eliminating the need for complex internal pumps, heavy pistons, or high-maintenance mechanical drives, this advanced system relies on the fundamental physics of gravity paired with ultra-precise digital timing circuits to deliver highly accurate, repeatable fill volumes.

Engineered specifically for liquids that maintain a consistent viscosity regardless of ambient temperature changes, our gravity filling equipment provides a streamlined, sanitary, and robust alternative for production lines operating 24/7. Built to adhere strictly to international manufacturing benchmarks, this machine ensures your facility achieves maximum throughput with minimal overhead.

The Architecture of Gravity Dosing: Simplicity Meets Digital Precision

While high-viscosity products require positive displacement systems, thin and free-flowing liquids are perfectly suited for gravity-fed technology. Traditional pneumatic or mechanical pumping systems can overcomplicate the packaging process for thin liquids, leading to excessive component wear, increased energy consumption, and high cleaning overhead.

The gravity-driven engineering from Harsiddh Unimach Pvt. Ltd. solves these issues through deliberate design choices:

• Pumpless Fluid Path: Because the liquid flows naturally from an elevated, level-controlled header tank, there are no internal mechanical pumps to shear the product, create friction, or trap contaminants.
• Microsecond Electronic Timing: Volumetric precision is achieved by controlling exactly how long a specialized pneumatic valve remains open. The advanced integrated circuits allow for microsecond adjustments, keeping filling tolerances exceptionally tight.
• Low Cost of Ownership: Fewer moving mechanical parts mean significantly less friction, reduced wear and tear, and minimal spare parts requirements. This translates directly to maximum uptime and an incredibly low total cost of ownership.

Step-by-Step Operational Workflow

Efficiency in automated packaging relies entirely on a smooth, predictable rhythm. The Automatic Gravity-Based Liquid Filling Machine utilizes a synchronized, sensor-monitored sequence to ensure stable container handling and eliminate product turbulence.

[Empty Containers Input] ➔ [Pneumatic Indexing & Sensing] ➔ [Timed Nozzle Dosing] ➔ [Laminar Flow Discharge] ➔ [Conveyor Release to Capping]

1. Smooth In-Feed and Transport

Empty containers are fed onto a high-grade Stainless Steel (SS) slat conveyor system. The conveyor transports the containers smoothly to the dosing zone, where specialized pneumatic gating assemblies (or automated star wheels) temporarily hold and align them precisely beneath the multi-head filling nozzles.

2. Intelligent Bottle Sensing

Before any liquid is dispensed, a network of highly sensitive photoelectric sensors scans the indexing area. This security matrix verifies that the correct number of containers is present and perfectly centered under the nozzles. If a container is missing, fallen, or misaligned, the “No Bottle, No Fill” safety protocol triggers, preventing accidental discharge and keeping the line clean.

3. Precision Timed Filling

Once the containers are locked into position, the machine’s primary pneumatic actuators descend the filling nozzles directly into or over the bottle necks. The centralized Programmable Logic Controller (PLC) triggers the filling valves to open simultaneously. Liquid flows steadily from the overhead supply tank into the containers for a pre-set duration controlled by the electronic timer.

4. Controlled Laminar Flow Dosing

Thin liquids are naturally prone to splashing, swirling, and generating excessive foam when introduced to a container at high speed. Our gravity filling system is uniquely engineered to foster a calm, laminar flow. By relying on a steady, low-pressure gravity feed rather than forced pressure, the liquid enters the container smoothly, suppressing foam formation and ensuring an accurate volumetric fill without product overflow.

5. Clean Cutoff and Discharge

The exact moment the digital countdown concludes, the pneumatic valves close instantly with a clean, sharp action. The filling heads lift cleanly away, avoiding any trailing or product stringing. The exit gate then retracts, allowing the perfectly filled containers to advance along the conveyor line toward automated capping, induction sealing, and labeling machinery.

Technical Highlights & Engineering Excellence

• Sanitary Stainless Steel Construction: To comply with global food, beverage, and industrial hygiene standards, all fluid contact points are constructed from premium-grade SS 316. The heavy-duty structural frame, enclosure panels, and conveyor lines are made from durable SS 304.
• Centralized PLC & Touchscreen HMI: The entire system is governed by an intuitive touchscreen interface. Plant operators can easily adjust the filling timers for individual nozzles, configure batch settings, and store multiple product recipes for instant recall during product changeovers.
• Overhead Level Control Assembly: The machine features an integrated overhead tank equipped with automated float valves or electronic level sensors. This maintains a perfectly consistent fluid height inside the tank, ensuring that the gravity head pressure remains identical from the first bottle filled to the last.
• Toolless Sanitary Tri-Clover Clamps: The entire fluid manifold is assembled using quick-release tri-clover clamps. This layout simplifies routine cleaning, sanitization, and Clean-in-Place (CIP) routines, reducing product changeover times to a matter of minutes.

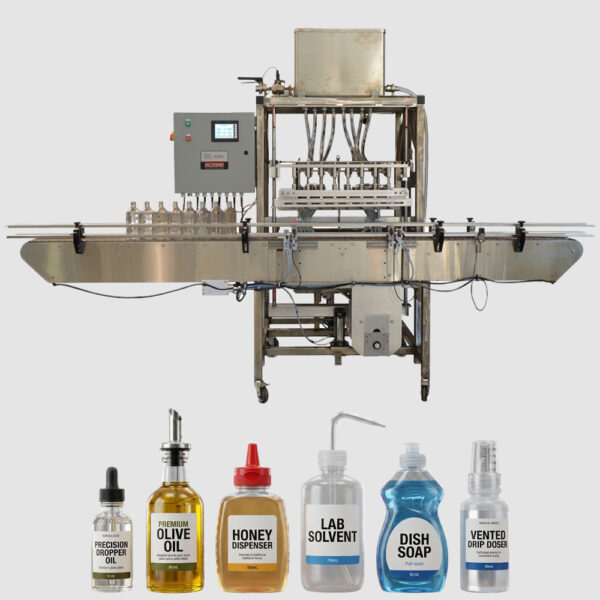

Diverse Industry Applications

The natural efficiency and sanitary design of our gravity filling architecture make it an ideal choice for a diverse variety of industrial and commercial applications:

1. Beverages & Juices: Excellent for packing bottled drinking water, clear fruit juices, flavored waters, spirits, dynamic soft drinks, and teas.
2. Pharmaceuticals & Healthcare: Frequently utilized for filling liquid oral suspensions, saline solutions, contact lens solutions, and liquid antiseptics.
3. Personal Care & Cosmetics: Perfectly suited for free-flowing cosmetic products such as perfumes, colognes, facial toners, astringents, and alcohol-based hand sanitizers.
4. Household & Chemical Fluids: Ideal for packaging window cleaners, household bleach, vinegar, light liquid detergents, and water-based chemical solutions.

Strategic Business Benefits for Your Packaging Line

Partnering with Harsiddh Unimach Pvt. Ltd. for your packaging automation yields distinct competitive advantages that improve your factory floor’s metrics:

• Elimination of Product Foaming: Foam causes false volume readings and requires production lines to slow down. The low-turbulence laminar flow inherent in our gravity fillers keeps foam to an absolute minimum, ensuring your line runs at full rated speeds.
• Streamlined Maintenance Routines: Because the machine does not utilize internal pistons, rotary pumps, or complex mechanical valves, your maintenance staff can spend less time replacing worn gaskets and seals and more time focusing on overall plant efficiency.
• Rapid Return on Investment (ROI): The lower initial capital cost combined with minimal ongoing maintenance expenses makes this machine one of the fastest-repaying assets available for thin-liquid packaging operations.

Technical Specification

Modernize Your Production Line with Harsiddh Unimach Pvt. Ltd.

At Harsiddh Unimach Pvt. Ltd., we design industrial machinery that successfully balances mechanical simplicity with advanced digital control. Our Automatic Gravity-Based Liquid Filling Machine provides the exact precision, reliability, and low-maintenance execution your facility needs to scale production and secure product consistency.

Reduce operational complexity, prevent product splashing, and achieve outstanding efficiency. For custom configuration requests, multi-nozzle scaling inquiries, or to get a comprehensive technical quote aligned with your plant’s infrastructure, reach out to our engineering team today.
