Automatic Eight Head Vial Cap Sealing Machine

The Pinnacle of High-Speed Sterile Vial Packaging Technology

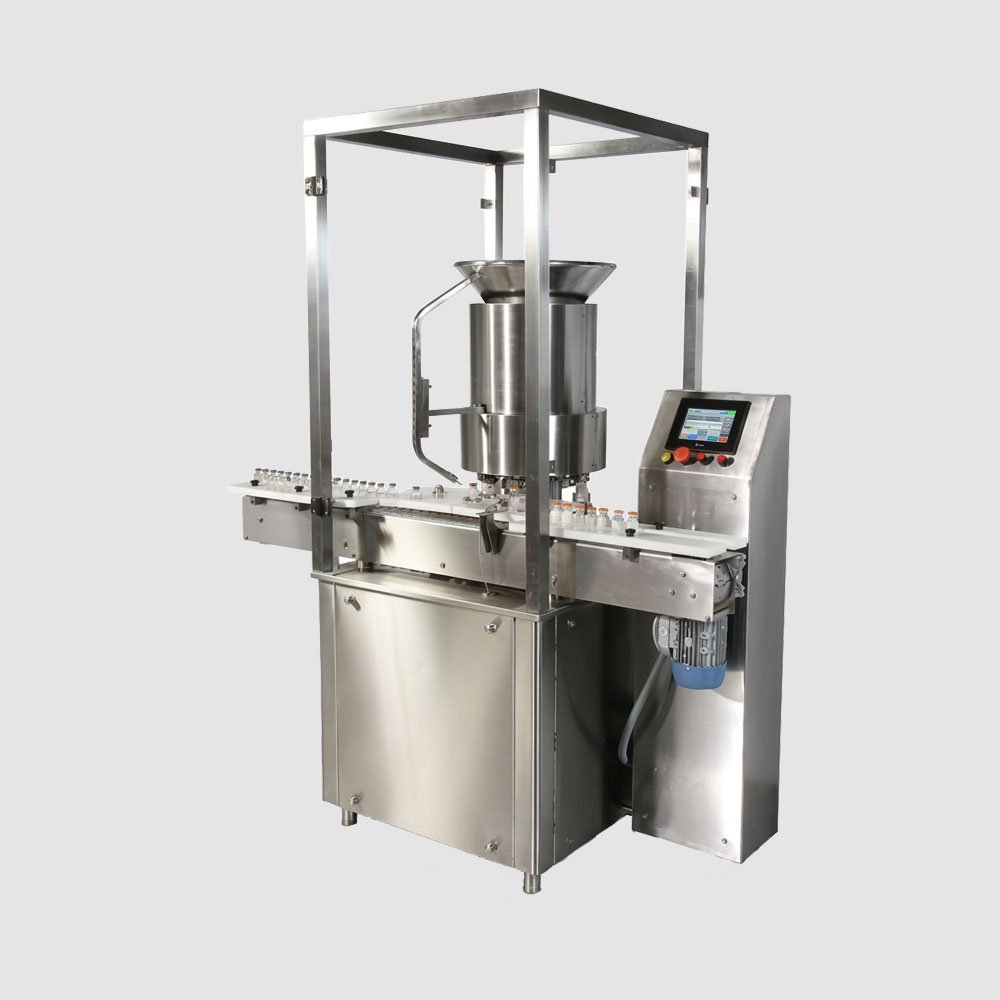

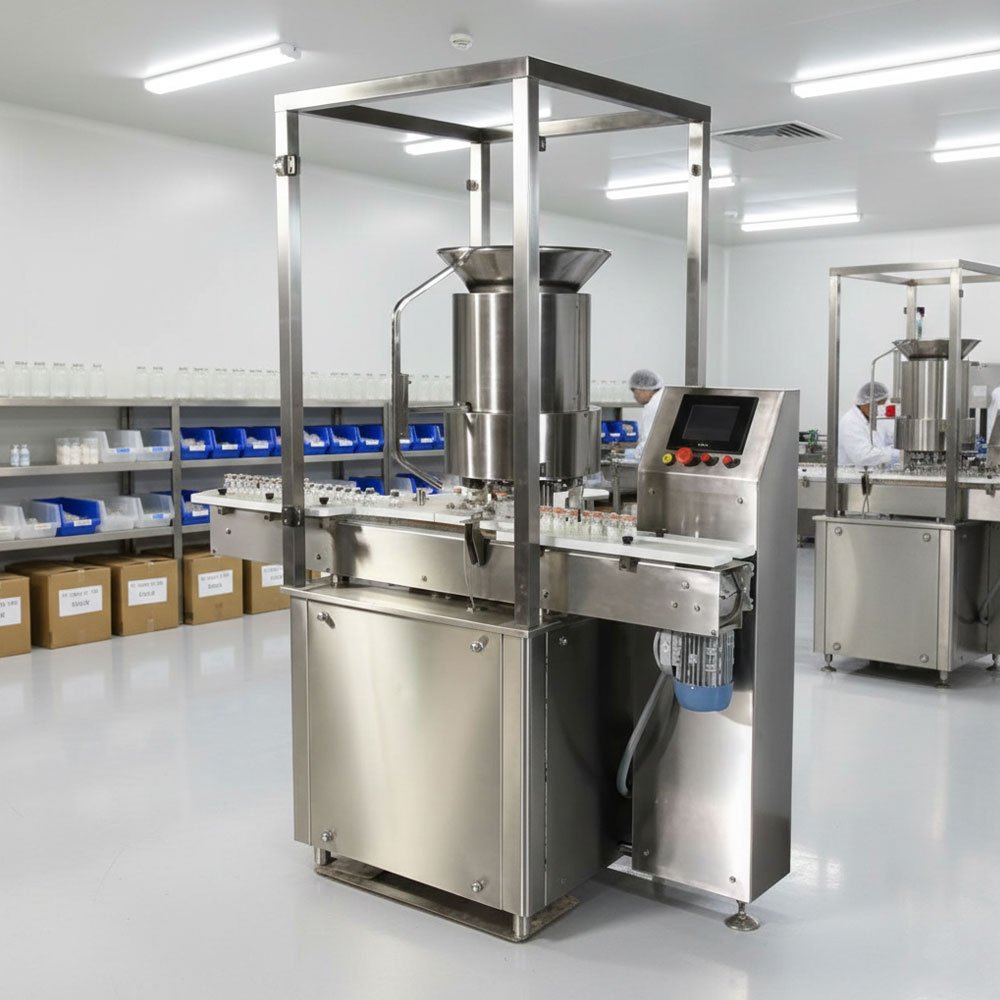

In the fast-paced landscape of modern pharmaceutical, biopharmaceutical, and biotech manufacturing, maintaining strict container closure integrity (CCI) at maximum speed is an absolute necessity. The Harsiddh Automatic Eight Head Vial Cap Sealing Machine (Model: HVCS-200) is engineered precisely for this purpose.

Representing the current industry standard for ultra-fast, continuous vial capping, the HVCS-200 is a heavy-duty, rotary-style sealing powerhouse. It seamlessly executes the application of standard aluminum seals and flip-off caps onto glass vials. Developed with a deep understanding of sterile operations, this equipment provides the high throughput, repeatability, and cGMP compliance that leading global pharmaceutical facilities demand.

By incorporating a state-of-the-art Variable Frequency Drive (VFD) for seamless electronic speed synchronization, the HVCS-200 functions effortlessly as a standalone unit or as a vital, integrated component within a fully automated, high-speed sterile washing, filling, and stoppering production line.

Strategic Manufacturing Benefits

Investing in the Harsiddh HVCS-200 introduces structural efficiency, regulatory security, and operational longevity to your manufacturing floor:

• Unrivaled Throughput Optimization: Equipped with a synchronized eight-head rotary turret, the machine caps multiple vials simultaneously. This multi-head design significantly amplifies your hourly production output without placing stress on mechanical components or compromising individual seal quality.
• Absolute Seal Uniformity: Utilizing specialized spring-loaded, free-spinning sealing rollers, the machine applies identical torque and downward pressure to every container. This eliminates the risk of cosmetic cap damage or loose seals, guaranteeing absolute airtight validation.
• Sterile and cGMP-Compliant Framework: Built strictly using premium-grade AISI 304 stainless steel for the external cladding and structural frame, with all contact parts machined from high-grade stainless steel. The design eliminates crevices, facilitating easy sanitization, washdown procedures, and compatibility with Class 100 / ISO 5 cleanroom environments.
• Dynamic Changeover Capabilities: The HVCS-200 features a highly adaptable architecture. With basic, easily accessible change parts (such as the star wheel and guide tracks), operators can quickly transition between various vial capacities (2ml to 100ml) and cap dimensions (13mm to 32mm) with minimal operational downtime.

Detailed Sequence of Operation

The core strength of the HVCS-200 lies in its automated, highly predictable, and continuous-motion rotary workflow. The sequence moves from left to right with rhythmic precision:

1. High-Speed In-feed & Star Wheel Indexing

Pre-filled and stoppered glass vials arrive from upstream lines via a high-durability, wear-resistant stainless steel slat conveyor. As they approach the entry zone, an expertly designed in-feed star wheel gently captures and indexes each vial. This step ensures that containers are perfectly spaced and rigidly oriented before entering the high-speed rotating turret assembly.

2. Synchronized Cap Pick-up & Smart Sensor Validation

Simultaneously, a high-efficiency vibratory bowl or mechanical hopper sorts, orients, and feeds aluminum/flip-off caps down a precision delivery chute. As each indexed vial passes directly beneath the discharge point of the chute, it naturally picks up a cap.

Crucially, the machine integrates a smart photo-electronic scanning array. This “No Vial – No Cap” and “No Cap – Machine Stop” logic ensures that if an unstoppered vial or an empty conveyor slot passes through, a cap is not wasted. Conversely, if the delivery chute runs out of caps, the system safely halts to prevent unsealed vials from leaving the zone.

3. Eight-Head Rotary Sealing Platform

Once the cap is balanced over the rubber stopper, the vial rotates smoothly into the primary 8-head sealing turret. As the turret spins, the corresponding spring-loaded sealing head descends vertically over the neck of the vial. The free-spinning sealing rollers engage around the skirt of the aluminum cap, smoothly rolling and forming a secure, permanent tuck beneath the glass vial rim. This specific configuration applies uniform pressure, accommodating slight manufacturing variations in glass neck diameters without cracking the vial.

4. Advanced Fault Detection & Operator Safety

To maximize uptime and protect valuable batches, the HVCS-200 features a single-drive motor that fully synchronizes the conveyor, star wheels, and turret. If a vial tips over, or if an odd-diameter container threatens to jam the mechanism, built-in mechanical safety overload clutches instantly engage on the star wheels. The system stops instantly, avoiding glass breakage, while a synchronized Human-Machine Interface (HMI) alerts the operator to the exact fault location.

5. Aseptic Discharge

Upon successful completion of the rolling process, the sealing heads retract smoothly. The tamper-evident, hermetically sealed vials are smoothly guided out via the discharge star wheel back onto the exit conveyor line. From here, they flow directly to downstream automation, such as online visual inspection stations, sticker labeling machines, or secondary cartoning lines.

Advanced Options & Integration Support

For pharmaceutical facilities requiring strict validation and data protection, Harsiddh offers modular, custom-engineered upgrades designed to meet international regulatory standards:

• PLC with Touchscreen HMI: Upgrade to a digitized Programmable Logic Controller (PLC) with an interactive touchscreen panel for absolute control over operational parameters, recipe management, batch counting, and digital fault diagnostics.
• 21 CFR Part 11 Compliance: For facilities requiring strict digital data tracking, custom automation packages can be implemented to log audit trails, electronic signatures, and secure user access management.
• Acrylic / Aluminum Profile Safety Cabinets: Fully enclosed physical interlocking safety guards can be installed over the rotating turret assembly, ensuring zero operator contact during active high-speed cycles.
• Laminar Air Flow (LAF) Integration: The compact footprint and open-bottom design allow the HVCS-200 to easily accept Class 100 LAF hoods directly over the capping turret, maintaining absolute aseptic conditions for sterile injectable lines.
• Validation Protocol Support: We support your engineering requirements by providing comprehensive validation documentation on demand, including Design Qualification (DQ), Installation Qualification (IQ), and Operational Qualification (OQ) protocols.

Technical Specification

Specification	Details (HVCS-200)
Sealing Head	Eight Head Rotary
Output Per Hour	5,000 to 10,000 Vials (Size Dependent)
Vial Range	2ml to 100ml (Dia. 16mm to 56mm)

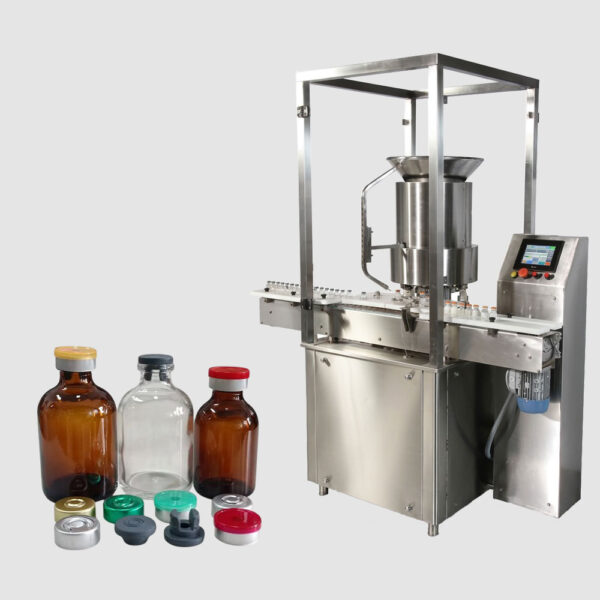

Cap Compatibility	13mm, 20mm, 28mm & 32mm
Direction of Movement	Left to Right
Main Motor	2.0 H.P. / 415 V / 3 Phase
Conveyor Motor	0.25 H.P. (Adjustable Height 800-900mm)
Net Weight	Approx. 570 Kgs
