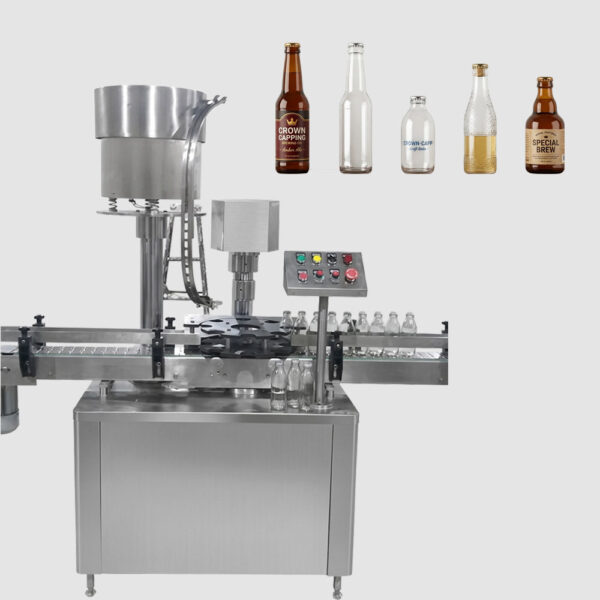

Automatic Bottle Crown Capping Machine

High-Speed Sealing Systems for the Beverage Industry

In the highly competitive beverage sector, maintaining product integrity, preventing contamination, and ensuring a flawless shelf presentation are critical to success. The Harsiddh Automatic Bottle Crown Capping Machine is an engineered masterpiece designed specifically to meet these demands. Built for high-efficiency, automated sealing of glass bottles using traditional crown closures (commonly seen on beer, cider, soda, and carbonated soft drink bottles), this machine stands as the definitive choice for modern bottling plants.

By transitioning from manual or semi-automated operations to our fully automated crown crimping system, beverage producers can completely eliminate labor bottlenecks, guarantee unvarying sealing pressure, and secure the precise carbonation levels required for extended shelf-life freshness. Whether you manage an artisanal craft brewery, an organic juice brand, or a high-velocity industrial soda plant, our customizable machinery configurations offer the ideal scalability to elevate your production output.

The Critical Role of Precision Crown Capping

Crown caps—originally known as the “crown cork”—remain the gold standard for sealing carbonated and pressurized beverages due to their unrivaled gas-retention properties. However, achieving a perfectly airtight, leak-proof barrier requires an exact, uniform crimping force. Too little pressure results in micro-leaks, causing flat beverages and spoilage. Too much pressure can fracture the delicate glass rim of the bottle neck.

The Harsiddh Automatic Crown Capping Machine eliminates human error by utilizing a mechanical crimping head calibrated to deliver identical pressure across millions of operational cycles. This protects both your product formulation and your bottom line, reducing rejection rates to near zero.

Intelligent & Synchronized Operational Workflow

Designed to operate as a central, high-performance node within a larger automated packaging eco-system, this equipment features a streamlined, step-by-step workflow that ensures smooth bottle handling and minimal downtime.

1. Precision Conveyor Feeding & Indexing

Bottles travel from the filling station onto the machine’s heavy-duty, variable-speed conveyor line. Upon arrival at the sealing zone, an engineered, wear-resistant star-wheel indexing mechanism captures each bottle. This ensures that every container is perfectly centered directly underneath the capping head, preventing any structural misalignment or bottle damage during the high-speed cycle.

2. Automated Cap Sorting & Orientation

Manually feeding caps is slow and inefficient. Our system integrates a high-capacity vibratory or rotary cap elevator bowl. Loose crown caps are bulk-loaded into the hopper, where they are automatically oriented top-side-up and aligned into a seamless queue. They travel down a precision-machined delivery chute, ready to be picked up by the incoming bottles or the descending capping chuck.

3. Advanced Mechanical Crimping Cycle

As the indexed bottle settles into position, the heavy-duty capping head descends. Utilizing an engineered die, the head applies a calculated, uniform downward and inward compression force. This perfectly crimps the fluted edges of the aluminum or steel crown cap around the precise profile of the glass bottle neck, locking in internal carbonation and creating an impenetrable barrier against external oxygen entry.

4. Smart “No Bottle, No Cap” Safety Integration

To prevent material waste and mechanical jamming, the machine is equipped with state-of-the-art optical or proximity sensors. If the system detects an empty slot in the indexing wheel or a missing bottle on the conveyor, it instantaneously pauses the cap delivery chute for that specific cycle. This smart automation ensures clean operations and prevents stray caps from falling into the mechanical moving parts.

5. Seamless Out-feed and Secondary Discharge

Once the crimping process is verified, the star wheel smoothly transitions the hermetically sealed bottles back onto the main line conveyor. From here, the bottles proceed smoothly toward down-stream processes, such as pasteurization tunnels, date-coding printers, outer-surface dryers, or high-speed labeling machinery.

Tailored Scalability: Exploring Our Complete Capping Range

No two beverage packaging lines are identical. Production spaces, hourly targets, and budget constraints vary wildly between a local startup and an international multi-national brand. To accommodate this spectrum, Harsiddh offers a versatile, scalable portfolio of automatic crown capping machines categorised by the number of active sealing heads.

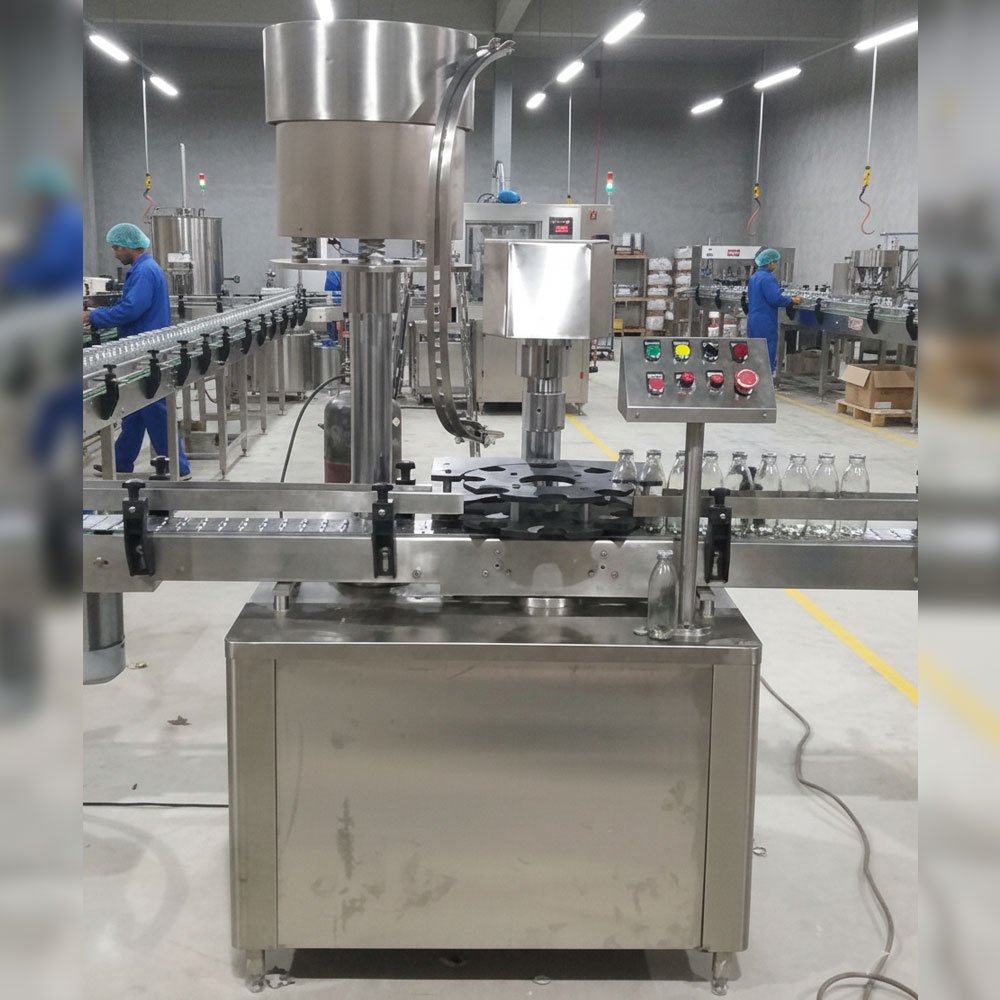

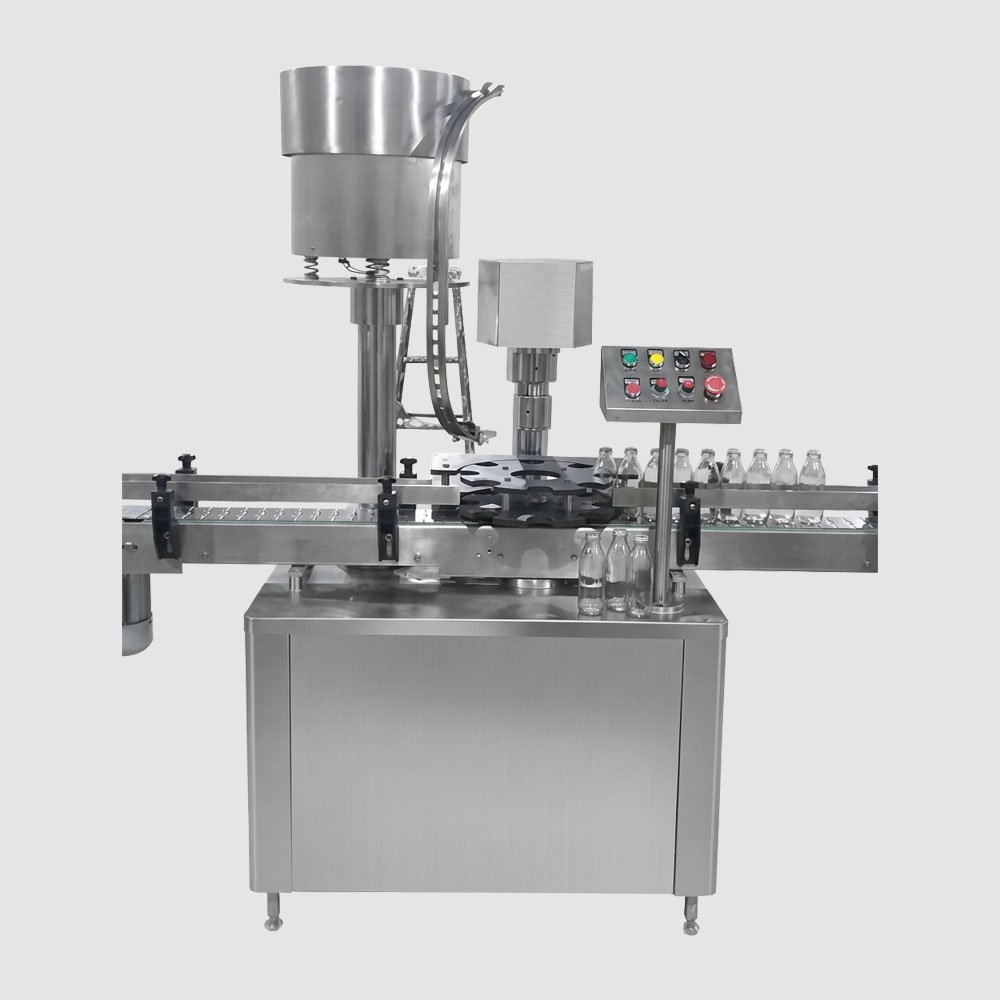

Single-Head Rotary Capping Machines

• Best Suited For: Micro-breweries, specialized boutique wineries, experimental batch plants, and pilot-scale laboratories.
• Overview: This compact unit delivers industrial-grade sealing quality within a smaller footprint. It is ideal for facilities stepping away from manual hand-crimpers to seek consistent torque, airtight sealing, and automated throughput without requiring massive floor space.

Four & Six-Head Rotary Systems

• Best Suited For: Medium-to-high speed commercial beverage lines, contract packaging facilities, and regional distribution plants.
• Overview: The undisputed workhorse of the mid-tier beverage sector. These multi-head rotary systems dramatically increase hourly bottle-per-minute (BPM) rates. By distributing the mechanical workload across four or six synchronized crimping stations, these machines deliver continuous, high-speed output with exceptionally low mechanical wear and tear.

Eight, Ten & Twelve-Head Industrial Bottling Systems

• Best Suited For: High-volume, 24/7 industrial bottling facilities and major global soda, beer, and mineral water brands.
• Overview: Engineered for continuous heavy-duty cycles, these massive rotary capping towers integrate smoothly into high-speed production matrices alongside massive rotary fillers. Boasting advanced PLC control panels, automated height adjustment, and synchronized drive systems, these multi-head machines maximize output while ensuring that every single crown cap meets stringent quality-control benchmarks.

Key Performance Advantages & Technical Features

• Premium Stainless Steel Construction: Manufactured using high-grade AISI 304/316 stainless steel to ensure absolute compliance with global food and beverage hygiene regulations. The non-corrosive structure stands up to aggressive washdown procedures and acidic beverage spills.
• User-Friendly PLC & HMI Touchscreen: Equipped with a central Human-Machine Interface (HMI) that lets operators adjust conveyor speeds, monitor real-time output counts, diagnose system alerts, and configure timing cycles effortlessly.
• Quick, Tool-Less Changeovers: Designed with operators in mind, the star-wheels and guiding channels can be swapped out quickly to accommodate different bottle heights or neck diameters, minimizing changeover downtime.
• Gentle Bottle Handling: Integrated safety clutches and shock-absorbing neck guides prevent glass-on-glass friction, minimizing bottle breakage and scuffing.
• Energy-Efficient Drive Motor: Driven by an energy-optimized AC motor with a variable frequency drive (VFD), allowing smooth acceleration and deceleration curves that protect the longevity of the transmission gearboxes.

Technical Specifications Comparison

Feature	1-Head Auto	4-Head Auto	6-Head Auto	8-Head Auto
Production Rate (BPM)	15–30	40–60	60–90	90–120
Production Rate (BPH)	1200–1800	2400–3600	3600–5400	5400–7200
Power Supply	230V/415V 3Ph	230V/415V 3Ph	440V 3Ph	440V 3Ph
Power (HP/kW)	~1.0 HP	Varies	0.75 – 1.5 kW	~1.5 HP
Weight (kg approx.)	350	500	650	850
Air Pressure	4–6 bar	4–6 bar	4–6 bar	4–6 bar
Bottle Dia. Range	35–100 mm	35–100 mm	35–100 mm	35–100 mm
Bottle Height Range	60–320 mm	60–320 mm	60–320 mm	60–320 mm

Why Choose Harsiddh for Your Bottling Automation?

At Harsiddh, we don’t just manufacture machinery; we deliver custom-tailored engineering solutions that drive efficiency and profitability for your business. Our Automatic Bottle Crown Capping Machine represents the pinnacle of sealing technology, balancing rugged mechanical durability with smart electronic automation.

By integrating our systems into your production facility, you secure a reliable asset that protects your beverage’s flavor profile, prevents carbonation loss, and keeps your production lines running flawlessly at peak capacity. Let us help you scale your business with the ultimate sealing solution.
