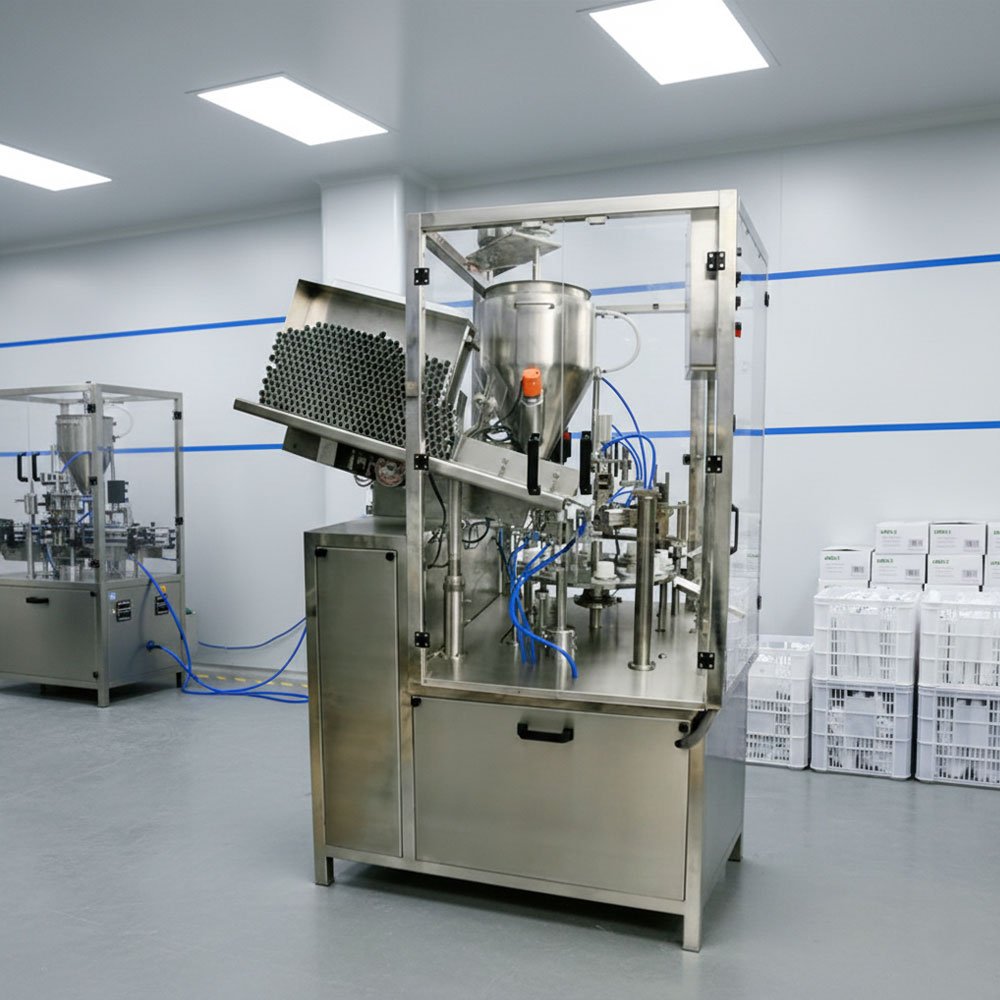

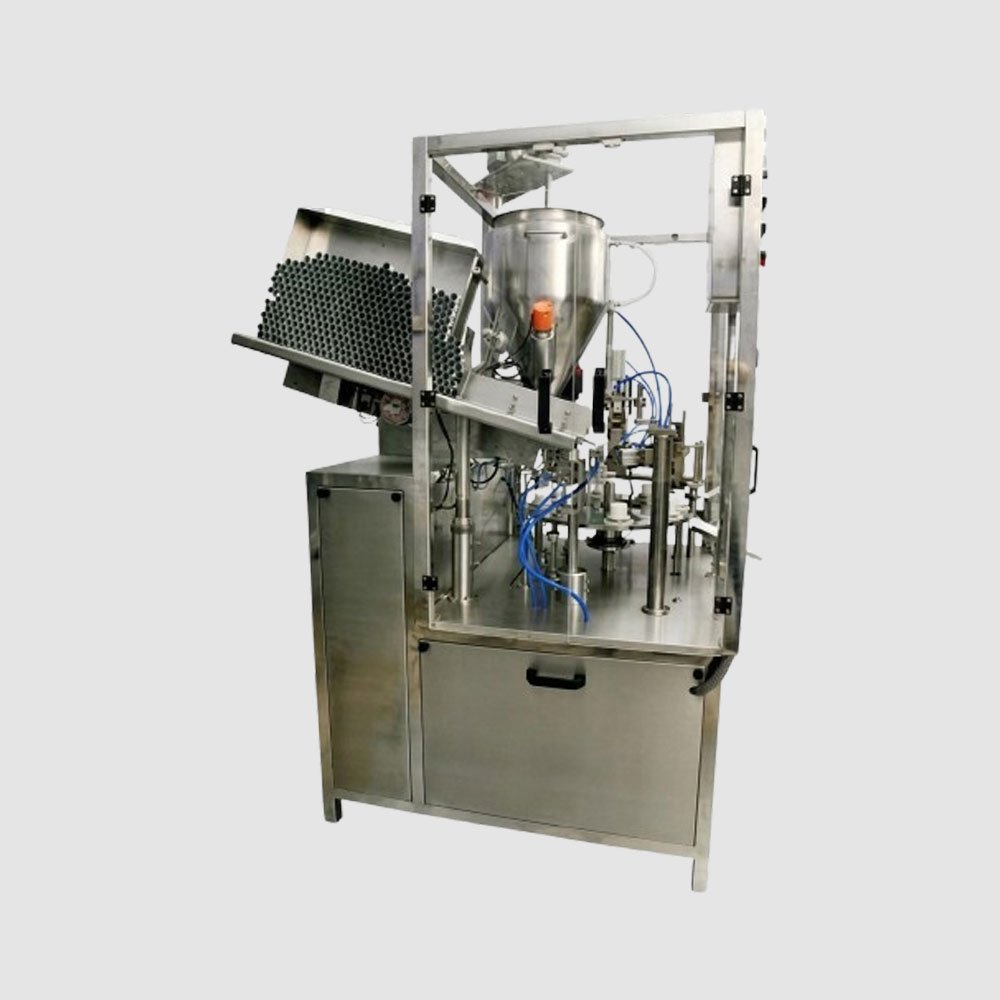

Automatic Aluminum Tube Filling Machine
Revolutionize Your Packaging Line with Advanced Automation
In modern manufacturing, precision, efficiency, and consistency are non-negotiable. The Harsiddh Automatic Aluminum Tube Filling Machine (HTF-40AL) is a premier industrial solution designed to elevate your production line. Engineered to deliver high-precision automation, this fully automatic rotary system handles everything from tube feeding and orientation to precise filling, crimping, and batch coding.
If your facility processes high-viscosity formulations, the HTF-40AL provides a reliable, robust, and continuous workflow. It eliminates human error, reduces product waste, and drastically accelerates output while maintaining absolute compliance with stringent international manufacturing guidelines.
The Heart of the Machine: A High-Performance 12-Station Manifold Indexing Turret
At the core of the HTF-40AL lies a state-of-the-art 12-station manifold indexing turret. This rotary configuration ensures a smooth, continuous sequence of actions. Each tube moves systematically from one station to the next with flawless mechanical timing.
By distributing the workflow across 12 distinct positions, the machine achieves high processing speeds without compromising quality. The mechanical synchronization ensures every tube is perfectly handled, filled, sealed, and coded to the highest industry standards. This heavy-duty design minimizes vibration, reduces wear and tear, and guarantees a prolonged operational lifespan even under 24/7 manufacturing schedules.
Step-by-Step Breakdown: The Precision 12-Station Workflow
Every rotation of the HTF-40AL turret performs a masterclass in automated mechanical engineering. The seamless 12-station operational sequence ensures structural integrity and product hygiene from start to finish:
- Automated Cassette Feeding: The process begins with the high-capacity cassette loader, which automatically feeds empty aluminum tubes into the designated tube holders. This eliminates the need for manual loading, significantly lowering labor costs and maximizing operator safety.
- Smart Tube Orientation & Alignment: To ensure that retail graphics and text are perfectly centered, the machine integrates a high-speed Stepper Motor paired with a world-class Datalogic ‘I’ Mark Sensor. The sensor reads the registration mark on the tube tail, and the stepper motor spins the tube into the exact position required for a uniform final presentation.
- Hygienic Tube Interior Cleaning (Optional Enhancement): Prior to filling, an optional air-blowing and vacuum suction system cleans the interior of the tube. This extracts any airborne dust or particulate matter that may have settled during transit or storage, ensuring a zero-contamination environment for sensitive formulas.
- Intelligent “No Tube – No Fill” Safety Sensor: To avoid costly cleanups and messy product wastage, the machine is equipped with advanced electrical logic sensors. If a station is empty or a tube fails to load correctly, the sensor instantly communicates with the control unit to bypass the dosing cycle for that specific station.
- Ultra-Accurate Volumetric Filling: The dosing station utilizes a premium volumetric piston pump that delivers exact product quantities into each tube. To handle sticky, thick substances without making a mess, the system features a pneumatic tail-cut off (nozzle blow-off or suck-back mechanism), ensuring a crisp, drip-free finish.
- Heavy-Duty Sealing & Crimping: Once filled, the tube travels to the high-performance Festo (Germany) pneumatic crimping unit. This industry-leading component performs a precise double or triple fold on the aluminum tail, flattening and securing it into an airtight, leak-proof barrier.
- Integrated Batch Coding & Embossing: Simultaneous with the final crimping stage, the machine embosses essential tracking data—such as batch numbers, manufacturing dates, and expiry dates—directly onto the sealed aluminum tail. This eliminates the need for post-packaging printing equipment.
- Automated Finished Product Discharge: Once fully processed, the filled, sealed, and coded tubes are automatically ejected from the turret holders onto a discharge chute or connecting conveyor belt, ready for final cartoning and shipping.

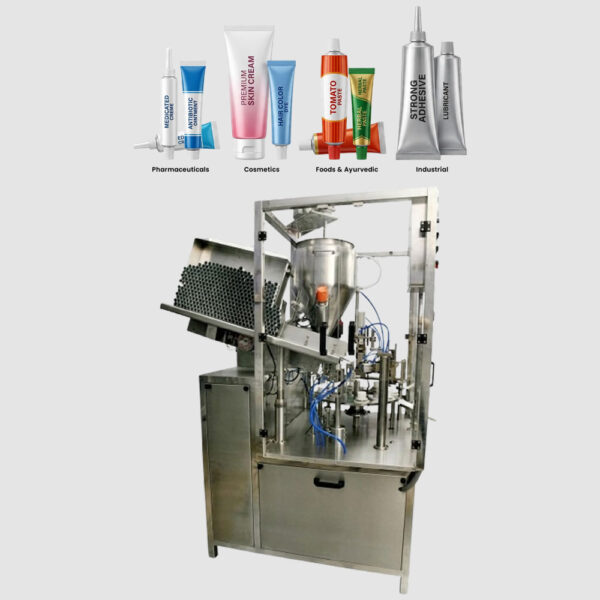

Universal Industry Applications: Tailored for High-Viscosity Formulations
The HTF-40AL is incredibly versatile, making it an indispensable asset across multiple fast-moving consumer goods (FMCG) and industrial markets. It is specifically calibrated to handle complex, high-viscosity substances, including:
- Pharmaceutical Sector: Perfect for packaging sterile ointments, medicated creams, gels, topical pastes, and burn treatments that demand strict hygienic handling.
- Cosmetic & Personal Care Industry: Ideal for premium face creams, hair colorants, toothpastes, sunscreens, and thick body balms requiring elegant, retail-ready finishing.
- Chemical & Industrial Manufacturing: Capable of handling tough, aggressive fluids such as industrial adhesives, rubber gums, sealants, silicones, and greases without damaging the machine’s internal components.
Key Features & Technological Advantages
Investing in the Harsiddh HTF-40AL translates to a wide array of operational advantages for your manufacturing facility:
- Premium Pneumatics: Utilizing Festo (Germany) pneumatic parts ensures unparalleled reliability, faster response times, and globally accessible spare parts.
- Superior Material Construction: All contact parts are manufactured from high-grade stainless steel (SS 316 / SS 304), ensuring full compliance with cGMP (Current Good Manufacturing Practice) norms and easy sanitization.
- User-Friendly HMI & PLC Control: The intuitive touchscreen interface allows operators to adjust filling volumes, monitor production speeds, view real-time diagnostics, and manage system alerts with ease.
- Quick Changeover Times: Designed with flexibility in mind, the machine allows operators to switch between different tube diameters and filling volumes quickly with minimal tool usage, drastically lowering downtime.
- Variable Speed Drive: The integration of an AC variable frequency drive allows you to fine-tune production speeds to match your upstream or downstream packaging lines.
Technical Specifications
| Feature | Specification |
|---|---|
| Production Speed | Up to 35 Tubes / Minute |
| Number of Heads | Single Head |
| Indexing System | 12-Station Manifold Indexer |
| Max Tube Diameter | 40mm |
| Max Tube Height | 200mm |
| Filling Accuracy | ± 1% |
| Main Motor | 1.0 H.P. / 1440 RPM |
| Power Consumption | 2.5 KW to 5.0 KW |
| Air Consumption | 6 Kgs/sq.cm at 10 CFM |
| Machine Dimensions | 900mm (L) x 1200mm (W) x 2450mm (H) |
| Approx. Weight | 500 Kgs |
Why Choose Harsiddh Engineering for Your Packaging Solutions?
At Harsiddh, we don’t just build machinery; we engineer long-term operational reliability. Every HTF-40AL machine undergoes exhaustive quality assurance protocols and factory acceptance testing (FAT) before it leaves our facility.
By combining world-class components like Datalogic sensors and Festo pneumatics with robust structural engineering, we deliver equipment that maximizes your Return on Investment (ROI). Furthermore, our dedicated global customer support network ensures you receive prompt assistance with installation, operator training, maintenance, and genuine spare parts.
Optimize Your Production Today
Bring unmatched efficiency, clean operation, and precision accuracy to your packaging facility. Whether you are scaling up a boutique laboratory or upgrading an enterprise-grade processing plant, the Harsiddh Automatic Aluminum Tube Filling Machine (HTF-40AL) is built to deliver.
Frequently Asked Questions
What is the production capacity and tube size range for this machine?
This automatic model is designed for high-efficiency production, typically achieving an output of 30 to 50 tubes per minute (approx. 1,800 to 3,000 per hour). It is highly versatile and can handle aluminum tubes with diameters ranging from 10mm to 35mm and lengths up to 200mm. The rotary indexed table allows for smooth transitions between the filling, folding, and ejection stations.
How does the machine ensure accurate filling without air bubbles?
To maintain pharmaceutical and cosmetic standards, the machine uses:
Bottom-Up Filling: The filling nozzle enters the tube and retracts as the product is dispensed. This prevents air entrapment and "tunneling" within the cream or gel.
Positive Shut-off Nozzle: A specialized "blow-back" or "cut-off" nozzle prevents dripping or "tailing" of the product, ensuring the sealing area remains clean for a perfect fold.
Dosing Accuracy: Equipped with a high-precision volumetric piston pump, achieving an accuracy of ±1%.
Does the machine include automatic tube orientation (I-Mark registration)?
Yes. To ensure a professional aesthetic, the machine is equipped with an Automatic Eye-Mark (Photo-Electronic) Registration System. Before filling, the machine rotates each tube until the sensor detects the "I-Mark." This ensures that the tube tail is folded in perfect alignment with the front-facing graphics and branding on the tube body.
What are the key cGMP and safety features of this model?
As a cGMP-compliant unit, the Harsiddh Automatic Aluminum Tube Filling Machine includes:
Material Integrity: All product contact parts (hopper, pump, and nozzles) are made of SS 316L, while the main frame is SS 304.
No Tube – No Fill Sensor: An electronic interlock prevents the pump from discharging product if a tube is missing, eliminating wastage and mess.
Safety Cabinet: The rotary table is housed within a transparent safety enclosure with interlock sensors that stop the machine if the doors are opened during operation.
Batch Coding: An integrated coding station allows for the embossing of Batch Numbers, Mfg. Dates, and Expiry Dates directly onto the crimped tail of the tube.
