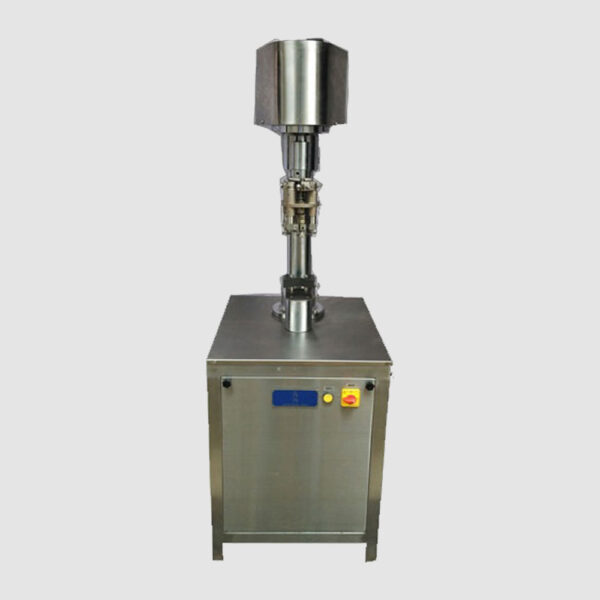

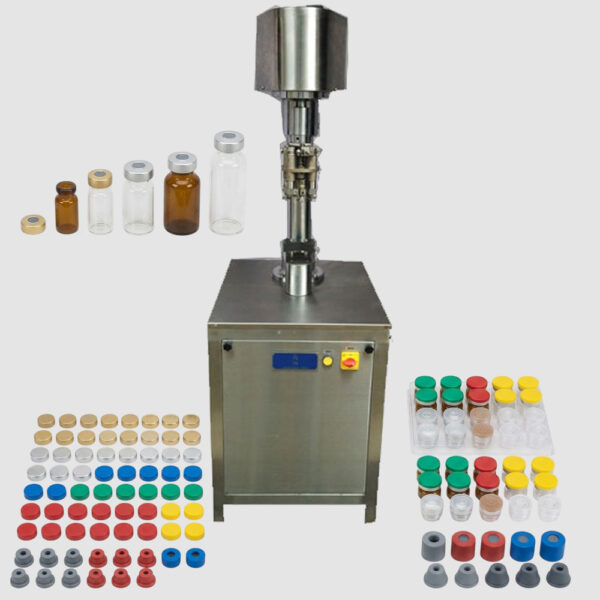

Semi Automatic Vial Cap Sealing Machine

High-Precision Hermetic Sealing for Small to Medium-Scale Pharmaceutical Operations

In modern pharmaceutical manufacturing, clinical trials, and specialized laboratory environments, the integrity of a vial’s seal is non-negotiable. Contamination, leakage, or improper crimping can compromise an entire batch of high-value formulations. The Harsiddh Semi-Automatic Vial Cap Sealing Machine offers the perfect balance between operator control and motorized precision. Engineered specifically to bridge the gap between error-prone manual hand-crimping and capital-intensive, fully automated packaging lines, the HVCS-50S provides a stable, stand-integrated platform that delivers flawless, repeatable, and tamper-evident sealing quality every single time.

Whether you are processing specialized biologics, small-batch vaccines, or pilot-scale liquid injectables, this versatile machine ensures that your containers meet the stringent hermetic standards demanded by international regulatory bodies (such as FDA and GMP compliance standards).

Key Performance Features & Technical Advantages

The HVCS-50S is built to withstand continuous industrial use while maintaining micro-level precision. Below are the core technological features that set this semi-automatic vial capper apart from conventional alternatives:

1. Robust, Heavy-Duty Architecture

Constructed primarily from high-grade stainless steel (SS 304/SS 316 contact parts), the machine features a rugged, vibration-free stand-integrated frame. This heavy-duty build ensures structural stability during the sealing cycle, eliminating micro-movements that could lead to misaligned caps or cracked glass vial rims.

2. Motorized Sealing Head with Synchronized Pressure

Unlike manual hand-crimpers that rely entirely on the operator’s physical strength—leading to fatigue and inconsistent sealing force—the HVCS-50S utilizes a motorized sealing mechanism. The specialized crimping head descends smoothly, applying uniform, multi-directional torque and downward pressure to secure the aluminum or flip-off seals seamlessly around the vial neck.

3. Integrated Height Adjustment Gauge

Versatility is a core hallmark of Harsiddh machinery. The HVCS-50S is equipped with a user-friendly, highly accurate integrated height adjustment gauge. This allows operators to quickly and seamlessly transition between different vial capacities (e.g., 2ml, 5ml, 10ml, 30ml, or larger) within a matter of minutes, minimizing downtime during batch changes.

4. Advanced Mechanical Protection for Glassware

One of the greatest risks during vial crimping is glass breakage due to excessive or uneven pressure. The HVCS-50S features a finely tuned torque/pressure synchronization system. The machine absorbs the impact and applies the exact pressure curve required to fold the aluminum skirt under the vial bead without putting undue stress on the glass body.

Step-by-Step Reliable Operational Workflow

The Harsiddh HVCS-50S is designed with operator ergonomics and workplace safety at its core. It transforms a highly critical packaging step into a straightforward, predictable, and low-stress operational routine:

• Phase 1: Rapid Machine Calibration & Preparation Before beginning a new production batch, the operator utilizes the integrated mechanical gauge to adjust the vertical clearance of the sealing head. By matching the physical height of the targeted vial size, the machine ensures optimal stroke depth and pressure distribution.
• Phase 2: Manual Loading with High Tactile Control The operator places a pre-filled glass vial—complete with its rubber stopper and loose aluminum/flip-off cap—directly onto the centered sealing platform. This manual placement allows for visual inspection and tactile verification right before the crimping process occurs, catching any misaligned components beforehand.
• Phase 3: Automated Sealing Activation With a simple switch or pedal activation, the motorized sealing cycle begins. The specialized crimping rollers or collet head descend over the vial neck, wrapping and pressing the cap skirt beneath the glass rim with mechanical consistency that manual tools simply cannot replicate.
• Phase 4: Seamless Component Removal & Inspection Once the sealing head retracts automatically, the operator removes the securely sealed vial from the platform. The container is now perfectly airtight, ready for immediate aesthetic inspection, tray loading, or secondary cartoning and labeling.

Ideal Applications and Target Industries

The versatility of the Semi-Automatic Vial Cap Sealing Machine makes it an invaluable asset across multiple sectors prioritizing liquid integrity, sterility, and tamper-evidence:

• Pharmaceutical Pilot Plants & R&D Labs: Perfect for small-scale clinical trial batches, stability testing, and formulating experimental compounds where fully automated lines are inefficient.
• Biotechnology & Life Sciences: Safe handling and reliable sealing of diagnostic reagents, enzymes, serum bottles, and genomic samples.
• Compounding Pharmacies: Streamlining custom medication compounding, ensuring fast, repeatable, and sterile closing of customized injectable or infusion bottles.
• Veterinary Medicine Production: Ideal for small to mid-sized manufacturers specializing in animal health vaccines, liquid vitamins, and localized antibiotics.
• Nutraceuticals & Essential Oils: Securing premium liquid extracts and concentrated tinctures inside specialized glass vials using tamper-evident tear-off caps.

Technical Specification

Feature	Details (HVCS-50S)
Output Speed	Up to 40 Vials Per Minute (Size Dependent)
Vial Diameter	16 mm to 54 mm
Vial Height	Up to 250 mm
Cap Compatibility	Aluminum Flip-Off & Tear-Off
Capping Head	Single Head (Interchangeable)
Power Drive	1.0 H.P. with VFD
Electrical Supply	230V, 1 Phase, 50 Hz
Net Weight	Approx. 125 Kgs
Dimensions (LxWxH)	600 mm x 600 mm x 1400 mm

Why Invest in the Harsiddh Vial Cap Sealing Machine?

Choosing the right packaging equipment directly influences your operational efficiency and product safety margins. Here is why global pharmaceutical and biotech companies trust the Harsiddh advantage:

Maximized Cost-Efficiency

Fully automated vial sealing lines require significant floor space, intensive cleaning protocols, and deep capital investment. The HVCS-50S offers an exceptionally high return on investment (ROI) by maximizing throughput within a compact table-top or small-stand footprint, keeping overhead expenses low.

Drastic Reduction in Rejection Rates

Manual hand-crimpers often lead to wrinkled skirts, loosely fitted caps, or micro-fractures in the glass, resulting in batch failures during quality control checks. The HVCS-50S eliminates human variance from the pressure application process, resulting in a near-zero reject rate.

Enhanced Operator Ergonomics

Repetitive strain injuries (RSI) are common among laboratory personnel using handheld mechanical crimpers. By shifting the physical work to an automated, motorized head, the HVCS-50S protects your workforce and boosts long-term daily productivity.

Compliant with Cleanroom Regulations

The smooth stainless-steel exterior surfaces, minimal mechanical crevices, and enclosed motorized assemblies make this machine easy to wipe down, sanitize, and operate safely inside sterile cleanrooms and laminar airflow hoods.

Optimize Your Production Line with Harsiddh Innovation

Don’t let manual crimping bottlenecks slow down your facility’s output or threaten your product’s sterile boundaries. Upgrade your small-batch packaging operations with a solution that delivers industrial-grade hermetic reliability, ease of maintenance, and exceptional operational longevity.

Contact the engineering team at Harsiddh today to request a custom quote, verify cap compatibility, or discuss specific customization requirements for your Semi-Automatic Vial Cap Sealing Machine (HVCS-50S). Let us help you elevate your quality control standards one perfect seal at a time.
