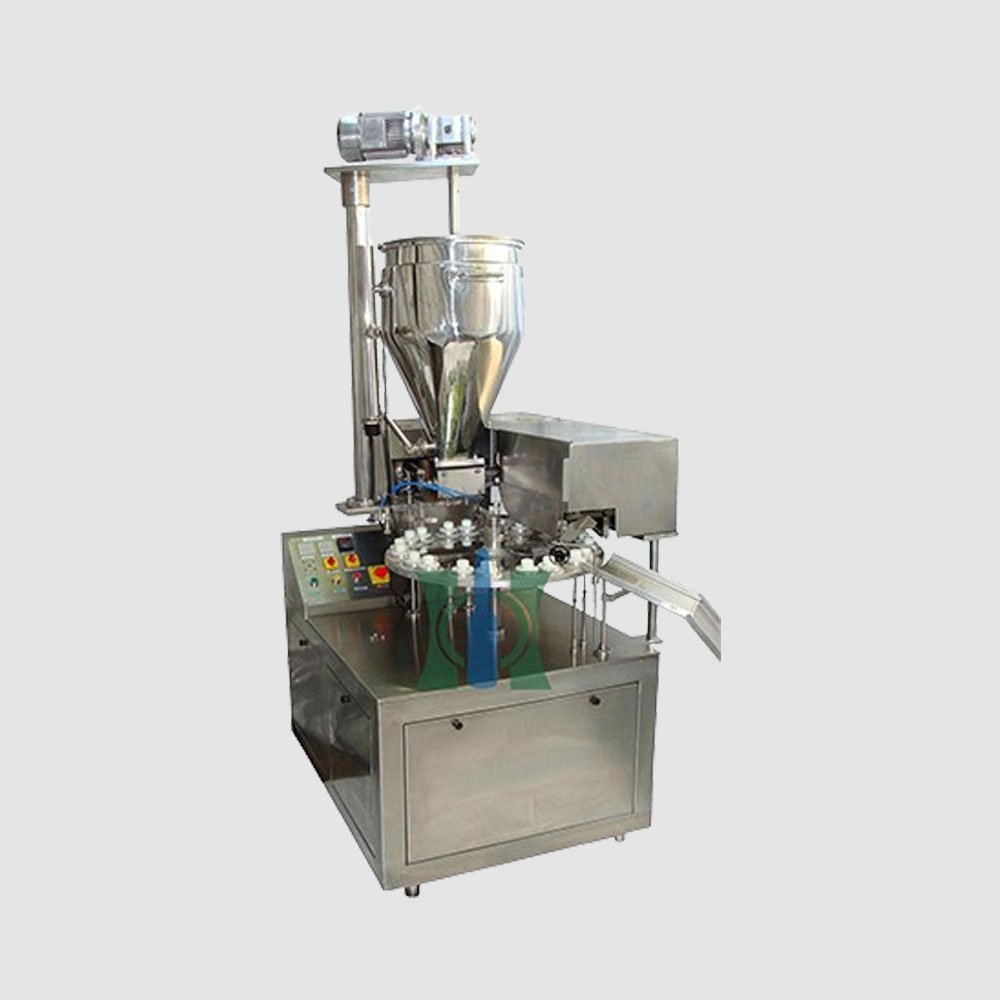

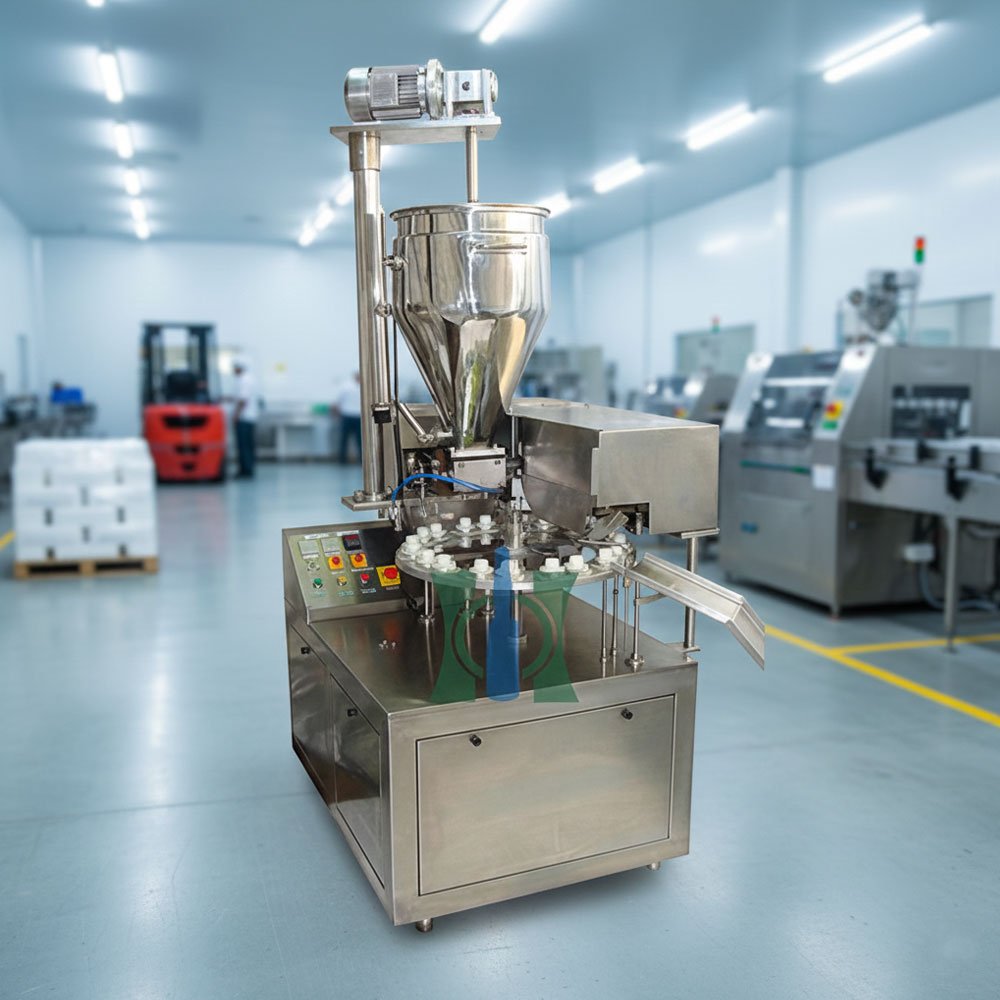

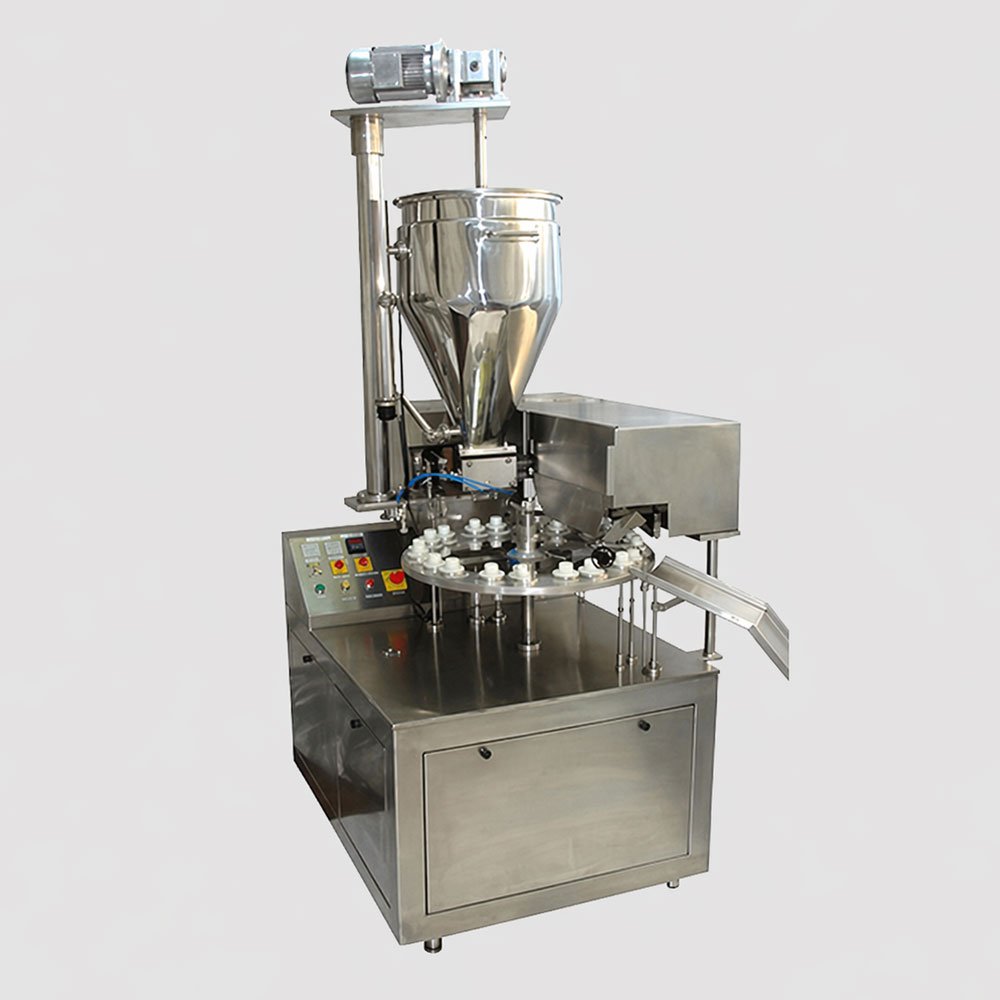

Semi Automatic Plastic Tube Filling Machine
Master the Art of Precision Packaging: High-Performance Tube Filling for Modern Production Lines
In today’s competitive manufacturing landscape, operational agility, material efficiency, and product integrity are the cornerstones of profitability. The Harsiddh Semi-Automatic Plastic Tube Filling Machine is an industrial-grade solution designed to bridge the gap between manually intensive filling processes and complex, fully automated systems. Engineered with a deep understanding of fluid dynamics, mechanical reliability, and strict hygienic protocols, this robust machine serves as the reliable backbone for small-to-medium-scale manufacturers and pilot production facilities worldwide.
Whether you are packing luxurious cosmetic formulations, critical pharmaceutical compounds, or culinary pastes, this versatile system delivers the precise volumetric dosing and immaculate sealing required to elevate your brand’s market presentation.
Why Choose the Harsiddh Semi-Automatic Tube Filler?
Moving away from manual filling isn’t just about speed—it is about consistency and the eradication of costly product waste. The Harsiddh filler is built to optimize your packaging operations through several key advantages:
- Unrivaled Volumetric Accuracy: Viscous and semi-solid materials behave unpredictably under variable pressures. Our positive suction pump assembly and calibrated mechanical drive stabilize product movement, ensuring every single tube receives the exact targeted volume.
- Minimal Operational Footprint: Designed to maximize floor space efficiency, this compact yet heavy-duty unit easily integrates into existing production layouts without requiring costly line overhauls.
- Rapid ROI (Return on Investment): By drastically reducing manual labor hours, eliminating overfills, and eliminating container spoilage, the machine quickly pays for itself, driving up your bottom-line profitability.
- Ergonomic, Operator-First Architecture: Featuring an expansive, full-size opening front guard, your operators can perform routine maintenance, thorough clean-downs, and rapid component changeovers without awkward positioning or specialized tools.
Technical Specifications & Key Engineering Features
Our commitment to engineering excellence is visible in every weld, sensor, and mechanical linkage. The Harsiddh system combines rugged durability with responsive, smart automation components.
1. Smart Sensing: Advanced “No Tube – No Filling” Protocol
Product spillages don’t just waste valuable inventory; they lead to extensive downtime for machine cleaning and risk contaminating surrounding packaging components. To solve this issue, our machine incorporates sensitive pneumatic detection arrays.
- How it works: The automated dosing cycle remains strictly locked out until a tube is perfectly seated within the holder. If an operator misses a slot or inserts a tube incorrectly, the pneumatic sensors register the error instantly, bypassing the injection cycle. This safeguards your clean workspace and ensures zero product loss.
2. Premium Hygienic Construction (SS 316 / SS 304)
To satisfy the rigorous regulatory mandates of international standard-setting bodies (such as the FDA, WHO, and cGMP frameworks), material selection is never compromised:
- Product Contact Zones: All components that interact directly with your product—including the hopper, filling nozzles, pistons, and suction valves—are fabricated from premium Stainless Steel 316. This medical-grade alloy provides exceptional resistance against corrosive formulations, chemical acids, and intensive sanitization cycles.
- Structural Frame and Panels: The external enclosure, protective guards, and support structures are cladded in high-polish Stainless Steel 304. This prevents rust, withstands aggressive washdowns, and maintains a pristine cleanroom appearance for years to come.
3. Clean Cut-Off & Immaculate Sealing Mechanisms
Achieving an airtight seal while maintaining an aesthetically pleasing tube tail requires immaculate control.
- Drip-Free Dosing: The positive suction pump system applies a subtle reverse-draw pressure at the tail end of the injection cycle. This cuts off the product cleanly, preventing trailing drips from fouling the tube’s sealing area.
- Flawless Trim Quality: Integrated pneumatic trimming blades slice away excess plastic material cleanly. The resulting weld is smooth, uniform, and completely free from sharp burrs, delivering a professional, shelf-ready finish that matches high-end consumer expectations.
4. Simplified Intuitive Control Interface
Complex machinery shouldn’t require complex programming. We have replaced overly convoluted digital navigation tracks with a centralized, ultra-reliable electromechanical relay control panel.
- Tactile Execution: Featuring high-durability Start, Stop, and Inch buttons, operators can easily command the machine with physical, gloves-on confidence.
- On-the-Fly Calibration: The “Inch” functionality allows technicians to micro-step the machine through its cycles, simplifying alignment checks and making batch setup incredibly safe.
- Production Transparency: A built-in digital counter tracks outputs in real-time, allowing production managers to accurately calculate hourly efficiency metrics and maintain flawless batch records.

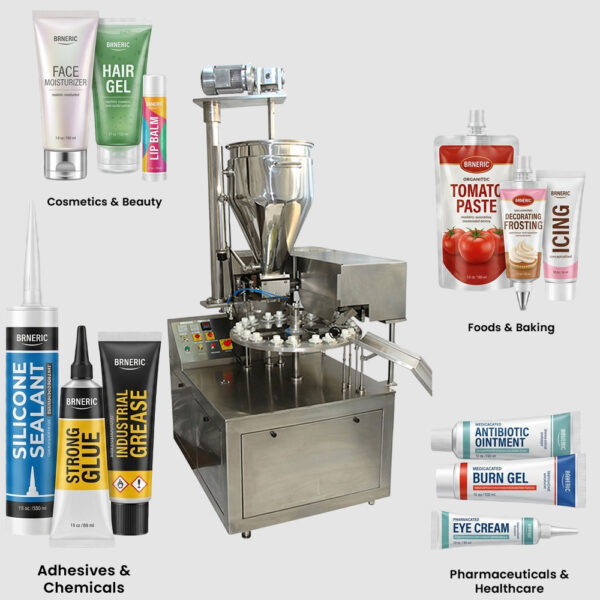

Universal Product Compatibility
Viscosity variations can stall inferior filling machinery. The Harsiddh Semi-Automatic Plastic Tube Filler is uniquely tuned to handle a broad rheological spectrum, effortlessly managing materials ranging from fluid lotions to stubborn, dense pastes.
- Cosmetics & Personal Care: Ideal for facial gels, foundation creams, nourishing balms, hair conditioners, and moisturizing lotions.
- Pharmaceuticals & Healthcare: Extrudes medicated ointments, antiseptic creams, dental toothpastes, and topical gels with uncompromised sanitary safety.
- Food & Nutraceuticals: Perfectly handles gourmet spreads, honey blends, fruit purees, cheese pastes, and concentrated nutrient gels.
Optimized for Seamless Changeovers
In modern manufacturing, handling diverse product lines on a single machine is mandatory. The Harsiddh tube filler accommodates a wide range of plastic and laminate tube lengths and diameters. Changing out tube holders, adapting filling nozzles for different product thicknesses, or adjusting the filling stroke length requires minimal downtime. This allows your team to switch from a run of cosmetic gels to a batch of pharmaceutical ointments in just a fraction of the time required by alternative systems.
Technical Specifications
| Feature | Details |
|---|---|
| Production Capacity | 15 to 25 Tubes per Minute |
| Filling Range | 5g to 200g (Adjustable) |
| Filling Accuracy | ±1% |
| Air Consumption | Approx. 0.9 m³/min |
| Working Pressure | 0.65 – 1.0 Mpa |
| Contact Parts | Stainless Steel 316 |
| Non-Contact Parts | Stainless Steel 304 |
| Machine Weight | Approx. 250 Kg |
| Dimensions (LxWxH) | 1200mm x 830mm x 1820mm |
Invest in Harsiddh Engineering Excellence
Choosing Harsiddh means investing in a legacy of manufacturing precision, reliable customer support, and elite engineering standards. Every machine undergoes exhaustive quality testing under real-world load conditions before leaving our facility, ensuring it arrives ready to work.
Transform your packaging bottleneck into a streamlined, high-efficiency revenue center. Empower your workforce, secure your product quality, and scale up your manufacturing capabilities with confidence.
Frequently Asked Questions
What sealing technology is used for Plastic and Laminated tubes?
Unlike metal tubes that are folded, plastic tubes require thermal bonding. The Harsiddh machine utilizes Hot Air Sealing Technology (featuring a high-quality Leister heater). Hot air is blown into the inner tail of the tube to soften the plastic. Immediately after, the tubes move to the pneumatic sealing jaws, which press the ends together to create a permanent, leak-proof, and aesthetic bond.
What is the production capacity and tube size range?
The Semi-Automatic model is designed for efficiency in compact workspaces. Depending on the operator's speed in loading the tubes, it typically achieves an output of 15 to 25 tubes per minute (approximately 900 to 1,500 per hour). It is highly versatile and can handle plastic tubes with diameters ranging from 10mm to 50mm and various lengths.
How does the machine ensure a clean, professional finish on the tube tail?
To achieve a retail-ready look, the machine includes two critical post-sealing stages:
Tail Trimming: An integrated trimming station cuts away the excess plastic from the top of the seal, leaving a clean, straight, or rounded "flat-top" finish.
Batch Coding: The sealing jaws are designed to hold alphanumeric characters to emboss the Batch Number, Mfg. Date, and Expiry Date directly into the plastic seal during the cooling phase.
What are the key cGMP and maintenance features of this machine?
As a cGMP-compliant unit, this machine is built for pharmaceutical and cosmetic hygiene:
Material Integrity: All product contact parts (hopper, pump, and nozzles) are made of SS 316L, while the exterior frame is polished SS 304 stainless steel.
Dosing Accuracy: A high-precision volumetric piston pump ensures a filling accuracy of ±1%.
Easy Cleaning: The hopper and pump assembly are designed for quick dismantling, allowing for thorough sanitization between different product batches.
