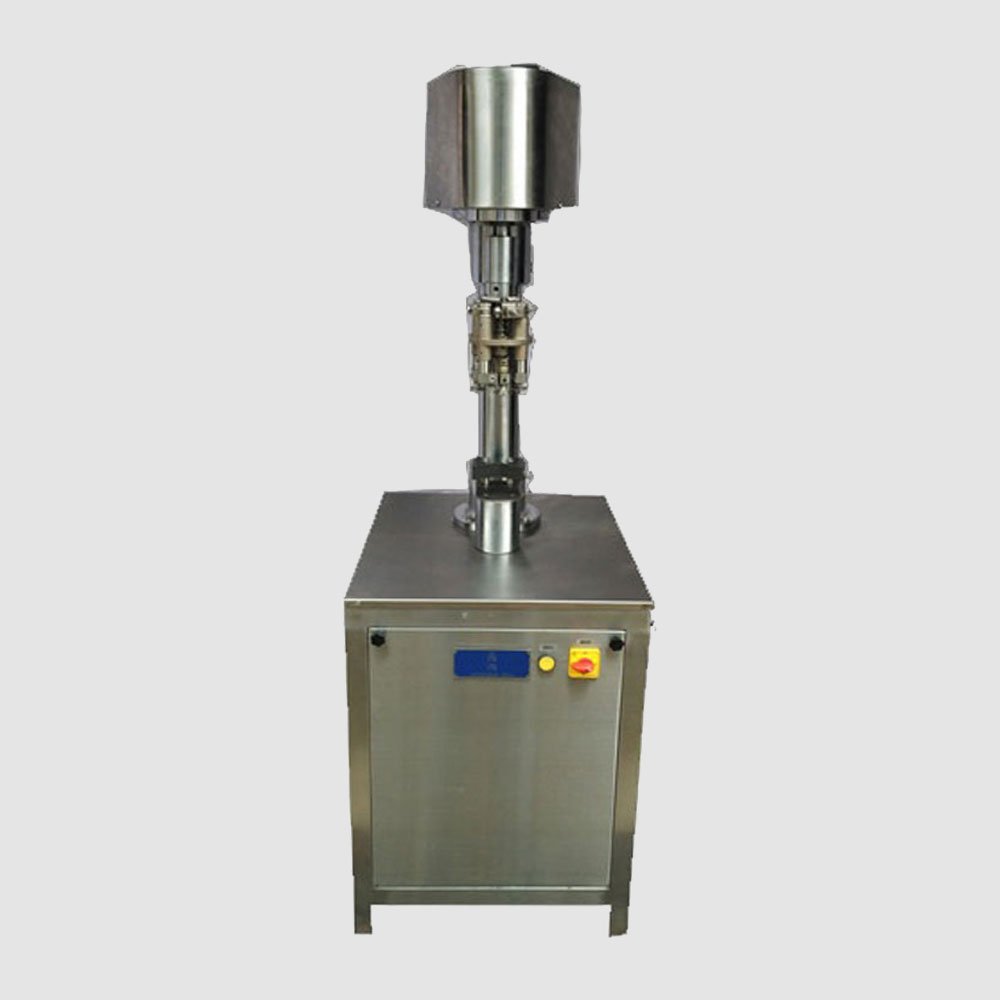

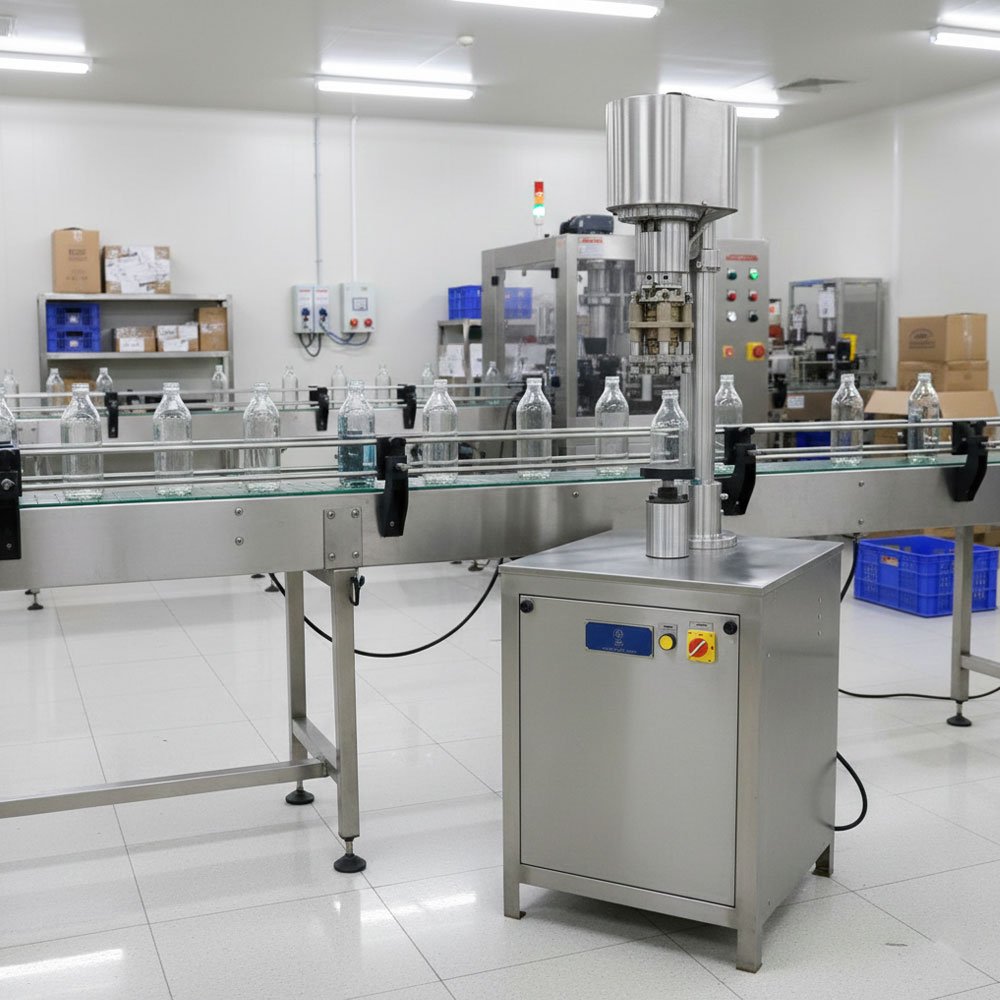

Semi Automatic Bottle Screw Capping Machine

High-Precision Container Sealing Solutions for Modern Production Lines

In modern manufacturing, balancing operational flexibility with strict quality control is essential for sustaining growth. The Harsiddh Semi-Automatic Bottle Screw Capping Machine (Model: HSC-S-50) serves as the ultimate transitional bridge between manual labor and fully automated packaging lines. Engineered specifically to support small-to-medium-sized production facilities, contract packagers, and pilot laboratories, this robust benchtop system offers the repeatable precision of a motorized capping head while retaining the versatile, quick-change agility of a operator-guided machine.

Whether you are scaling up production from manual hand-tightening or looking to isolate specialized, low-volume batches from your high-speed automated lines, the HSC-S-50 delivers the exact torque control needed to secure your product’s integrity. It eliminates the physical strain, inconsistency, and cap-damage risks associated with manual assembly, ensuring that every container leaves the line with a uniform, tamper-evident finish.

Engineering Excellence Across Diverse Industries

The HSC-S-50 is engineered from the ground up to comply with stringent operational standards, making it a reliable asset across multiple manufacturing sectors:

• Pharmaceutical & Nutraceuticals: Ideal for sealing syrup bottles, tablet containers, supplement jars, and liquid injectables requiring strict torque tolerances and contamination-free processing.
• Cosmetics & Personal Care: Seamlessly handles a wide variety of uniquely shaped containers for shampoos, lotions, essential oils, and liquid soaps without marring delicate premium caps.
• Food & Beverage: Ensures airtight seals for sauces, condiments, artisanal beverages, juices, and oils, preserving product freshness and extending shelf life.
• Chemical & Agrochemical: Built with corrosion-resistant components to handle aggressive liquids, solvents, household cleaners, and industrial chemicals safely.

Step-by-Step Reliable Operational Workflow

The engineering philosophy behind the HSC-S-50 focuses on minimizing operator fatigue while maximizing repeatable sealing accuracy. The machine follows a highly efficient, five-stage workflow:

1. Ergonomic Setup and Height Calibration

Before commencing a production run, the operator adjusts the vertical clearance of the capping head using a smooth, handwheel-driven mechanical gauge. This ensures the capping jaw perfectly aligns with the exact neck finish height of the selected container profile.

2. Manual Container Placement

The operator places a pre-threaded cap loosely onto the bottle neck and positions the container onto the anti-rotation base matrix directly beneath the deactivated capping head. The integrated positioning guides ensure the bottle centers immediately, reducing alignment errors.

3. Motorized Capping and Torque Application

The capping cycle is initiated either by pressing a dual-button safety switch or stepping on an ergonomic foot pedal. The motorized capping head descends smoothly over the closure. Utilizing an adjustable mechanical or magnetic clutch, the machine applies precise, pre-calibrated torque to tighten the screw cap to its optimum sealing seat.

4. Automatic Head Clearance and Disengagement

As soon as the pre-set torque threshold is achieved, the internal clutch disengages seamlessly to prevent over-tightening or thread stripping. The capping head automatically reverses its vertical travel, rising back up to its home position to clear the neck of the container.

5. Finished Discharge and Cycle Repeat

The operator removes the perfectly sealed, leak-proof container from the nesting platform and replaces it with the next prepared unit. With practiced choreography, operators can comfortably sustain production speeds reaching up to 40 bottles per minute.

Core Product Advantages & Key Features

Adjustable Mechanical Friction Clutch

To protect both the container threads and the structural integrity of the cap, the machine features a highly sensitive mechanical friction clutch. This component allows technicians to dial in the exact torque required for distinct closure styles. Once reached, the capping jaw stops spinning, eliminating cosmetic scuffing, cracking, or stripped threads.

Tool-less Changeover Matrix

In small-batch environments, downtime for product changeovers can cripple daily throughput. The HSC-S-50 features a modular design that enables operators to switch between different bottle heights, diameters, and cap sizes within minutes—all without requiring complex tools or engineering intervention.

Rugged, GMP-Compliant Construction

Built to withstand harsh industrial environments, the machine’s primary housing and structural pillars are fabricated from heavy-gauge stainless steel. The clean, crevice-free exterior profiles prevent material accumulation, simplifying clean-down procedures and aligning with Good Manufacturing Practices (GMP).

Dual Operational Activation Modes

The equipment offers dual-mode activation to suit varying workflow dynamics. Operators can choose between an automated timed cycle (where the head descends at regular, pre-set intervals) or a foot-pedal-actuated cycle that grants the user full control over the pacing of the production line.

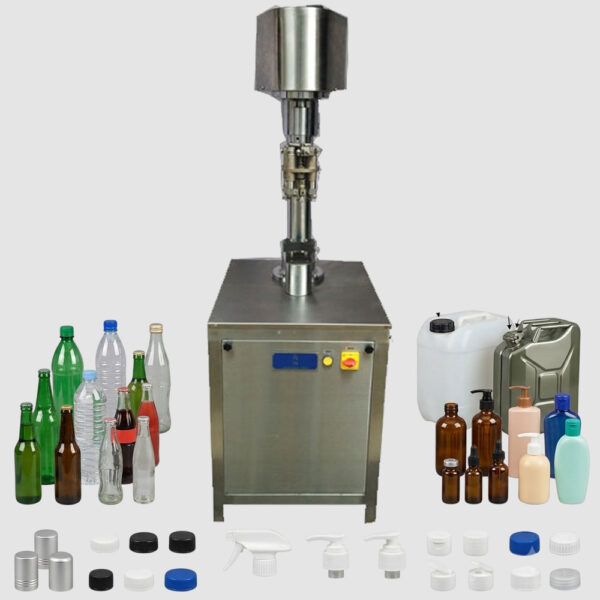

Universal Container & Cap Compatibility

The flexible gripping inserts within the capping chuck adapt easily to a vast selection of plastic and glass geometries. From rigid HDPE pharmaceutical packer bottles to delicate glass liquor flasks, the non-marring polyurethane chuck inserts grip tightly without scratching premium finishes.

Technical Specification

Feature	Details (HSC-S-50)
Output Speed	Up to 40 Bottles Per Minute (Depend on size)
Bottle Diameter	25 mm to 85 mm
Bottle Height	Up to 250 mm
Cap Type	Screw / Threaded / ROPP Caps
Capping Head	Single Motorized Head
Power Drive	1.0 H.P.
Electrical Supply	230V, 1 Phase, 50 Hz with VFD
Net Weight	Approx. 125 Kgs
Overall Dimensions	600 mm x 600 mm x 1400 mm

Why Choose Harsiddh Unimach for Your Packaging Automation?

At Harsiddh Unimach, we design industrial machinery that solves real-world manufacturing bottlenecks. The Semi-Automatic Bottle Screw Capping Machine (HSC-S-50) embodies our commitment to durability, user-centric engineering, and high-precision performance. By replacing unpredictable manual sealing with our calibrated motorized system, you protect your product from leakage during transit, maintain regulatory compliance, and significantly boost your daily operational output.

We back every machine with extensive technical documentation, readily available wear-and-tear spares, and dedicated engineering support to ensure your packaging line remains operational, efficient, and profitable for years to come.
