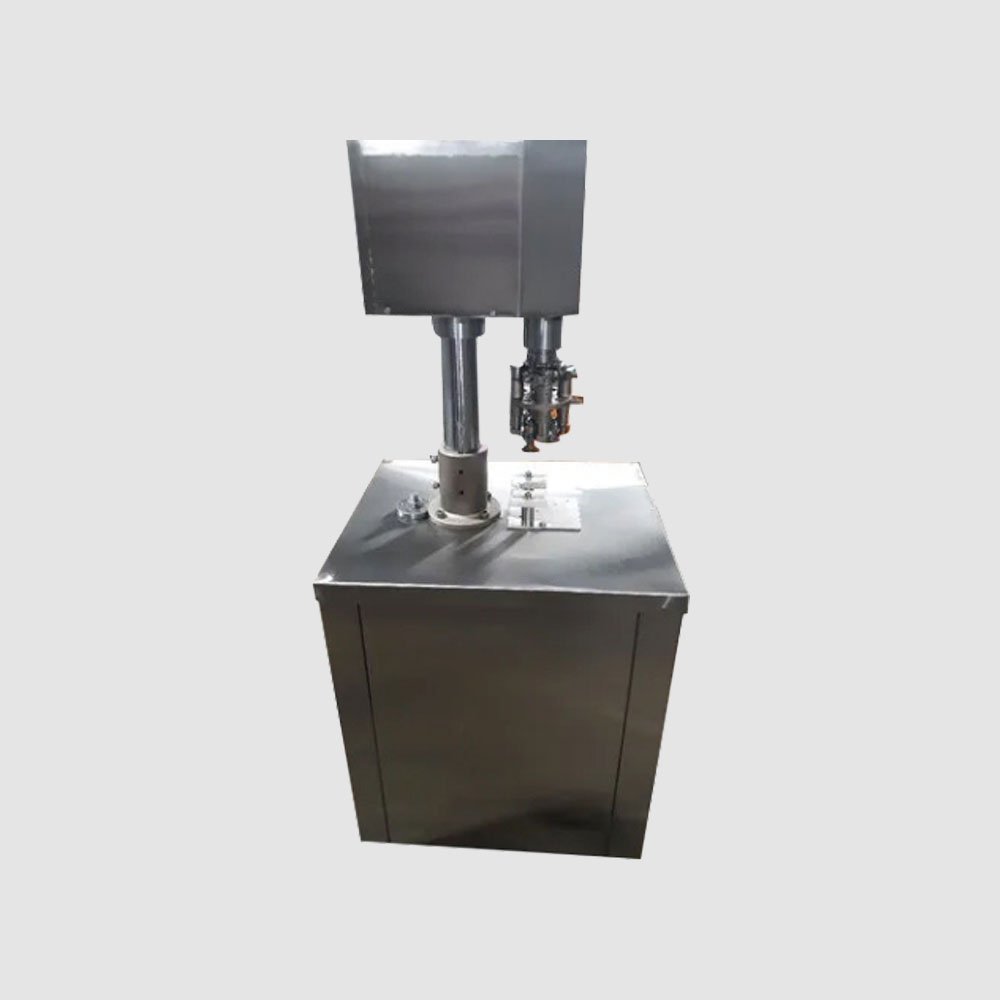

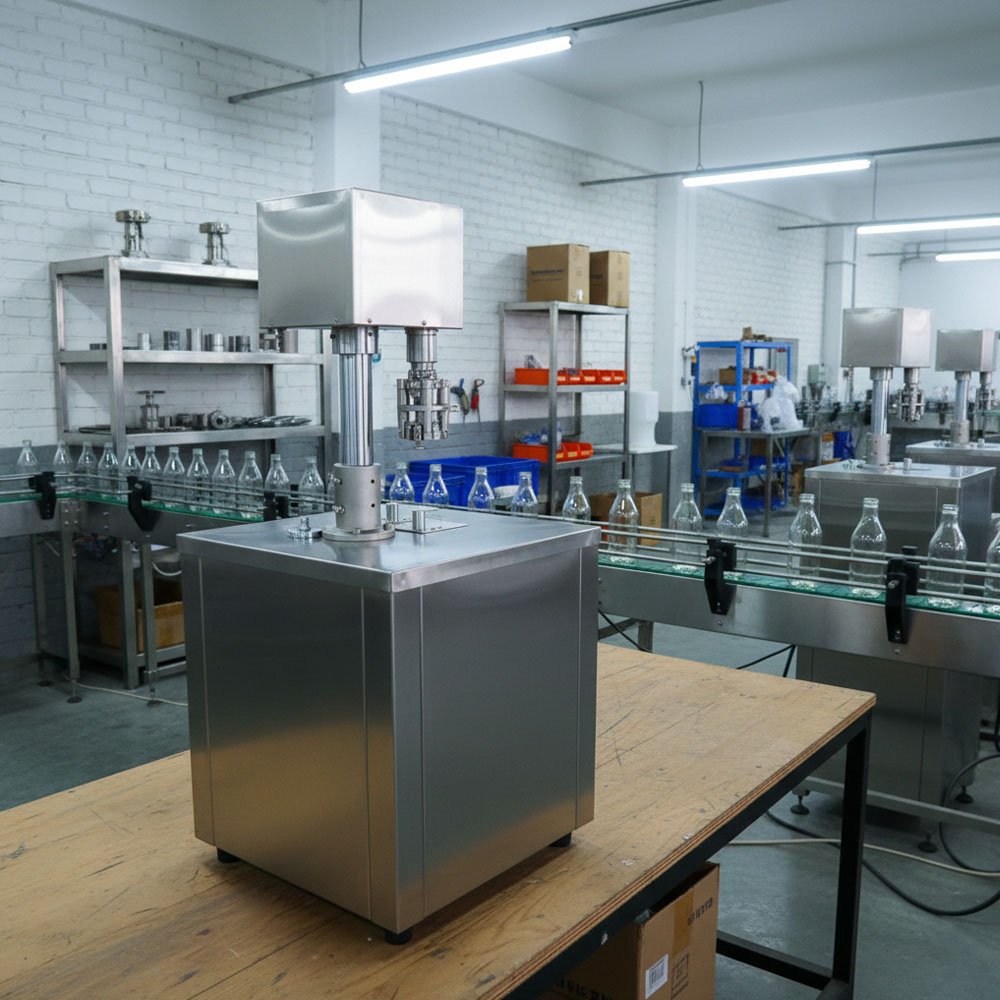

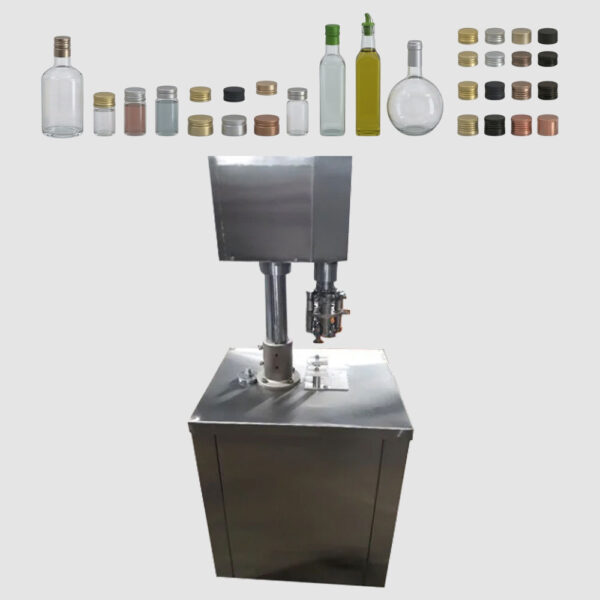

Semi Automatic Bottle Ropp Capping Machine
Precision Engineering for Leak-Proof, Tamper-Evident Aluminum Sealing
In competitive manufacturing landscapes like pharmaceuticals, premium spirits, and gourmet food production, package integrity is paramount. The Harsiddh Semi-Automatic Bottle ROPP (Roll-On Pilfer-Proof) Capping Machine (HRC-S-50) stands as a benchmark of engineering excellence, specifically built to deliver flawless aluminum threading and sealing.
Designed to seamlessly bridge the gap between manually intensive operations and fully automated production lines, this hybrid system offers the ultimate balance of operator control and mechanized precision. Whether you are safeguarding life-saving pharmaceutical syrups, securing artisanal olive oils, or packaging high-end spirits, the HRC-S-50 guarantees a tamper-evident seal that protects your product’s purity and preserves your brand’s reputation.
Key Benefits & Commercial Value
- Flawless Tamper-Evident Security: Simultaneously threads the cap and locks the lower pilfer-proof safety band, ensuring your consumers receive a completely uncompromised product.
- High-Yield Hybrid Output: Capable of processing up to 40 bottles per minute, maximizing your daily production capabilities without requiring massive warehouse floor space.
- Rapid, Toolless Adjustments: Engineered with intuitive changeover mechanisms that require no heavy tools, allowing operators to transition between different bottle sizes and heights in minutes.
- Space-Saving Ergonomic Footprint: Its compact, benchtop-friendly design makes it the perfect fit for craft distilleries, boutique olive oil estates, research and development laboratories, and pilot manufacturing plants.
- Built for Longevity: Constructed from heavy-duty, corrosion-resistant materials to withstand rigorous everyday industrial environments and demanding cleaning protocols.
A Close Look at the Operational Workflow
The HRC-S-50 optimizes your packaging workflow by combining a highly reliable, motorized rotary sealing head with a fast, intuitive manual handling system. This ensures that even entry-level operators can achieve specialized, uniform sealing results from day one.
Step 1: Pre-Operational Calibration
Before beginning a batch, the operator sets the required sealing pressure and head height utilizing the machine’s integrated manual gauges. This micro-adjustment capability ensures the perfect amount of downward pressure is applied, preventing bottle breakage while establishing an airtight seal.
Step 2: Ergonomic Container Loading
The operator takes a bottle, drops a loose ROPP aluminum cap onto the neck finish, and places the container into the custom-molded bottle holder located securely on the stable machine platform.
Step 3: Motorized Threading & Tucking Cycle
Once initiated, the motorized rotary capping head descends smoothly over the bottle neck. Precision-engineered dual threading rollers mold the pliable aluminum cap precisely to the contours of the glass or rigid plastic threads. Concurrently, the tucking rollers fold the lower skirt of the cap underneath the bottle’s locking ring, finalizing the tamper-evident seal.
Step 4: Automatic Ascent & Safety Release
Immediately after completing the sealing profile, the capping head automatically retracts upward. This instant mechanical release ensures the bottle is never over-stressed and is immediately ready for extraction.
Step 5: Continuous High-Rate Throughput
The operator swaps the finished, professionally sealed container for the next prepared bottle. This smooth, rhythmic loop allows businesses to maintain a continuous, high-rate throughput that matches demanding delivery schedules.
Engineered for Multi-Industry Versatility
The versatility of the Harsiddh HRC-S-50 makes it a multi-industry workhorse. It adapts seamlessly to distinct packaging requirements across several major sectors:
1. Distilleries & Spirit Bottling
From craft gin and small-batch whiskey to specialty liqueurs, appearance is as important as the seal itself. The HRC-S-50 creates clean, smooth, wrinkle-free threads on aluminum closures, matching the aesthetic standards expected of luxury and premium beverage brands.
2. Pharmaceutical Syrups & Liquid Supplements
In the medical and nutraceutical industries, avoiding leaks and preventing contamination are non-negotiable. This machine provides a hermetic seal over glass and heavy-duty PET bottles, meeting stringent regulatory requirements for child-resistant or tamper-evident liquid packaging.
3. Specialty Oils, Vinegars, & Dressings
Olive oils, infused vinegars, and artisanal dressings turn rancid quickly if exposed to ambient air. The tight, unyielding seal formed by our ROPP capping head prevents oxidation, locks in freshness, and extends the shelf-life of delicate, premium food products.
Features
To help you evaluate integration with your current setup, here is a detailed breakdown of the machine’s technical features:
| Parameter | Specifications |
|---|---|
| Model Number | HRC-S-50 |
| Operation Type | Semi-Automatic / Hybrid Manual-Motorized |
| Production Capacity | Up to 40 bottles per minute (dependent on operator speed) |
| Cap Compatibility | Roll-On Pilfer-Proof (ROPP) Aluminum Caps |
| Adjustment Style | Quick-adjust, toolless height and pressure gauges |
| Frame Construction | Industrial-grade stainless steel & premium alloy accents |
| Ideal Applications | Spirits, Pharmaceutical Syrups, Gourmet Olive Oils, Cosmetics |
Technical Specification
| Feature | Details (HRC-S-50) |
|---|---|
| Output Speed | Up to 40 Bottles Per Minute (Depend on size & operator) |
| Bottle Diameter | 22 mm to 85 mm |
| Bottle Height | Up to 250 mm |
| Cap Type | ROPP (Roll-On Pilfer-Proof) Aluminum Caps |
| No. of Heads | Single Motorized ROPP Head |
| Power Drive | 1.0 H.P. |
| Electrical Supply | 230V, 1 Phase, 50 Hz with VFD |
| Net Weight | Approx. 125 Kgs |
| Overall Dimensions | 600 mm x 600 mm x 1400 mm |
Why Choose the Harsiddh Bottle ROPP Capping Machine?
Investing in the HRC-S-50 means investing in predictable, stress-free packaging. Hand-tightening or low-grade capping tools frequently lead to inconsistent seals, causing leaks during shipping, product spoilage, and negative customer reviews.
The Harsiddh system eliminates human error from the sealing equation. By mechanizing the exact pressure and rotational torque required to form aluminum closures, every single bottle that leaves your facility is guaranteed to be identical to the last. It provides the reliable, professional finish of a massive, multi-million dollar automated line, packaged inside an affordable, compact, and highly adaptive footprint.
Elevate Your Packaging Integrity Today
Don’t let inadequate sealing hold back your production standards or threaten your product’s shelf-life. Upgrade your facility with the Harsiddh Semi-Automatic Bottle ROPP Capping Machine.
Frequently Asked Questions
How does the semi-automatic capping process work?
The operation is simple and user-friendly. An operator manually places a filled bottle onto the machine's base plate and sits the aluminum cap on the bottle neck. By pressing a foot switch or dual push-buttons, the capping head descends. The specialized threading and sealing rollers then rotate around the cap, forming it perfectly to the bottle’s threads and tucking the safety band under the bottle rim.
What is the production capacity of this Semi-Automatic model?
The output of a semi-automatic machine depends largely on the speed of the operator. On average, this machine can seal 15 to 25 bottles per minute (approximately 900 to 1,500 bottles per hour). It provides a significant increase in consistency and physical ease compared to manual hand-capping tools.
Can the machine handle different bottle heights and cap sizes?
Yes. The Harsiddh Semi-Automatic ROPP Capper is highly adjustable. It features a manual hand-wheel mechanism to raise or lower the capping head to accommodate various bottle heights. While the capping head is precision-tuned for a specific cap diameter (e.g., 22mm, 25mm, or 28mm), the head itself can be swapped out if you need to switch to a different cap size for another product batch.
What are the key build quality and safety features?
Despite being a compact unit, it is built to industrial cGMP standards:
Material: The body is constructed from SS 304 stainless steel, ensuring durability and easy cleaning.
Sealing Pressure: Each head features a pressure-compensating spring to prevent glass bottle breakage while ensuring a leak-proof seal.
Safety: The machine includes an emergency stop button and is designed with low-maintenance mechanical parts to ensure long-term reliability in a production environment.
