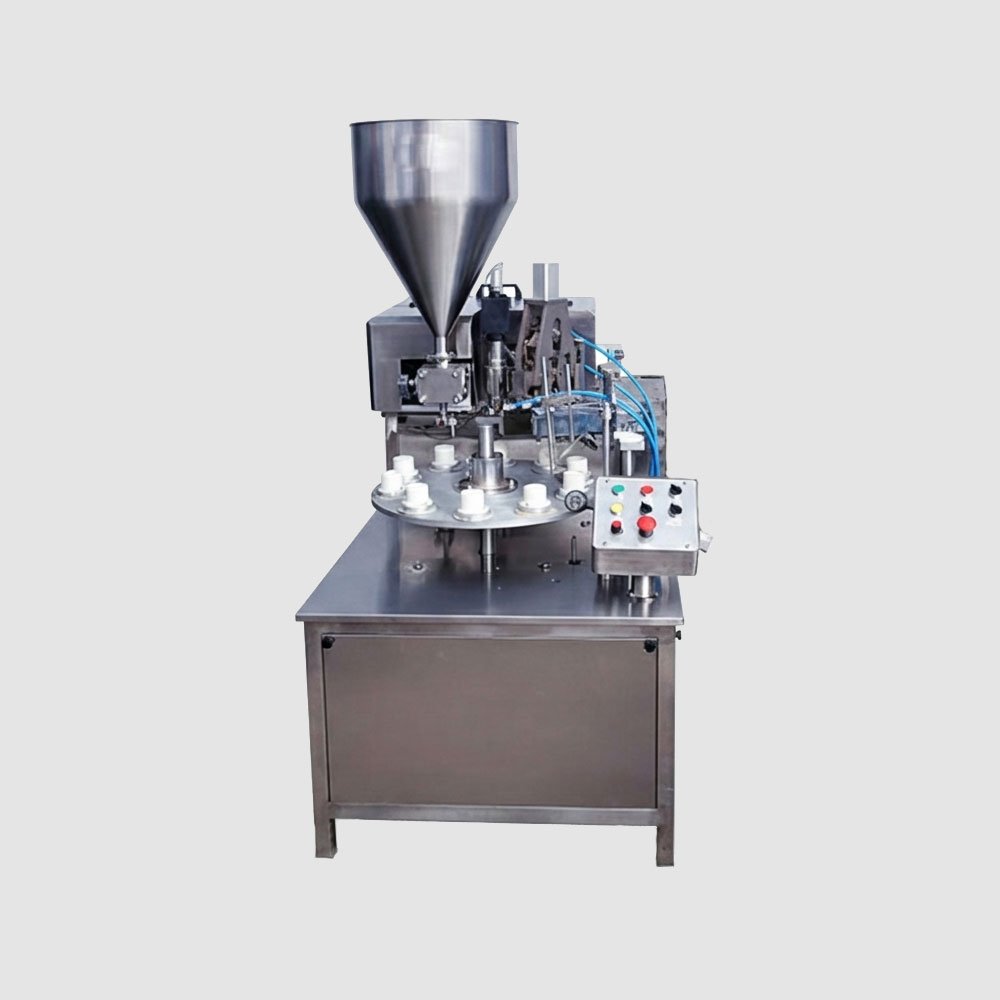

Semi Automatic Aluminum Tube Filling Machine
Streamline and Elevate Your Packaging Production
In modern manufacturing, balancing precision, efficiency, and cost-effectiveness is the key to maintaining a competitive edge. The Harsiddh Semi-Automatic Aluminum Tube Filling Machine is an expertly engineered, ergonomic packaging solution designed to do exactly that. Built to streamline your production line, this versatile machine combines advanced engineering with user-friendly operation to deliver a comprehensive system for filling, crimping, sealing, and batch coding aluminum tubes.
Whether you are scaling up a boutique laboratory setup, managing a medium-sized manufacturing facility, or introducing a flexible secondary line for short-run products, this equipment offers the reliability and precision your brand demands. By choosing Harsiddh engineering, you invest in a machine that minimizes product waste, maximizes throughput, and guarantees a flawless, retail-ready finish for every single tube.
Why Choose the Harsiddh Semi-Automatic Aluminum Tube Filler?
1. Uncompromised Accuracy and Drip-Free Cleanliness
Product waste and messy operations can drastically impact your bottom line. Our machine features a specialized, high-accuracy filling syringe mechanism coupled with an advanced pneumatic cut-off system. This auto-drip-free technology ensures that the product cuts off cleanly after each dose, eliminating accidental spills, keeping the tube edges pristine for sealing, and maintaining a hygienic workspace.
2. Professional-Grade Sealing and Structural Integrity
The aesthetics and integrity of your tube’s seal are critical for consumer trust and product longevity. Equipped with a dual-phase crimping mechanism and a sophisticated temperature controller, the machine delivers a secure, leak-proof closure. It flawlessly executes initial pressing and a meticulous two-sided fold, providing the structural strength needed to withstand shipping and handling while giving your product a premium, professional appearance.
3. Ergonomic and Operator-Centric Design
We believe that industrial machinery should work with the operator, not against them. This system boasts an ergonomic layout that minimizes operator fatigue during manual tube feeding. Its intuitive control panel and easily accessible components mean that setting adjustments, maintenance, and clean-downs can be completed swiftly, reducing downtime between product batches.
Tailored Configurations for Diverse Scale and Output
As a premier packaging machinery manufacturer in India, Harsiddh understands that no two production lines are identical. We offer multiple tailored configurations of our aluminum tube filling equipment to align perfectly with your operational volume, facility footprint, and growth targets:
- Single-Head Tube Filling Machine: The ideal entry-level or laboratory-scale choice. It provides exceptional precision for start-ups, small batches, and research environments where flexible, smaller-scale output is required.
- Double-Head Tube Filling Machine: Perfect for expanding enterprises looking to double their output without sacrificing floor space or significantly increasing labor costs.
- 8-Station Aluminium Tube Filling Machine: A robust rotary-style configuration designed for growing medium-scale operations. It optimizes the workflow transition between feeding, filling, sealing, and coding.
- 12-Station Aluminium Tube Filling Machine: Our high-throughput semi-automatic model. It maximizes operational speed and structural efficiency, closing the gap between manual handling and fully automated manufacturing environments.
Step-by-Step Working Principle: Engineering in Motion
The Harsiddh Semi-Automatic Aluminum Tube Filling Machine utilizes a synchronized, sequential workflow to turn empty tubes into perfectly sealed, marketplace-ready products. Here is how the precision mechanics operate step-by-step:
Step 1: Manual Tube Loading
The process begins with the operator easily placing the empty aluminum tubes open-end up into the ergonomically placed holder stations on the index table. This manual step allows for a quick visual quality check of the tubes prior to processing.
Step 2: High-Precision, Drip-Free Dispensing
Once indexed into the filling station, a highly accurate volumetric syringe dispenses the preset volume of your product deep into the tube. Immediately upon completion of the fill cycle, an intelligent pneumatic cut-off system activates. This mechanism snaps the product stream cleanly, entirely preventing drips and avoiding any contamination of the tube’s sealing zone.
Step 3: Dual-Phase Mechanical Crimping
The filled tube rotates to the sealing station. Here, it undergoes a meticulous two-phase mechanical crimping process. First, the machine flattens the top portion of the tube evenly. Second, it performs a tight, dual-sided fold. This precise folding method forms a heavy-duty, airtight barrier that completely prevents leakage and extends product shelf life.
Step 4: Integrated Batch Coding and Date Stamping
Branding and compliance are handled simultaneously. At the coding station, a specialized stereo set embeds vital tracking details—such as batch numbers, manufacturing dates, and expiry information—directly onto the crimping fold. The result is a highly legible, permanent stamp that complies with regulatory standards.
Step 5: Automatic Finished Product Ejection
Once the tube is filled, sealed, and coded, it reaches the final station. A bottom-pushed mechanical lever system automatically lifts and discharges the finished tube out of the holder station and onto a collection tray or a secondary packaging conveyor line. This removes the need for manual extraction, speeding up the overall cycle time.

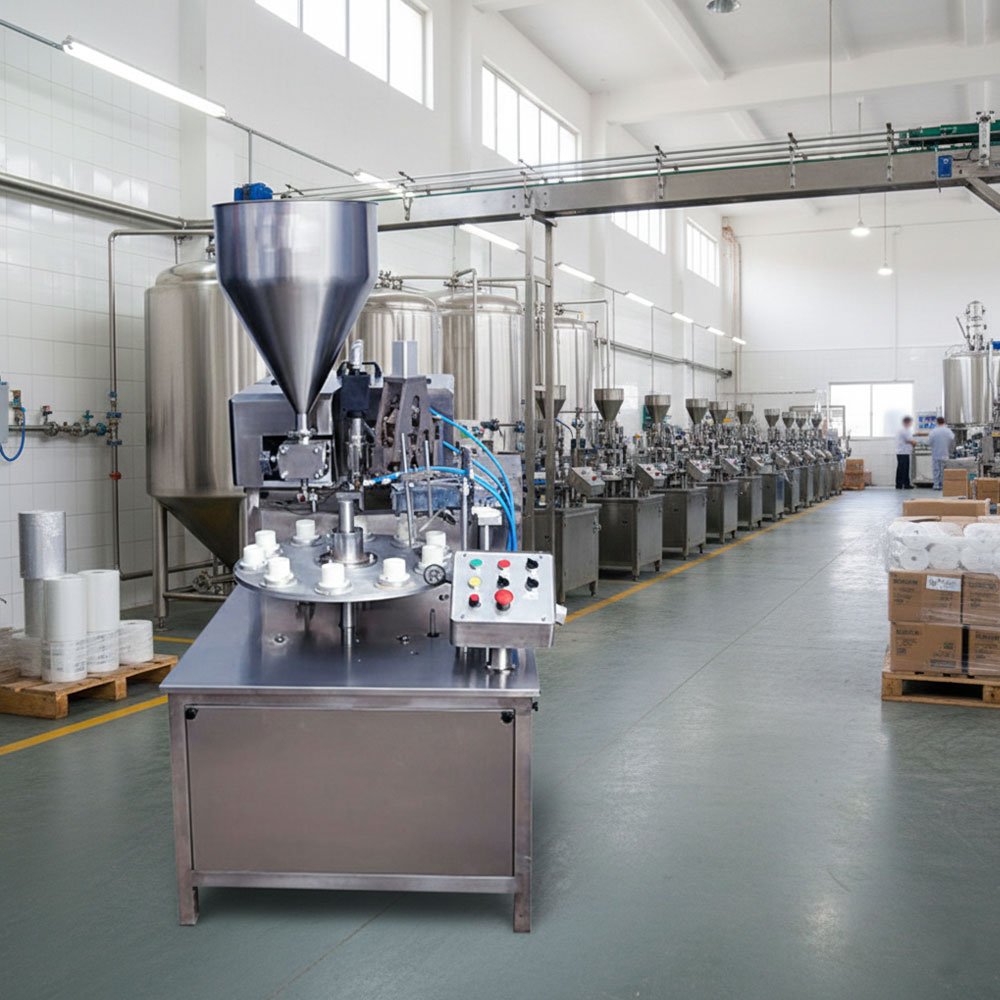

Cross-Industry Applications

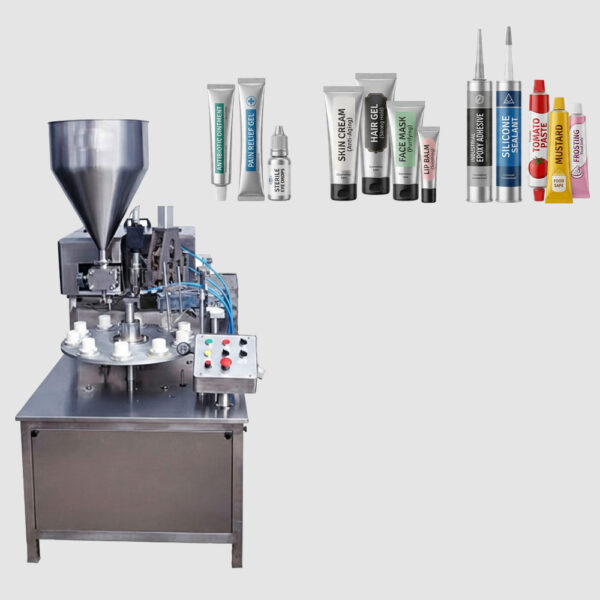

This versatile machine is engineered to handle a wide spectrum of product viscosities, making it an indispensable asset across multiple commercial sectors:
- Pharmaceuticals: Ideal for filling medicated ointments, sterile creams, gels, and antiseptic pastes into collapsible aluminum tubes where exact dosage accuracy is mandatory.
- Cosmetics & Personal Care: Perfect for premium facial cleansers, hair colorants, hand creams, herbal pastes, and makeup products that demand clean packaging and high aesthetic appeal.
- Chemicals & Industrial: Capable of processing more viscous compounds, including industrial adhesives, silicone sealants, lubricants, greases, and specialized resins.
- Food Industry: Suitable for gourmet food pastes, purees, spreads, and condiments that require airtight seals to preserve freshness and taste.
Key Technical Features & Specifications
- Construction Quality: Fabricated using premium-grade Stainless Steel (SS) contact parts to meet strict hygienic and regulatory compliance standards.
- Advanced Control System: Integrated temperature controllers ensure consistent sealing conditions across varying room environments.
- Pneumatic Integrity: High-performance pneumatic cylinders ensure smooth, repetitive motions for the cut-off and crimping modules.
- Fast Changeovers: Designed for minimal tool adjustments, allowing operators to switch between different tube sizes and fill volumes with ease.
Technical Specifications
| Feature | Single Head (ATFM-S) | Double Head (ATFM-D) |
|---|---|---|
| Production Output | Up to 30 tubes/minute | Up to 50 tubes/minute |
| Filling Heads | Single | Double |
| Filling Stations | Eight | Eight |
| Fill Volume | 5ml to 100ml | 5ml to 50ml |
| Tube Diameter | 12mm to 25mm | 12mm to 25mm |
| Tube Length | 50mm to 200mm | 50mm to 200mm |
| Power Consumption | 1.5 H.P. | 3.0 H.P. |
| Electricals | 440V, 3 Phase, 50Hz | 440V, 3 Phase, 50Hz |
| Machine Weight | Approx. 350 Kg | Approx. 450 Kg |
| Dimensions (LxWxH) | 1200 x 800 x 1800mm | 1350 x 950 x 1800mm |
Partner with Harsiddh for Reliable Packaging Solutions
When you invest in Harsiddh machinery, you are partnering with an established industry leader dedicated to manufacturing excellence. We design our equipment to reduce your operating costs, increase daily yields, and provide a reliable production backbone that you can rely on for years to come.
Frequently Asked Questions
How does the machine ensure a leak-proof seal on Aluminum tubes?
Aluminum tubes require a mechanical "cold fold" rather than heat. The Harsiddh machine features a specialized Folding and Crimping Station. It performs a multi-step sequence (typically a double or triple fold) on the tube tail and then applies a textured crimp. This creates an airtight, hermetic seal that maintains the integrity of the product without risking heat damage to the formulation.
What is the production output and tube size range?
The Semi-Automatic model is designed for efficiency in compact production environments. Depending on the operator's loading speed, it typically achieves an output of 15 to 25 tubes per minute (approximately 900 to 1,500 per hour). It is versatile enough to handle aluminum tubes with diameters ranging from 10mm to 35mm and lengths up to 200mm.
How does the machine achieve accurate filling for high-viscosity creams?
To ensure pharmaceutical-grade accuracy and prevent air pockets, the machine utilizes:
Volumetric Piston Dosing: A high-precision SS 316L piston pump provides a filling accuracy of ±1%.
Positive Shut-off Nozzle: A specialized "blow-back" or "cut-off" nozzle prevents product dripping or "tailing," ensuring the folding area of the tube remains clean.
Bottom-Up Filling (Optional): The nozzle can be synchronized to lift as it fills, ensuring no air is trapped at the base of the tube.
What are the key cGMP and maintenance features?
As a cGMP-compliant unit, this machine is built for easy cleaning and sterile compliance:
Material Integrity: All product contact parts (hopper, pump, and nozzles) are made of SS 316L, while the exterior frame is polished SS 304.
Batch Coding: The crimping jaws are designed to hold alphanumeric characters to emboss the Batch Number, Mfg. Date, and Expiry Date directly into the metal fold of the tube.
Quick Changeover: The hopper and pump assembly are designed for rapid dismantling, allowing for thorough sanitization between different product batches.
