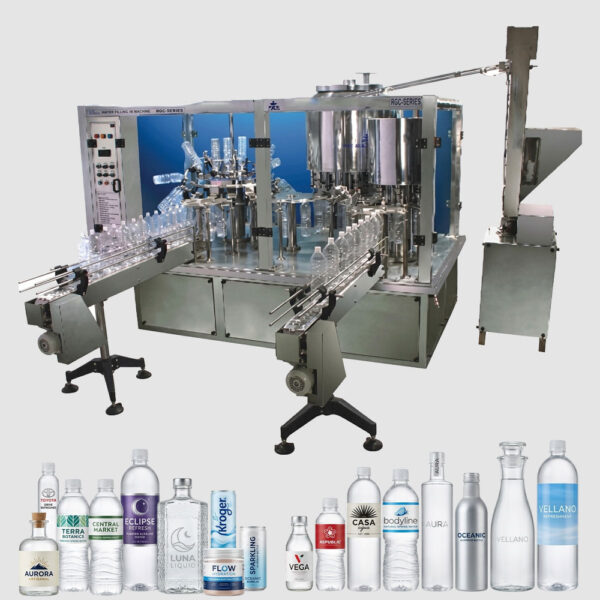

Automatic Water Bottle Filling Machine

High-Efficiency Hydration Packaging Systems

In the competitive beverage and packaged drinking water industry, maintaining strict hygiene standards, operational efficiency, and high throughput is vital for commercial success. The Automatic Water Bottle Filling Machine by Harsiddh Unimach Pvt. Ltd. represents the pinnacle of modern liquid packaging engineering. Specially designed to meet the rigorous demands of both emerging startups and high-capacity production plants, this machine delivers an uncompromised blend of speed, precision, and absolute purity.

By seamlessly integrating three distinct packaging phases into a unified, space-saving footprint, our equipment ensures your production line operates with maximum uptime and minimal manual intervention. Whether you are packaging spring water, purified drinking water, or mineral-infused hydration products, this system is engineered to elevate your manufacturing capabilities.

The Monoblock Design Advantage: Maximizing Hygiene and Efficiency

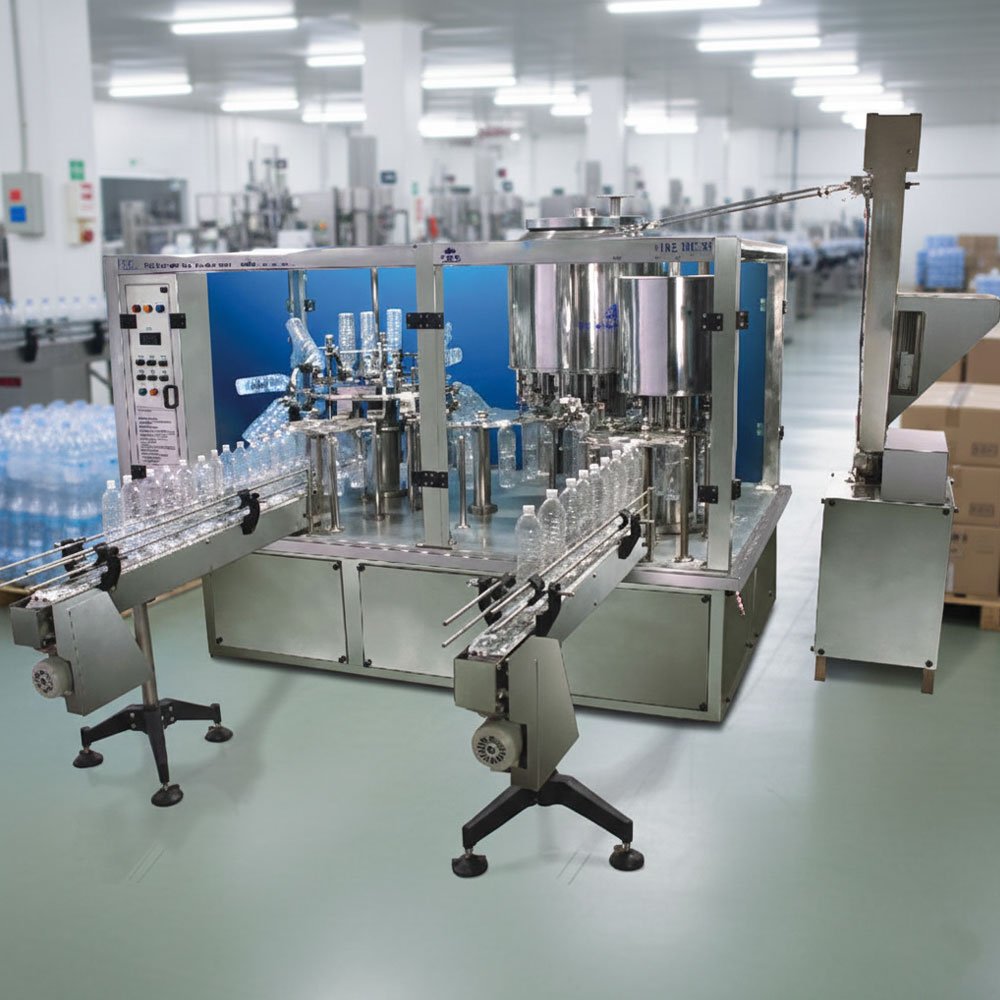

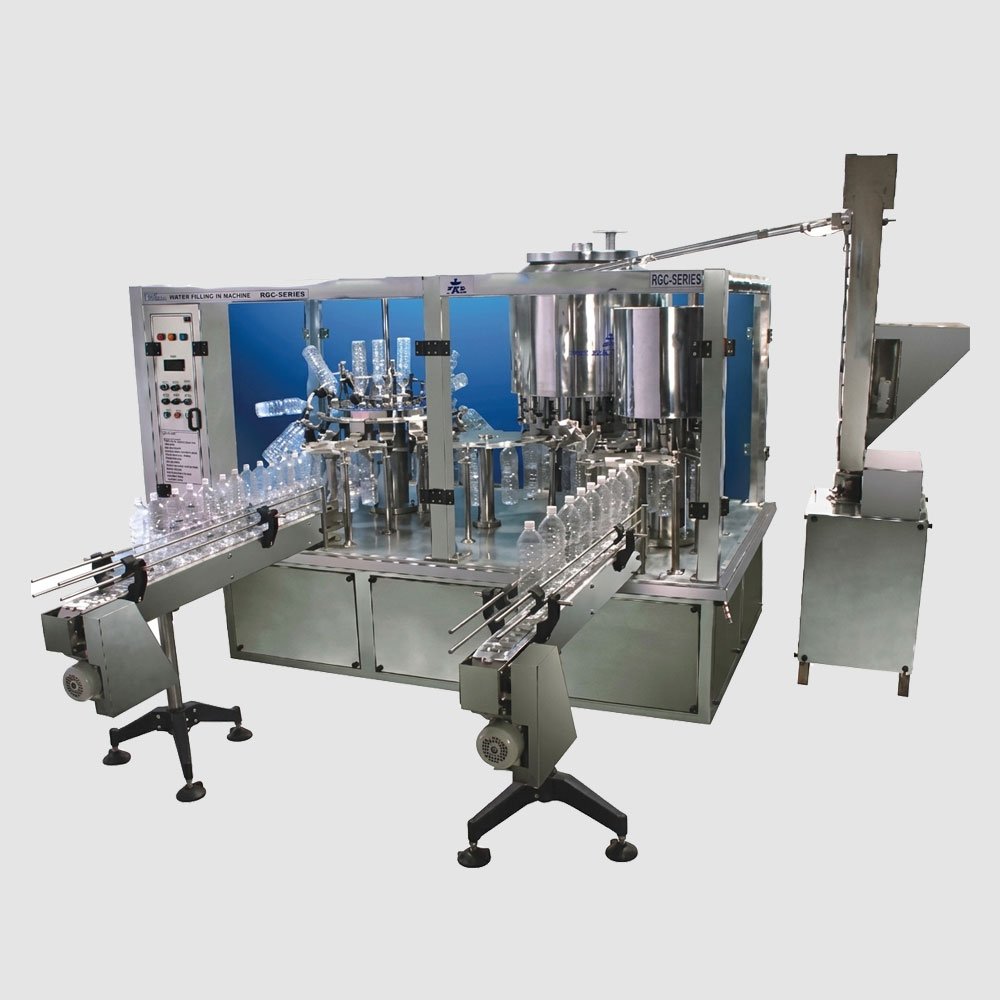

At the core of the Harsiddh Water Bottle Filling Machine is its advanced Rinser-Filler-Capper (RFC) Monoblock architecture. Traditional packaging lines that rely on independent, interconnected machines often suffer from increased risks of environmental contamination, larger floor space requirements, and complex synchronization bottlenecks.

Our monoblock design eliminates these operational vulnerabilities. By enclosing the rinsing, filling, and capping stations within a single, synchronized structural frame, the bottles transfer instantly from one stage to the next without prolonged exposure to the surrounding atmosphere.

Key Benefits of the Monoblock Configuration:

• Enhanced Product Purity: Minimal open-air travel between rinsing and capping dramatically reduces the risk of airborne particulates or microbes entering the bottles.
• Compact Footprint: Combining three critical operations into one unit saves valuable cleanroom and factory floor space.
• Perfect Operational Synchronization: A centralized drive system coordinates the star wheels and main rotary carousels, eliminating bottle-jamming or tipping risks common in loose conveyor transfers.
• Reduced Human Intervention: Fully automated processing ensures that the product remains untouched by human hands throughout the entire packaging cycle, ensuring strict compliance with global food safety standards.

Comprehensive Step-by-Step Operational Workflow

The Harsiddh Automatic Water Bottle Filling Machine operates through a synchronized, high-speed rotary mechanism. Each bottle undergoes a meticulously controlled journey divided into five distinct operational zones to ensure consistent quality and tight seals.

1. High-Speed Air In-feed System

The packaging cycle begins with the efficient loading of empty PET bottles. Utilizing a high-pressure air conveyor system, the bottles are suspended by their necks and propelled smoothly toward the machine’s intake. This neck-holding method prevents cosmetic damage or scratching on the bottle bodies. As they reach the entry point, a specialized rotary in-feed star wheel captures each bottle precisely by the neck ring, transferring it seamlessly into the first processing zone.

2. Advanced Internal Rinsing Station

Cleanliness is paramount in hydration packaging. In the rinsing zone, mechanical grippers securely grasp the bottle necks and invert them a full 180 degrees, positioning the bottle openings directly over specialized, high-pressure water injection nozzles.

• A powerful jet of treated rinsing water is sprayed deep into the interior of each bottle, instantly dislodging and flushing away any microscopic dust, lint, or debris accumulated during transit or storage.
• After the spray cycle, a brief drainage phase allows all residual water to escape.
• The grippers then revert the bottles to their upright position and transfer them to the filling carousel.

3. Gravity-Based Precision Filling Zone

Once upright, the sterile bottles move directly under the rotary filling valves. Our system utilizes an ultra-precise, gravity-based filling mechanism paired with specialized fluid-control valves.

• As the bottle rises to meet the valve, a clean seal is formed, allowing water to flow smoothly along the inner walls of the bottle to minimize turbulence and foaming.
• The filling valves are engineered to cut off fluid delivery exactly when the water reaches the predetermined headspace level. This guarantees uniform filling across every single batch, ensuring your brand delivers consistent visual presentation on retail shelves.

4. Automatic Mechanical Capping Station

Immediately after filling, the bottles enter the high-torque capping zone to lock in product freshness. Caps are automatically oriented and fed from an overhead elevator hopper into a precision delivery chute.

• A ‘pick-and-place’ mechanism ensures each cap sits perfectly square on the bottle mouth.
• The bottles then pass under mechanical capping heads equipped with adjustable magnetic clutches. This allows operators to set precise torque parameters, ensuring a leak-proof, airtight seal without over-tightening or stripping the plastic threads.

5. Motorized Out-feed Conveyor

The completely sealed and secured bottles are guided out of the main rotary assembly via an out-feed star wheel. They are deposited smoothly onto a heavy-duty, motorized stainless steel slat conveyor. From this point, the finished products move seamlessly downstream for automatic labeling, batch coding, shrink-wrapping, and final case packing.

Technical Features and Engineering Excellence

Every machine built by Harsiddh Unimach Pvt. Ltd. is constructed using premium-grade materials and industrial-grade automation components.

• Premium Material Construction: All components that come into direct contact with your product—including filling tanks, valves, and rinsing manifolds—are fabricated from high-grade Stainless Steel (SS 316). The main structural frame and outer enclosures are crafted from SS 304, providing excellent corrosion resistance against water and standard sanitizing chemicals.
• Intelligent PLC Control & HMI: The entire system is managed via a centralized Programmable Logic Controller (PLC) paired with an intuitive touchscreen Human-Machine Interface (HMI). Operators can monitor production speeds, adjust timing parameters, and track real-time diagnostics at the touch of a button.
• “No Bottle – No Rinse / No Fill / No Cap” Sensors: To prevent utility wastage and messy spills, the machine features intelligent optical sensors. If a gap occurs in the incoming bottle stream, the machine automatically pauses rinsing, filling, or cap delivery for that specific slot until the bottle flow resumes.
• Variable Speed Control: Equipped with an AC variable frequency drive (VFD), the system’s operational speed can be easily adjusted to match the speed of your downstream labeling and packaging machinery.

Technical Specification

Why Choose Harsiddh Unimach Pvt. Ltd. for Your Bottling Needs?

Investing in a Harsiddh liquid packaging solution means partnering with a manufacturer dedicated to your long-term operational success. We combine decades of industrial expertise with robust engineering practices to deliver equipment that offers a remarkably low total cost of ownership.

Our machines are widely recognized for their low-maintenance requirements, highly accessible replacement parts, and straightforward cleaning procedures (including integrated CIP/Clean-In-Place compatibility). Whether you are upgrading an existing production line or building a brand-new water bottling plant from scratch, our engineering team provides comprehensive support—from layout planning to final commissioning.

Maximize your plant’s efficiency, secure your product’s purity, and scale your business with the trusted performance of the Automatic Water Bottle Filling Machine from Harsiddh Unimach Pvt. Ltd.
