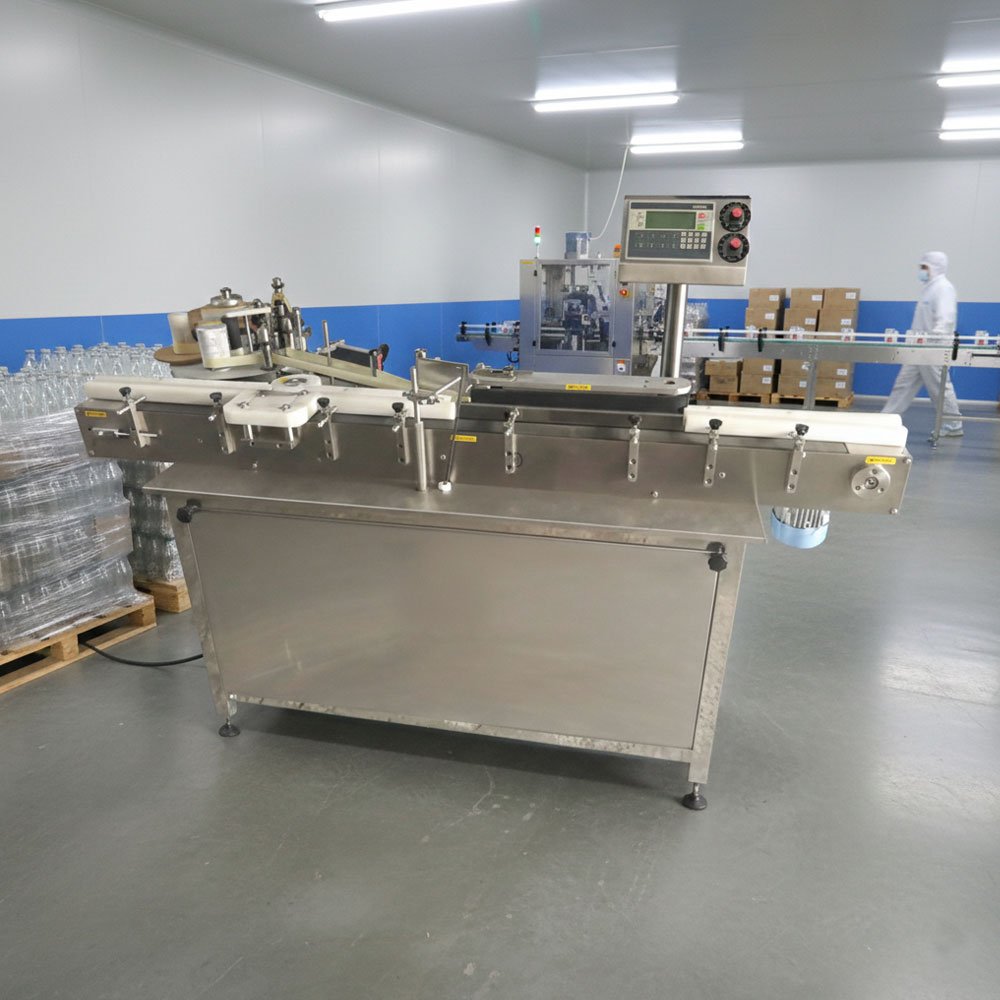

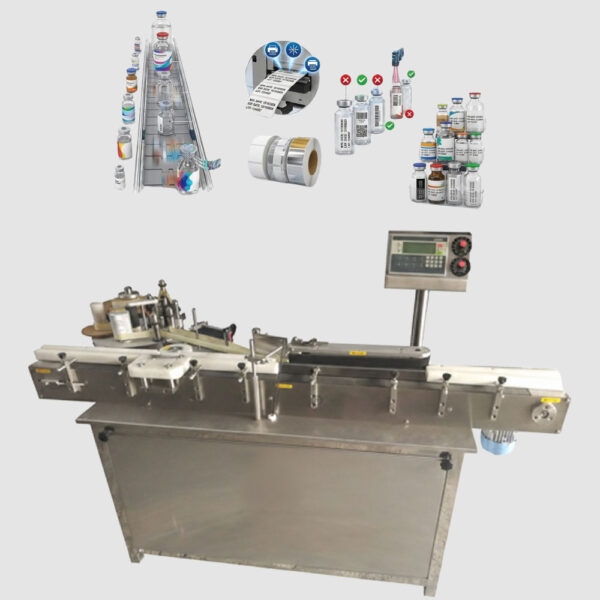

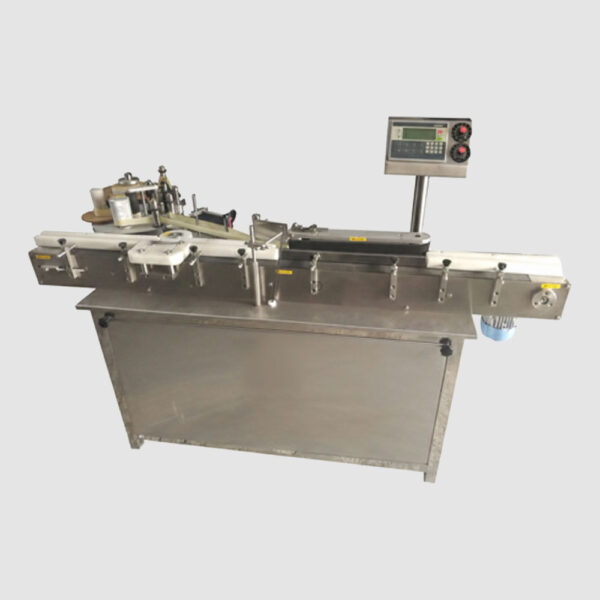

Automatic Vial Sticker Labeling Machine
High-Speed, Ultra-Precise Self-Adhesive Labeling Solutions for Sterile Pharmaceutical Lines
In the highly regulated pharmaceutical, biotechnology, and healthcare manufacturing landscapes, precision is not just an operational goal—it is a strict regulatory mandate. The Harsiddh Automatic Vial Sticker Labeling Machine (HVSL Series) stands as the definitive industry solution for high-speed, flawless application of self-adhesive labels onto cylindrical glass and plastic vials.
Engineered specifically to meet the rigorous demands of sterile injectable processing lines, the HVSL Series blends heavy-duty industrial durability with next-generation automation. Whether your facility is processing liquid injectables, lyophilized biologics, or high-end cosmetic serums, this linear labeling system delivers unmatched wrap-around accuracy, ensuring complete compliance with international cGMP, WHO, and US FDA guidelines.
The HVSL Advantage: Why Leading Pharma Manufacturers Choose Harsiddh
Modern packaging lines cannot afford downtime, labeling skew, or missed batch codes. The HVSL Series is architected from the ground up to eliminate common labeling bottlenecks through superior technical engineering:
- Continuous 24/7 Industrial Duty: Built with a heavy-duty, vibration-free Stainless Steel (AISI 304) frame, the machine is designed for uninterrupted round-the-clock production cycles.
- Zero-Skew Accuracy: Driven by advanced micro-stepper or high-torque servo motors, the label dispensing mechanism ensures micro-level precision, even when applying ultra-thin or transparent “no-look” labels.
- Seamless Line Integration: The rugged, streamlined linear design allows the HVSL Series to easily integrate with upstream equipment like automatic vial filling and capping machines, or operate as a standalone unit fed by an industrial turn table.
- Tool-Less Changeovers: Designed with operators in mind, the machine features quick-release mechanisms and minimal change parts, allowing your team to switch between different vial capacities (e.g., 2ml to 100ml) in just minutes.
Reliable Operational Workflow: Step-by-Step Precision
The efficiency of the HVSL Series lies in its synchronized, automated mechanical workflow. Every stage of the container’s journey through the machine is tracked and controlled:
1. Systematic Container Feeding
Vials are smoothly transferred from an upstream conveyor or an integrated, variable-speed Infeed Turn Table. They enter the labeling machine’s main conveyor track in a perfectly upright, stable vertical orientation, preventing glass-to-glass friction and minimizing the risk of micro-fractures.
2. High-Precision Indexing & Sensing
Before reaching the labeling head, the containers pass through a specialized mechanical spacing device (a precision-machined scroll worm or an indexing star-wheel). This creates perfectly uniform, synchronized gaps between each vial. As the vial advances, a highly sensitive fiber-optic product sensor detects its exact positioning and instantly sends a trigger pulse to the electronic control module.
3. Servo-Driven Label Dispensing
Upon receiving the signal, the high-torque servo applicator releases a single self-adhesive sticker label from the web matrix. The dispensing speed is perfectly synchronized with the linear speed of the conveyor belt, eliminating label stretching, tearing, or premature detachment.
4. Advanced Wrap-Around Pressing
As the label contacts the vial, the container enters the wrap-around zone. A synchronized wrapping belt or specialized resilient foam roller gently rotates the vial against a stationary backing plate. This controlled radial pressure presses the label firmly around the circumference, guaranteeing a bubble-free, wrinkle-free finish with a flawless overlap alignment.
5. Automated Inspection & Orderly Discharge
Labeled vials move smoothly toward the outfeed section. The system can be integrated with advanced vision inspection systems (OCR/OCV cameras) to verify label placement, 2D barcodes, pharmacodes, and printed batch data. Compliant units are directed to the Outfeed Turn Table or collection tray, while any non-compliant units can be automatically diverted via an optional rejection system.
Key Performance Features & Integration Modules
The Harsiddh Automatic Vial Labeling Machine can be customized with several high-performance modules to meet your specific facility requirements:
- Smart HMI & PLC Architecture: The user interface features a password-protected touchscreen Human-Machine Interface (HMI) that stores multiple product recipes, displays real-time production counts, tracks label consumption, and provides detailed diagnostic fault alerts.
- No Vial – No Label System: Integrated smart sensors ensure that if there is a gap in the production line and no vial is detected, the machine will not dispense a label. This prevents adhesive wastage and keeps the conveyor belt completely clean.
- Integrated Coding & Printing Heads: The labeling head can seamlessly accommodate industrial hot-foil coding units, thermal inkjet (TIJ) printers, or continuous inkjet (CIJ) systems to print batch numbers, manufacturing dates, expiry dates, and QR codes directly onto the label matrix before application.
- Transparent Label Detection: While standard sensors detect opaque paper labels, the HVSL Series can be equipped with specialized ultrasonic specialized sensors capable of registering transparent clear-on-clear “no-look” labels with identical accuracy.
Compliance and Validation Support
At Harsiddh, we understand that validation documentation is critical for pharmaceutical facility audits. Every HVSL Series machine comes backed by comprehensive documentation packages designed to streamline your internal quality assurance processes:
- Full cGMP compliant construction.
- Complete Design Qualification (DQ), Installation Qualification (IQ), and Operational Qualification (OQ) protocols.
- Detailed material test certificates for all critical structural and contact components.
Technical Specification
| Feature | Details (HVSL-100 / 150 / 200) |
|---|---|
| Production Output | 100 / 150 / 200 Containers Per Minute |
| Vial Capacity | 2 ml to 250 ml (Round Vials) |
| Vial Diameter | 16 mm to 76 mm |
| Label Height | 10 mm to 90 mm |
| Label Length | Minimum 12 mm |
| Accuracy | ±1 mm |
| Power Drive | 1.0 H.P. |
| Electrical Supply | 220 Volts, Single Phase, 50 Hz |
Connect with Harsiddh for Customized Packaging Solutions
Optimize your sterile injectable line with a labeling solution built for precision, longevity, and high throughput. Our team of application engineers is ready to help you customize the HVSL Series to match your plant layouts and specific container profiles perfectly.
Harsiddh Unimach Pvt. Ltd. Industrial Packaging Excellence | Ahmedabad, Gujarat, India 📧 Email Support: info@harsiddhunimach.com
Frequently Asked Questions
How does the machine ensure the label is applied straight on such a small surface?
Precision is achieved through a Three-Point Stabilization System. As the vial enters the labeling zone:
Top Pressing Device: A motorized belt or plate stabilizes the vial from above.
Wrap-Around Belt: A high-speed foam-lined belt rotates the vial at a synchronized speed with the label dispenser.
Accuracy: This setup ensures the label wraps perfectly around the circumference with a placement accuracy of ±0.5mm to ±1mm, preventing wrinkles or "flagging."
Can the machine handle different label materials, such as transparent or metallic stickers?
Yes. The machine is compatible with various self-adhesive label materials. For standard paper or metallic labels, it uses a high-speed photoelectric sensor. For transparent "no-look" labels, the machine can be fitted with an optional ultrasonic sensor that detects the thickness of the label rather than its opacity, ensuring consistent dispensing every time.
How does the machine comply with "Track and Trace" pharmaceutical regulations?
To meet stringent cGMP and regulatory standards, the Harsiddh Vial Labeler can be integrated with:
Online Coding: Integration with Thermal Inkjet (TIJ) or Laser Coders to print Batch Numbers, Exp. Dates, and 2D DataMatrix codes.
Vision Inspection: An optional high-speed camera system to verify label presence and barcode legibility.
Auto-Rejection: A pneumatic "Reject" arm that removes any vial with a missing or unreadable label into a secure bin without stopping the production line.
What is the production capacity and how are changeovers managed?
The machine is built for high-efficiency manufacturing:
Output: Depending on the vial diameter and label length, the machine can process 120 to 300 vials per minute.
Changeovers: It features a "No-Tool" adjustment design. By using calibrated handwheels and swapping out the star-wheel (if applicable), operators can switch between different vial sizes (e.g., 5ml to 15ml) in less than 15 minutes.
