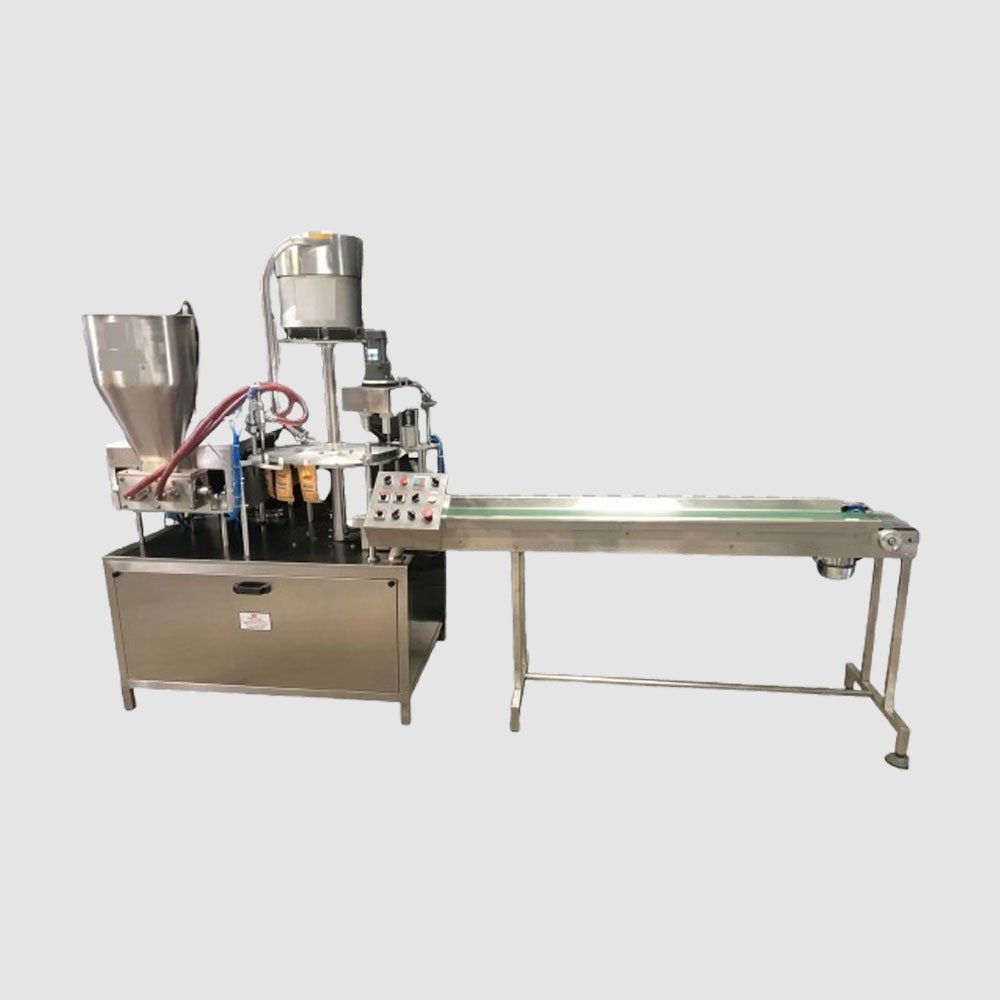

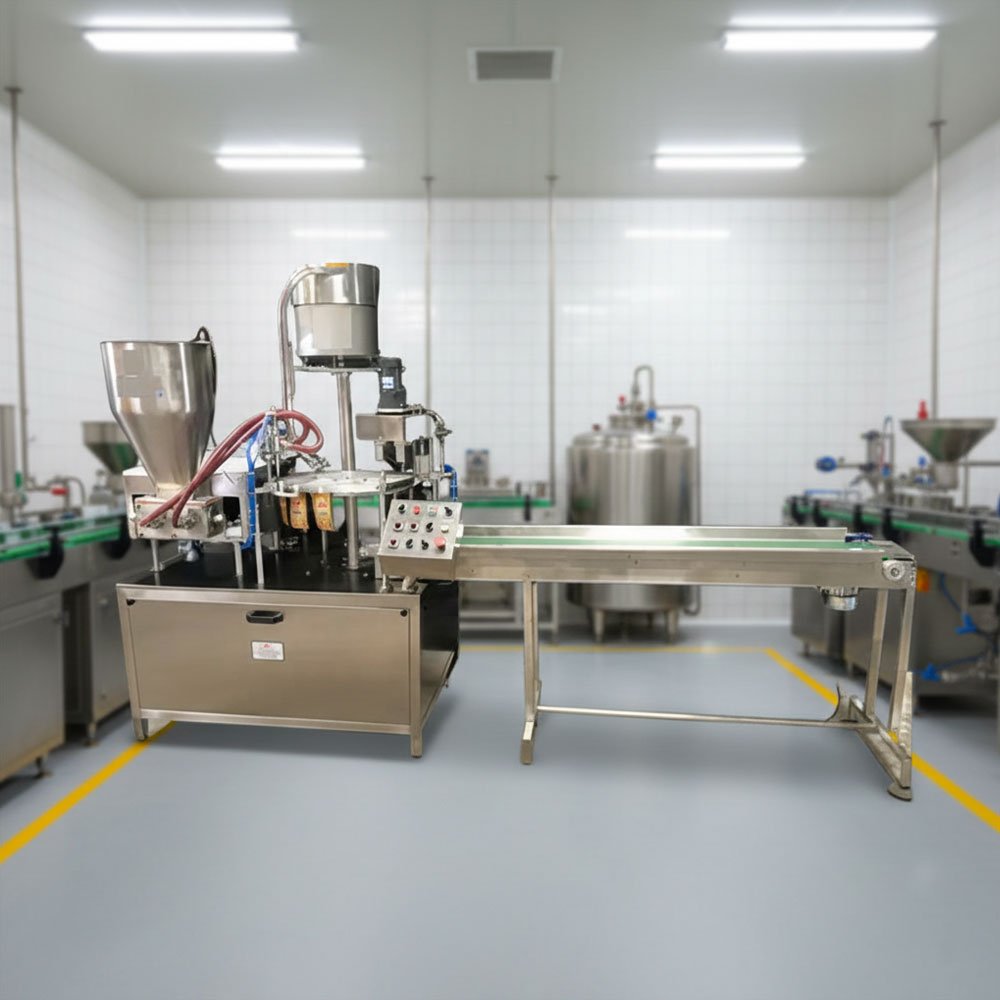

Automatic Spout Pouch Filling Machine
Elevate Your Packaging Efficiency with Advanced Pouch Automation
In today’s fast-paced market, packaging is no longer just about containment—it is a critical element of brand identity, product preservation, and operational profitability. The Harsiddh Automatic Spout Pouch Filling Machine is an industry-leading, high-performance packaging system engineered specifically to modernize the way you handle liquid, semi-liquid, and highly viscous products. Designed for absolute precision, high throughput, and maximum uptime, this automated solution seamlessly handles the complex task of filling and capping pre-made flexible pouches with spouts.
Whether you are packing premium fruit juices, thick culinary sauces, delicate cosmetic serums, or industrial chemical fluids, our machine eliminates manual bottlenecks and introduces surgical accuracy to your production floor. By replacing legacy rigid packaging like bottles or jars with lightweight, eco-friendly flexible pouches, your business can significantly cut down on shipping costs, reduce carbon footprints, and capture the attention of modern, convenience-driven consumers.
Why Choose the Harsiddh Spout Pouch Packaging System?
The modern production line demands adaptability, hygiene, and waste minimization. The Harsiddh system is built around a robust, sanitary design that complies with rigorous global manufacturing standards (including GMP and CE certifications). Here is what makes our automatic spout pouch filler an essential asset for your facility:
- Surgical Filling Accuracy: Equipped with advanced volumetric piston pumps or high-resolution flow meters, the machine achieves near-zero product giveaway, maximizing your yield and protecting your bottom line.
- Hermetic Sealing & Freshness: Air is the enemy of shelf-life. Our integrated vacuuming and optional gas flushing systems ensure your products maintain their original flavor, color, and chemical integrity over long periods.
- Comprehensive Waste Elimination: Thanks to built-in smart sensors and a “No Pouch – No Fill” logical program, the system never dispenses product unless a pouch is perfectly aligned and ready, preventing costly spills and messy cleanups.
- Turnkey Automation: From the moment empty pouches are loaded into the feeder to the final collection of sealed, retail-ready packs, the entire workflow requires minimal human intervention, dramatically lowering labor costs.

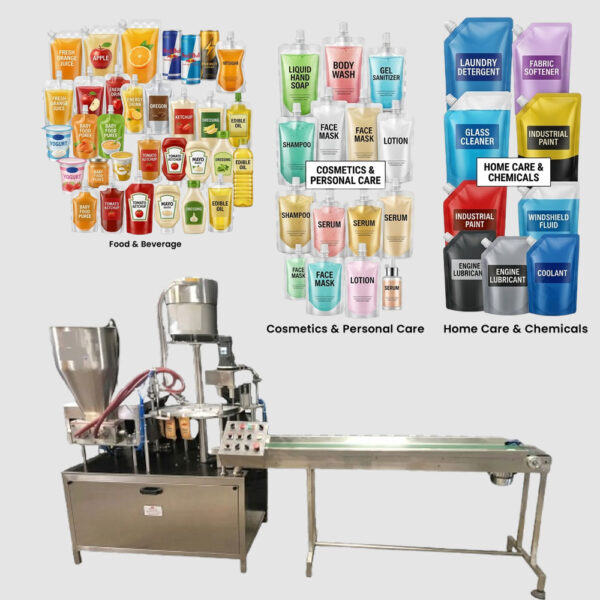

Multi-Industry Versatility
Flexible packaging with spouts is rapidly growing across diverse consumer and industrial sectors. The Harsiddh Automatic Spout Pouch Filling Machine is engineered with cross-industry flexibility in mind, offering tool-less changeovers to accommodate a wide variety of viscosities and pouch designs:
1. Food & Beverage Industry
Perfect for delicate, perishable, or high-viscosity foods. The system ensures hygienic filling for products like:
- Fruit juices, smoothies, and energy drinks.
- Baby food, fruit purees, and organic squeezee packs.
- Condiments, tomato pastes, salad dressings, and mayonnaise.
- Dairy products, yogurts, and liquid creams.
2. Cosmetics & Personal Care
Maintain product purity and premium aesthetic appeal for high-value liquid soaps, shampoos, skin lotions, facial masks, gels, and hair conditioners.
3. Home Care & Chemical Processing
Engineered to handle dense, foaming, or chemical-heavy liquids such as liquid laundry detergents, fabric softeners, glass cleaners, and liquid hand wash refills.
4. Automotive & Industrial Oils
Built with durable materials capable of safely dispensing viscous and industrial formulations, including engine lubricants, brake fluids, coolants, and windshield washer fluids.
Step-by-Step: The High-Precision Multi-Stage Process
Operating on a sophisticated, heavy-duty rotary indexing mechanism, the machine guides each pre-made pouch through a highly coordinated, synchronized series of stations:
[Automatic Loading] ➔ [Vacuum/Cleaning] ➔ [Smart Detection] ➔ [Drip-Free Filling] ➔ [Gas Purging] ➔ [Torque Capping] ➔ [Smart Discharge]- Automatic Pouch Loading & Feeding: Empty, pre-made spouted pouches are automatically separated and fed into the rotary indexing star wheel or conveyor system. This eliminates the sluggishness associated with manual pouch placement.
- Vacuuming & Internal Cleaning: To ensure absolute product hygiene and prevent premature oxidation, the machine pulls a vacuum inside the pouch, clearing out ambient air and preparing the vessel for sterile filling.
- “No Pouch – No Fill” Intelligent Verification: Photoelectric and proximity sensors cross-verify that a pouch is firmly held and properly positioned under the filling nozzle. If a station is empty, the nozzle remains closed, entirely avoiding product waste.
- Drip-Free, High-Velocity Filling: Utilizing custom-tailored volumetric piston pumps or electromagnetic flow-meter systems, the liquid is dosed into the pouch at optimal velocity. A pneumatic tail-cut off device at the nozzle tip ensures a clean, drip-free retraction, keeping the pouch neck clean for sealing.
- Nitrogen Purging (Optional Shelf-Life Extender): For oxygen-sensitive foods or chemicals, an optional nitrogen gas injection system displaces residual oxygen immediately before the cap is placed, extending shelf-life significantly.
- Automatic Cap Feeding & Precision Torque Capping: Caps are continuously sorted via a vibratory or rotary hopper, fed down a chute, and placed onto the spout. A magnetic hysteresis or pneumatic capping head applies a consistent, pre-set torque to guarantee a leak-proof seal without damaging the plastic threads.
- Pouch Ejection & Discharge: The fully processed, sealed, and verified pouches are smoothly released onto an integrated outfeed collection tray or motorized takeoff conveyor, ready for secondary carton packaging or labeling.
Features
- Structure & Construction: Heavy-duty, corrosion-resistant Stainless Steel (SS 304 / SS 316L for all product contact parts) to comply with strict sanitary and washdown requirements.
- Control System: User-friendly Programmable Logic Controller (PLC) paired with an intuitive Touchscreen HMI. Operators can adjust fill volumes, indexing speeds, and capping torque on the fly.
- Drive Mechanism: High-accuracy servo motors or precision mechanical indexing drives for smooth acceleration and deceleration of the rotary table.
- Safety Features: Interlocked acrylic safety doors, emergency stop buttons, and automated diagnostic alarms display errors instantly on the screen to maximize operator safety and reduce troubleshooting time.
Technical Specifications
| Feature | Specification |
|---|---|
| Production Speed | 20 to 60 Pouches / Minute (Model dependent) |
| Filling Range | 50ml to 1000ml (Customizable) |
| Filling Accuracy | ± 1% |
| Indexing System | Rotary Indexing Table / Linear Conveyor |
| Pouch Type | Pre-made Spout Pouches (Center or Corner Spout) |
| Power Supply | 415V, 3 Phase, 50 Hz |
| Air Consumption | 6-8 Bar |
| Construction | Stainless Steel 304 & 316 |
Boost Your Production Line’s ROI Today
Investing in the Harsiddh Automatic Spout Pouch Filling Machine means choosing reliability, efficiency, and future-proof scaling. By merging rapid throughput speeds with immaculate dosing accuracy, this system pays for itself by lowering product giveaway, cutting down on packaging material costs, and freeing up valuable manual labor resources.
Our team of engineering experts works closely with your technical crew to customize nozzle profiles, pump styles, and indexing layouts to perfectly match your specific factory footprint and product viscosity profile.
Frequently Asked Questions
How does the machine handle the pouch loading and filling process?
The Harsiddh Spout Pouch Filling Machine is a fully automated system. It typically uses a rail-based feeding system where pre-made spout pouches are loaded. The machine automatically picks the pouch, checks for correct positioning, and performs a multi-stage process:
Air Blowing: To open the pouch and ensure it is ready for filling.
Vacuuming (Optional): To remove air before filling for sensitive products.
Precision Filling: Using a volumetric or pump-based filler.
Nitrogen Flushing (Optional): To extend the shelf life of food and beverage products.
Harsiddh Spout Pouch Filling Machine is a fully automated system?
Security and leak-proof sealing are critical for flexible packaging. After the filling stage, the machine automatically feeds the plastic caps via a vibratory or elevator feeder. The capping head then applies a precise amount of torque to tighten the cap onto the spout. Many models feature a magnetic torque control system to ensure every cap is sealed perfectly without over-tightening or damaging the spout threads.
Can the machine accommodate different pouch sizes and spout types?
Yes. The machine is designed with flexibility in mind. It can be adjusted to handle various pouch dimensions and volumes (typically from 50ml to 1000ml or more). The rail system and capping heads can be swapped or adjusted to fit different spout diameters. This makes it an ideal solution for manufacturers who produce multiple SKU sizes on a single production line.
What are the key cGMP and hygiene features for food and pharma safety?
As a cGMP-compliant unit, Harsiddh ensures the machine meets the highest sanitary standards:
Material Integrity: All liquid contact parts are made of SS 316L, while the main frame is SS 304 stainless steel.
CIP (Clean-in-Place) Compatibility: The filling circuit is designed for easy cleaning and sterilization between batches to prevent cross-contamination.
No Pouch – No Fill Sensor: An electronic interlock ensures that the filling nozzle only activates if a pouch is correctly detected, preventing product waste and keeping the machine environment clean.
PLC Control: A centralized PLC with a Touchscreen HMI allows for real-time monitoring of filling accuracy, capping torque, and production counts.
