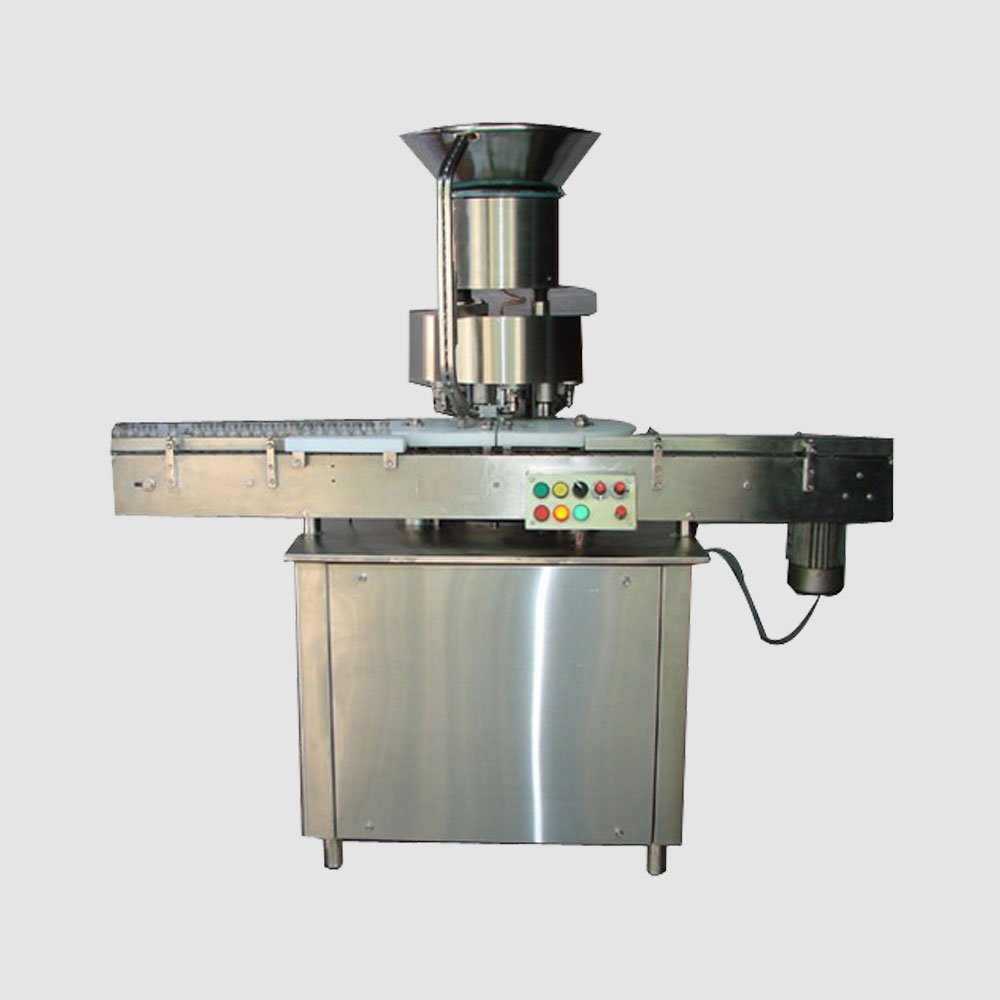

Automatic Six Head Vial Cap Sealing Machine
High-Speed Rotary Capping for Sterile Pharmaceutical Lines
In large-scale pharmaceutical manufacturing, securing the integrity of sterile injectables requires precision engineering, robust mechanics, and continuous validation. The Automatic Six Head Vial Cap Sealing Machine from Harsiddh Unimach Pvt. Ltd. is an advanced, high-throughput rotary solution engineered to meet the stringent demands of modern aseptic processing environments.
By eliminating manual intervention, minimizing particle generation, and offering deep integration with existing fill-finish lines, this equipment stands as a cornerstone for high-speed vial capping operations. Whether processing delicate biologicals, liquid antibiotics, or lyophilized products, it ensures a hermetic, tamper-evident seal across a diverse range of vial capacities and cap configurations.
The Critical Role of Precision Sealing in Aseptic Packaging
The final step in a sterile vial processing line—cap sealing—is arguably the most critical for maintaining product shelf-life and patient safety. A minor flaw in the crimping or sealing process can breach the sterile barrier, causing oxidation, contamination, or product loss.
Our Automatic Six Head Vial Cap Sealing Machine addresses these challenges through a continuous-motion, multi-head rotary architecture. Unlike intermittent inline systems that experience sudden starts and stops, the rotary design handles glassware with extreme care. It minimizes glass-to-glass impact, dramatically reduces the risk of micro-fractures in the vial neck, and maintains a stable center of gravity for every container—even when operating at maximum throughput. This precise handling is essential for maintaining strict compliance with international regulatory standards, including cGMP, US FDA, and European MHRA guidelines.
Comprehensive Operational Workflow
The seamless performance of this equipment relies on a perfectly synchronized mechanical cycle. Each stage of the workflow is closely monitored by advanced sensory networks to guarantee zero-defect output.
[In-feed & Star Wheel Indexing] ➔ [Cap Pick-up & Sensory Check] ➔ [Rotary Sealing & Roller Forming] ➔ [Out-feed Discharge]
1. High-Speed In-feed and Star Wheel Indexing
Stoppered vials arrive from upstream equipment—such as a liquid filling machine or a freeze-dryer loading system—via a heavy-duty, variable-speed stainless steel slat conveyor. A specialized in-feed scroll or worm gear gently spaces the vials to match the pitch of the entry star wheel. The star wheel then indexes the vials smoothly into the main rotary turret, preventing sudden jerks or tipping.
2. Automated Cap Pick-Up and Orientation
Simultaneously, aluminum or plastic flip-off caps are oriented correctly in a high-capacity vibratory or mechanical elevator bowl and fed down a custom-machined delivery chute. As the stoppered vial passes beneath the chute, it naturally picks up a cap.
To eliminate waste and protect downstream operations, the machine is equipped with an intelligent sensor matrix. The system operates on a strict “No Stopper – No Cap” protocol, ensuring that if a vial is missing its rubber stopper, it will not receive a cap, thereby preventing product contamination. Furthermore, a “No Cap – No Seal” interlock detects if a vial missed its cap, automatically bypassing the sealing rollers to prevent glass breakage or machine damage.
3. Continuous Rotary Sealing Process
Once indexed onto the main sealing turret, the vials are securely held in place by specialized pocket adapters. The six independent sealing heads descend smoothly via a mechanical cam track. As the heads make contact, independent, spring-loaded spinning rollers encircle the cap.
Rather than using harsh downward force, the rollers apply controlled lateral and downward pressure, forming a precise, uniform crimp around the vial’s neck ring. This continuous-motion spinning action creates a smooth, burr-free finish around the entire diameter of the cap, ensuring an airtight seal.
4. Continuous Safety Monitoring and Automatic Protection
Safety and equipment protection are integrated into every mechanical movement. The indexing star wheels are equipped with highly sensitive mechanical safety clutches. If a deformed vial causes a jam or if an out-of-tolerance component enters the system, the safety clutches instantly disengage the drive, stopping the entire machine within milliseconds. This immediate shutdown prevents compounding damage to the machine components and minimizes product loss.
5. Smooth Discharge and Downstream Transfer
After the sealing heads lift, the exit star wheel gently guides the hermetically sealed vials out of the rotary turret and places them back onto the main discharge conveyor. From here, the vials travel smoothly to downstream operations, such as inspection stations, external vial washing units, or high-speed labeling machinery.
Technical Features and Engineering Excellence
Designed by Harsiddh Unimach Pvt. Ltd., this machine incorporates premium mechanical and electrical components to ensure structural longevity and minimal maintenance.
- Heavy-Duty CGMP Architecture: The main frame, structure, enclosures, and all product-contact parts are manufactured from high-grade Stainless Steel (SS 304 and SS 316). The exterior features a smooth matt finish that resists harsh sanitizing agents and simplifies wipe-down procedures.
- Flexible Dual Cap Compatibility: The sealing heads and delivery mechanisms are versatile, allowing operators to run plain aluminum seals as well as plastic flip-off caps with minimal tool changeovers.

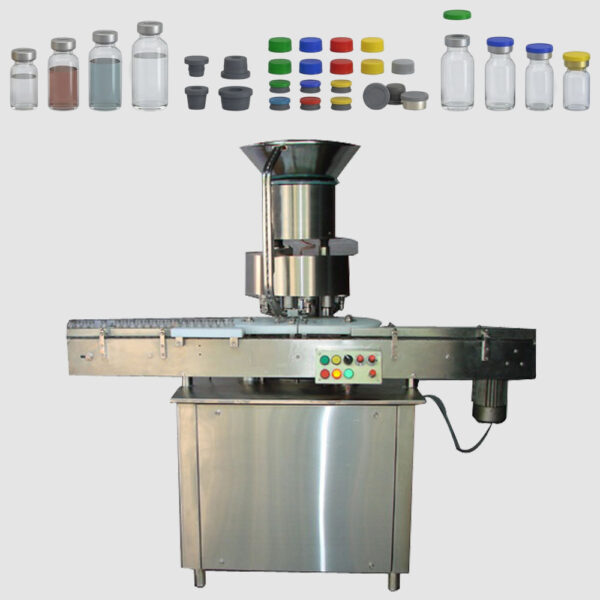

- Wide Container Range: The machine adapts easily to standard glass vials ranging from small 2ml clinical vials up to large 100ml multi-dose containers. Change parts like star wheels, feed screws, and guiding tracks are designed for quick swapping, significantly reducing batch changeover times.
- Variable Speed Drive: Equipped with an AC variable frequency drive (VFD), the production speed can be adjusted instantly to match the throughput of upstream filling systems and downstream labeling lines.
- Centralized Lubrication & Low Maintenance: Critical moving parts and internal cam tracks are engineered for low friction. A centralized lubrication system ensures smooth mechanical movements, reducing wear and extending the operating life of the sealing tools.

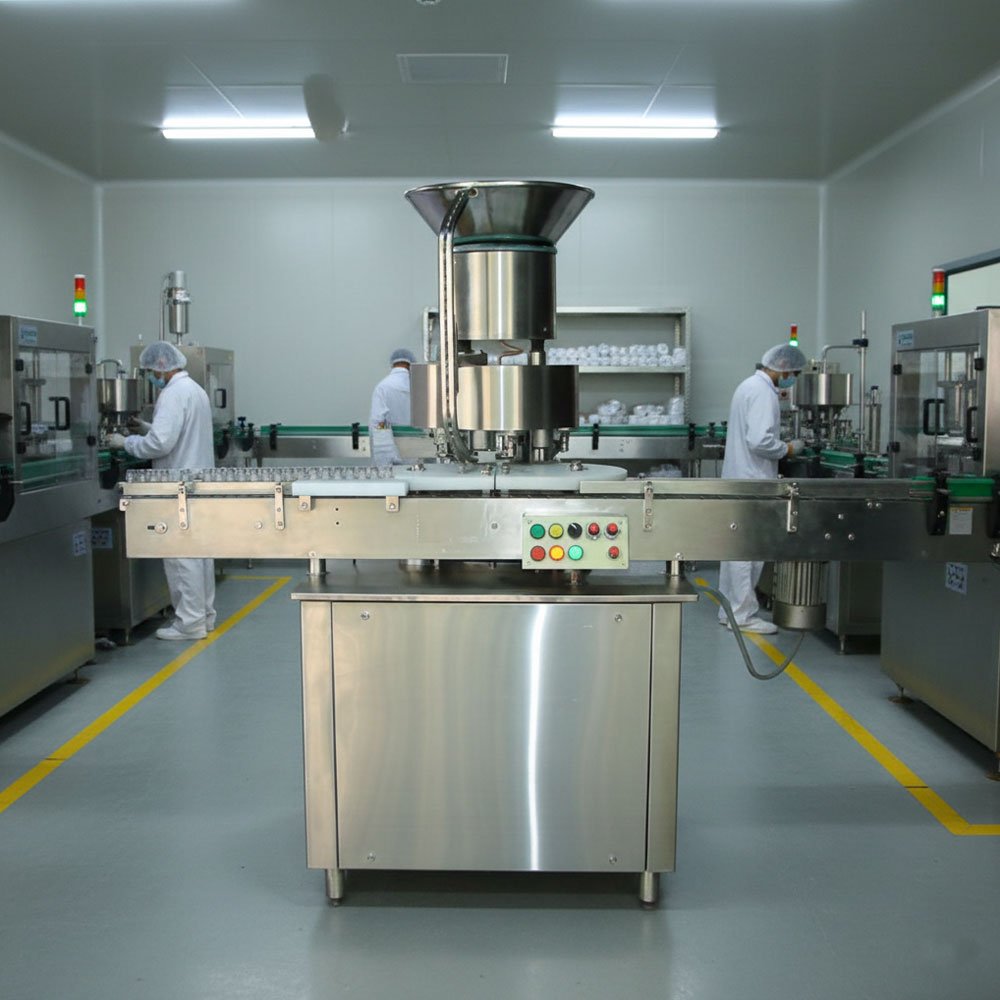

Integration in Modern Sterile Fill-Finish Lines
This six-head sealing machine is built for seamless integration into fully automated, hands-free production lines. It pairs perfectly with our high-speed vial washing machines, sterilizing tunnels, and liquid filling or rubber stoppering units.
For facilities producing advanced biologicals or potent compounds, the machine’s compact design can be customized to fit beneath Open or Closed Restrictive Access Barrier Systems (RABS) or full Aseptic Isolators. By keeping the mechanical drive elements isolated beneath the tabletop surface and utilizing a low-particle spinning roller design, the machine helps maintain Class A / ISO 5 cleanliness zones right at the critical sealing point.
Technical Specification
| Specification | Details (HVCS-150) |
|---|---|
| Sealing Head | Six Head Rotary |
| Output Per Hour | 4,000 to 7,000 Vials (Size Dependent) |
| Vial Range | 2ml to 100ml (Dia. 16mm to 56mm) |
| Cap Compatibility | 13mm, 20mm, 28mm & 32mm |
| Main Motor | 1.5 H.P. / 415 V / 3 Phase |
| Conveyor Motor | 0.25 H.P. (Adjustable Height 800-900mm) |
| Machine Dimensions | 1700mm (L) x 900mm (W) x 1700mm (H) |
| Net Weight | Approx. 350 Kgs |
Why Partner with Harsiddh Unimach Pvt. Ltd.?
As a leading name in industrial packaging technology, Harsiddh Unimach Pvt. Ltd. delivers robust, field-tested engineering tailored to your production targets. Every machine undergoes exhaustive quality testing and factory acceptance trials (FAT) to ensure it performs reliably upon deployment.
Choosing our high-speed rotary sealing equipment means investing in repeatable sealing pressure, minimal downtime, reduced glass breakage, and lower operating costs. Our dedicated technical support team offers comprehensive validation documentation support (IQ/OQ), swift component replacement, and expert technical guidance to keep your high-volume production lines running smoothly year after year.
Frequently Asked Questions
How does the "Spinning Roller" sealing mechanism work?
Unlike simple vertical pressing, our machine uses a Multi-Roller Spinning Sealing method. As the vial is lifted into the sealing head, specialized rollers rotate around the neck of the vial, gradually folding the aluminum cap skirt under the vial’s rim. This ensures a uniform, 360-degree seal that is significantly more reliable and aesthetically cleaner than traditional crimping.
What is the production capacity of this Six Head model?
The Six Head Vial Sealer is built for high efficiency, typically achieving an output of 100 to 150 vials per minute, depending on the vial size and cap type. Its rotary motion ensures that vials are processed in a smooth, continuous flow, which minimizes glass-to-glass contact and reduces the risk of vial breakage during high-speed operation.
Can the machine handle different vial sizes and cap diameters?
Yes. The Harsiddh Six Head Vial Sealer is highly adaptable. It can handle vial sizes ranging from 2ml to 100ml and standard cap diameters (typically 13mm or 20mm). Changeover between different vial diameters is handled via "Quick-Change" star-wheels and guide rails, allowing for minimal downtime between different product batches.
What safety and quality control features are integrated into the machine?
As a cGMP-compliant model, the machine includes several critical features to ensure product integrity:
"No Vial – No Cap" System: Sensors ensure that an aluminum cap is only released when a vial is present, preventing cap wastage and potential jams.
Spring-Loaded Sealing Heads: Each head is equipped with a spring-buffer to account for slight height variations in glass vials, preventing vial breakage during the sealing process.
Total Enclosure: The machine is housed in a transparent acrylic safety cabinet with interlock switches that stop operation if the doors are opened, maintaining a safe and clean environment.
