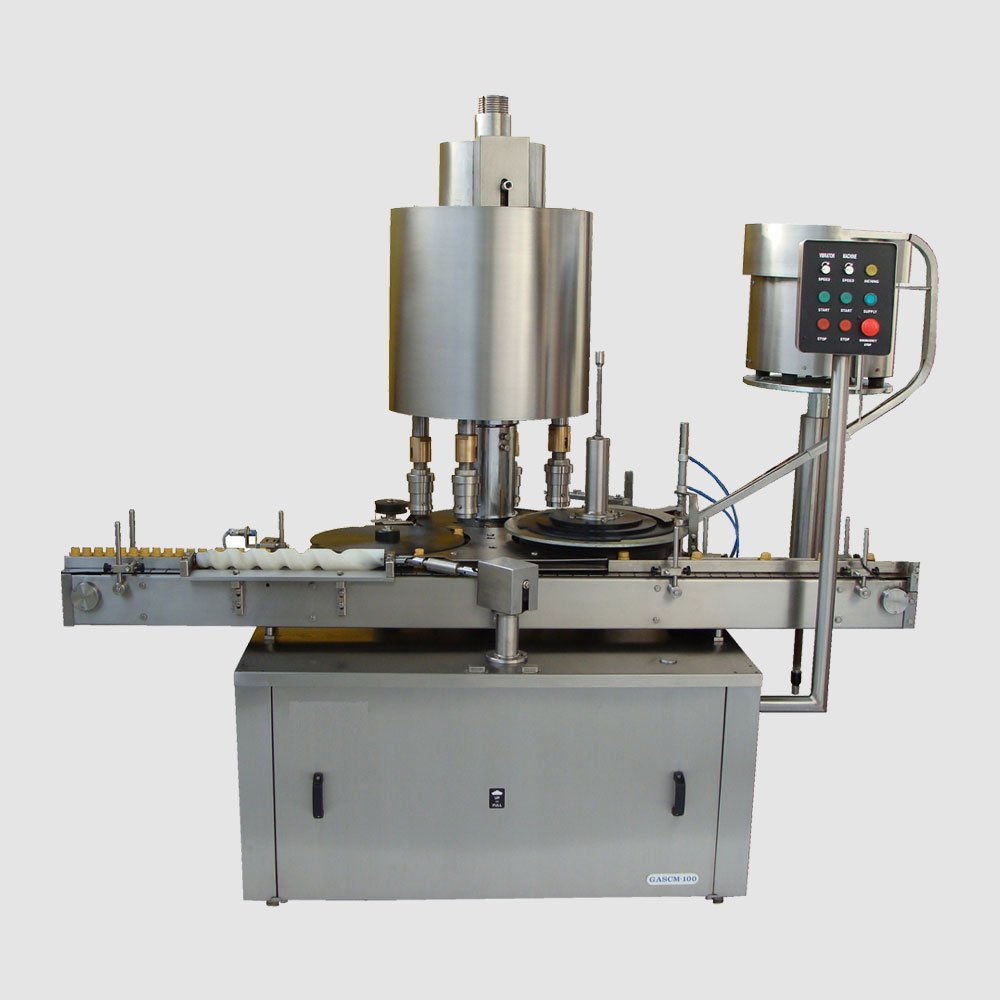

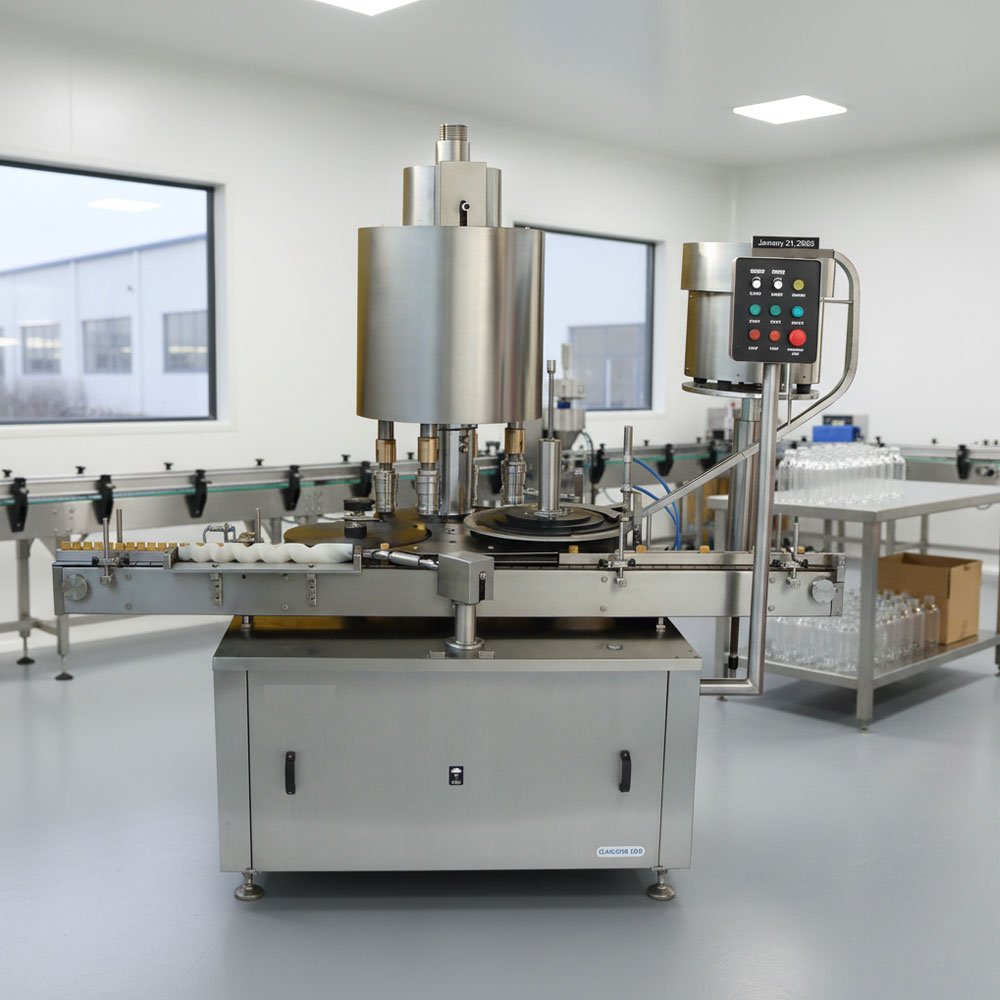

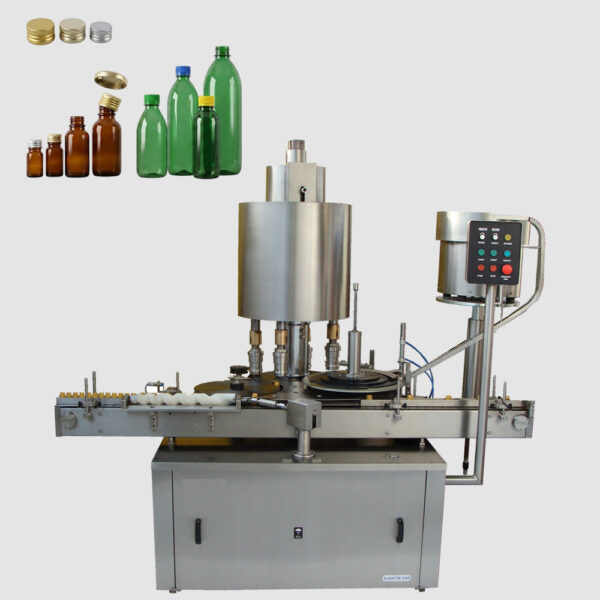

Automatic Six Head Pick And Place Type Screw Capping Machine

High-Speed Rotary Sealing Technology for Modern Production Lines

In high-throughput manufacturing, packaging integrity is just as critical as the product itself. The Harsiddh Automatic Six Head Pick and Place Screw Capping Machine represents a major evolutionary leap in rotary capping technology. Engineering beyond the constraints of traditional “shut-pick” mechanisms, this sophisticated system offers absolute mechanical control over every single cap—from the exact millisecond it exits the feed chute until it is flawlessly torqued onto the container.

Designed for high-speed, continuous-motion environments, the HBCS-150PP is the definitive choice for the pharmaceutical, cosmetic, chemical, and food and beverage sectors. When your operations demand unyielding reliability, high-speed output, and zero tolerance for cross-threading, this six-head rotary capper delivers uncompromising closure integrity.

The Pick and Place Advantage: Why It Outperforms Standard Cappers

Standard inline or basic rotary cappers often rely on the bottle to “strip” or pull the cap from the chute. This legacy method frequently leads to misaligned caps, cross-threading, jammed tracks, and high reject rates.

The Harsiddh Pick & Place System entirely eliminates these variables. A dedicated mechanical capping arm physically picks up the oriented cap from the delivery chute and precisely places it vertically onto the container neck. Because the cap is held securely by specialized chucks before threading begins, the alignment is mathematically perfect every time. This translates to:

• Zero Cross-Threading: Perfect vertical alignment ensures smooth thread engagement.
• Reduced Cosmetic Damage: Caps are handled gently, preventing scratches on premium cosmetic or pharmaceutical closures.
• Consistent Torque Application: Mechanical stability guarantees that every container experiences uniform sealing pressure.

Engineered for Precision: Reliable Operational Workflow

The seamless efficiency of the HBCS-150PP stems from its highly synchronized, failure-proof rotary cycle. Every mechanical movement is timed perfectly with the movement of the conveyor line to maximize throughput while minimizing component stress.

1. Synchronized Bottle In-Feed

Containers travel smoothly down a heavy-duty stainless steel slat conveyor. As they approach the capping zone, a precision-machined feed worm and star wheel system takes over. This system spaces and positions each bottle precisely beneath the rotating capping heads. For added machine protection, the in-feed system is integrated with safety clutches that immediately stop operation if a fallen or deformed bottle causes a jam, protecting your investment from mechanical damage.

2. Dual-CAM Pick & Place Cycle

The core of the machine’s precision lies in its dual-CAM tracking system:

• The First CAM Line: Raises the capping head to precisely pick up a single, pre-oriented cap from the feeding chute.
• The Second CAM Line: Guides the head downward, placing the cap squarely and evenly onto the waiting bottle neck. This deliberate vertical assembly completely eliminates the margin for error found in older drag-style (drag-pick) capping methods.

3. Magnetic Hysteresis Torque Application

Once the cap is resting perfectly on the bottle, the six rotary heads engage. Utilizing advanced magnetic hysteresis clutches, the machine applies a highly predictable, pre-set torque. Unlike friction clutches that wear down and cause torque drift, magnetic hysteresis heads provide non-contact, consistent torque application. This ensures a ≥99.8% qualified capping accuracy rate, meeting stringent validation standards.

4. Continuous Smart Monitoring & Logic

The HBCS-150PP is equipped with an array of real-time sensors that manage advanced automation logic:

• “No Bottle – No Cap” System: If a gap occurs in the production line, the machine senses the missing bottle and holds back the cap, preventing product waste, mechanical jams, and line contamination.
• 6-Digit Digital Batch Counter: Built into the control panel, an ultra-precise digital counter tracks exactly how many containers have been successfully processed, streamlining batch records and production tracking.

5. Smooth Discharge and Outfeed

After receiving the perfect seal, the star wheel smoothly transitions the capped containers back onto the outfeed conveyor. From here, they travel seamlessly toward downstream processes such as inspection systems, labeling machines, or secondary cartoning equipment.

Key Benefits for Your Production Facility

• Minimized Product Waste: With a 99.8% success rate, you drastically reduce the overhead costs associated with rejected products, leaked contents, or ruined caps.
• Rapid Changeovers: Designed with user-friendly adjustments, the machine allows operators to switch between different bottle sizes and cap types with minimal downtime, maximizing overall equipment effectiveness (OEE).
• CGMP Compliant Design: Built with a clean, streamlined stainless steel finish and minimal crevices, the machine meets the rigorous sanitation standards required by regulatory bodies like the FDA.
• Low Maintenance Overhead: The use of magnetic clutches removes high-wear friction parts, drastically extending the service intervals of the capping heads and keeping your maintenance costs low.

Versatile Industry Applications

The flexibility of the Harsiddh Six Head Pick and Place Screw Capping Machine makes it an invaluable asset across a wide spectrum of manufacturing sectors:

Pharmaceuticals & Nutraceuticals

From syrup bottles to supplement jars, secure sealing is non-negotiable for child-resistant closures (CRC) and tamper-evident caps. The HBCS-150PP provides the strict torque validation needed to preserve chemical stability and comply with strict healthcare regulations.

Cosmetics & Personal Care

Premium cosmetics require flawless aesthetics. The precise vertical pick-and-place action ensures that delicate pump caps, flip-tops, and metallic screw caps are applied tightly without scratching, scuffing, or marring the glossy finish.

Food & Beverage

Whether sealing condiments, specialty oils, or bottled beverages, maintaining an airtight seal is crucial for freshness and shelf life. The reliable throughput ensures that fast-moving food packaging lines stay on schedule without bottlenecking at the capping stage.

Agrochemicals & Industrial Chemicals

Handling corrosive or volatile liquids requires robust capping that prevents leaks during transit. The heavy-duty build and precise torque application ensure that chemical containers are sealed safely and tightly every single run.

Technical Specification

Specification	Details (HBCS-150PP)
Number of Heads	6 Head Rotary Pick & Place
Production Rate	Up to 120 Bottles/Min (for 50ml)
Pick-up Accuracy	≥99.9%
Capping Accuracy	≥99.8%
Bottle Dimensions	Dia. 22mm to 80mm | Height 55mm to 200mm
Cap Compatibility	Dia. 22mm to 52mm (with change parts)
Power Supply	440 V / 3 Phase / 50 HZ
Main Motor	1.0 H.P. (0.25 H.P. for Orientation)
Dimensions (L x W x H)	1850mm x 850mm x 1900mm

Elevate Your Packaging Efficiency with Harsiddh

When it comes to automated packaging, your capping machine shouldn’t be a bottleneck or a source of unpredictable rejects. The Harsiddh Automatic Six Head Pick and Place Screw Capping Machine combines robust mechanical design, advanced magnetic torque control, and smart sensing technology to offer an unrivaled sealing solution.

Optimize your production line, protect your product quality, and achieve a higher ROI with engineering built for the future. Contact our technical sales team today to request a custom quote, discuss your specific bottle/cap dynamics, or schedule a virtual demonstration.
