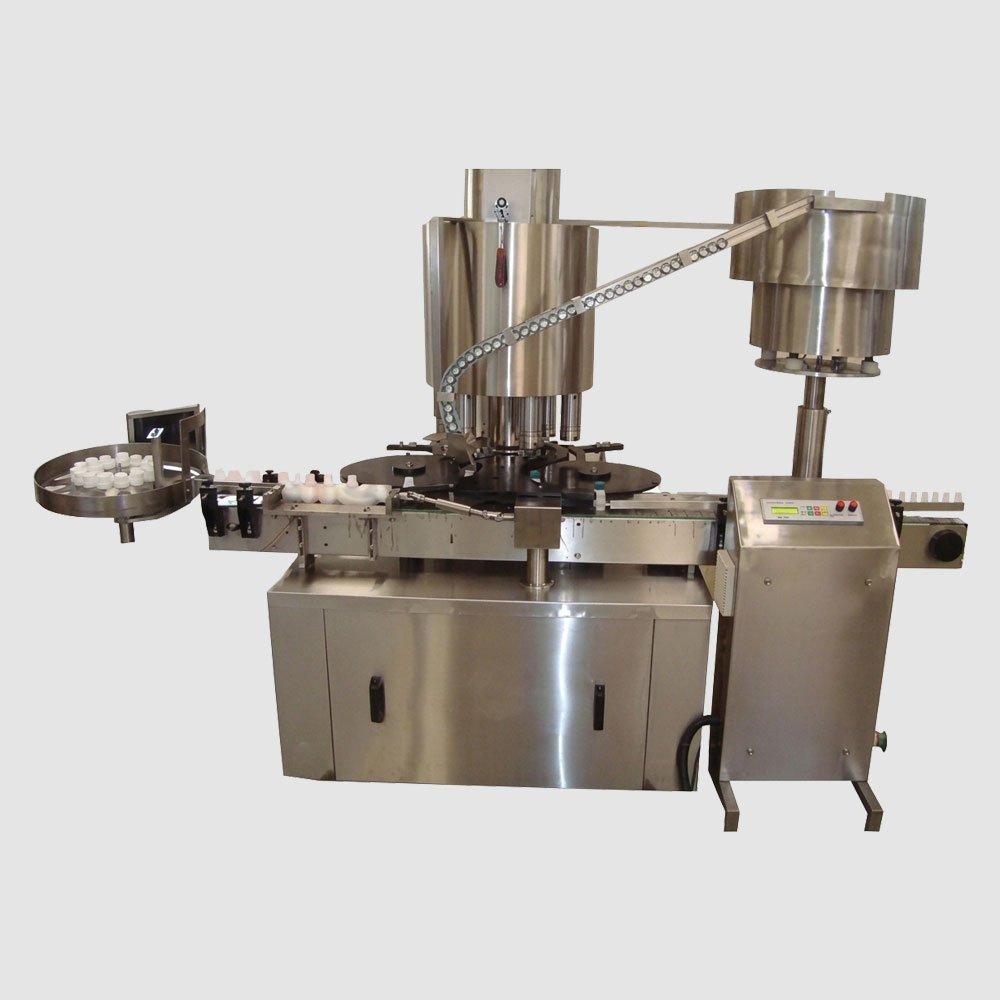

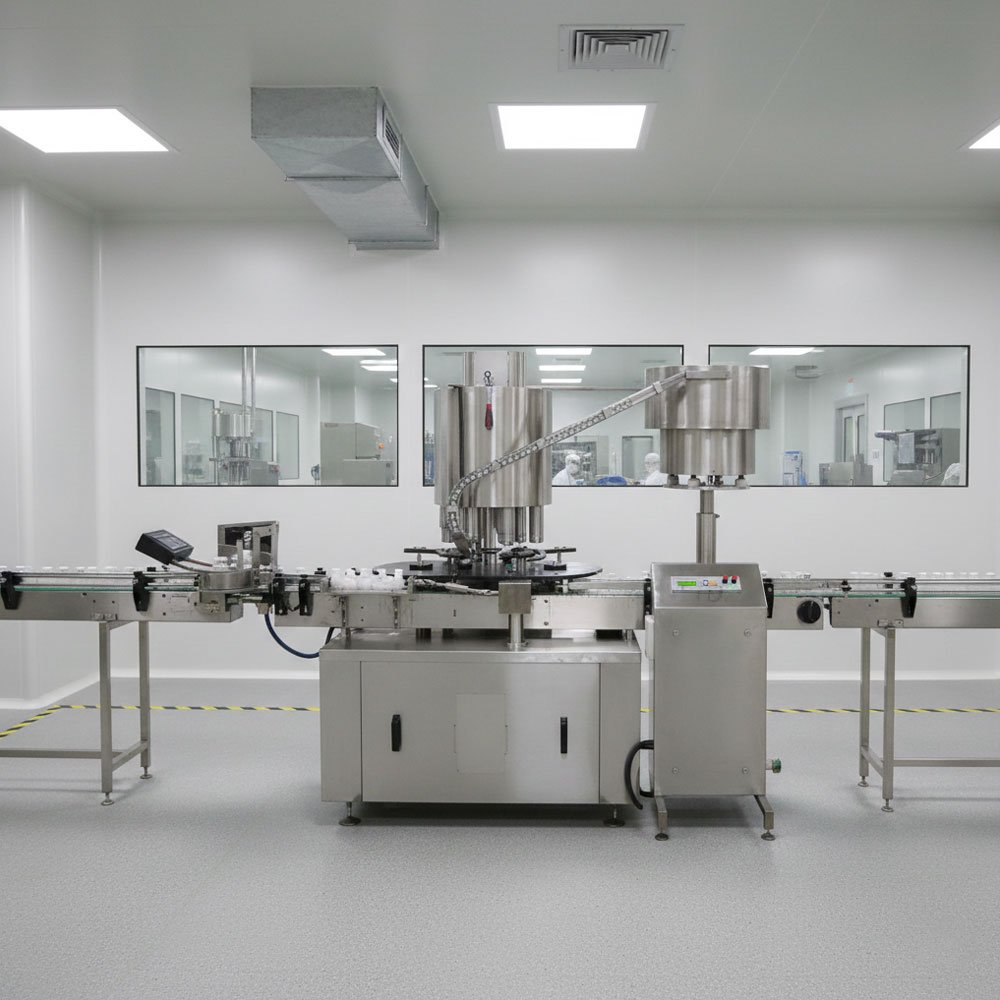

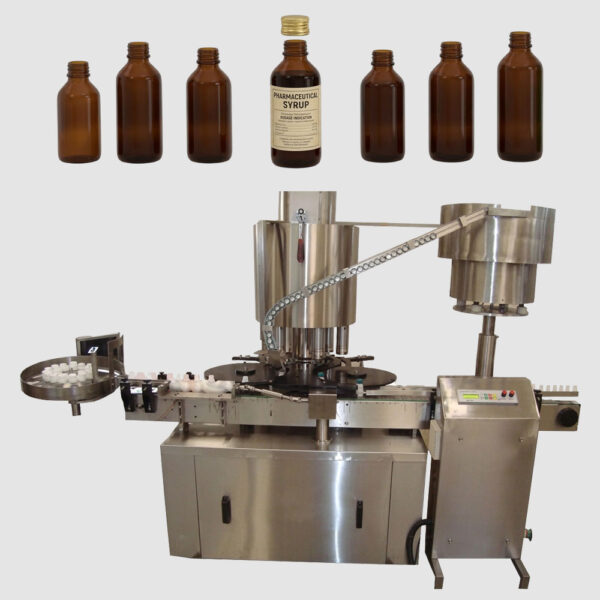

Automatic Six Head Bottle Screw Capping Machine

High-Speed Rotary Sealing Solution

In modern manufacturing, production speed must never come at the cost of sealing integrity. The Automatic Six Head Bottle Screw Capping Machine represents the pinnacle of high-efficiency, continuous-motion closure technology. Specifically engineered to meet the aggressive production schedules of the pharmaceutical, cosmetic, beverage, chemical, and food processing industries, this rotary capping system delivers exceptional throughput while maintaining airtight, leak-proof precision.

Built with heavy-duty construction and a compact footprint, this machine seamlessly integrates into existing automated packaging lines. It offers an adaptable framework capable of processing a vast array of container profiles and cap dimensions with minimal downtime for retooling. By replacing manual or semi-automated processes with this six-head rotary configuration, manufacturers can drastically increase their daily output, reduce product wastage, and maintain strict compliance with global quality standards.

Industrial Applications

This versatile rotary capping machine is built to handle strict sanitary demands and diverse packaging materials, making it an essential asset across multiple sectors:

• Pharmaceuticals & Nutraceuticals: Perfect for sealing syrup bottles, tablet containers, dropper bottles, and vitamin vials where contamination prevention and exact torque control are non-negotiable.
• Cosmetics & Personal Care: Efficiently seals shampoos, lotions, essential oils, and skin-care jars without scratching premium, aesthetic closures or delicate plastic caps.
• Food & Beverage: Ideal for condiments, sauces, juices, and spirits, ensuring a hermetic seal that preserves product freshness and extends shelf life.
• Agrochemicals & Household Chemicals: Built to handle robust containers and aggressive chemical formulas, providing airtight seals that prevent hazardous leaks during transit.

Comprehensive Step-by-Step Operational Workflow

The core strength of the Automatic Six Head Bottle Screw Capping Machine lies in its synchronized, continuous mechanical motion. Unlike linear cappers that stop or slow down the bottles during the sealing process, this rotary system handles capping on the fly.

1. Precision In-Feed and Container Indexing

The process begins as unsealed containers are transferred from the upstream filling line onto the machine’s integrated Stainless Steel (SS) slat conveyor. To prevent crowding and ensure smooth handling, the bottles pass through an in-feed worm or guide track. This system feeds them directly into an entry star wheel. The star wheel perfectly spaces and indexes each bottle, centering it precisely beneath the rotating capping turret.

2. Automatic Cap Orientation and Delivery

Simultaneously, bulk caps are loaded into a high-capacity vibratory or mechanical elevator bowl. The sorter aligns the caps so they all face the correct direction before feeding them down a customized delivery chute. At the base of the chute, a highly sensitive “No Bottle – No Cap” sensor monitors the conveyor. If a slot in the star wheel is empty, the system halts cap delivery for that cycle, preventing component wastage and keeping the machinery clean.

3. Synchronized Cap Picking

As the indexed bottles move underneath the discharge end of the cap chute, they naturally pull a single cap out of the retaining fingers. This “pick-and-place” or “on-the-fly” pickup mechanism ensures that every container receives a cap centered perfectly on its neck threads before it enters the primary sealing zone.

4. High-Speed Rotary Screw Capping

Once the bottle and cap are positioned together, they enter the main rotary turret, which features six independent mechanical or magnetic capping heads. As the turret spins, these specialized heads descend upon the caps.

• Torque Control: Each capping head is equipped with an adjustable clutch (magnetic or mechanical). This allows operators to set an exact torque limit.
• The Seal: The heads grip the caps and spin them downward onto the bottle threads. The moment the pre-set torque threshold is met, the clutch slips smoothly. This guarantees a perfectly tight, leak-proof seal without over-tightening, stripping the threads, or damaging the cap surfaces.

5. Advanced Security & Quality Inspection

To maintain absolute line integrity, the machine features an active monitoring network. Sensors continuously scan for operational anomalies, such as tipped or fallen bottles, cross-threaded caps, or downstream backups. If an irregularity or jam is detected, the safety interlock system immediately pauses operation and alerts the operator via the control panel, preventing equipment damage or massive product spills.

6. Smooth Discharge to Downstream Packaging

After completing the capping cycle, the sealing heads retract smoothly. The rotating turret transfers the fully sealed bottles into an exit star wheel, which gently releases them back onto the main conveyor belt. From here, the bottles move seamlessly to secondary line operations such as labeling, induction sealing, batch coding, or final case packing.

Key Features & Technological Advantages

• Six-Head Rotary Configuration: Maximizes throughput by performing capping operations concurrently across six synchronized stations, outperforming standard linear systems.
• Extensive Component Adjustability: Highly adaptable architecture accommodates a broad spectrum of bottle heights (ranging easily from 10ml to 250ml capacities) and varying cap diameters with minimal mechanical adjustments.
• Magnetic Hysteresis Clutches: Features state-of-the-art capping heads that apply uniform torque. This eliminates variations caused by mechanical wear, ensuring every single bottle receives the same sealing pressure.
• “No Bottle – No Cap” Smart System: Integrated photoelectric sensors eliminate cap loss and operational messes by restricting cap dispensation if no container is detected on the line.
• Vibration-Free, Low-Noise Operation: Precision-engineered internal drive gears, balanced rotary turrets, and rigid framework ensure quiet, stable performance even when running at maximum operational velocity.
• CE-Certified Engineering: Manufactured in strict alignment with CE safety and quality guidelines, featuring enclosed safety cabinetry and low energy consumption profiles for reduced operational overheads.

Technical Specification

Specification	Details (HBCS-150S)
Capping Head	Six Head Rotary
Output Per Hour	4,000 to 7,000 Bottles (Size Dependent)
Bottle Range	10ml to 250ml (Dia. 22 to 100mm)
Bottle Height	50mm to 250mm
Cap Diameter	19mm to 38mm
Main Motor	1.5 H.P. / 415 V / 3 Phase
Dimensions (L x W x H)	1700mm X 900mm X 1700mm
Net Weight	Approx. 480 Kgs

Why Invest in a Six-Head Rotary Capping System?

Unmatched Production Efficiency

Moving from single or twin-head capping setups to a six-head rotary layout drastically scales up your daily output. The continuous rotational movement eliminates the constant stopping and starting found in linear machines, allowing your packaging line to run faster, smoother, and with less physical stress on the machinery components.

Reduced Product Waste and Rework

Inconsistent capping leads to leaking products, evaporation, oxidation, and costly product recalls. By utilizing precision torque clutches on all six heads, this machine eliminates human error and mechanical variance. Every bottle leaves the line with a uniform, airtight seal, securing product freshness and protecting your brand’s reputation.

Low Maintenance & Superior Durability

Constructed from high-grade, corrosion-resistant stainless steel, this capping machine is built to withstand harsh, multi-shift production environments. The enclosed drive mechanisms protect internal gears from liquid spills and dust accumulation, reducing routine maintenance intervals and lowering the total cost of ownership over the machine’s extended lifespan.
