Automatic Single Head Vial Cap Sealing Machine

High-Performance Hermetic Sealing for Injectable & Pharmaceutical Vials

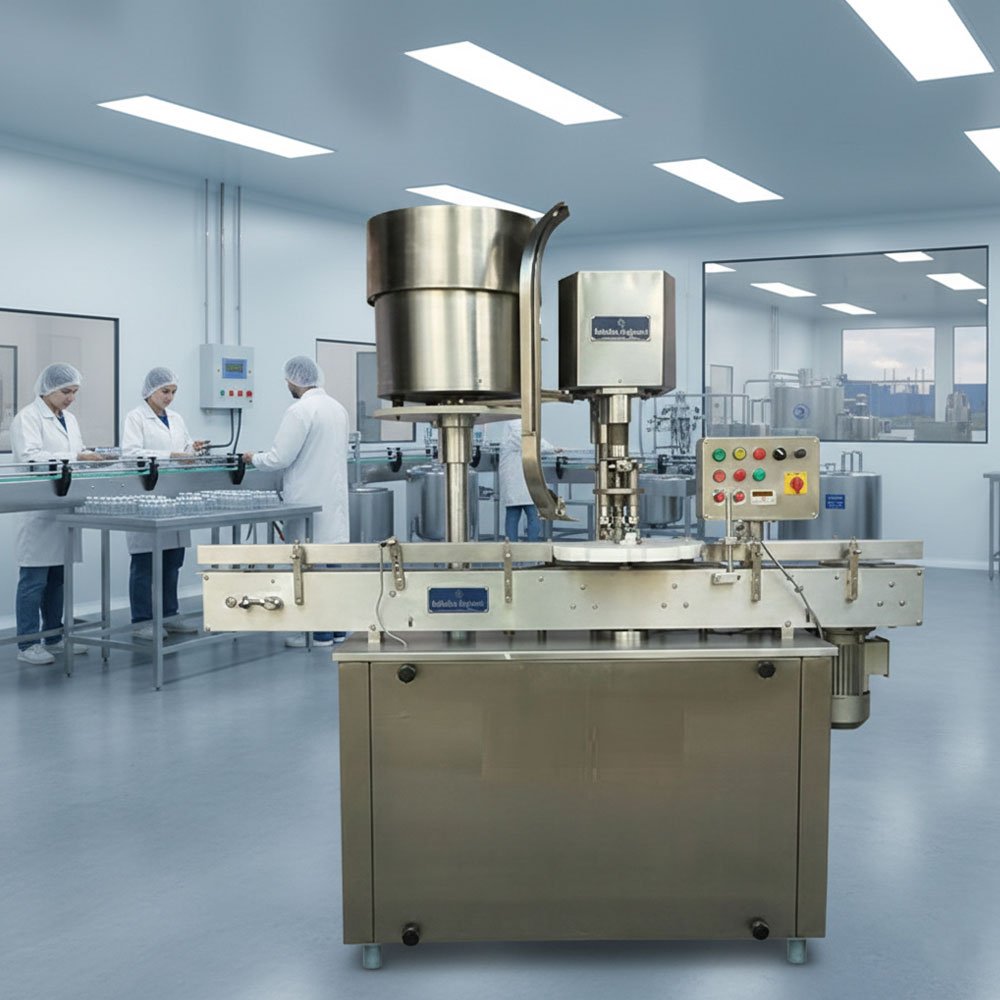

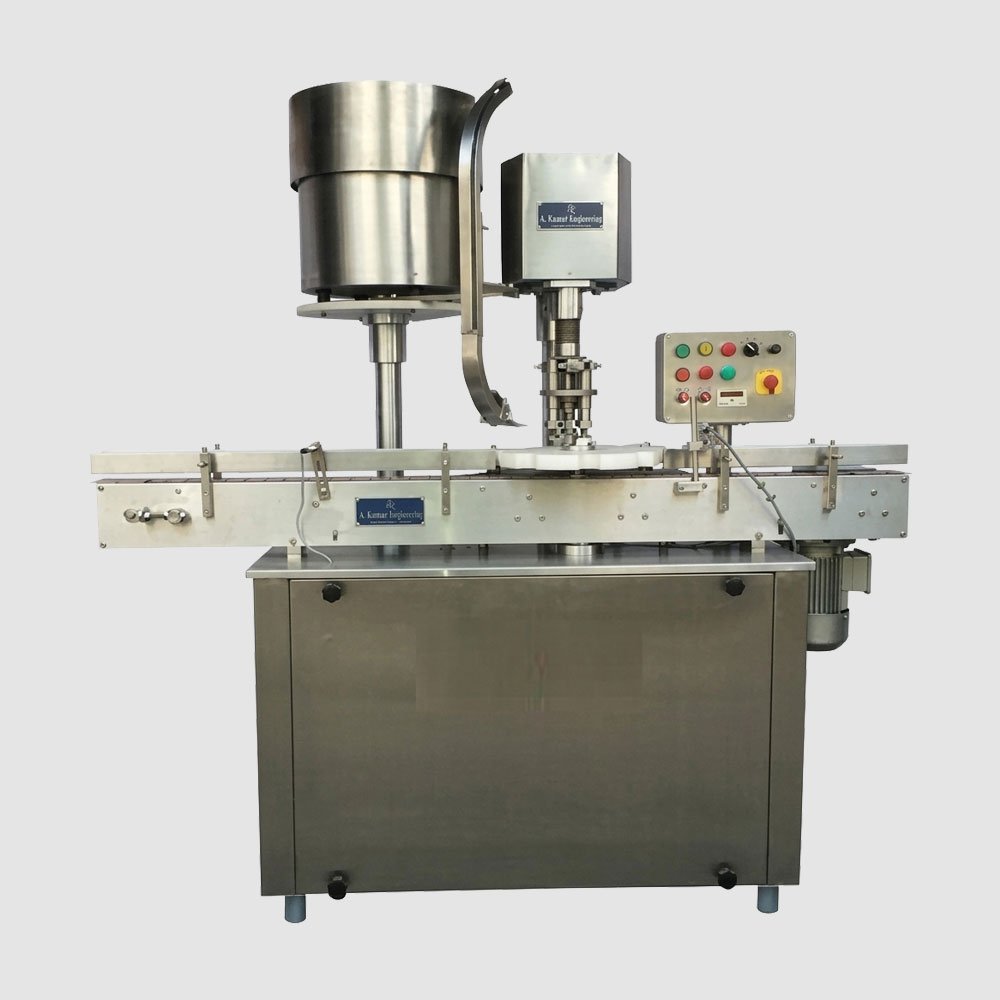

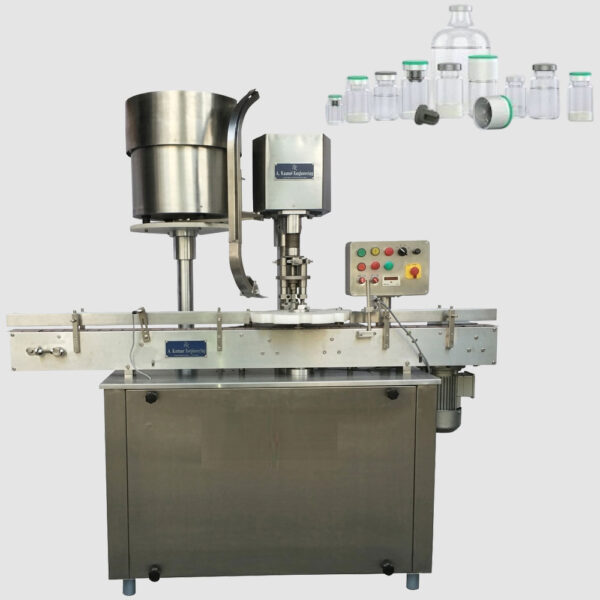

In the stringent world of pharmaceutical manufacturing, maintaining sterility and ensuring tamper-evident packaging are non-negotiable. The Harsiddh Automatic Single Head Vial Cap Sealing Machine (HVCS-60) stands as an industry benchmark for precision, sterility preservation, and mechanical reliability. Engineered specifically for the high-integrity capping of liquid and dry powder injectables, this advanced rotary turret system delivers flawless hermetic seals on both plain aluminum and Flip-Off caps.

By minimizing contact between mechanical components and the glass vials, the HVCS-60 actively mitigates contamination risks. It functions seamlessly as an independent unit or as an integrated, synchronized capping partner downstream from high-speed liquid filling or powder dosing lines.

Why Choose the Harsiddh HVCS-60?

1. Advanced Sterility & Low-Friction Design

Cross-contamination is one of the greatest risks in sterile injectables processing. The HVCS-60 features a highly optimized layout where moving parts are kept at a strict distance from the vial openings. The minimal-contact mechanics protect the integrity of the stoppered vial before and during the crimping process, making it fully compliant with current Good Manufacturing Practices (cGMP) standards.

2. Versatile Cap Handling Capabilities

Whether your production line requires standard plain aluminum caps or user-friendly Flip-Off / Flip-Tear seals, the HVCS-60 handles them with equal finesse. Changeovers between different cap styles and vial dimensions are quick and straightforward, reducing production downtime and maximizing Overall Equipment Effectiveness (OEE).

3. Continuous-Motion Rotary Efficiency

Unlike intermittent inline systems that cause jerky movements and potential product spillage, our single-head machine uses a smooth, continuous-motion rotary turret. This ensures a stable, uniform center of gravity for every vial, preventing tipping, glass scratching, or hairline fractures during high-speed operations.

Automated Step-by-Step Operational Workflow

The efficiency of the HVCS-60 lies in its synchronized, automated mechanical sequence. Every stage of the process is meticulously monitored by smart sensors to eliminate waste and guarantee quality assurance.

Step 1: Smooth In-feed & Star Wheel Indexing

Rubber-stoppered vials arrive from the upstream filling or lyophilization chamber via a heavy-duty, low-vibration stainless steel conveyor. As they approach the sealing zone, an engineered in-feed star wheel gently captures and indexes the vials, spacing them perfectly to enter the rotary turret without clashing.

Step 2: Automated Cap Orientation & Feeding

Simultaneously, bulk caps are loaded into a specialized vibratory orientation bowl. This bowl uses precision vibration frequencies to align the caps face-up. Aligned caps travel down a dedicated delivery chute. As a vial passes beneath the chute gate, its forward momentum naturally and cleanly picks up its designated cap.

Step 3: Smart Photo-Sensor Verification

Before a single mechanical action takes place, a series of fail-safe photo-electronic sensors inspect the assembly.

• No Vial – No Cap: If a slot lacks a vial, the system will not release a cap.
• Missing Cap Detection: If a vial passes without successfully picking up its cap, the machine can either bypass the sealing head to prevent damaging the stopper, trigger a reject mechanism, or execute a controlled system halt. This prevents unsealed products from slipping through to final packaging.

Step 4: Precision Spring-Loaded Crimping & Sealing

Once verified, the vial is lifted into the sealing position on the rotary turret platform. A set of precision-engineered, spring-loaded rollers begin spinning rapidly around the aluminum cap. The rollers apply uniform, calibrated lateral and downward pressure, smoothly tucking the aluminum skirt underneath the glass vial’s rim. This creates a perfect, airtight, tamper-evident hermetic seal without exerting excessive vertical stress that could crush or crack the glass.

Step 5: Controlled Star Wheel Discharge

Once the crimping cycle completes, the sealing head retracts. An exit star wheel smoothly guides the securely sealed vial out of the turret zone and transfers it back onto the main conveyor line. From here, the vials travel safely toward downstream inspection systems, visual clarity testing, or automatic labeling machines.

Key Performance Features

• cGMP Compliant Architecture: The exterior body, framework, and conveyor elements are clad in premium stainless steel, offering high resistance to aggressive cleanroom sanitizing agents and VHP (Vaporized Hydrogen Peroxide) sterilization.
• No Vial, No Machine Stopping Feature: Intelligent automation ensures that missing components do not cause catastrophic pile-ups or component breakage, allowing operators to manage the line with minimal stress.
• Gentle Glass Handling: Specialized nylon and Delrin change parts (star wheels and back guides) ensure that glass-to-metal contact is entirely avoided, preventing micro-scratches that cause glass delamination or shattering.
• Variable Speed Control: Equipped with an AC Variable Frequency Drive (VFD), allowing production managers to perfectly match the speed of the sealer with upstream filling and downstream labeling rates.
• Low Maintenance & High Durability: Built with heavy-duty internal gears and sealed lubrication points, the machine minimizes particulate generation—a critical requirement for ISO Class 5 / Class A sterile environments.

Target Industries and Applications

The HVCS-60 is widely utilized across diverse sectors where airtight container closure integrity (CCI) is vital:

• Pharmaceuticals: Liquid injectables, lyophilized (freeze-dried) powders, antibiotic solutions, and ophthalmic vials.
• Biotechnology: Vaccines, blood plasma fractions, gene therapy vectors, and sensitive biological reagents.
• Veterinary Medicine: High-volume animal health injectables and vaccines.
• Cosmeceuticals: High-end anti-aging serums, sterile skin therapies, and concentrated ampoule/vial cosmetics.

Technical Specification

Specification	Details (HVCS-60)
Sealing Head	Single Head Rotary
Output Per Hour	1,500 to 2,500 Vials (Size Dependent)
Vial Range	2ml to 100ml (Dia. 16mm to 56mm)
Cap Sizes	13mm, 20mm, 28mm & 32mm
Direction of Movement	Left To Right
Main Motor	1.0 H.P. / 415 V / 3 Phase
Conveyor Motor	0.25 H.P. (Adjustable Height 800-900mm)
Dimensions (L x W x H)	1200mm X 700mm X 1700mm
Net Weight	Approx. 225 Kgs

Elevate Your Packaging Reliability with Harsiddh

At Harsiddh Engineering, we understand that a pharmaceutical product is only as safe as its seal. A single compromised vial cap can ruin an entire production batch and jeopardize patient safety. The Automatic Single Head Vial Cap Sealing Machine (HVCS-60) combines robust mechanical engineering with responsive electronic automation to ensure every single vial receives a flawless, tamper-proof seal.

Contact our engineering and sales consultancy team today to request a custom quote, discuss change-parts requirements for your unique vial dimensions, or learn how to seamlessly integrate the HVCS-60 into your existing sterile processing facility.
