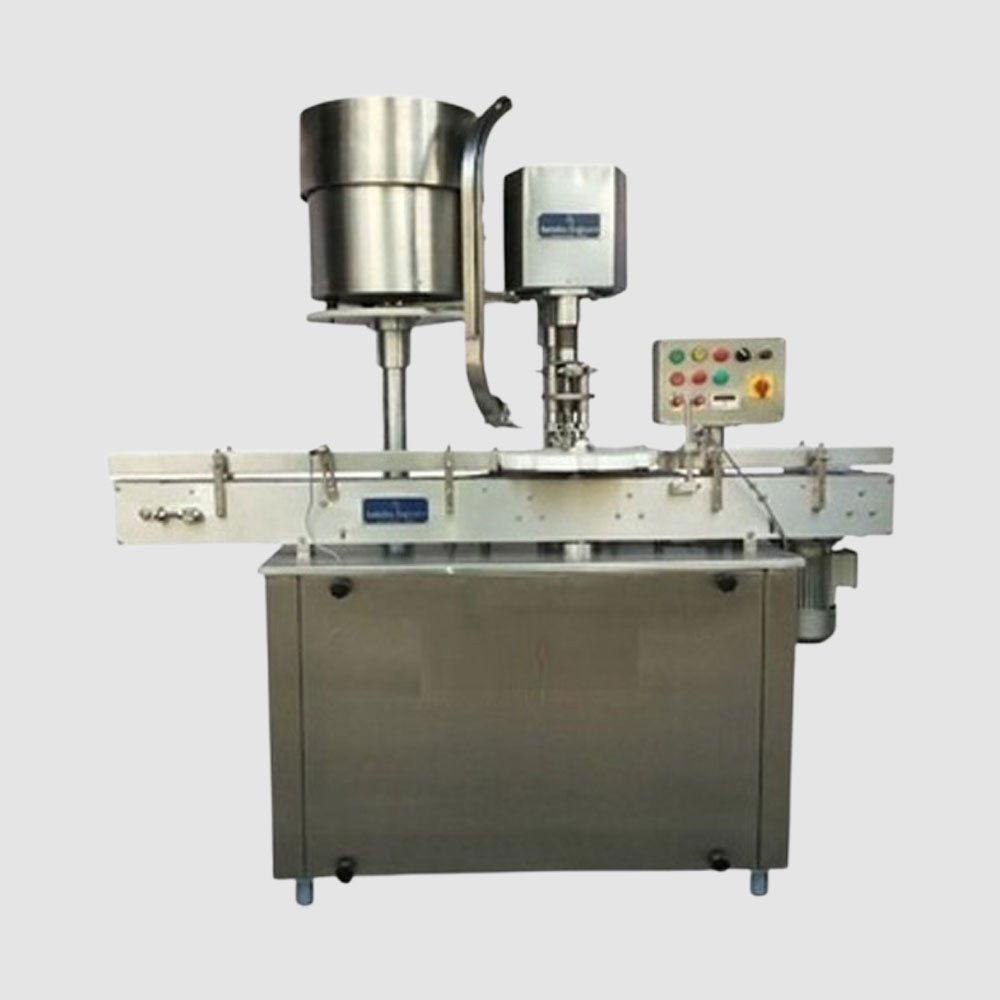

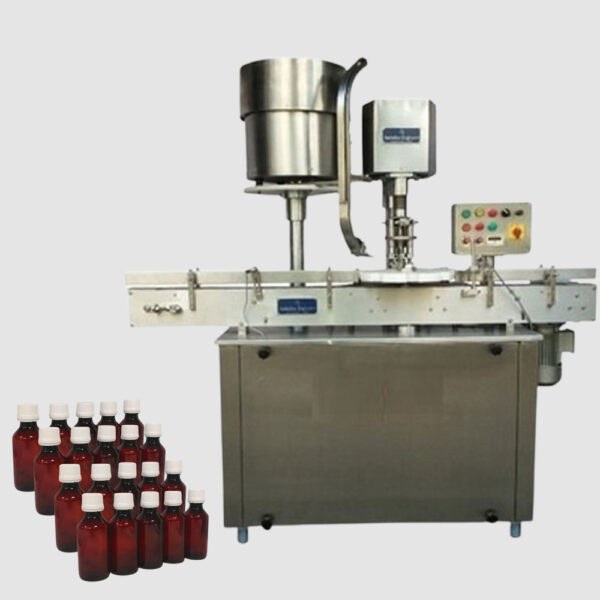

Automatic Single Head Bottle Ropp Capping Machine

High-Performance Roll-On Pilfer-Proof Sealing Technology

In modern packaging lines, product integrity and security are paramount. The Automatic Single Head Bottle ROPP Capping Machine engineered by Harsiddh Unimach Pvt. Ltd. stands as a premier solution for industries that require flawless, airtight, and tamper-evident sealing. Specifically designed to handle Roll-On Pilfer-Proof (ROPP) aluminum caps, this equipment delivers exceptional precision, making it an indispensable asset for the pharmaceutical, distillery, beverage, and food processing sectors.

Built with a compact footprint and adhering to strict international manufacturing standards, this single-head capping system provides a reliable, cost-effective, and low-maintenance method for automating your packaging line. By utilizing advanced rotary threading and sealing mechanisms, it ensures each bottle is tightly sealed to preserve freshness, prevent leakage, and guarantee consumer safety.

The Importance of Tamper-Evident ROPP Sealing

For high-value products such as syrups, liquid injectables, premium spirits, and olive oils, standard screw caps often fall short of regulatory and security standards. ROPP capping provides a distinct advantage:

• Custom-Molded Protection: Instead of forcing a pre-threaded cap onto a glass or rigid plastic bottle, the ROPP process molds an unthreaded aluminum shell directly onto the unique thread profile of individual bottle necks.
• Pilfer-Proof Security: The sealing head simultaneously cuts the thread and tucks the bottom skirt of the aluminum cap under the bottle’s locking ring. This creates a distinct, unbroken security band that must fracture upon opening, offering immediate visual proof of tampering.
• Leak-Proof Airtight Fit: The precise pressure applied by the single-head mechanism ensures a hermetic seal, protecting the contents from environmental exposure, oxidation, and moisture ingress.

Engineering Excellence & Key Structural Features

1. Robust Stainless Steel Construction

To survive the demanding environments of chemical, beverage, and pharmaceutical manufacturing, the entire structural frame, protective enclosures, and conveyor systems are fabricated from high-grade Stainless Steel. This construction prevents corrosion, simplifies washdown procedures, and complies fully with Good Manufacturing Practices (cGMP).

2. Advanced Single-Head Sealing Mechanics

The core of the machine lies in its highly responsive sealing head. Equipped with dual threading rollers and dual sealing rollers, the head applies uniform vertical and lateral pressure. The rollers are completely adjustable, allowing operators to fine-tune the torque and pressure depending on the thickness of the aluminum caps and the tolerances of the bottle necks.

3. Integrated Cap Orientation and Chute System

Efficiency begins with proper cap handling. The machine features an automatic cap feeder (either a vibratory bowl or mechanical orientation elevator) that aligns the unthreaded aluminum caps correctly. The caps are fed down a precision-engineered delivery chute, waiting to be seamlessly picked up by passing bottles without manual intervention.

4. Smart Sensor Integration and Safety Controls

To minimize product loss and prevent mechanical strain, Harsiddh Unimach Pvt. Ltd. has integrated an intelligent sensor array. The system features “No Bottle – No Capping” logic, ensuring that if a gap occurs in the production line, the capping head will not deploy or waste a cap. Additional safety sensors detect downstream bottle jams or upstream backups, automatically pausing operation until the line clears.

Step-by-Step Operational Workflow

The continuous, automated workflow of the Single Head ROPP Capping Machine ensures high throughput with minimal operator oversight.

[In-Feed Conveyor] ➔ [Star Wheel Indexing] ➔ [Cap Pick-up] ➔ [Rotary Sealing Head] ➔ [Out-Feed Conveyor]

Phase 1: Bottle In-Feed and Indexing

Uncapped containers move smoothly along the premium Stainless Steel slat conveyor. As they approach the capping zone, a custom-machined star wheel indexes the bottles, spacing them precisely and holding them firmly in place beneath the rotating capping assembly.

Phase 2: Automatic Cap Pick-Up

As the indexed bottle rotates through the star wheel, the neck of the container passes directly beneath the exit point of the cap delivery chute. The bottle smoothly pulls a single, perfectly oriented aluminum cap out of the chute, which nests snugly on top of the bottle mouth.

Phase 3: Precision Threading and Sealing

The mechanical cam-driven sealing head descends over the cap. First, a top-pressure pad compresses the cap liner against the rim of the bottle to form an airtight seal. Next, the threading rollers engage, tracking the contour of the bottle neck to roll threads into the soft aluminum. Immediately following, the sealing rollers tuck the lower portion of the cap skirt beneath the bottle’s retaining ring, locking the tamper-evident band in place.

Phase 4: Quality Monitoring & Discharge

The sealing head retracts smoothly, and the star wheel releases the fully sealed, pilfer-proof container back onto the out-feed conveyor line. The bottles exit cleanly, moving downstream toward labeling, batch printing, or final secondary packaging stages.

Target Industries and Versatile Applications

This versatile capping machinery is widely adopted across multiple sectors due to its adaptability to various liquid viscosities and container materials:

• Pharmaceutical & Biotech: Ideal for sealing glass syrup bottles, oral suspensions, pediatric drops, and specialized wellness tonics where contamination prevention is crucial.
• Distilleries & Liquor Production: Essential for sealing glass bottles containing spirits, wine, whiskey, and miniature liquor samples requiring traditional metal ROPP caps.
• Food & Beverage Sector: Perfect for gourmet condiments, concentrated juices, vinegar, carbonated drinks, and artisan olive oils that rely on premium metal seals for shelf-life extension.
• Chemical & Agrochemicals: Used for liquid fertilizers, pesticides, and household chemicals where secure packaging is necessary to prevent hazardous leaks during transit.

Technical Specification

Specification	Details (HBCS-60R)
Sealing Head	Single Head ROPP
Output Per Hour	1,500 to 2,500 Bottles (Size Dependent)
Bottle Range	10ml to 250ml
Cap Diameter	19mm to 28mm
Cap Height	15mm to 25mm
Container Dimensions	Dia. 22mm–100mm | Height 50mm–250mm
Main Motor	1.0 H.P. / 415 V / 3 Phase
Machine Dimensions	1200mm (L) x 700mm (W) x 1700mm (H)

Why Choose Harsiddh Unimach Pvt. Ltd.?

As a trusted global leader in industrial packaging machinery, Harsiddh Unimach Pvt. Ltd. designs and manufactures equipment that prioritizes long-term durability, absolute precision, and ease of operation.

When you invest in our Single Head ROPP Capping Machine, you gain access to:

• Tailored Engineering: We customize star wheels, cap chutes, and guide rails to perfectly match your specific bottle geometries and cap dimensions.
• Low Operational Costs: Simple mechanical timing systems reduce the reliance on complex electronics, facilitating easy maintenance, troubleshooting, and part replacements.
• Seamless Integration: The machine functions perfectly as a standalone unit or can be easily synced with our automatic liquid filling machines and high-speed labeling systems to form a fully automated turnkey packaging line.
• Comprehensive Support: From initial technical consultation and factory acceptance testing to installation and ongoing spare parts availability, our team ensures your production line experiences maximum uptime.
