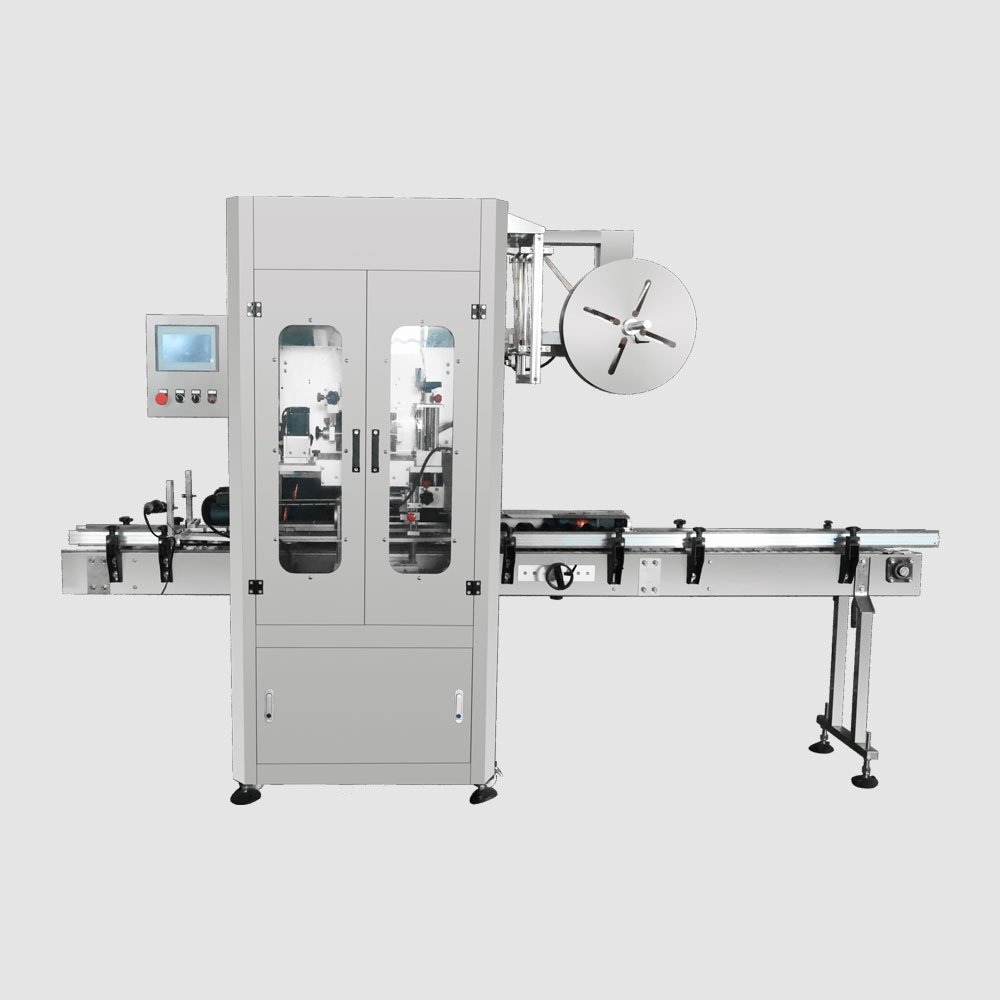

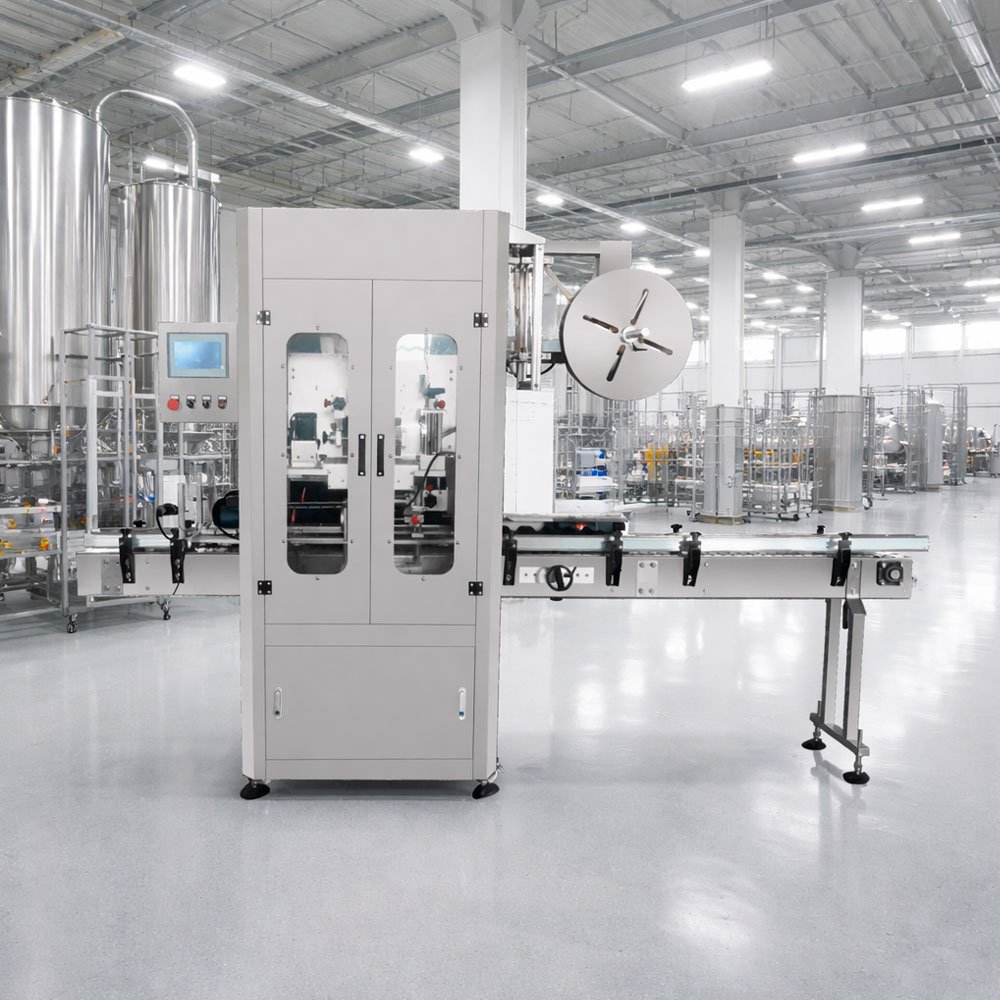

Automatic Shrink Sleeve Label Applicator by Harsiddh
High-Speed, 360° Packaging Precision
In today’s competitive consumer marketplace, your product’s packaging serves as your brand’s primary voice on the shelf. Harsiddh Engineering introduces its state-of-the-art Automatic Shrink Sleeve Label Applicator, an advanced, fully automated solution designed to deliver a flawless, contour-hugging, 360-degree branding canvas. Whether you are packaging beverages, pharmaceuticals, cosmetics, dairy products, or household chemicals, this high-performance machine guarantees rapid sleeve positioning and seamless heat shrinking with absolute mechanical precision.
Engineered to operate continuously at high speeds, our Shrink Sleeve Labeling Equipment minimizes manual labor while maximizing throughput. It flawlessly applies heat-shrinkable film sleeves across containers of diverse architectures—ranging from symmetrical round bottles to highly irregular or contoured jars. By adopting our automated sleeving system, manufacturers can replace traditional adhesive-based labels with rugged, visually vibrant, and tamper-evident packaging profiles that instantly captivate consumer attention.
Why Choose Shrink Sleeve Labeling for Your Brand?
Traditional sticker labels often peel at the edges, restrict your design to a flat plane, and degrade when exposed to moisture or abrasion. Automatic shrink sleeve application circumvents these pitfalls by enveloping your entire container in a robust, form-fitting protective barrier.
- Maximizing Visual Retail Space: Enjoy total freedom of design with full-body coverage from cap to base, offering more room for mandatory nutritional facts, multi-lingual text, regulatory compliance data, and eye-catching artwork.
- Tamper-Evident Security: Protect your consumers and reinforce your brand integrity by configuring the machine for neck-banding or full-body coverage with integrated tamper-evident perforations.
- Structural Reinforcement: The high-tensile shrink films add a layer of structural integrity to thin-walled plastic containers, preventing crushing during transit.
Unmatched Core Advantages & Integrated Technology
1. Eco-Conscious, Glue-Free Mechanical Application
Our Automatic Shrink Sleeve Label Applicator utilizes the inherent properties of heat tension rather than messy chemical adhesives, hot-melt glues, or cold gums. The machine mechanically cuts the sleeve film from a continuous roll, shoots it down the delivery mandrel, and drops it precisely over the moving container. Because there is no glue involved:
- Maintenance and daily cleanup routines are drastically shortened.
- Consumable costs drop significantly.
- Containers remain perfectly clean and residue-free, facilitating effortless recycling or reuse processes downstream.
2. Intelligent “No Bottle – No Sleeve” Sensing Logic
Material waste directly impacts your bottom line. To prevent mechanical jams and film loss, our sleeving system integrates highly responsive photoelectric sensors and PLC logic. If a gap or structural break occurs in the upstream bottle feeding line, the optical sensor instantly triggers a temporary pause on the cutting and feeding mechanism. The system will only dispense a film sleeve when a container is physically detected in the target application zone, guaranteeing zero wastage and an ultra-clean operating floor.
3. Adaptive Heating & Shrink Tunnel Adaptability
Achieving a wrinkle-free, non-distorted label finish depends heavily on uniform heat distribution tailored to specific container materials (e.g., Glass, PET, HDPE, PP) and production speeds. Harsiddh offers customizable heating configurations that seamlessly integrate into your primary conveyor line:
- Steam Shrink Tunnels: Ideal for high-speed lines, complex container profiles, and full-body sleeves requiring high graphic registration without distortion.
- Electric Radiative Tunnels: Best suited for uniform round containers, neck banding, and environments where maintaining low humidity is critical.
- Hot Air Convection Tunnels: Extremely versatile, economical, and perfectly engineered for small-to-medium manufacturing operations.
4. Ultra-Fast Changeover with Modular Mandrel Engineering
In modern manufacturing facilities, production lines must shift between different products smoothly to keep up with dynamic order demands. The Harsiddh Automatic Shrink Sleeve Applicator features an ergonomic, tool-less modular design. To shift from processing a wide-diameter jar to a narrow neck bottle, operators only need to swap out the central guiding mandrel. This streamlined process slashes product changeover times down to minutes, minimizes technical errors, and boosts overall operational equipment effectiveness (OEE).
Machine Component Anatomy & Operational Flow
To understand how our automatic label applicator achieves its high precision, it helps to understand the synchronized lifecycle a container undergoes upon entering the machine layout:
- Infeed & Spacer Screw Worm: Randomly spaced containers enter via the synchronized conveyor and pass through an automated indexing screw that creates precise, equidistant spacing between each bottle.
- Film Unwinding & Tension Control: The roll feed unit features a double-reel unwinding rack that handles high-capacity film rolls. An internal web tension system ensures the material feeds into the cutter assembly smoothly without snapping.
- Sleeve Cutting Blade Assembly: Controlled via a dedicated servo motor, a rotary multi-blade cutting head shears the film tube at the exact millimetric length specified on the digital HMI screen.
- Sleeve Shooting & Position Alignment: The cut sleeve is shot downward through the mandrel, dropping over the container. A secondary brush positioning wheel adjusts the height alignment, fixing the label at the designated neck, body, or bottom position.
- Shrink Thermal Treatment: The sleeved container passes immediately into the selected shrink tunnel where gentle, targeted thermal exposure uniformly contracts the film to match the exact contours of the bottle shape perfectly.

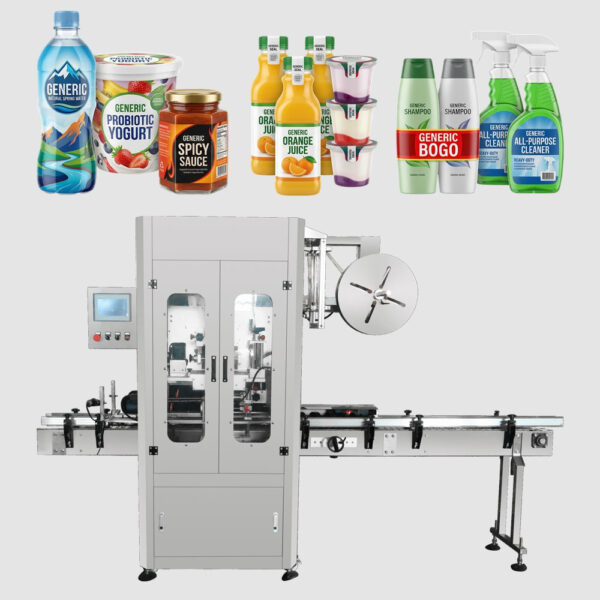

Target Industry Vertical Applications
- Beverage Industry: Perfect for mineral water, carbonated soft drinks, functional energy drinks, juices, and alcoholic spirits requiring full-body visual appeal and wet-condensation resistance.
- Pharmaceuticals & Healthcare: Ideal for liquid syrup bottles, tablet containers, and health supplements requiring secure neck-sleeve tamper-proof sealing.
- Cosmetics & Personal Care: Enhances premium contours on shampoo bottles, lotion dispensers, pump creams, and intricate perfume vials.
- Food & Dairy Product Lines: Extensively deployed for yogurt cups, condiment jars, honey containers, and milk bottles requiring tight, hygienic seals.
Technical Specifications
| Feature | Specification |
|---|---|
| Labeling Type | Shrink sleeve Label |
| Operating Direction | Left to Right |
| Standard Speed | 80 to 120 BPM (Higher models available) |
| Bottle Diameter | Ø28mm – Ø125mm |
| Bottle Height | 30mm – 280mm |
| Sleeve Material | PVC, PET, OPS |
| Sleeve Roll (ID / OD) | 102mm / 400mm (Max) |
| Power Supply | 440V, 50/60Hz, 3-Phase |
| Input Power | 1.5KW – 2KW |
| Dimensions | 2400 x 950 x 1900mm |
| Total Weight | Approx. 1000kg |
The Harsiddh Engineering Commitment to Quality
At Harsiddh Engineering, we don’t just manufacture high-performance packaging machinery; we design tailored, long-term engineering partnerships. Our manufacturing processes adhere to rigid internal quality benchmarks and international safety protocols. Every automatic sleeve applicator is thoroughly factory-tested using your specific container samples and labels prior to dispatch, ensuring a hassle-free plug-and-play installation when it arrives at your facility.
With intuitive touch-screen controls, low maintenance demands, and an energy-efficient drive system, our sleeving equipment delivers a fast return on investment (ROI) by significantly lowering operational overhead and minimizing human error.
Frequently Asked Questions
How does the machine ensure the sleeve is cut at the exact length every time?
Precision cutting is achieved through a high-speed rotary cutter assembly synchronized with a Registration Mark Sensor (Eye-mark sensor). As the sleeve film is fed from the reel, the sensor detects the printed mark on the film, triggering the PLC to activate the cutting blades at the millisecond the correct length is reached. This ensures an accuracy of ±1mm, preventing skewed or uneven labels.
Can this machine handle different bottle shapes and sizes?
Yes. The Harsiddh Shrink Sleeve Applicator is highly versatile. By changing the Mandrel (center pillar) and adjusting the feeding rollers, the machine can accommodate round, square, oval, and even "waisted" or triangular bottles. It is designed for quick changeovers between different container diameters (e.g., 200ml juice bottles to 1-liter water bottles) using calibrated handwheels for easy adjustment.
Does the machine include the shrinking process, or is that a separate unit?
The Applicator itself places the sleeve on the bottle. To complete the process, the bottles must pass through a Shrink Tunnel (Steam or Electric).
Steam Tunnels: Preferred for high-quality, uniform shrinking on contoured bottles without distorting graphics.
Electric/Hot Air Tunnels: Ideal for simple shapes and tamper-evident neck banding where high-pressure steam is not required. Harsiddh typically offers these tunnels as an integrated part of the complete sleeve labeling line.
What are the key safety and "Smart" features of the Harsiddh Applicator?
To ensure high-speed reliability and operator safety, the machine includes:
"No Bottle – No Sleeve" System: An infrared sensor detects the presence of a container; if no bottle is present, the machine will not drop a sleeve, preventing wastage and jams.
Rotary Blade Safety: The cutting unit is housed in a protected assembly with interlocks that stop the machine if the safety door is opened.
PLC with Touchscreen HMI: Allows operators to control sleeve length, speed, and timing digitally, with the ability to store settings for various bottle types.
