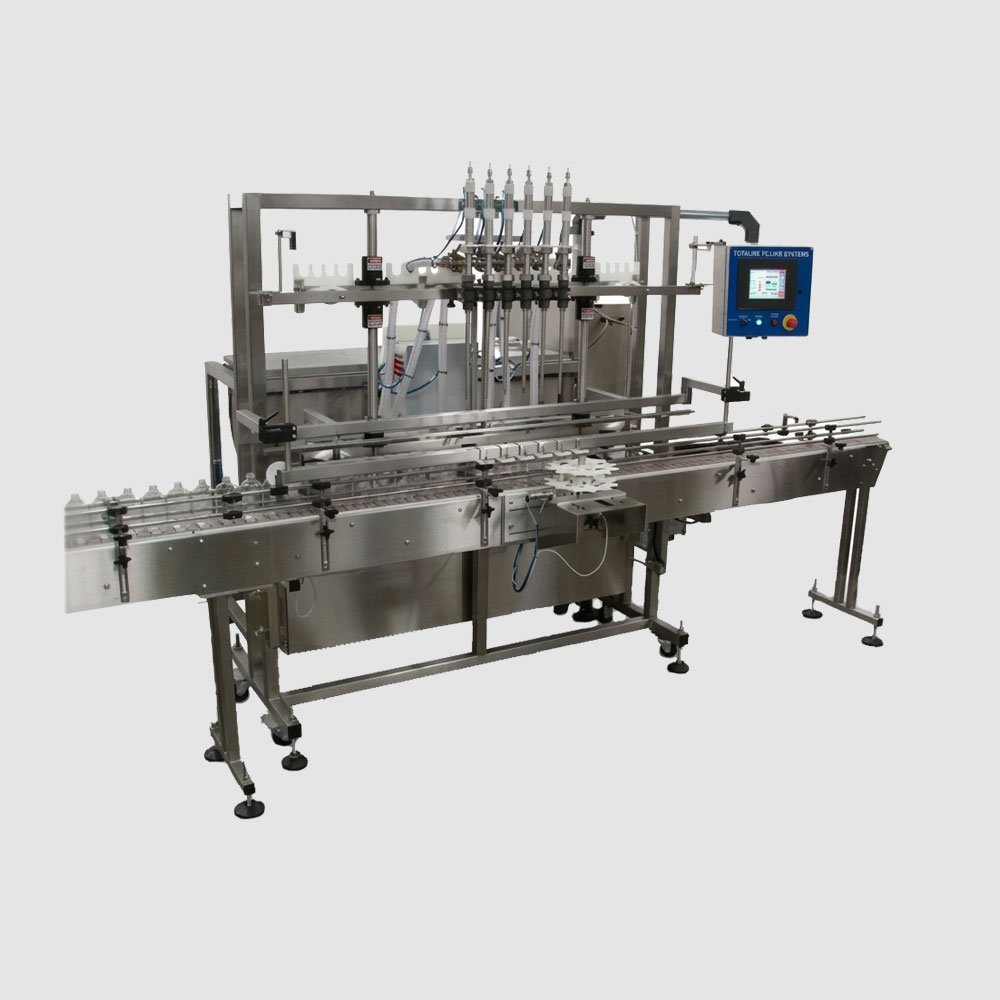

Automatic Servo Based Piston Filling Machine
High-Performance Volumetric Packaging for High-Viscosity and Semi-Solid Products
In modern industrial packaging, consistency and repeatable precision are the ultimate benchmarks of production efficiency. For facilities handling thick, highly viscous, or semi-solid products, traditional gravity or standard pneumatic filling systems often fall short, resulting in inconsistent fill volumes, slow cycle times, and frequent maintenance bottlenecks.
The Automatic Servo-Based Piston Filling Machine manufactured by Harsiddh Unimach Pvt. Ltd. represents a major technological leap forward in volumetric packaging. By replacing conventional mechanical linkages and pneumatic cylinders with high-precision digital servo-motor drives, this state-of-the-art system provides absolute control over the piston stroke. Engineered to comply with international GMP and CE standards, it stands as the definitive solution for high-accuracy liquid filling in the pharmaceutical, cosmetic, food processing, and chemical sectors.
The Precision Advantage: Why Upgrade to Servo-Driven Pistons?
Standard piston fillers use pneumatic pressure or mechanical cams to move the piston back and forth inside a cylinder. While functional, these systems lack flexibility; adjusting the fill volume requires operators to mechanically adjust a hand crank, leading to extended downtime. Furthermore, fluctuations in air pressure or product temperature can compromise accuracy.
The servo-driven engineering from Harsiddh Unimach Pvt. Ltd. transforms this process:
- Digital Volume Calibration: Instead of manual adjustments, operators simply enter the desired fill volume into a centralized touchscreen panel. The servo motor calculates the exact linear stroke distance instantly.
- Programmable Velocity Profiles: High-viscosity products behave differently depending on how fast they are pushed. The servo drive allows you to program a custom speed profile—such as starting slow to prevent splashing, speeding up mid-fill, and slowing down at the finish overseas.
- Unmatched Accuracy and Consistency: Because the servo motor counts digital pulses to determine position, it eliminates the variance caused by pneumatic pressure drops, maintaining an accuracy tolerance of ±0.5% or better.
Synchronized Operational Workflow

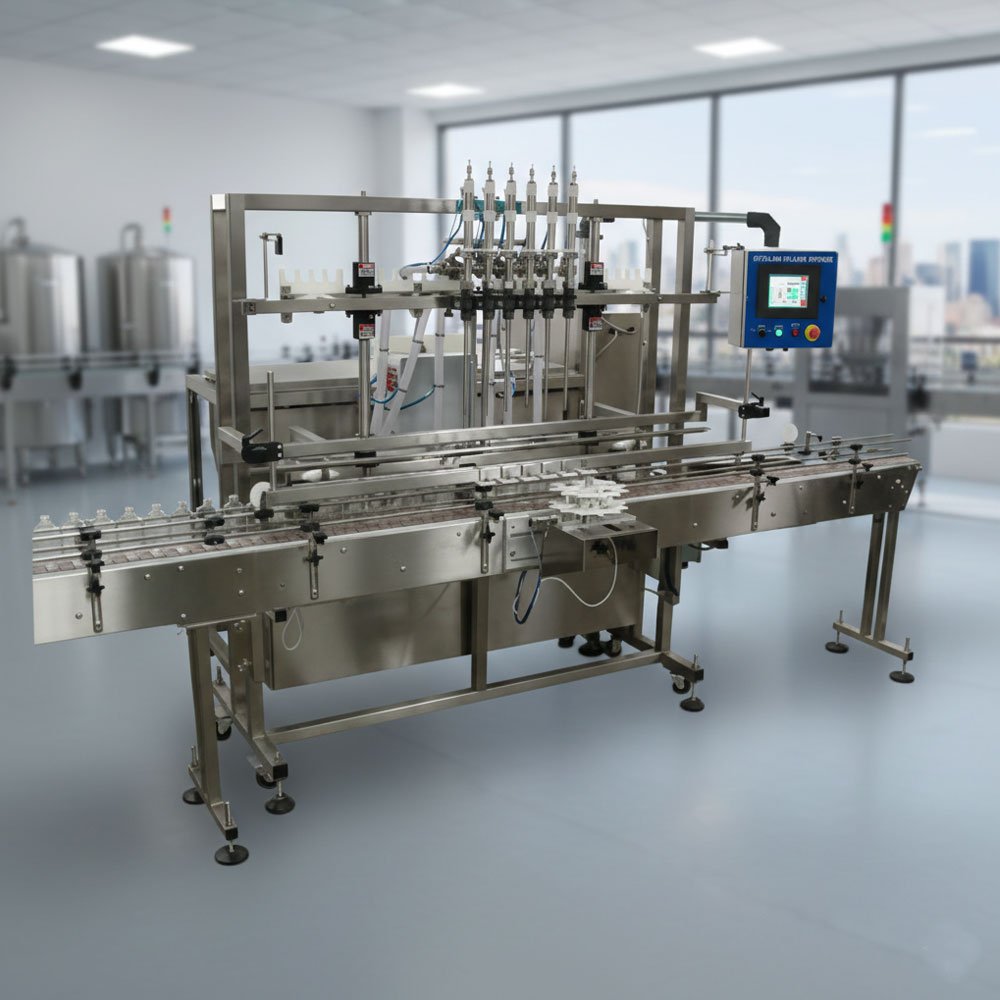

Maximizing automated efficiency requires a continuous, tightly orchestrated sequence. The Automatic Servo-Based Piston Filling Machine features a fully synchronized workflow designed to ensure stable container handling and flawless product displacement.
[Empty Containers] ➔ [Pneumatic Indexing Gate] ➔ [Servo-Driven Volumetric Suction] ➔ [Controlled Bottom-Up Discharge] ➔ [Clean Cutoff & Release]1. Precision Container Indexing
Empty bottles, jars, or tubs are fed onto a heavy-duty Stainless Steel (SS) slat conveyor. High-sensitivity proximity sensors detect the incoming containers, and integrated pneumatic indexing gates temporarily pause the line, locking the containers perfectly beneath the multi-head filling nozzles.
2. Servo-Driven Volumetric Suction
On the intake stroke, the high-torque servo motor pulls the piston back inside the precisely honed cylinder block. This action creates a powerful volumetric vacuum, drawing the exact pre-programmed volume of product from the integrated 120-liter storage buffer tank directly into the dosing chamber.
3. Controlled Bottom-Up Discharge
Once the containers are secured and the cylinders are primed, the servo-driven diving nozzles descend smoothly into the neck of the bottles. The servo-motor reverses direction, pushing the piston forward according to its programmed speed profile to dispense the thick product. The nozzles gradually rise in tandem with the liquid level to eliminate air pockets, foaming, and splashing.
4. Instant Drip Prevention and Cutoff
High-viscosity liquids are notorious for stringing, trailing, and dripping, which can ruin container threads and compromise heat-induction sealing. Our system features specialized, positive-shut-off pneumatic nozzles. The instant the piston completes its stroke, the valve snaps shut, ensuring a clean, leak-free cutoff.
5. Smooth Discharge and Downstream Handoff
With the filling cycle finalized, the pneumatic indexing gates retract. The filled containers smoothly accelerate down the conveyor track toward subsequent automated packaging stages, including rotary capping, induction sealing, and high-speed labeling systems.
Key Technical Features & Engineering Excellence
- Premium Hygienic Construction: To withstand aggressive products and maintain food-grade/pharmaceutical compliance, all product contact parts—including the pistons, cylinders, and buffer tank—are constructed from superior-grade SS 316. The structural machine frame is built from rugged, easy-to-clean SS 304.
- Intelligent PLC Control with Multi-Recipe Memory: Features an intuitive touchscreen Human-Machine Interface (HMI) backed by a premium Programmable Logic Controller (PLC). Operators can save dozens of custom product profiles, enabling toolless, single-touch changeovers between different product lines.
- Smart “No Bottle, No Fill” Protection: An integrated interlocking sensor array monitors the line in real time. If a bottle is missing, tipped over, or misaligned, the machine pauses the specific nozzle fill cycle, preventing costly product spillage and line contamination.
- Sanitary Tri-Clover Interconnects: Designed with operational longevity and easy maintenance in mind, the fluid path utilizes quick-release sanitary tri-clover clamps, making the system incredibly easy to strip down for deep cleaning or to integrate with automated Clean-in-Place (CIP) setups.
Broad Spectrum Industrial Applications
The robust, high-torque nature of the servo-piston architecture makes this machine uniquely capable of handling a broad range of challenging fluid dynamics:

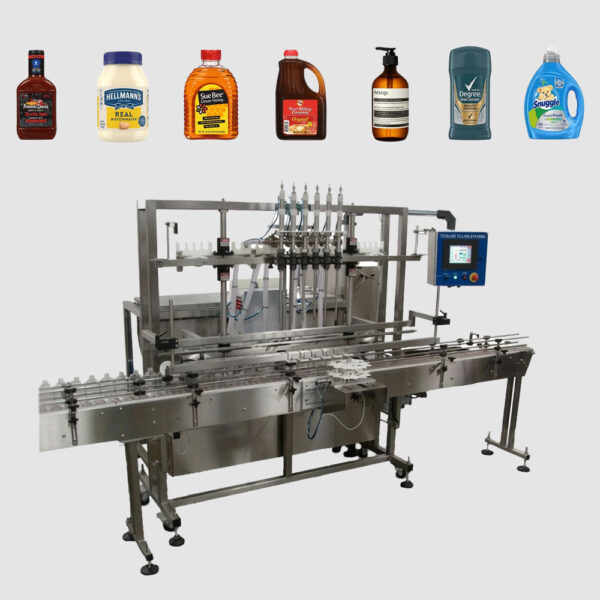

- Cosmetics & Personal Care: Ideal for packing heavy creams, hair conditioners, body lotions, face masks, gels, and foundations into premium glass jars or plastic tubes.
- Food & Beverage Creams: Form-fitted for dosing peanut butter, fruit jams, ketchup, mayonnaise, chocolate syrups, honey, sauces with soft particulates, and dairy creams.
- Pharmaceuticals & Nutraceuticals: Highly accurate for packaging thick medicinal syrups, viscous suspensions, topical ointments, oral drops, and health supplements under sterile conditions.
- Industrial Chemicals & Pastes: Engineered to cleanly process heavy industrial adhesives, silicone sealants, liquid detergents, hand sanitizers, floor waxes, and specialty greases.
Strategic Business Benefits for Your Facility
Choosing a servo-driven automation system from Harsiddh Unimach Pvt. Ltd. provides tangible commercial benefits that directly strengthen your operational profitability:
- Elimination of Costly Product Giveaway: Micro-precise piston control stops overfilling in its tracks. By ensuring every container receives the exact volume required, you save substantial product volume over high-throughput annual production runs.
- Drastic Reduction in Production Downtime: Transitioning your production line from a small 50ml jar to a 1-liter container no longer requires hours of manual mechanical adjustments. Digital recipe recall allows you to switch products in less than two minutes.
- Built-in Operational Longevity: By utilizing smooth digital servo acceleration and deceleration, the machine removes the violent mechanical jarring common in old pneumatic fillers. This minimizes wear and tear, lowering your overall cost of ownership.
Technical Specification
| Specification | HSPF-2 / 4 / 6 (Servo Series) |
|---|---|
| Output / Minute | 20 to 100 Bottles (Model Dependent) |
| Filling Range | 50ml to 1000ml (Up to 5000ml Optional) |
| Filling Accuracy | ± 0.5% |
| No. of Filling Heads | 2, 4, 6, 8, or 10 Heads |
| Hopper Capacity | 80 to 150 Liters |
| Construction | cGMP Compliant SS 316L/304 |
| Power Supply | 415V, 3 Phase / 220V, Single Phase |
Partner with Harsiddh Unimach Pvt. Ltd. for Advanced Packaging
At Harsiddh Unimach Pvt. Ltd., we engineering packaging machinery that merges heavy-duty structural integrity with the finest digital motion control systems. Our Automatic Servo-Based Piston Filling Machine is built to optimize your throughput, stabilize your line efficiency, and deliver the precise dosing your brand demands.
Upgrade your production floor, eliminate product waste, and achieve exceptional operational flexibility. For tailored multi-nozzle setups, custom tank configurations, or to receive a comprehensive technical proposal based on your current floor layout, get in touch with our expert engineering team today.
- Official Website: www.harsiddhunimach.com
- Inquiries & Technical Support: info@harsiddhunimach.com
Frequently Asked Questions
Can this machine handle both thin liquids and thick pastes?
Yes. One of the greatest strengths of the Servo Piston mechanism is its torque consistency. It provides the necessary power to pull and push high-viscosity products like creams, honey, peanut butter, and thick gels, while also maintaining the delicate control required for water-thin liquids like syrups or perfumes.
How does the "Multi-Stage Filling" feature work?
Because the piston is controlled by a programmable servo motor, the machine can perform profile filling. This means it can start with a "Fast Fill" to save time, and automatically switch to a "Slow Dribble" at the end of the cycle. This feature is essential for preventing splashing in wide-mouth jars or foaming in narrow-neck bottles.
What is the typical changeover time for different products?
Changeover is exceptionally fast—usually taking less than 10 to 15 minutes. Since the fill volume is digital, you can save specific "Product Recipes" in the PLC memory. When switching from a 200ml bottle to a 1000ml jar, the operator simply selects the preset on the screen, and the pistons automatically adjust their stroke length.
Is the machine easy to clean and compliant with cGMP?
Absolutely. As a cGMP-compliant model, the machine is built with a rigid Stainless Steel 304 frame, and all liquid contact parts are AISI Stainless Steel 316L. The pistons are designed for easy dismantling without specialized tools, and the system can be integrated with a CIP (Cleaning-In-Place) unit to ensure maximum hygiene for pharmaceutical and food applications.
