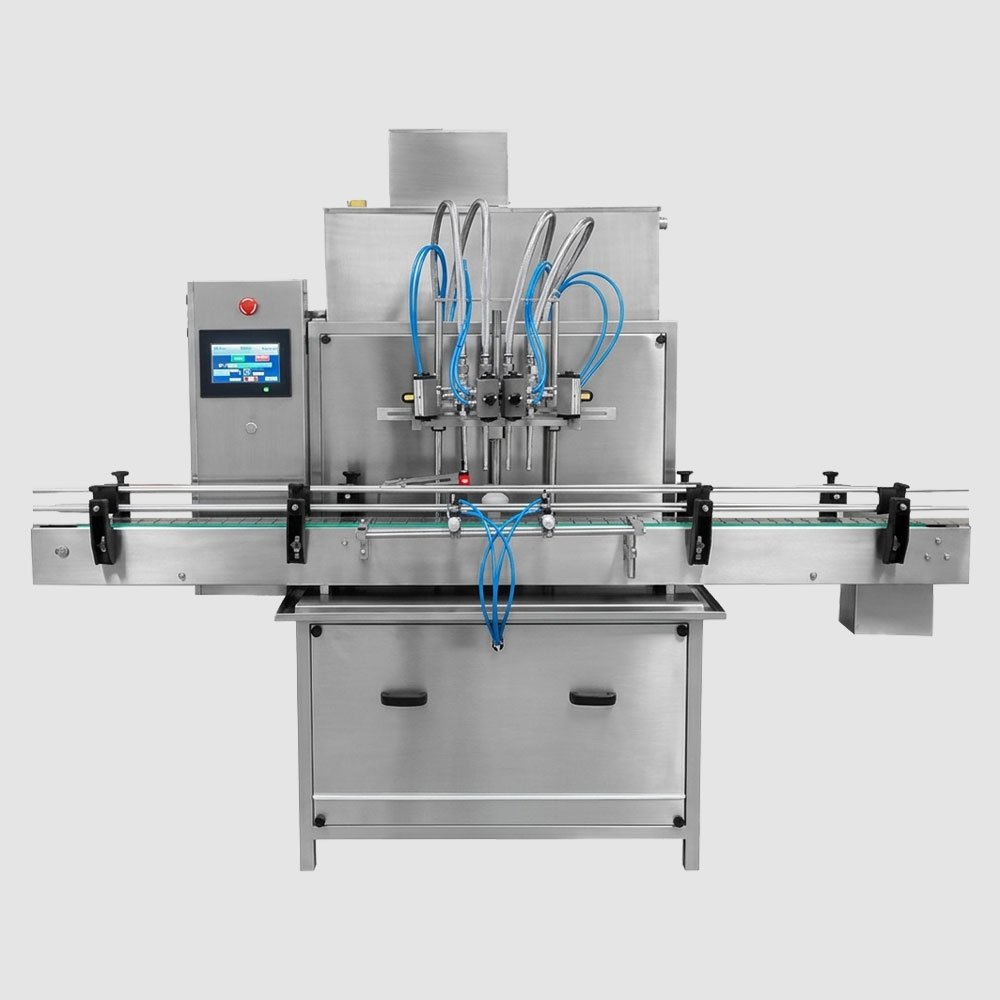

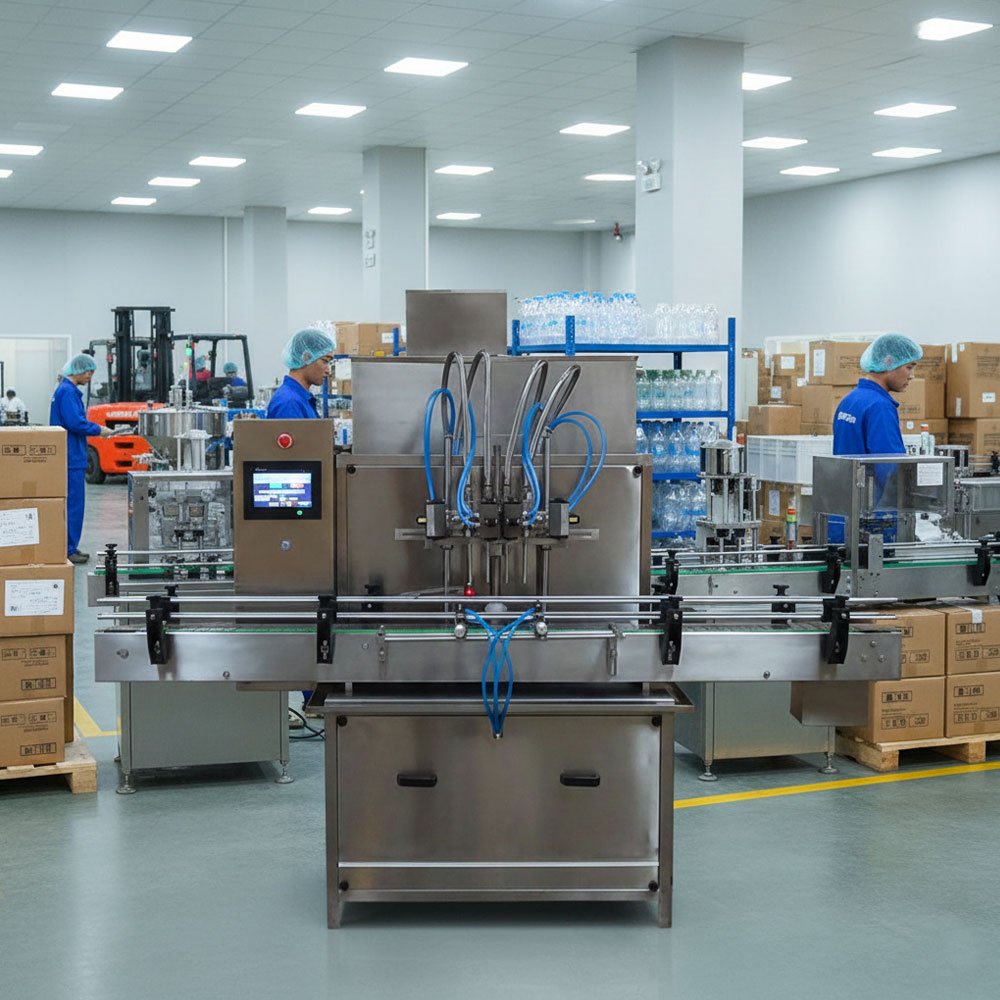

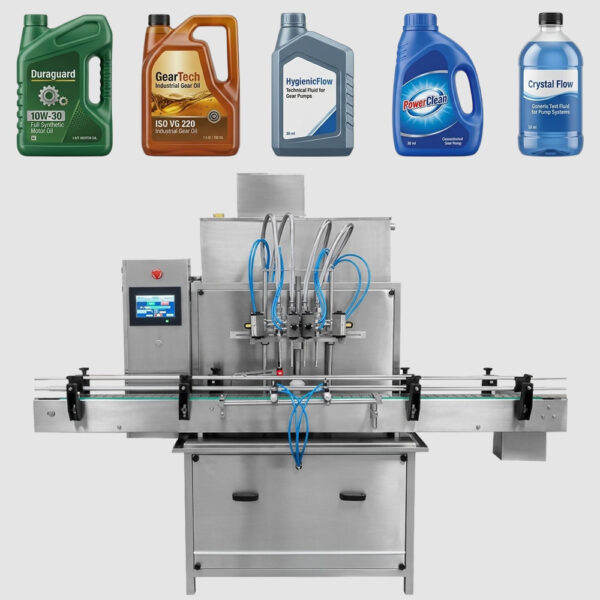

Automatic Servo Based Liquid Filling Machine
Ultra-Precision Digital Dosing Technology for Modern Liquid Packaging Lines
In modern high-speed packaging, precision is no longer just an advantage—it is a regulatory and financial necessity. The Automatic Servo-Based Liquid Filling Machine designed by Harsiddh Unimach Pvt. Ltd. represents the definitive evolution of liquid dosing technology. By replacing traditional, high-maintenance pneumatic and mechanical piston assemblies with state-of-the-art independent servo-driven gear pumps, this machine introduces a new era of absolute volumetric accuracy, rapid digital changeovers, and unparalleled operational flexibility.
This cutting-edge system is engineered specifically for manufacturing facilities where strict dosage adherence, sterile handling, and rapid recipe changes are paramount. Whether your facility processes low-viscosity aqueous solutions, volatile liquids, or thick, dense emulsions, this high-performance machine adapts in real time to meet the stringent standards of the pharmaceutical, cosmetic, biotech, and specialty chemical industries.
Engineering Innovation: The Servo Advantage over Piston Systems
For decades, liquid filling lines relied on mechanical pistons to pull and push products into containers. While functional, these conventional systems suffer from mechanical drift, require extensive teardowns during changeovers, and struggle to adjust to temperature-induced viscosity shifts.
The servo-controlled digital engineering from Harsiddh Unimach Pvt. Ltd. eliminates these constraints completely:
- Micro-Step Rotary Precision: Instead of relying on physical stroke lengths, our machine utilizes digital servo motors that rotate the dosing pumps to precise fractional degrees. This translates to an exceptional filling accuracy tolerance of up to ±0.5% or better.
- Instant Digital Changeovers: Transitioning from a 10ml pharmaceutical vial to a 1000ml cosmetic bottle no longer requires changing physical pistons or manual calibrated rods. Operators simply select a pre-saved recipe on the touchscreen, and the entire dosing system recalibrates instantly.
- Viscosity Independence: The intelligent controller automatically regulates the torque and velocity curves of the servo motors. This enables the machine to handle thin liquids, heavy syrups, and foaming liquids on the same line with equal proficiency.
Advanced Multi-Stage Operational Workflow
Maximum throughput is achieved through synchronized, automated movement. The Automatic Servo-Based Liquid Filling Machine executes a meticulously controlled sequence of operations designed to guarantee continuous bottle flow and eliminate product spillage.
[Infeed Conveyor] ➔ [Pneumatic Gating & Indexing] ➔ [Servo-Controlled Dosing] ➔ [Anti-Foam Bottom-Up Fill] ➔ [Active Suck-Back Clean Cutoff] ➔ [Outfeed to Capping]1. High-Efficiency Bottle Indexing
Empty containers are fed onto a heavy-duty, variable-speed Stainless Steel (SS) slat conveyor. Upon reaching the filling zone, integrated pneumatic stopper gates precisely clamp and index the exact number of containers directly beneath the filling heads. High-speed optical sensors continuously audit the line; if a container is missing or misaligned, the filling cycle for that specific station is paused immediately to prevent product waste.
2. Digital Servo-Driven Dosing
Once the containers are mechanically locked into position, the central Programmable Logic Controller (PLC) transmits high-frequency digital commands to the independent servo gear pump modules. Each pump rotates precisely to dispense the exact programmed volume. Because every nozzle has its own dedicated servo drive, the operator can fine-tune individual filling heads via the digital control panel to account for microscopic variations in container manufacturing.
3. Dynamic Diving Nozzle & Anti-Foam Filling
To prevent product splashing, surface turbulence, and structural air entrapment, the machine is equipped with a fully synchronized servo diving nozzle system. The nozzles descend smoothly into the absolute bottom of the container before liquid discharge begins. As the liquid levels rise, the nozzles retract upward in a mathematically calculated, synchronized motion, ensuring the nozzle tip remains just beneath the liquid surface for a flawless, bubble-free fill.
4. Active Pneumatic Suck-Back Cycle
Post-fill dripping is a major cause of line contamination, affecting container outer walls and interfering with induction sealing and capping operations. To solve this, our system employs an active “suck-back” cycle. At the exact millisecond the filling profile ends, the servo pump momentarily reverses direction. This creates a clean, immediate vacuum cutoff at the tip of the positive shut-off nozzle, ensuring zero trailing drops.
5. Smooth Discharge and Downstream Transfer
With the cycle safely concluded, the pneumatic indexing gates retract, releasing the perfectly filled containers. The bottles glide smoothly along the conveyor toward downstream packaging automation, including continuous-motion capping machines, induction sealers, and automated labeling systems.
Key Technical Attributes & Quality Benchmarks
- Premium Sanitary Design: To meet strict regulatory standards, all parts that come into direct contact with the liquid product are fabricated from superior-grade Stainless Steel 316. The structural mainframe and non-contact components are built from robust SS 304, ensuring exceptional corrosion resistance and a long operational lifespan.
- Intelligent PLC & Color Touchscreen HMI: Features an intuitive, multi-level user interface. Operators can store dozens of customized product profiles, including fill volume, pump acceleration/deceleration, conveyor speed, and nozzle travel velocity curves.
- “No Bottle – No Fill” Protection System: Smart photoelectric sensors prevent accidental chemical or product discharge by ensuring that no liquid is ever dispensed unless a container is accurately positioned under the filling head.
- Toolless Maintenance & CIP Ready: Designed with modern sanitary tri-clover clamps and an open fluid path layout. The entire dosing system can be quickly flushed or integrated with Clean-in-Place (CIP) systems for ultra-fast, tool-free sanitation during product switchovers.
Versatile Across Critical Industries
The adaptability of the servo-based fluid architecture makes it an invaluable asset across a wide range of highly regulated market sectors:
- Pharmaceuticals & Biotech: Perfect for high-accuracy filling of liquid injectables, oral syrups, intravenous fluids, ophthalmic solutions, and diagnostic reagents under sterile conditions.
- Cosmetics & Personal Care: Seamlessly processes viscous body lotions, shampoos, hair serums, liquid foundations, and high-value essential oils.
- Specialty Chemicals & Agrochemicals: Safely packs concentrated chemical solutions, liquid fertilizers, household detergents, and specialty solvents without mechanical degradation.
- Food & Beverage: Ideal for premium liquid extracts, health supplements, concentrated juices, syrups, and liquid flavorings requiring strict hygiene.
Tangible Business Benefits for Your Enterprise
Partnering with Harsiddh Unimach Pvt. Ltd. for your packaging automation delivers clear, quantifiable advantages to your plant’s bottom line:
- Drastic Reduction in Product Giveaway: Micro-accurate servo calibration prevents costly overfilling. Saving even a fraction of a milliliter per bottle translates into significant cost savings over a standard multi-shift annual production cycle.
- Minimized Downtime: The elimination of complex mechanical change parts means your operators can shift production from one liquid SKU to another in a matter of minutes, vastly improving overall equipment effectiveness (OEE).
- Future-Proof Production Flexibility: As your business evolves and introduces new bottle shapes, materials, or liquid formulation viscosities, this machine can be reprogrammed digitally to handle them without requiring expensive physical retrofits.
Technical Specification
| Specification | Details (Servo Series) |
|---|---|
| Output / Minute | 30 to 120 Bottles (Model Dependent) |
| Filling Range | 5ml to 5000ml (Digital Selection) |
| Filling Accuracy | ± 0.5% |
| No. of Filling Heads | 2, 4, 6, or 8 Heads |
| Control System | PLC with Color Touchscreen HMI |
| Drive System | Individual Servo Motors for each Pump |
| Power Supply | 230V / 415V, 3 Phase |
Partner with Harsiddh Unimach Pvt. Ltd.
At Harsiddh Unimach Pvt. Ltd., we engineering packaging solutions that bridge the gap between robust mechanical reliability and state-of-the-art digital automation. Our Automatic Servo-Based Liquid Filling Machine provides the high throughput, precision, and ease of use needed to safely scale your manufacturing output.
Upgrade your production standards, eliminate product waste, and secure absolute filling consistency. Contact our technical sales and engineering departments today to discuss multi-head configurations, custom conveyor options, or to receive a tailored, detailed quotation based on your facility’s exact layout.
- Official Web Portal: www.harsiddhunimach.com
- Direct Sales & Engineering Support Email: info@harsiddhunimach.com
Frequently Asked Questions
Which types of liquids and viscosities can this machine handle?
The Harsiddh Servo Filler is a versatile "all-in-one" solution. It is ideal for thin, free-flowing liquids (like water or alcohol) as well as thick, high-viscosity products (like creams, lotions, honey, and heavy oils). The servo motor provides the consistent torque necessary to move dense liquids through the nozzles without straining the system.
How does the machine handle foaming and splashing during high-speed operation?
To manage foaming, the machine features programmable diving nozzles. You can synchronize the nozzle's ascent with the liquid level (bottom-up filling). Because the speed of the servo motor is adjustable throughout the fill cycle, the machine can start with a "fast fill" and finish with a "slow top-off" to ensure a clean, bubble-free finish.
How fast is the changeover process for different bottle sizes?
Changeovers are exceptionally fast—often taking less than 10–15 minutes. Since the fill volume is controlled digitally, you can save specific "Product Recipes" in the PLC memory. When switching from a 100ml bottle to a 500ml bottle, you simply select the recipe on the screen, and the machine automatically adjusts the dosing parameters.
Is the machine compliant with international hygiene and safety standards?
Absolutely. As a cGMP-compliant model, the machine is built with a rigid Stainless Steel 304 frame, and all parts that come into contact with the liquid are manufactured from AISI Stainless Steel 316L. The system is designed for easy cleaning and maintenance, making it suitable for high-purity pharmaceutical, cosmetic, and food-grade applications.
