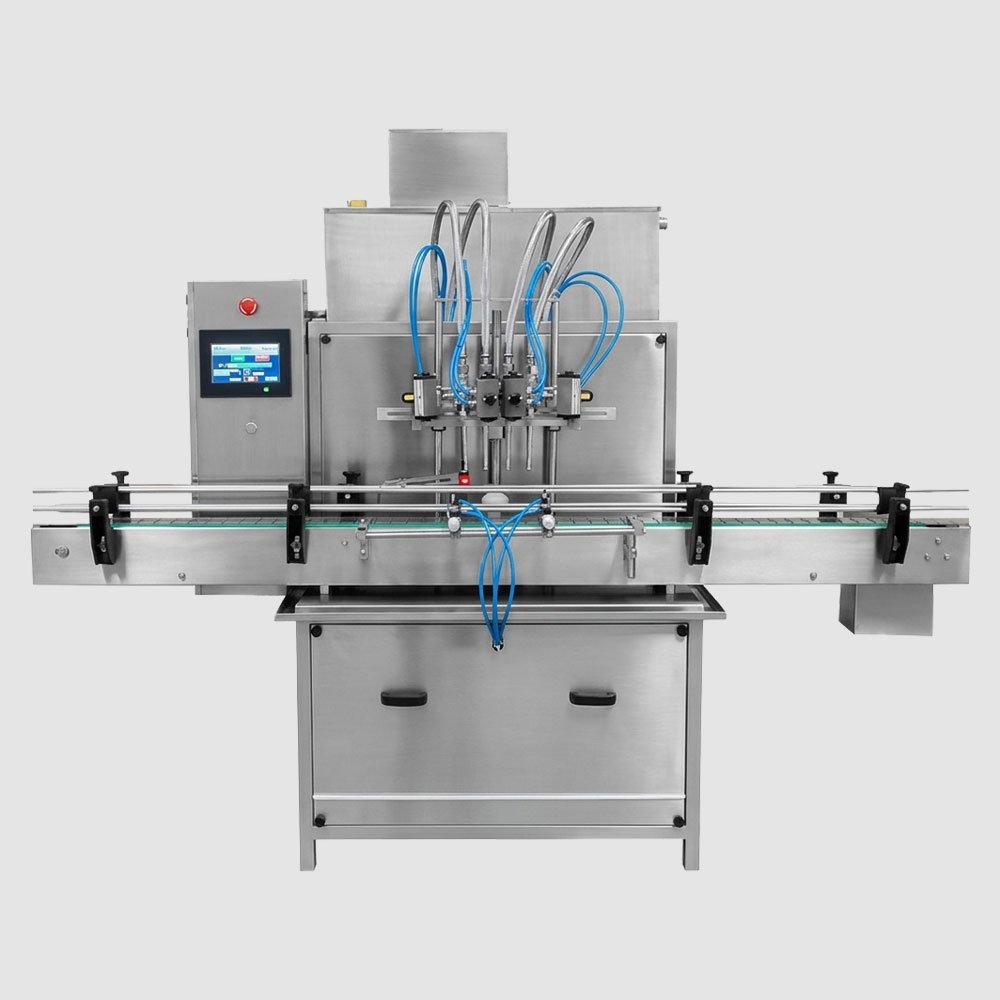

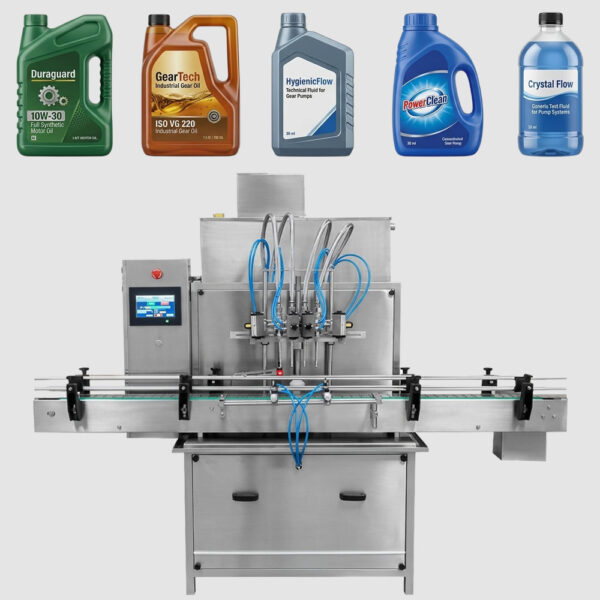

Automatic Servo Based Gear Pump Filling Machine
Next-Generation Digital Dosing for Diverse Viscosities and High-Precision Packaging
In modern liquid packaging, production lines must be agile, highly accurate, and capable of handling rapid product changeovers without sacrificing efficiency. The Automatic Servo-Based Gear Pump Filling Machine manufactured by Harsiddh Unimach Pvt. Ltd. represents a major technological leap forward in automated dosing. By replacing traditional mechanical and pneumatic piston assemblies with independent, digitally controlled servo-motor gear pumps, this machine offers unparalleled flexibility, ultra-precise volumetric accuracy, and smooth operational handling for a vast spectrum of liquid products.
Engineered to meet strict global quality standards, this advanced filling system allows manufacturers to process low-viscosity water-thin liquids, high-viscosity pastes, and sticky creams within the same production line. If your facility demands frequent volume adjustments, exceptional hygienic standards, and reliable high-speed output, this system provides the ultimate automated solution to optimize your manufacturing plant.
The Precision Advantage: Servo Motors vs. Traditional Piston Fillers
Standard piston fillers have long been the industry standby, but they present significant bottlenecks when processing diverse product batches. Adjusting volumes mechanically requires manual labor, line stoppage, and extensive trial-and-error calibration. Furthermore, internal pistons have complex seals that wear out quickly under heavy friction or when exposed to abrasive fluids.
The servo-gear pump engineering developed by Harsiddh Unimach Pvt. Ltd. eliminates these operational constraints entirely:
- Infinite Digital Adjustments: Instead of turning physical cranks to change filling volumes, operators simply input the desired dosage values into a centralized touchscreen panel. The servo motor adjusts its rotational count instantly.
- Positive Displacement Flow Control: The high-precision gear pump acts as a continuous volumetric dosing device. Because the servo motor manages the pump’s rotational speed and acceleration with microsecond responsiveness, fluid flow remains completely uniform regardless of temperature or viscosity shifts.
- Streamlined Fluid Dynamics: Without large piston cylinders, the machine features a much tighter, more compact fluid path. This reduces product retention, minimizes fluid shear, and simplifies the overall cleaning protocol.
Reliable High-Performance Workflow
Efficiency in automated packaging hinges on precise timing and synchronized mechanical movements. The Automatic Servo-Based Gear Pump Filling Machine operates on a continuous, intelligent loop designed to maximize throughput while preserving total product integrity.
[Infeed Conveyor] ➔ [Pneumatic Gating & Sensor Verification] ➔ [Servo-Controlled Dosing] ➔ [Anti-Foam Bottom-Up Filling] ➔ [Suck-Back Drip Prevention] ➔ [Outfeed Discharge]1. Smart Bottle Positioning
Empty containers travel along a rugged, speed-adjustable Stainless Steel (SS) slat conveyor. High-performance pneumatic indexing gates safely capture and position the containers directly beneath the filling heads. Advanced optical sensors monitor the line in real-time, verifying that the precise number of bottles is present and properly centered before allowing the filling sequence to commence.
2. Digital Synchronized Dosing
The moment the containers are locked into position, the central Programmable Logic Controller (PLC) triggers the independent servo motors. Each filling head is driven by its own dedicated servo motor connected directly to a high-tolerance gear pump. The motors execute a highly precise number of revolutions, pulling product from the bulk tank and discharging the exact target volume with an accuracy tolerance within ±0.5%.
3. Dynamic Nozzle Control (Bottom-Up Action)
To manage liquids prone to foaming, bubbling, or splashing, the machine features a programmable, servo-driven diving nozzle assembly. The nozzles descend deep into the base of the bottle before the gear pumps initiate fluid flow. As the liquid level rises, the nozzle carrier retracts upward in perfect synchronization with the fluid’s surface, preventing air entrapment and maintaining a clean container neck.
4. Active Suck-Back Drip Prevention
Drips and product trailing can ruin container presentation, contaminate bottle threads, and interfere with down-line capping or induction sealing equipment. Our gear pump system solves this issue using active digital control. Upon completion of the fill cycle, the servo motor executes a instantaneous, minute reverse rotation. This creates a minor “suck-back” effect at the tip of the nozzle, ensuring an immediate, perfectly dry cutoff without relying on failure-prone mechanical check valves.
5. Seamless Container Discharge
Once the drip prevention cycle finishes, the pneumatic discharge gate retracts, allowing the filled bottles to smoothly accelerate down the conveyor track. The line immediately indexes the next batch of empty containers, ensuring non-stop, streamlined throughput toward downstream capping, labeling, and batch-coding machinery.
Key Technical Features & Industrial Engineering
- Premium Sanitary Architecture: To ensure long-term durability and absolute hygiene, all components that come into contact with the liquid are manufactured from superior-grade SS 316. The heavy-duty structural frame and outer panels are built from corrosion-resistant SS 304.
- Intelligent PLC & HMI System: Features a state-of-the-art touchscreen interface allowing plant operators to store, edit, and instantly recall dozens of custom product profiles. Parameters like fill speed, acceleration curves, dive profiles, and fill volumes can be adjusted on the fly.
- Interlocking Safety Protocols: The system includes an integrated “No Bottle, No Fill” feature to eliminate product waste and clean-up headaches. If a container is missing or tipped over, the corresponding nozzle will not actuate.
- Toolless Strip-Down & Clean-In-Place (CIP): Engineered with quick-release tri-clover sanitary clamps, the fluid paths and gear pump housings can be disassembled for inspection or connected directly to a CIP system for thorough, rapid flushing during batch changes.
Versatile Across Multiple Industries
The unique ability to pump both thin fluids and highly viscous materials makes this servo-gear pump filling machine an indispensable asset across multiple manufacturing sectors:
- Pharmaceuticals & Biotech: Perfect for precise filling of oral liquids, liquid injectables, syrups, diagnostic reagents, and suspensions where compliance with strict sanitary standards is mandatory.
- Cosmetics & Personal Care: Efficiently bottles low-viscosity perfumes, facial toners, and essential oils, as well as thick shampoos, conditioners, hand creams, and viscous body lotions.
- Food & Beverage Handling: Well-suited for handling sensitive sauces, dressings, fruit concentrates, syrups, liquid flavorings, and dairy products without altering product texture.
- Chemicals & Household Goods: Easily accommodates liquid detergents, hand sanitizers, household cleaning agents, liquid fertilizers, and specialty chemical fluids.
Strategic Advantages for Your Business
By integrating advanced automation from Harsiddh Unimach Pvt. Ltd. into your production facility, you achieve measurable operational gains that directly boost your bottom line:
- Maximum Product Yield: The extreme accuracy of servo-gear pump dosing reduces overfills and completely eliminates product giveaway, keeping high-value raw materials inside the container where they belong.
- Unparalleled Batch Flexibility: Shifting production from a 50ml small vial to a 1-liter rigid jug no longer requires swapping out mechanical cylinders. Operators can change batches digitally in under a minute, drastically reducing factory downtime.
- Low Cost of Ownership: By eliminating complex mechanical reciprocating wear parts like pistons, connecting rods, and sliding seals, the machine experiences minimal internal wear, resulting in lower long-term maintenance costs and maximum uptime.
Technical Specification
| Specification | Details (Servo Gear Pump Series) |
|---|---|
| Output / Minute | 30 to 120 Bottles (Model Dependent) |
| Filling Range | 10ml to 5000ml (Digitally Programmable) |
| Filling Accuracy | ± 0.5% |
| No. of Filling Heads | 2, 4, 6, or 8 Heads |
| Control System | PLC with Color Touchscreen HMI |
| Contact Parts | Stainless Steel AISI 316L |
| Power Supply | 230V / 415V, 3 Phase |
Elevate Your Packaging Efficiency with Harsiddh Unimach Pvt. Ltd.
At Harsiddh Unimach Pvt. Ltd., we believe in engineering smarter, more reliable automated solutions for the global manufacturing sector. Our Automatic Servo-Based Gear Pump Filling Machine delivers the perfect combination of digital accuracy, mechanical durability, and operational versatility.
Streamline your liquid packaging line, minimize product loss, and maximize floor efficiency. Contact our experienced engineering consultation team today to discuss your specific filling requirements, custom nozzle configurations, or to receive a comprehensive technical proposal tailored to your plant layout.
- Official Website: www.harsiddhunimach.com
- Inquiries & Technical Support: info@harsiddhunimach.com
Frequently Asked Questions
Which types of products is this machine best suited for?
This machine is a versatile powerhouse, ideal for cosmetics, pharmaceuticals, and food products. It is particularly effective for high-value liquids such as creams, lotions, essential oils, syrups, and viscous detergents. The gear pump mechanism ensures a steady, pulse-free flow for both thin and thick products.
How accurate is the filling volume with this technology?
The Harsiddh Servo Gear Pump Filler is designed for high-stakes production where every drop counts. It typically achieves a filling accuracy of ± 0.5%. Because the gear rotations are controlled electronically by the servo drive, the machine eliminates the mechanical variations found in traditional piston fillers.
How does the machine handle different container sizes and shapes?
The machine is built for maximum flexibility, supporting fill volumes from 10ml up to 1000ml (or more depending on the pump size). The conveyor system and guide rails are easily adjustable to accommodate round, oval, flat, or square bottles made of PET, Glass, or HDPE. The PLC memory can store "recipes" for different bottle sizes, making changeovers incredibly fast.
Is the machine easy to clean and maintain?
Yes. The machine follows cGMP standards, featuring a "tool-less" design for easy dismantling. Since the gear pump system has fewer moving parts than a traditional piston filler, it is easier to sanitize. All contact parts are made of SS 316L, and the machine can be configured for CIP (Cleaning-In-Place) to ensure total hygiene between product batches.
