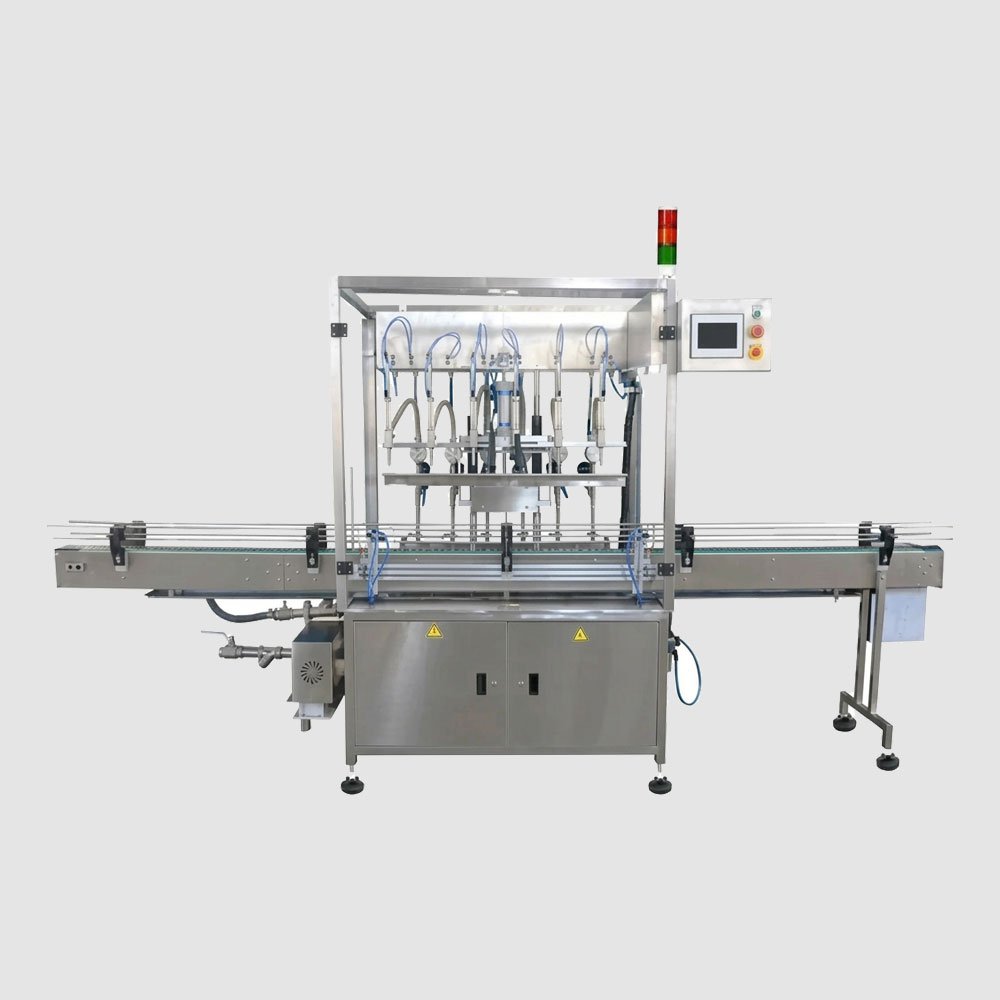

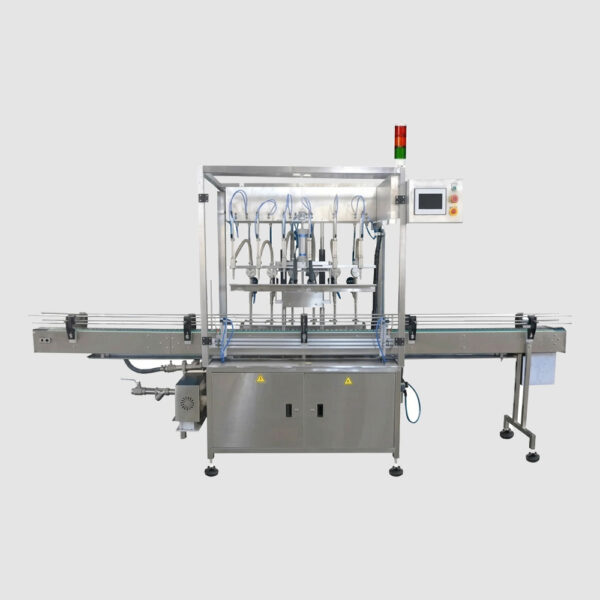

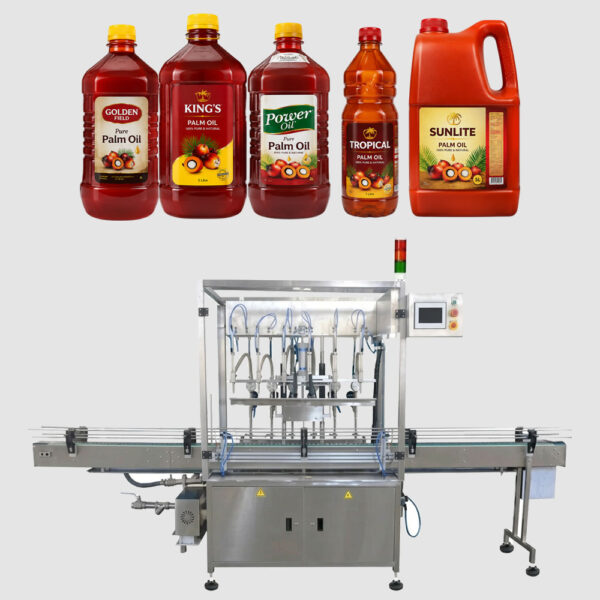

Automatic Palm Oil Filling Machine

High-Precision & High-Efficiency Packaging Solutions for the Edible Oil Industry

In the competitive landscape of food processing and edible oil packaging, maintaining accuracy, speed, and strict hygiene standards is paramount. Harsiddh Unimach Pvt. Ltd. offers the state-of-the-art Automatic Palm Oil Filling Machine, uniquely engineered to meet the robust, high-volume production demands of global edible oil manufacturers.

Palm oil possesses distinct physical properties that present unique challenges during the packaging process. Its viscosity and density fluctuate significantly based on ambient temperature variations, shifting from a clear liquid to a semi-solid or thick paste-like consistency. Standard volumetric fillers often struggle with these thermal deviations, leading to costly product giveaway or underfilled containers. Our advanced filling system directly resolves this challenge, utilizing cutting-edge servo-gear technology to dynamically compensate for temperature and density changes, ensuring unwavering volumetric accuracy.

Built with a commitment to quality and compliance, this cGMP-compliant automated machinery is the ideal addition to manufacturing facilities requiring a sanitary, rapid, and low-maintenance packaging line. Whether you are packaging refined, bleached, and deodorized (RBD) palm olein, crude palm oil, or specialized blended vegetable oils, our equipment provides the reliability your brand needs to scale operations efficiently.

Technical Superiority: Designed for Complex Oil Visuals and Viscosities

The engineering philosophy behind the Harsiddh Automatic Palm Oil Filling Machine focuses on versatility, material integrity, and operational control. Every component that comes into contact with your product is fabricated from premium-grade Stainless Steel (SS 316), conforming strictly to international food safety and pharmaceutical-grade manufacturing standards.

1. Advanced Servo-Driven Gear Technology

At the heart of our palm oil filling line is a highly precise servo-driven pump mechanism. Unlike conventional pneumatic or mechanical piston fillers, our servo-gear system allows operators to program distinct filling profiles directly via an intuitive Touchscreen Human-Machine Interface (HMI). You can control the exact speed of rotation throughout the dispensing cycle, accommodating the precise behavior of thick oils and preventing the splashing or foaming often associated with high-speed liquid packaging.

2. Intelligent Temperature & Density Compensation

Because palm oil is highly sensitive to climate changes, a drop in factory floor temperature can cause the oil to density-compress or thicken. Our intelligent control systems allow for real-time adjustments. By compensating for these physical shifts, the machine maintains a strict weight and volume threshold across every single batch, safeguarding your profit margins and ensuring regulatory compliance in every market you serve.

3. Comprehensive Sanitization and cGMP Compliance

Food safety regulations demand rigorous cleaning protocols. Our equipment features an open, accessible design with quick-disconnect clamps and smooth internal surfaces. This design facilitates rapid Clean-in-Place (CIP) or manual cleaning procedures, drastically minimizing downtime during product changeovers or scheduled maintenance shifts. The robust stainless steel enclosure protects internal electronic systems from water ingress during washdowns.

Reliable Operational Workflow: Step-by-Step Sequence

Our fully integrated system guarantees a synchronized, fully automated journey from the moment empty containers arrive at the filling station until they exit toward the down-stream packaging phase.

[Empty Bottle In-Feed] ➔ [Sensor Verification] ➔ [Diving Nozzle Precision Dosing] ➔ [Suck-Back Nozzle Clean Break] ➔ [Discharge to Capping/Labeling]

Step 1: Smooth In-Feed and Container Positioning

Empty bottles, jars, or jerrycans are fed smoothly onto a heavy-duty, variable-speed SS slat conveyor line. As they approach the filling zone, a highly responsive pneumatic gating and star-wheel or indexing system secures the containers. This ensures that even lightweight plastic PET bottles are perfectly aligned directly beneath the filling nozzles without tilting or collapsing.

Step 2: Intelligent Sensor Verification

To prevent operational accidents and product waste, the machine is equipped with an array of highly sensitive optical and proximity sensors. The system conducts a continuous loop check:

• Bottle Presence Detection: If a gap occurs in the incoming line and a container is missing, the specific nozzle will not dispense product (“No Bottle – No Fill” technology).
• Downstream Obstacle Check: Sensors monitor the exit pathway. If a downstream jam is detected at the capping or labeling machine, the filling cycle pauses automatically to prevent bottle pile-ups and spillages.

Step 3: Bottom-Up Precision Dosing (Diving Nozzles)

To combat the natural foaming tendencies of viscous edible oils, the filling assembly utilizes an automated diving nozzle mechanism. At the start of the filling cycle, the nozzles descend deep into the bottom of the container. As the servo-driven pumps dispense the palm oil, the nozzles gradually ascend in perfect synchronization with the rising liquid level. This specialized bottom-up filling profile eliminates air entrapment, turbulence, and splashing.

Step 4: The “Suck-Back” Clean Break Feature

Maintaining a pristine production environment requires a clean break at the end of each cycle. Once the exact target volume is reached, our proprietary “Suck-Back” mechanism activates instantly at the nozzle tip. This feature pulls back any residual oil droplet resting on the edge of the nozzle orifice, delivering a completely drip-free cutoff. This eliminates oil accumulation on the container rims, which could otherwise compromise the integrity of downstream induction sealing or capping.

Step 5: High-Speed Discharge

Once the filling cycle concludes, the pneumatic gates open smoothly, releasing the perfectly filled containers onto the conveyor. The containers travel seamlessly toward the next production stages, such as automatic capping, induction sealing, and high-speed labeling, allowing your facility to maintain an uninterrupted workflow.

Key Benefits for Edible Oil Packers

Investing in the Harsiddh Automatic Palm Oil Filling Machine gives your processing facility a distinct competitive edge:

• Minimized Product Giveaway: The micro-metric adjustments allowed by servo technology drastically reduce over-filling, saving thousands of liters of valuable oil over long production runs.
• Extreme Container Flexibility: The adjustable guide rails, indexing systems, and customizable HMI recipes enable the machine to handle a wide variety of container shapes and sizes—ranging from small consumer bottles to large commercial-sized containers—with minimal changeover parts.
• Low Cost of Ownership: By reducing mechanical wear-and-tear through direct servo-drives and eliminating complex linkages, the machinery requires significantly fewer replacement parts and lower routine maintenance.
• Enhanced Plant Safety: Outfitted with comprehensive interlocking safety doors, emergency stop buttons, and low-voltage control panels, the equipment guarantees a safe environment for your operating team.

Technical Specification

Specification	Details (Palm Oil Series)
Output / Minute	20 to 100 Containers (Volume & Model Dependent)
Filling Capacity	10ml to 10,000ml (Single Dose)
Contact Parts	Stainless Steel AISI 316L
Filling Type	Electronic Servo Based Gear Pump System
Control System	PLC-controlled with Touchscreen HMI
Container Types	Glass, PET, HDPE, Tin (All Shapes)
Standards	cGMP Compliant & CE Certified
No. of Heads	Available in 2, 4, 6, or 8 Nozzle models

Partner with Harsiddh Unimach Pvt. Ltd.

At Harsiddh Unimach Pvt. Ltd., we understand that your production line is the lifeline of your business. We don’t just supply machinery; we deliver complete engineering solutions tailored to your specific plant layouts and target output goals. Our team of experienced technical professionals assists you through layout planning, installation, commissioning, and comprehensive operator training.

Maximize your packaging efficiency, eliminate product waste, and elevate your product presentation with our industry-leading edible oil filling technology.
