Automatic Pain Balm Filling Machine

Streamline High-Viscosity Formulations with Advanced Thermal and Volumetric Technology

In the competitive pharmaceutical, ayurvedic, and cosmetic manufacturing sectors, handling high-viscosity semi-solids presents unique production challenges. Ointments, vapor rubs, petroleum jelly, and pain balms require precise temperature management and exact dosing to maintain formulation integrity and deliver a pristine consumer-ready presentation.

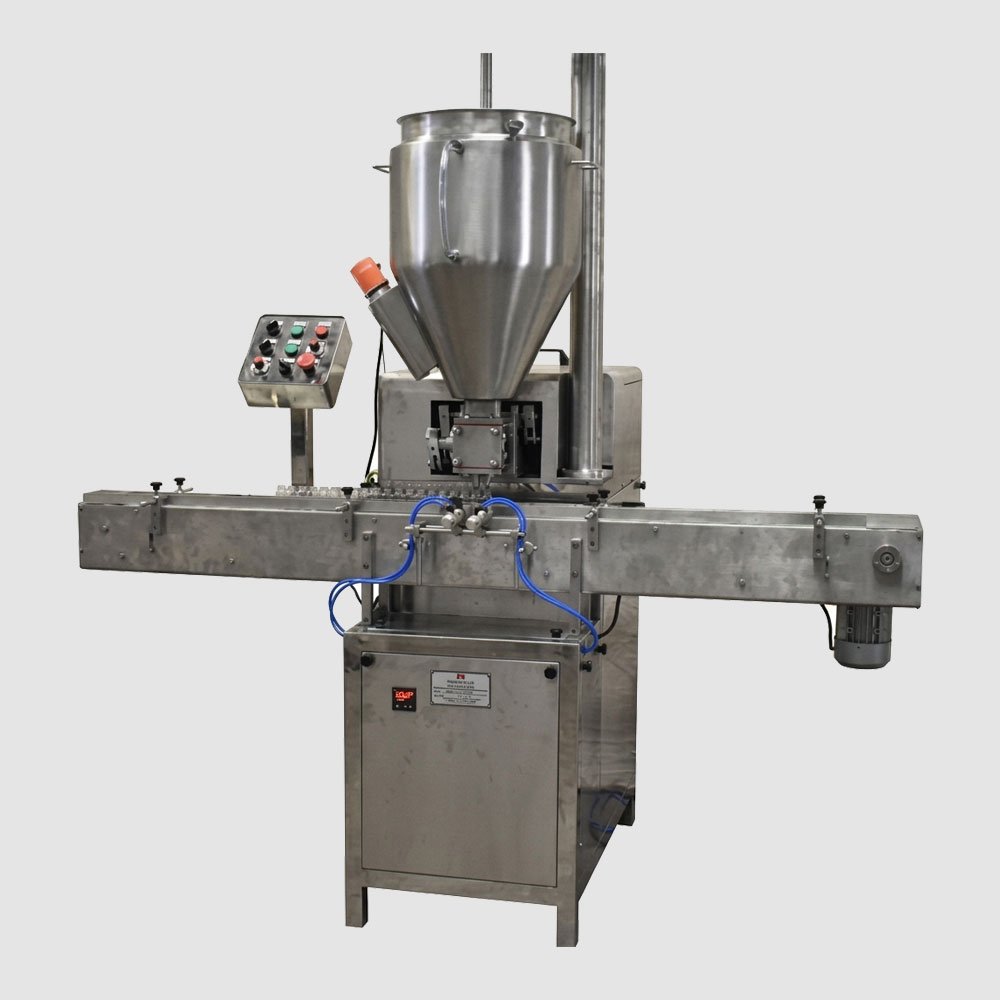

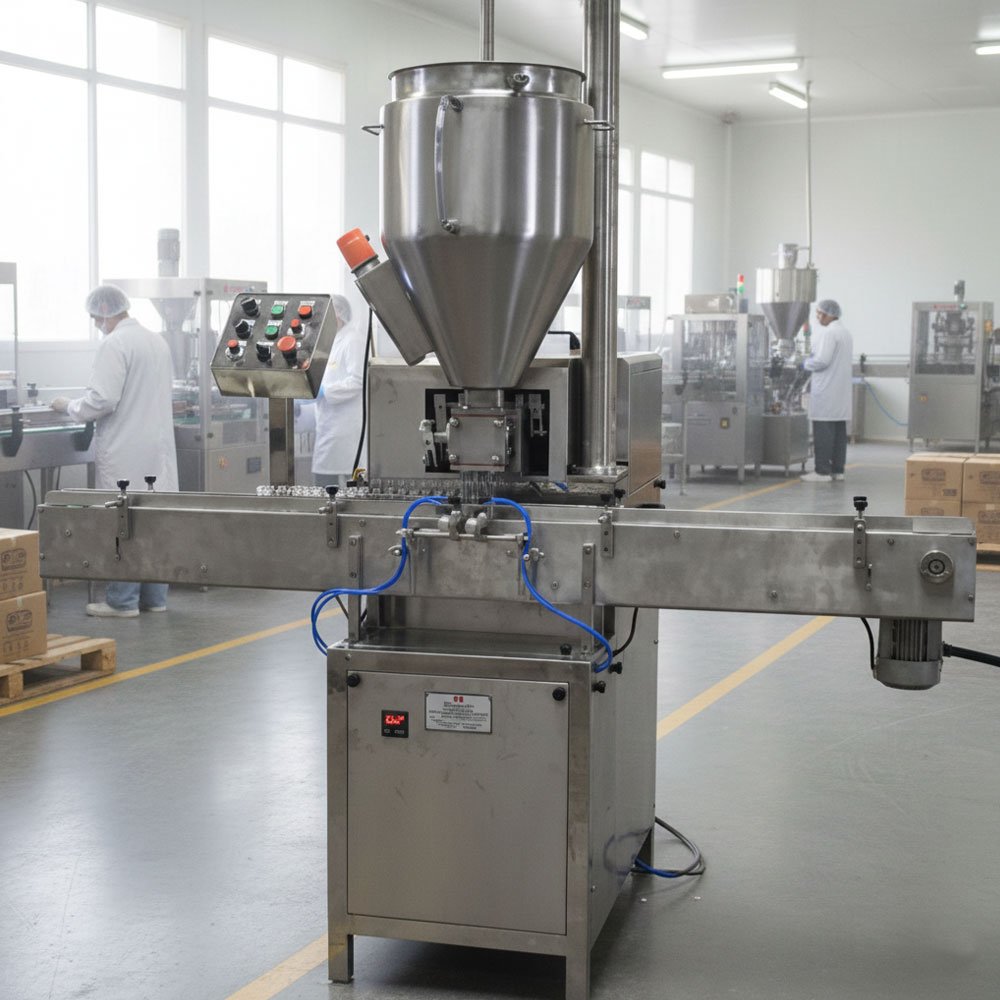

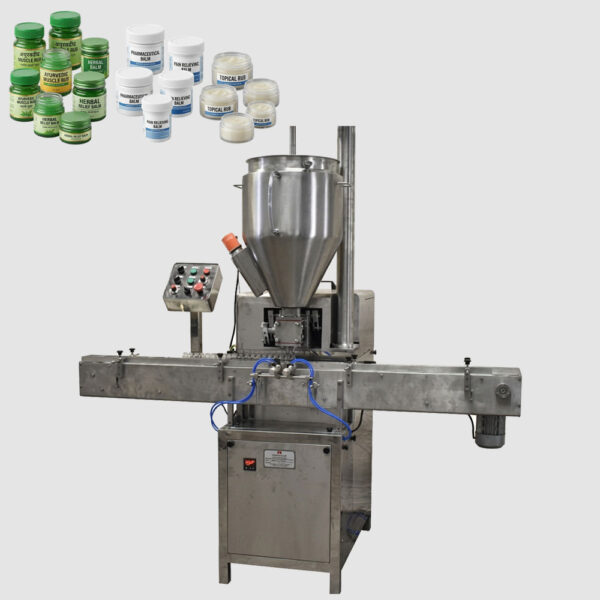

The Harsiddh Automatic Pain Balm Filling Machine is an engineered solution designed to optimize the packaging process for dense, temperature-sensitive products. By seamlessly integrating robust volumetric piston technology with a sophisticated, dual-stage thermal management system, this automated system ensures uninterrupted production flow, strict compliance with regulatory standards, and an unblemished, flat-top aesthetic finish for every container.

Architectural Breakdown: Engineered for Processing Excellence

The structural integrity and functional reliability of the Harsiddh Automatic Pain Balm Filling Machine stem from its targeted, sub-system design. Each phase of the filling sequence is isolated, monitored, and optimized via a centralized control system.

1. Dual-Walled Jacketed Hopper with PID Thermal Control

The primary obstacle when packaging semi-solids like pain balms is maintaining a fluid state without altering the chemical or therapeutic properties of the active ingredients (such as menthol, camphor, or eucalyptus oil).

Harsiddh utilizes a heavy-duty, double-walled jacketed hopper equipped with low-density, water-immersible heating elements. The thermal profile is regulated continuously via a Proportional-Integral-Derivative (PID) Temperature Controller. This loop ensures that the product remains at its optimal liquefaction threshold, preventing premature solidification along the hopper walls while eliminating the risk of overheating or scorching volatile components.

2. Integrated Homogenizing Mechanical Stirrer

Active ingredients in ayurvedic and pharmaceutical balms have differing densities and can separate or settle if left stagnant. To combat this, the hopper incorporates a heavy-duty 0.25 HP geared mechanical stirrer.

The paddle geometry is meticulously designed to provide continuous, low-shear agitation. This keeps the formulation perfectly homogeneous from the top of the batch to the bottom, guaranteeing that every container filled contains the exact therapeutic ratio specified in the master batch record.

3. High-Precision Volumetric Piston Dosing

At the heart of the filling operation is a positive-displacement Volumetric Piston System. Driven by a high-torque mechanical cam network or an optional servo-motor drive, the pistons draw an exact volume of liquefied balm into the SS 316L cylinders before dispensing it into the containers.

The positive-displacement mechanism eliminates the variations caused by changing ambient pressures or slight shifts in product density, keeping operational tolerances within a strict $\pm 1\%$ threshold.

4. Continuous-Heated Filling Block & Non-Drip Nozzles

When liquefied balm transitions from the heated hopper through the distribution manifold to the filling nozzles, a drop in temperature can cause localized clogging, crusting, or “tailing” (stringy product residue hanging from the nozzle).

Harsiddh resolves this through a Heated Filling Block lined with specialized electrical strip heaters. Additionally, the filling nozzles feature an internal shut-off mechanism paired with independent heating elements. This configuration ensures the product stays perfectly fluid right up until the exact microsecond it is discharged into the container, entirely eliminating drops, strings, or messy overspills on the container shoulders.

Key Benefits for Pharmaceutical & Ayurvedic Manufacturers

Implementing the Harsiddh Automatic Pain Balm Filling Machine into a packaging line provides clear, measurable returns on investment across production efficiency, quality control, and downstream presentation.

Flawless “Flat-Top” Consumer Presentation

When hot, liquefied balm is dispensed cleanly into a jar, it undergoes a natural cooling process. If filled at the incorrect temperature or with air pockets, the surface will crack, sink, or form irregular ridges. Because the Harsiddh system manages thermal profiles precisely up to the nozzle tip, the balm settles uniformly within the container, cooling to form a highly desirable, perfectly smooth, professional flat-top finish that reinforces brand quality to the end consumer.

Strict CGMP and Regulatory Compliance

The open-frame, ergonomic layout of the machine facilitates rapid clean-in-place (CIP) and sanitization procedures. With no exposed threads, deep crevices, or inaccessible corners in the product path, the risk of cross-contamination between batches is completely mitigated. Full validation documentation, including IQ/OQ support, can be provided to meet global regulatory requirements.

Reduced Waste and Enhanced Yields

In high-volume manufacturing, a variance of even a few grams per jar can result in thousands of dollars in lost product over a production run. The volumetric precision of the SS 316 pumps ensures that product giveaway is virtually non-existent. Furthermore, the continuous agitation and heated manifold ensure that minimal residue is left behind in the hopper at the end of a batch run.

Seamless Packaging Line Integration

The Harsiddh Automatic Pain Balm Filling Machine is built to function as a standalone unit or as a core module within a fully automated, high-speed turnkey packaging line. For an optimized, touchless production workflow, it connects seamlessly with:

1. Automatic Air Jet Cleaning and Bottle Washing Machines: Ensuring containers are completely free of particulate matter before arriving at the filling station.
2. Cooling Tunnels: Positioning a localized, multi-stage cooling tunnel immediately after the filling station accelerates the solidification process of the hot balm, locking in the flat-top surface before the jars reach the capping phase.
3. Automatic Rotary Capping Systems: Applying screw caps, lug caps, or press-on lids with precise torque controls to prevent leakage.
4. High-Speed Labeling Equipment: Deploying precise wrap-around or top-and-bottom sticker labels to complete the packaging process.

Technical Specifications

Feature	Model: HPJF-30	Model: HPJF-60
Output Rate	Up to 30 Containers / Min	Up to 50 Containers / Min
Number of Heads	2 Heads	4 Heads
Filling Range	10g to 500g	10g to 500g
Filling Accuracy	± 1%	± 1%
Hopper Capacity	40 Liters	60 Liters
Hopper Heater	1.5 KW	1.5 KW
Main Motor	1.5 H.P.	1.5 H.P.
Power Supply	415V, 3 Phase, 50 Hz	415V, 3 Phase, 50 Hz
Machine Dimensions	1750 x 1100 x 1700 mm	1950 x 1100 x 1700 mm

Partner with Harsiddh for Engineering Excellence

With decades of specialized experience providing high-performance machinery to the global pharmaceutical, cosmetic, and industrial processing sectors, Harsiddh Unimach Pvt. Ltd. understands that processing reliability cannot be compromised. Every machine is rigorously factory-tested under simulated production environments using client-specific containers and formulations before dispatch.

Optimize your high-viscosity production lines, enhance operational efficiencies, and maintain premium presentation standards with a dedicated automated solution.
