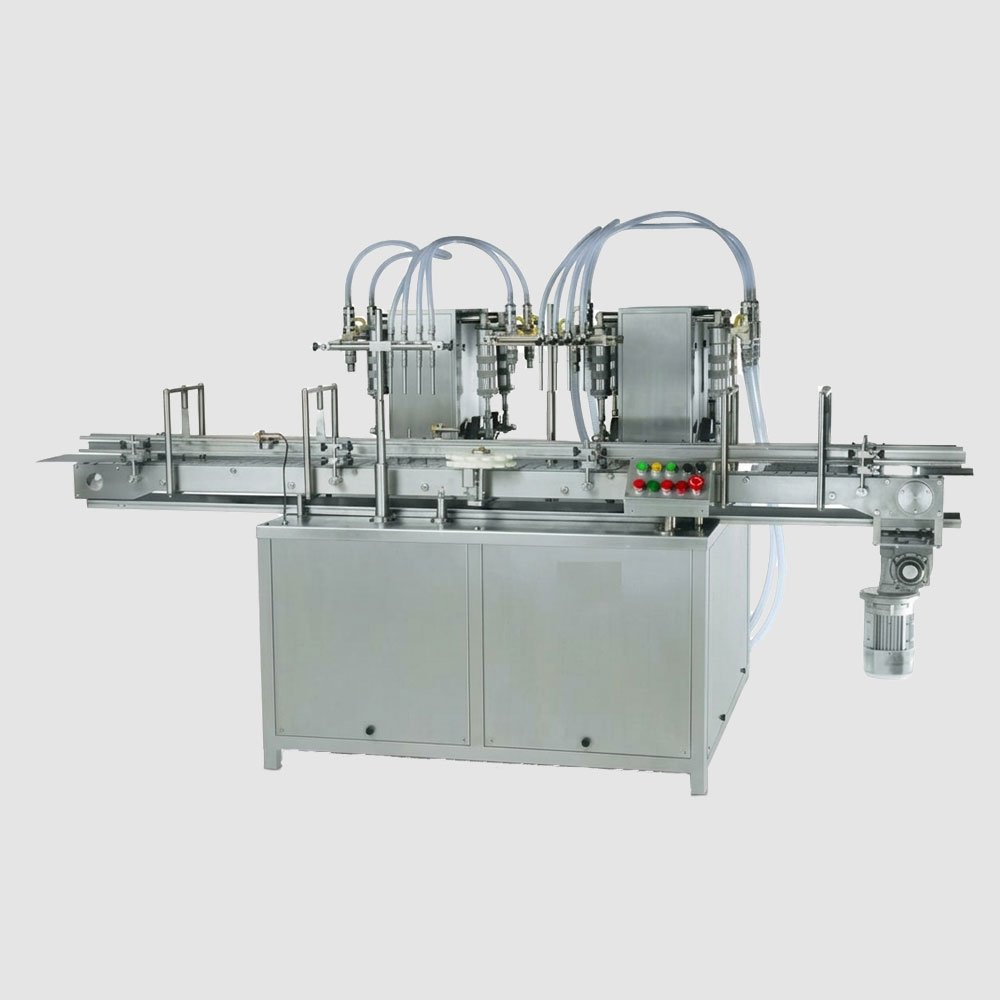

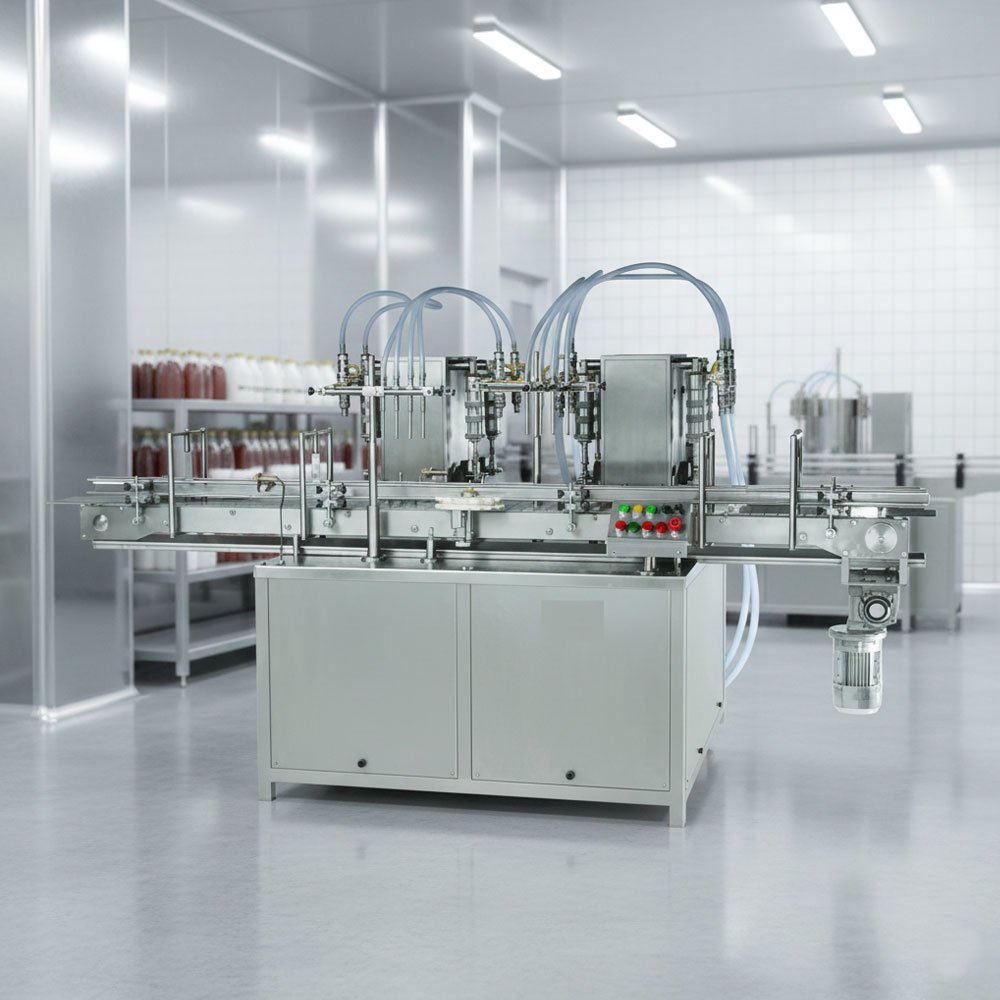

Automatic Mustard Oil Filling Machine
High-Efficiency Precision Packaging Solutions for the Edible Oil Industry
In the competitive landscape of food processing and edible oil packaging, maintaining product purity, minimizing wastage, and achieving absolute volumetric accuracy are critical to operational profitability. Harsiddh Unimach Pvt. Ltd. engineered the Automatic Mustard Oil Filling Machine specifically to meet these demanding industrial needs. Designed to handle the unique viscosity, surface tension, and foaming characteristics of mustard oil and other vegetable oils, this advanced system represents the pinnacle of modern liquid packaging automation.
Traditional piston-based machinery often struggles with the fluctuating densities of edible oils caused by temperature changes, leading to variations in fill levels and frequent manual calibration. By contrast, our cutting-edge filling system replaces traditional mechanical linkages with independent servo-driven technology. This innovation gives processing plants unmatched flexibility, allowing them to shift seamlessly from small-volume retail containers to bulk-sized jars with minimal downtime and maximum precision. Fully compliant with Current Good Manufacturing Practices (cGMP), this robust machine ensures your production line runs at peak efficiency while maintaining strict hygiene standards.
Overcoming the Unique Challenges of Mustard Oil Packaging
Packaging mustard oil presents distinct physical challenges that standard liquid fillers cannot reliably handle. Because it is a natural vegetable oil, its viscosity varies depending on ambient factory temperatures. Additionally, its inherent surface tension creates a high tendency to foam or splash when dispensed at high speeds.
Harsiddh Unimach Pvt. Ltd. addresses these specific fluid dynamics through custom-engineered technical features:
- Advanced Servo-Pump Integration: Instead of relying on rigid mechanical strokes, each filling nozzle is paired with an independent servo motor coupled to a high-precision gear pump. The central Programmable Logic Controller (PLC) manages these motors, allowing operators to fine-tune rotation speeds and acceleration curves to match the exact physical behavior of the oil batch being filled.
- Dynamic Foaming Control: When liquid hits the bottom of an empty container at high velocity, it traps air and generates foam. This causes inaccurate fill levels, product overflow, and messy containers. Our system solves this problem with a synchronized diving nozzle mechanism. The nozzles descend completely to the bottom of the bottle before dispensing begins and rise progressively as the liquid level climbs, preventing turbulence and air entrapment.
- Absolute Cleanliness with No-Drip Engineering: Mustard oil leaves a persistent residue that can ruin label adhesion and contaminate outer packaging if allowed to drip. Our filler includes an active pneumatic cut-off and an electronic “suck-back” feature. At the end of each filling cycle, the servo pump reverses slightly, pulling the oil cleanly back into the nozzle tip to guarantee a dry, drip-free cutoff.
Step-by-Step Reliable Operational Workflow
The seamless operation of the machine relies on a carefully synchronized sequence of mechanical, pneumatic, and electronic actions. This structured workflow maximizes throughput while protecting container integrity.
1. Automatic Bottle Indexing and Positioning
Empty containers move along the high-speed, stainless steel slat conveyor toward the filling zone. A smart pneumatic indexing system, consisting of entry and exit gating arms, manages the bottle flow. The entry gate allows the exact number of empty bottles matching the nozzle count to pass, while the exit gate stays closed to hold them in position. Photoelectric sensors detect the presence of the containers, ensuring the filling cycle only starts when every bottle is perfectly aligned beneath its respective nozzle.
2. High-Precision Volumetric Dosing
Once the containers are locked into position, the central PLC sends high-frequency commands to the independent servo drives. The servo motors rotate the internal gear pumps at an exact, programmed speed to dispense the precise volume required. Because the system calculates fill volumes based on digital motor revolutions rather than mechanical stroke limits, operators can adjust volumes for different bottle sizes instantly on the touchscreen interface, eliminating tedious manual adjustments.
3. Synchronized Diving Fill and Laminar Flow
To prevent splashing and foam generation, the machine uses a bottom-up filling technique. At the start of the filling cycle, a pneumatic slide drops the entire nozzle assembly down into the necks of the bottles, positioning the nozzle tips just millimeters above the container bases. As the oil fills the container, the nozzle assembly rises at a rate perfectly matched to the rising liquid level. This ensures a smooth, laminar fluid flow throughout the cycle.
4. Active No-Drip Cut-Off and Clean Break
When the programmed volume is fully dispensed, the servo motor executes a rapid deceleration curve and briefly reverses direction. This minor reverse rotation creates a clean break at the tip of the nozzle, sucking any residual oil droplets back into the fluid line. Simultaneously, a mechanical shut-off valve closes at the nozzle tip, ensuring that no oil drips onto the neck of the container, the conveyor belt, or neighboring machinery.
5. Smooth Container Discharge and Line Integration
With the filling cycle complete, the pneumatic exit gate retracts instantly, allowing the filled bottles to smoothly move down the conveyor. At the same time, the entry gate opens to let the next batch of empty containers into the filling zone. The filled containers proceed down the automated line toward capping, induction sealing, and labeling stations, keeping production moving without interruption.
Key Benefits of Integrating Our System Into Your Production Line
Investing in the Automatic Mustard Oil Filling Machine from Harsiddh Unimach Pvt. Ltd. provides immediate, tangible improvements to your operational efficiency, product quality, and bottom line:
- Minimized Product Giveaways: Thanks to the absolute precision of digital servo controls, overfilling is drastically reduced. Over thousands of production runs, saving just a few milliliters per bottle adds up to significant cost savings on raw materials.
- Rapid Tool-Less Changeovers: Shifting production from a 200ml retail bottle to a 1-liter pouch or a 5-liter jar requires no complex mechanical tools. Operators simply select pre-saved recipes on the touchscreen HMI, adjust the conveyor guide rails, and alter the nozzle heights using a simple hand-wheel system.
- Long-Term Durability and cGMP Compliance: Designed to meet the stringent standards of the food and pharmaceutical industries, all fluid contact paths are constructed from polished SS316L. The smooth, sanitary welds prevent oil trapping, making clean-in-place (CIP) routines fast, effective, and hygienic.
- Smart “No Bottle – No Fill” System: To eliminate spills and reduce waste, the machine features built-in safety sensors. If an empty bottle falls over or fails to arrive under a filling head, the PLC automatically skips that specific nozzle, keeping your conveyor line perfectly clean.
Technical Specification
| Specification | Details (HEOF – Mustard Oil Series) |
|---|---|
| Output / Minute | 20 to 100 Containers (Volume Dependent) |
| Filling Range | 10ml to 10,000ml (Single Dose) |
| Filling Accuracy | ± 0.5% |
| No. of Filling Heads | 2, 4, 6, or 8 Heads |
| Storage Tank | 80 Liters SS 316 (Customizable) |
| Control System | PLC with Color Touchscreen HMI |
| Construction | cGMP Compliant SS 316L / 304 |
Elevate Your Packaging Operations
The Automatic Mustard Oil Filling Machine manufactured by Harsiddh Unimach Pvt. Ltd. is more than just a piece of hardware—it is an optimized solution designed to scale your business, reduce labor dependencies, and protect your product margins. Whether you are expanding a boutique organic oil mill or upgrading a high-volume industrial packaging facility, this machine delivers the reliability, speed, and versatility needed to thrive in modern competitive markets.
Contact our technical sales team today to discuss your production line goals, explore custom configuration options, and request a personalized quotation.
Frequently Asked Questions
How does the machine ensure high filling accuracy and prevent oil wastage?
The machine is equipped with a high-precision PLC-controlled dosing system that offers an accuracy of ± 0.5% to 1%. To prevent wastage and maintain a clean production line, it features "No Bottle – No Fill" sensors and specialized anti-drip nozzles that ensure a clean cut-off after every fill.
What range of bottle sizes and shapes is supported?

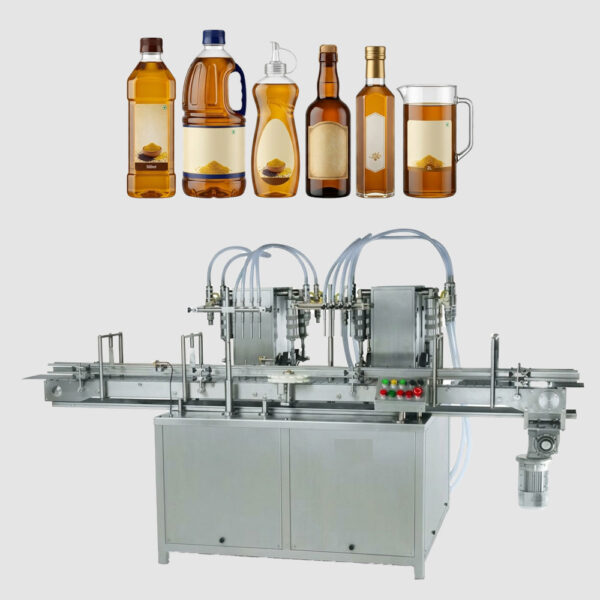

The Harsiddh Automatic Mustard Oil Filling Machine is highly flexible, typically supporting fill volumes from 100ml up to 5 liters. It is compatible with various container types, including PET bottles, HDPE jars, glass bottles, and tin containers. Adjustable guide rails allow for quick changeovers between round, square, or oval containers.
How does the machine manage foaming during the filling process?
Mustard oil can sometimes create foam when filled at high speeds. To address this, the machine is fitted with reciprocating diving nozzles (bottom-up filling). The nozzles descend to the bottom of the bottle and rise slowly as the oil fills, which minimizes turbulence and prevents foam overflow.
Is the machine compliant with food safety and hygiene standards?
Absolutely. As a cGMP-compliant model, the machine features a rigid Stainless Steel 304 frame, while all parts that come into contact with the oil are manufactured from SS 316L. The system is designed for easy cleaning and maintenance, ensuring it meets strict global food safety regulations for edible oil packaging.
