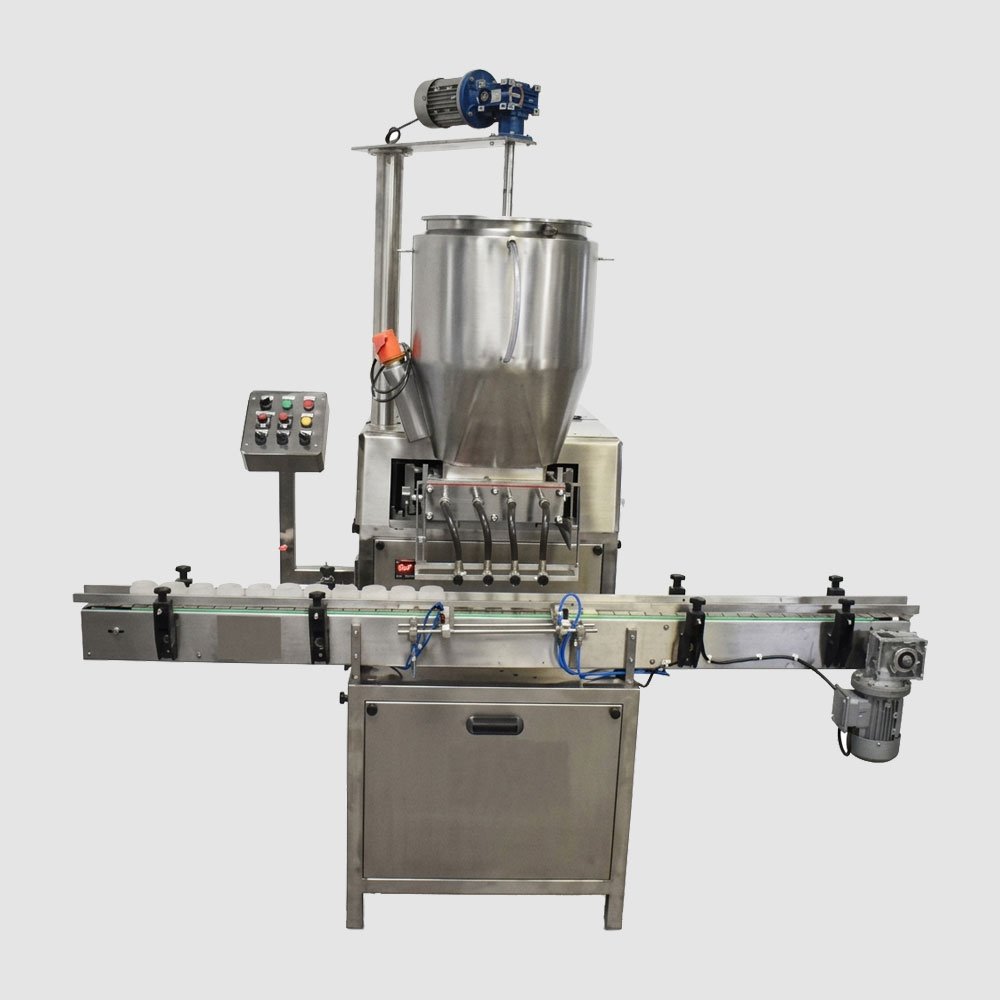

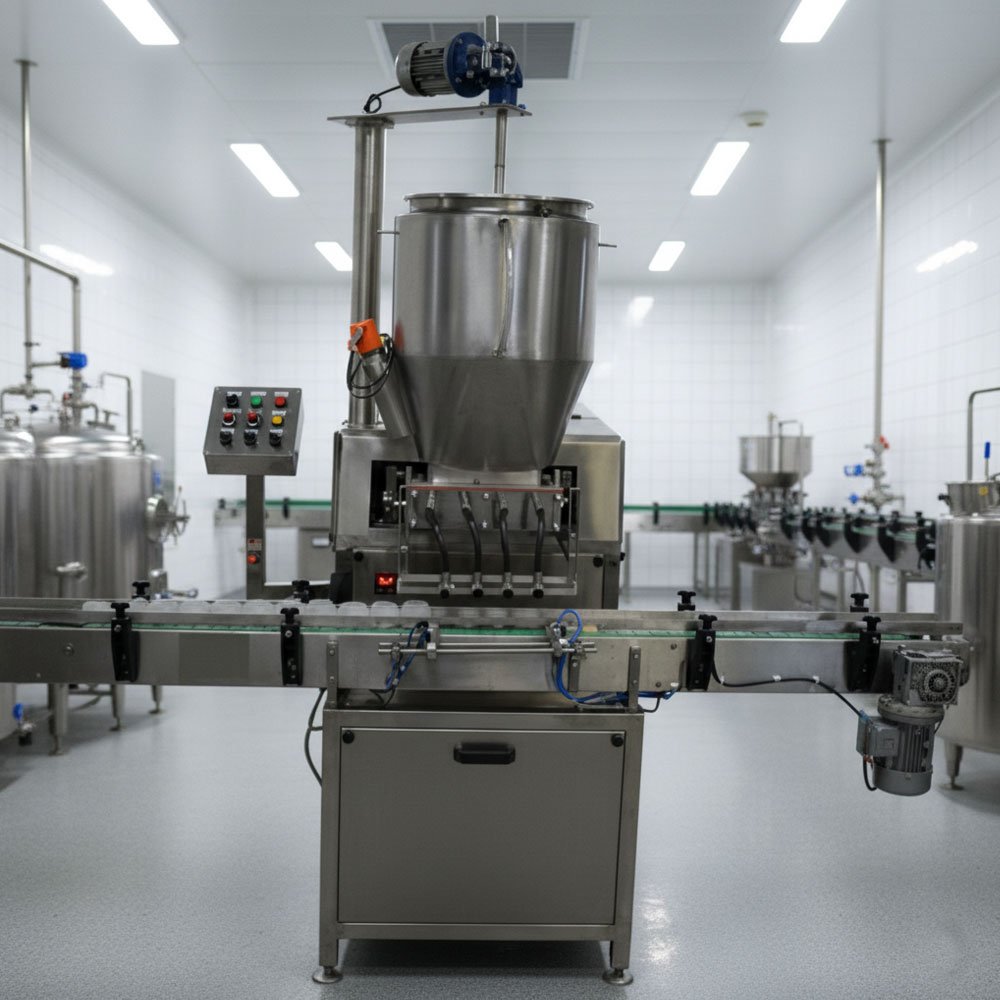

Automatic Lotion Filling Machine
Optimize your cosmetic and pharmaceutical production with the Harsiddh Automatic Lotion Filling Machine. Specially engineered to handle a wide range of viscosities, this high-precision system is the ideal solution for filling lotions, gels, creams, and other viscous personal care products into bottles, jars, and containers of various shapes and sizes.
Our machine combines advanced PLC-based automation with a robust, GMP-compliant design, ensuring surgical accuracy and drip-free operation for even the most challenging high-foaming or thick formulations.
Versatile Performance & High Viscosity Handling
The Harsiddh lotion filler is designed for the rigorous demands of the beauty and health care industries:

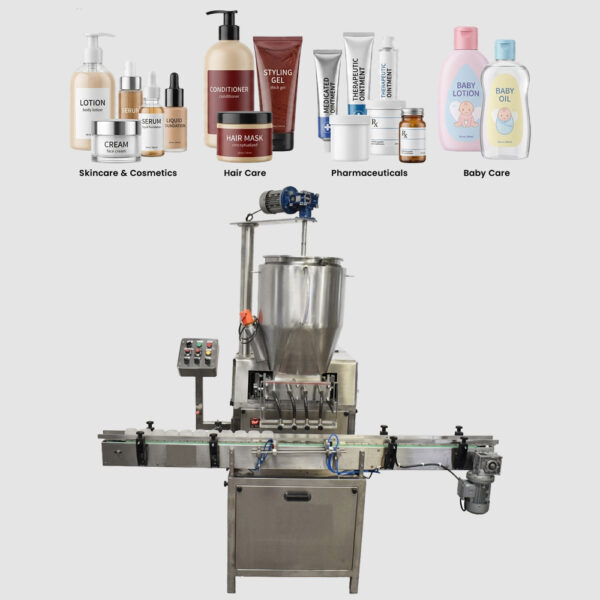

- Diverse Product Compatibility: Seamlessly fills body lotions, sunscreen, hair gels, facial creams, petroleum jelly, and ointments.
- Multi-Container Support: Suitable for round, flat, and oval containers made of plastic, glass, PET, and even metal.
- Foam & Drip Control: Equipped with advanced “Shut-off” nozzles and a bottom-up filling mechanism to eliminate foaming and ensure a clean seal every time.
- Volumetric Accuracy: Utilizes high-precision piston pumps to maintain a consistent filling accuracy of ± 1%.
Technical Specifications
| Feature | Model: HLGF-30 (2 Heads) | Model: HLGF-60 (4 Heads) |
|---|---|---|
| Output Rate | Up to 30 Containers / Min | Up to 60 Containers / Min |
| Number of Heads | 2 | 4 |
| Filling Capacity | 50ml to 1000ml | 5ml to 1000ml |
| Filling Accuracy | ± 1% | ± 1% |
| Hopper Capacity | 100 Liters | 150 Liters |
| Power Supply | 415V, 3 Phase, 50 Hz | 415V, 3 Phase, 50 Hz |
| Air Utility | 6-8 kg/cm² @ 100 Cfm | 6-8 kg/cm² @ 100 Cfm |
| Net Weight | Approx. 370 Kgs | Approx. 550 Kgs |
| Dimensions (LxWxH) | 1200 x 850 x 1600 mm | 1600 x 850 x 1600 mm |
