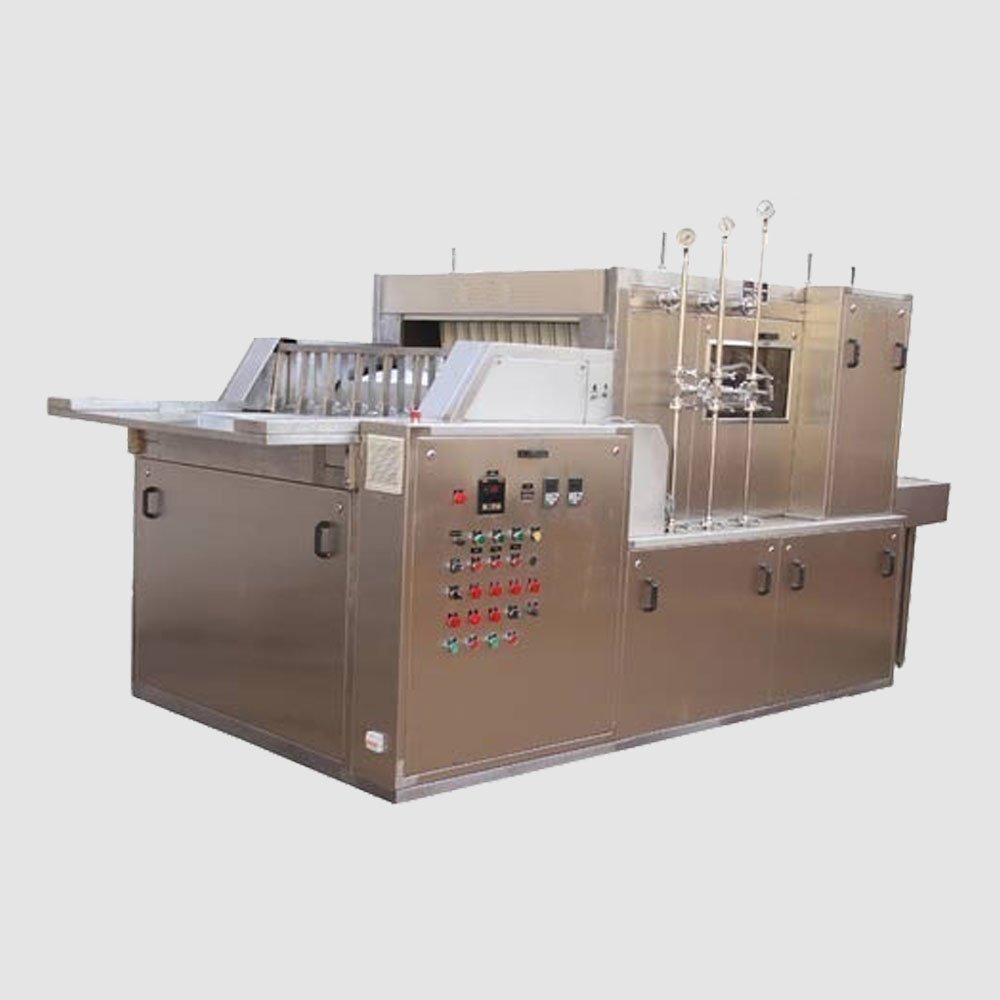

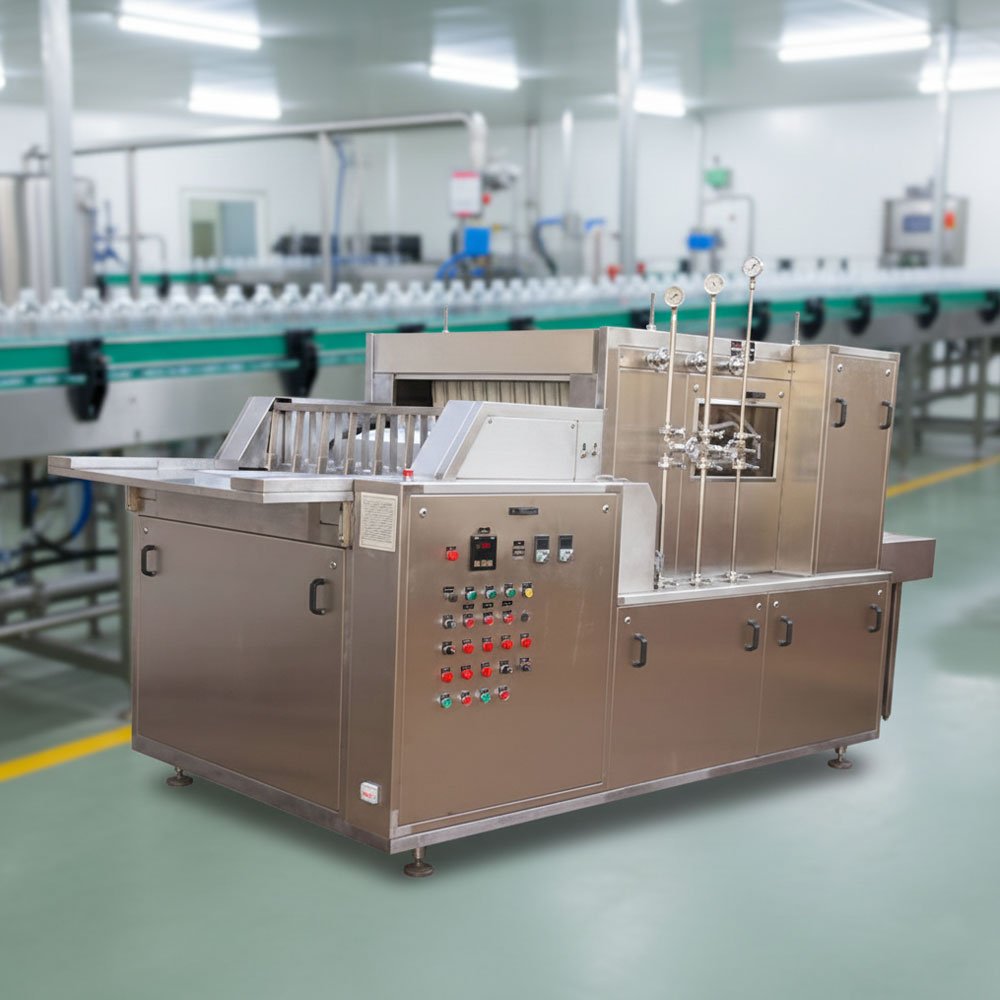

Automatic Linear Bottle Washing Machine
Ultimate Cleanliness Redefined: The Automatic Linear Bottle Washing Machine
In modern industrial manufacturing, maintaining sterile and flawless packaging is non-negotiable. Whether you are packaging life-saving therapeutics, premium cosmetics, or high-consumption beverages, the initial container rinsing stage sets the benchmark for the safety and quality of your entire product line.
Harsiddh Unimach Pvt. Ltd. proudly presents its state-of-the-art Automatic Linear Bottle Washing Machine—a pinnacle of engineering designed to deliver smooth, flawless, and ultra-hygienic aseptic cleaning. Built to comply with rigorous international manufacturing standards and proudly carrying the CE certification, this high-performance system is the ultimate solution for companies looking to elevate their production hygiene and operational efficiency.
Versatile Design Engineered for Diverse Industries
Every manufacturing facility faces the challenge of handling multiple product variations and packaging formats. The Automatic Linear Bottle Washing Machine from Harsiddh Unimach Pvt. Ltd. addresses this need through its remarkably adaptive and flexible design architecture.

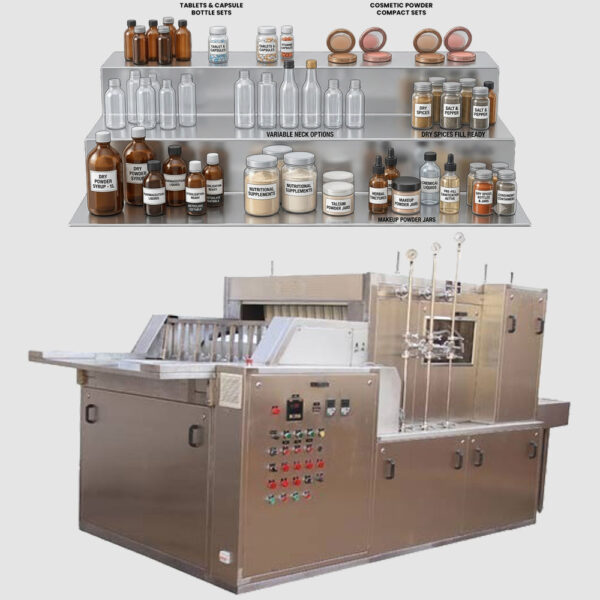

Seamlessly Accommodating Multi-Size Containers
This linear washing system is uniquely engineered to process containers ranging from compact 10ml vials up to 200ml bottles. It effortlessly transitions between handling standard round bottles and specialized flat-sided containers. This exceptional flexibility eliminates the need for purchasing multiple dedicated machines, providing a consolidated, space-saving solution for your production floor.
Cross-Industry Application
- Pharmaceutical Sector: Meets the strict sanitary codes required for liquid orals, syrups, injectables, and ophthalmic solutions.
- Cosmetic Industry: Flawlessly prepares containers for high-end skincare, hair care, and hygiene liquids where aesthetic clarity and purity are essential.
- Food & Beverage Sector: Ensures complete removal of environmental dust, debris, and micro-particles from bottles before they are filled with juices, sauces, or nutritional supplements.
Advanced Operational Precision & Customized Cleaning Sequences
At the heart of this machine lies a specialized intermittent linear mechanism. Unlike continuous motion systems that might rush the cleaning phase, an intermittent configuration stops the bottles precisely over the washing nozzles. This ensures that every individual container receives a concentrated, dedicated, and highly accurate blast of cleaning media, leaving no blind spots.
6-Zone Deep Decontamination
To achieve absolute sterility, the machine separates its washing cycle into six distinct internal zones. This multi-stage processing ensures that stubborn residues, industrial dust, and particulates are systematically loosened, flushed away, and completely purged from the container.
Tailored to Your Specific SOPs
No two manufacturing lines are identical, and different products require different sanitation protocols. Harsiddh Unimach Pvt. Ltd. has engineered this system with complete customizability in mind. The sequence, duration, and media order of the washing cycles can be fully adjusted to align perfectly with your facility’s internal Standard Operating Procedures (SOPs) and regulatory validations.
Elite Washing Zone Configuration: Complete 360° Cleansing
The washing chamber is engineered to leave absolutely no surface unwashed. It features a dual-action system that targets both the interior and exterior surfaces of the bottles simultaneously.
1. Robust Internal Flushing Architecture
Equipped with up to 120 high-pressure internal jets distributed across its multiple cleaning zones, the machine drives cleansing media deep into the core of the bottles. The nozzles are engineered to maximize fluid dynamics, ensuring high-velocity coverage across the base and inner walls of the containers.
2. Dedicated Exterior Rinsing Matrix
Hygiene doesn’t stop on the inside. To eliminate external dust, oils, or cardboard lint accumulated during transit and storage, the machine incorporates a dedicated exterior cleaning assembly. This features 20 specialized jets arranged in two precise rows of 10, creating a powerful curtain of water and air that scrubs the outer profile of the bottles clean.
3. Absolute Zero-Cross Contamination Guarantee
One of the most innovative features of this linear bottle washer is its focus on media integrity. Each of the six washing zones operates on a completely independent fluid circuit. By isolating the piping, pumps, and drainage systems of each individual cycle, the machine completely prevents cross-contamination between different rinsing mediums (such as raw water mixing with purified water).
4. Multi-Media Sterilization Compatibility
To meet the highest standards of sterilization, the system effortlessly switches between and manages a variety of cleaning media:
- Fresh Water / Utility Water: For initial heavy-particle rinsing.
- De-Mineralized (DM) Water: For removing chemical traces and mineral residues.
- Water For Injection (WFI): For demanding pharmaceutical-grade sterility.
- Sterilized Compressed Air: For high-velocity purging and moisture elimination, leaving the bottle dry and ready for immediate filling.
Key Technical Advancements and Operational Benefits
Investing in automation from Harsiddh Unimach Pvt. Ltd. means equipping your business with a machine that balances raw performance with long-term economical operation.
High-Velocity Productivity
Time is money on a high-output production line. This linear washing machine boasts impressive output capabilities, processing up to 240 bottles per minute (reaching up to 14,000 bottles per hour) depending on your exact container size and material properties. It ensures your downstream filling, capping, and labeling systems are constantly supplied with pristine containers.
Eco-Friendly and Energy-Efficient Engineering
High throughput does not have to mean skyrocketing utility bills. This machine is thoughtfully engineered to run on an optimized power profile, drawing only approximately 4.0 to 5.0 HP. This low power requirement reduces your facility’s overall energy footprint while maintaining peak mechanical performance.
Accommodation of Extreme Bottle Dimensions
Whether your packaging design leans toward tall and slender or short and wide, this equipment accommodates it all. The adjustable guiding tracks and transport mechanics easily handle bottle diameters from 32mm up to 60mm, and container heights extending up to 180mm.
Technical Specification
| Model No. | HLBW-120 | HLBW-240 |
|---|---|---|
| Output / Hour | Up to 7,000 / Hour | Up to 14,000 / Hour |
| Bottle Size Range | 10ml to 200ml | 10ml to 200ml |
| Contact Parts | Stainless Steel 316L | Stainless Steel 316L |
| Power Requirements | 4.0 H.P. | 5.0 H.P. |
| Air Consumption | 12 to 15 CFM | 12 to 15 CFM |
| Machine Dimensions | 2700mm x 1400mm x 1550mm | 3180mm x 2500mm x 1650mm |
Why Choose Harsiddh Unimach Pvt. Ltd.?
As a trusted partner in industrial automation, Harsiddh Unimach Pvt. Ltd. designs machinery with the operator in mind. The Automatic Linear Bottle Washing Machine features an ergonomic layout, making routine maintenance, nozzle adjustments, and clean-in-place (CIP) protocols straightforward and time-efficient.
Constructed from premium-grade, corrosion-resistant materials, the machine withstands continuous exposure to water, heat, and sanitizing chemicals without degradation. Its smooth mechanical transitions protect fragile glass or lightweight plastic bottles from tipping, scuffing, or breaking during high-speed handling.
Frequently Asked Questions
How does the machine ensure zero cross-contamination during the washing process?
To maintain strict aseptic standards, each of the six internal washing zones operates with an independent circuit. This prevents any cross-contamination between different cycles (such as Fresh Water, DM Water, WFI, and Air). All contact parts are made from high-grade Stainless Steel 316L.
What is the cleaning capacity and output of this machine?
The output depends on the model and bottle size:
Model HLBW-120: Capable of producing up to 7,000 bottles per hour.
Model HLBW-240: Capable of producing up to 14,000 bottles per hour (approx. 240 bottles per minute).
Does the machine wash both the inside and outside of the bottles?
Yes. The machine features a comprehensive cleaning system:
Internal Cleaning: Equipped with 60 to 120 internal jets across multiple zones for deep decontamination.
External Cleaning: Includes 20 specialized jets (arranged in 2 rows of 10) dedicated to thoroughly washing the outer surface of the bottles.
Is the washing sequence customizable?
Yes. One of the key advantages of Harsiddh Unimach’s linear bottle washer is that the washing order and sequence are entirely customizable. This allows customers to reconfigure the stages to meet their specific product requirements or unique Standard Operating Procedures (SOPs).
