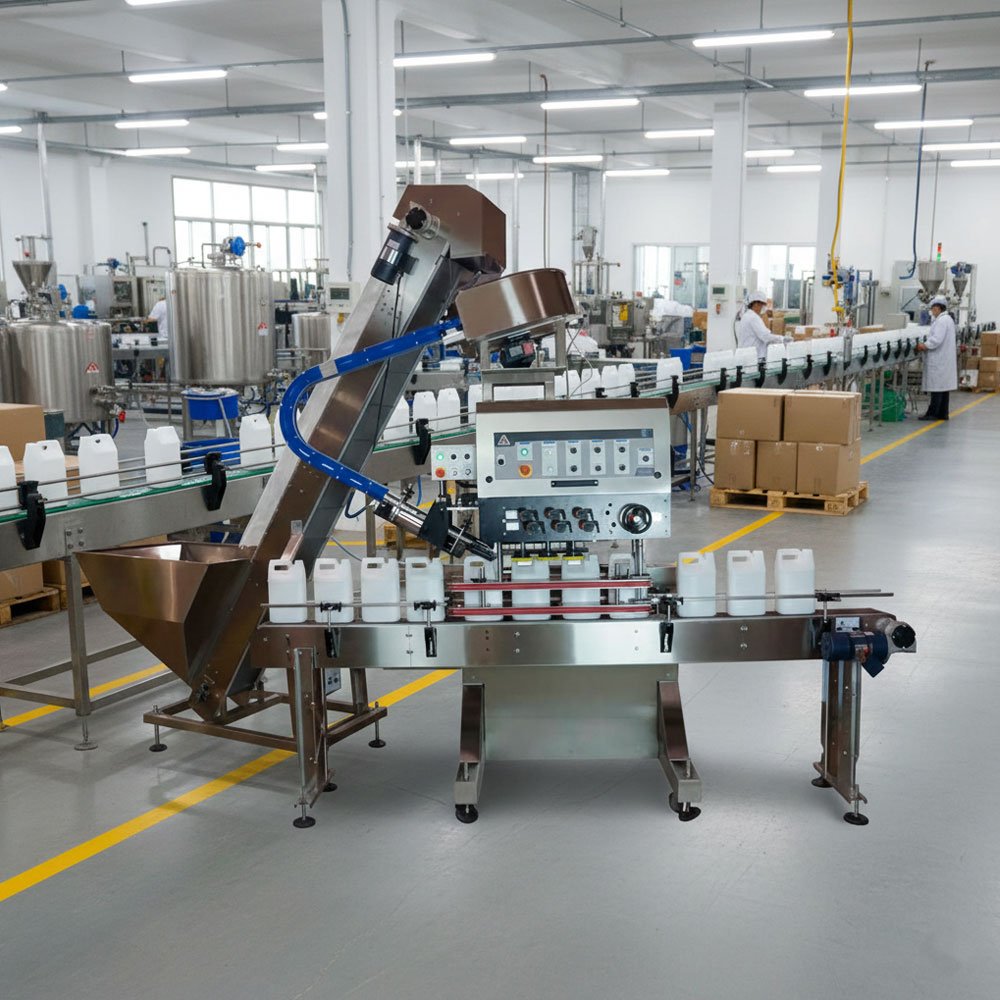

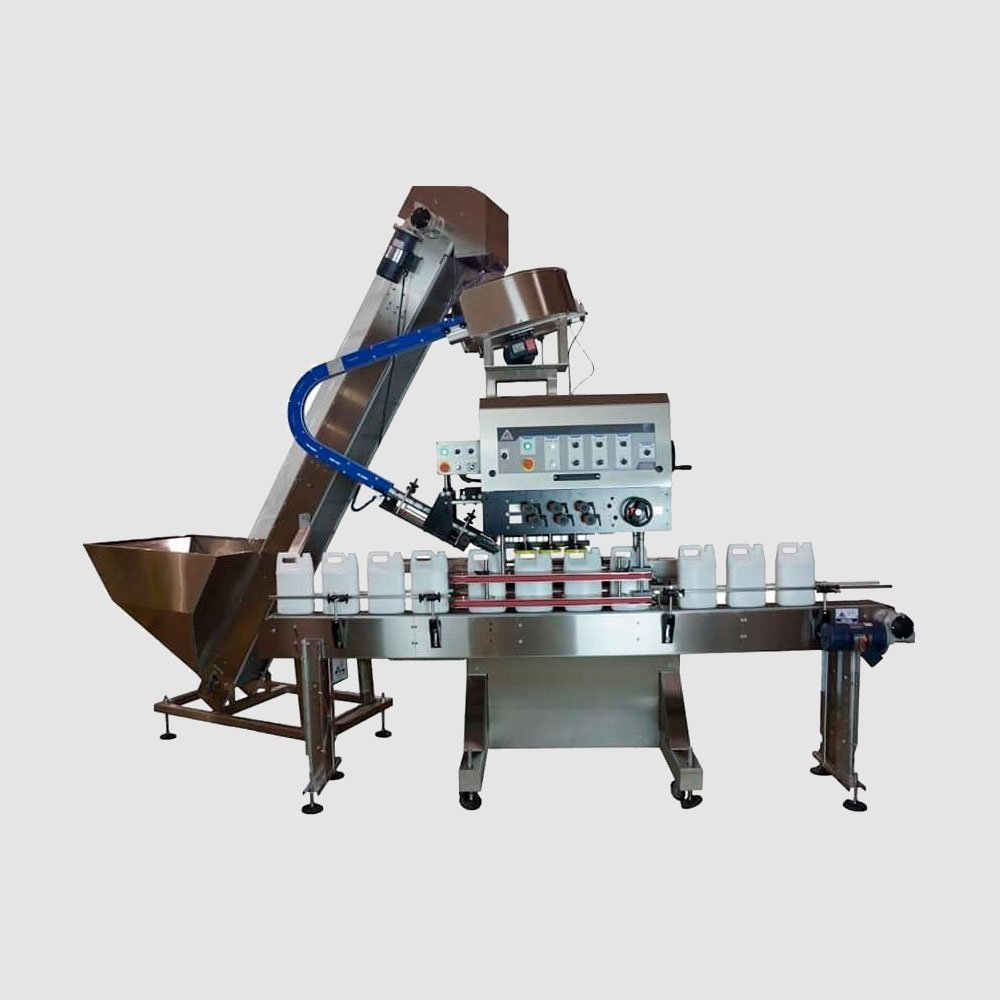

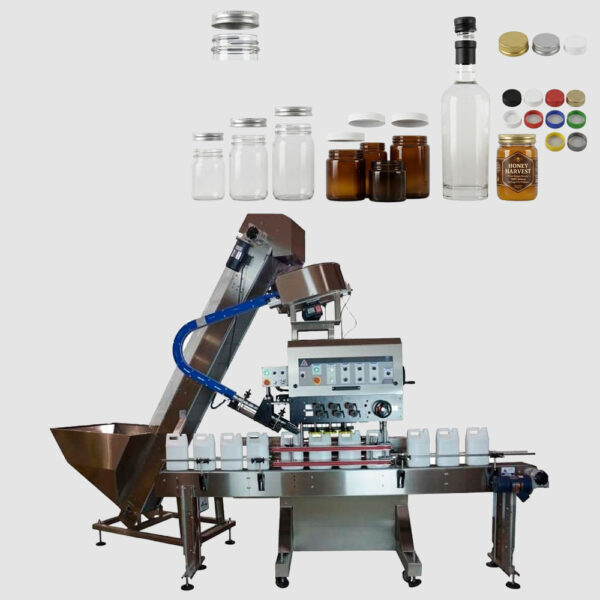

Automatic Jar Capping Machine
High-Speed, Precision Sealing for Wide-Mouth Containers & Jars
In the fast-paced world of modern packaging, efficiency, precision, and consistency are the cornerstones of profitability. The Harsiddh Automatic Jar Capping Machine (HJC-100) stands out as an industry-leading automation solution engineered specifically for high-speed, reliable closures on wide-mouth containers.
Whether your production line handles delicate glass jars, rugged HDPE containers, versatile PET bottles, or lightweight plastic tubs, the HJC-100 delivers the uncompromising torque accuracy and sealing integrity your brand demands. Built for continuous operation and rapid changeovers, this heavy-duty machine minimizes downtime while maximizing your daily production yield.
The Ultimate Closing Solution for Diverse Industries
Different products require different handling, but the HJC-100 adapts seamlessly across a massive spectrum of sectors. It is the perfect mechanical asset for:
- The Food & Beverage Industry: Ensuring hermetic, leak-proof, and tamper-evident seals for gourmet jams, thick pickles, heavy sauces, mayonnaise, peanut butter, honey, and baby food.
- Pharmaceuticals & Nutraceuticals: Delivering airtight, hygienic closures for wide-mouth protein powder tubs, dietary supplements, vitamin gummies, and bulk tablet containers.
- Cosmetics & Personal Care: Flawlessly tightening caps on high-end beauty creams, body scraps, hair masks, and petroleum jelly jars without scratching or marring the aesthetic finish of the premium caps.
- Chemical & Industrial Goods: Securing hazardous or high-viscosity pastes, grease, adhesives, and powdered chemicals safely within industrial-grade wide-mouth containers.
Advanced Sequence of Operation: Engineering a Flawless Workflow
The core strength of the Harsiddh HJC-100 lies in its synchronized, fully automated operational cycle. Every movement is managed via sophisticated sensors and programmable logic to ensure that every single jar leaving the line is perfectly sealed.
1. High-Precision Container Indexing
Empty or pre-filled jars travel smoothly onto our heavy-duty, wear-resistant motorized conveyor system. An integrated indexing mechanism—utilizing either starwheels or specialized spacing screws—separates and positions each jar with absolute accuracy beneath the capping assembly. This prevents container tipping, spilling, or misalignment, even during high-speed runs.
2. Smart Cap Sorting & Delivery
Caps are loaded into a high-capacity vibratory or mechanical orientation feeder. The feeder automatically aligns the caps right-side-up and directs them down a dedicated delivery chute. A smart “No Jar – No Cap” sensor array monitors the line; if a gap in production occurs and no jar is detected, the machine instantly pauses cap dispensing to prevent waste and mechanical jamming.
3. Controlled Sealing & Precise Torque Application
As the jar reaches the sealing zone, the automated capping head descends. Utilizing adjustable magnetic or mechanical clutch systems, the machine applies the exact, pre-set torque required for your specific closure type. This precise control ensures that caps are neither under-tightened (which causes leaks and spoilage) nor over-tightened (which cracks the caps or strips the container threads).
4. Real-Time Fault Monitoring & Safety Inspections
The HJC-100 is equipped with proactive, real-time diagnostic sensors. The system constantly monitors for anomalies such as crooked caps, missing foils, cross-threading, downstream backups, or structural jams. If any irregularity is detected, the system can trigger an audible alarm, redirect the faulty jar to a rejection lane, or initiate an automatic safety halt to protect your operators and equipment.
5. Seamless Outfeed Discharge
Once securely sealed, the jars are smoothly transferred to the high-speed outfeed conveyor. From here, they flow directly into subsequent production phases, such as induction sealing, external washing, automatic labeling, batch printing, or secondary case packing.
Key Features & Technological Advantages
Why choose the Harsiddh HJC-100 over standard capping equipment? It is engineered with proprietary features designed to give your packaging line a competitive edge:
- Universal Container Material Compatibility: Effortlessly handles glass, PET, HDPE, PVC, and PP containers without requiring structural redesigns.
- Wide-Mouth Adaptability: Purpose-built to handle wide-mouth configurations, large caps, lugs, and deep-turn closures that traditional bottle cappers struggle to manage.
- Toolless Changeovers: Minimize your scheduled downtime. Adjusting the machine for different jar heights, diameters, and cap sizes requires minimal tools and can be completed by a single operator in minutes.
- Heavy-Duty CGMP Compliant Design: Fabricated from premium-grade AISI 304/316 stainless steel and anodized aluminum. The machine features a clean, crevice-free structure that complies fully with current Good Manufacturing Practices (cGMP) for food and pharma safety.
- Gentle Cap Handling: The capping chucks and feeding chutes are lined with non-marring, food-safe materials that prevent cosmetic scuffs, scratches, or structural deformation on your finished product lids.
Technical Specification
| Specification | Details (HJC-100) |
|---|---|
| Output Speed | High-speed continuous operation |
| Jar Diameter | Up to 85mm (Customizable for larger sizes) |
| Jar Height | 300mm Maximum |
| Cap Compatibility | Screw, Lug, or Pilfer-Proof (Per samples) |
| Power Consumption | 2 HP | 220V 1-Phase OR 380V 3-Phase |
| Conveyor Height | 850mm to 900mm (Adjustable) |
| Dimensions (L x W x H) | 1750mm x 800mm x 1875mm |
| Net Weight | Approx. 550 Kgs |
Boost Your Production Line Efficiency with Harsiddh
Investing in the Harsiddh Automatic Jar Capping Machine (HJC-100) means choosing reliability, operational longevity, and world-class engineering. By replacing manual labor or semi-automatic systems with our fully automated, high-speed solution, your facility will benefit from reduced labor overhead, elimination of human error, and a massive surge in daily output.
Whether you are expanding an existing packaging facility or establishing a brand-new processing line, our team of dedicated automation engineers is ready to customize the HJC-100 to meet your exact specifications.
Optimize Your Packaging Line Today
Don’t let manual bottle necking slow down your business growth. Contact Harsiddh Unimach today to request a comprehensive technical quote, schedule a live machinery demonstration, or discuss your custom container requirements with our engineering team. Let us build the future of your packaging line together.
Frequently Asked Questions
How does the machine accommodate different jar heights and diameters?
The machine is engineered with an adjustable capping head assembly and side-holding belts. By using a simple hand-wheel mechanism, operators can raise or lower the capping station to match the height of the jar. For different jar diameters, the guide rails and star-wheels can be adjusted or swapped quickly, allowing for seamless transitions between different product sizes with minimal downtime.
Does the machine include an automatic cap feeding system?
Yes. To ensure a fully automated workflow, the machine is integrated with a Vibratory Bowl Feeder or a Rotary Cap Elevator. This system automatically sorts bulk caps from a hopper, aligns them in the correct orientation, and feeds them into the capping chute. The "No Jar – No Cap" sensor ensures that a cap is only released when a jar is detected on the conveyor, preventing component wastage.
How is the capping torque controlled to ensure a consistent seal?
To prevent damage to the jar threads or the cap itself, the machine utilizes Adjustable Magnetic Torque Capping Heads. This allows you to calibrate the exact amount of force required to seal the jar. Once the pre-set torque is reached, the head "slips" to prevent over-tightening, ensuring every jar is sealed with identical tension to meet quality control standards.
Is this machine suitable for cleanroom or food-grade environments?
Absolutely. As a cGMP-compliant model, the Harsiddh Jar Capper is constructed with a robust SS 304 stainless steel frame. All parts that come into contact with the jars or caps are made from corrosion-resistant, food-grade materials. The open-frame design and smooth finishes allow for easy cleaning and maintenance, which is essential for the pharmaceutical and food processing industries.
