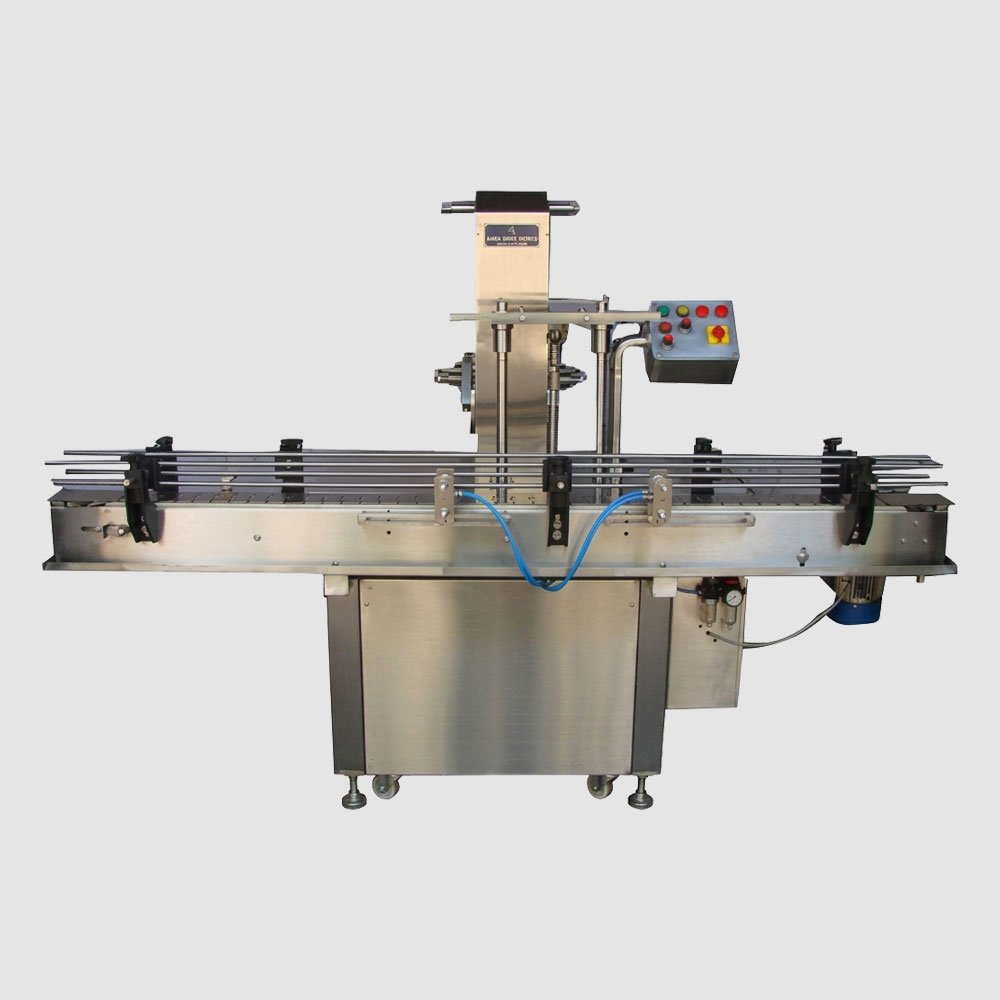

Automatic Hair Oil Filling Machine

High-Precision Packaging Solutions for Cosmetic & Herbal Oils

In the highly competitive cosmetic, personal care, and Ayurvedic industries, presentation and product integrity are paramount. Hair oils—ranging from lightweight, free-flowing essential oils to dense, viscous herbal infusions and premium hair serums—present distinct handling challenges. Traditional liquid fillers often struggle with product dripping, inconsistent filling levels, and excessive foaming, leading to material waste and compromised packaging aesthetics.

Harsiddh Unimach Pvt. Ltd. offers the definitive solution with our state-of-the-art Automatic Hair Oil Filling Machine. Explicitly engineered to adapt to the unique rheological and foaming characteristics of various oil formulations, this high-performance machinery delivers exceptional precision, pristine cleanliness, and uncompromised line efficiency. Built in strict accordance with cGMP standards, our filling equipment integrates seamlessly into automated, high-speed bottling lines, enabling modern manufacturers to maximize throughput while minimizing operational costs.

Engineering Challenges in Hair Oil Bottling: The Harsiddh Advantage

Liquid hair care formulations are rarely uniform. A single production facility may need to bottle a water-thin structural hair tonic in the morning and a heavy, nutrient-rich castor oil blend in the afternoon. Standard volumetric filling systems lack the adaptability required for such diverse product profiles.

Our advanced filling system addresses these challenges directly through engineered flexibility:

• Managing Variable Viscosity: By utilizing advanced servo-driven technologies, our machinery allows operators to fine-tune the dispensing speed and pressure profile based on the liquid’s precise viscosity. This ensures consistent volumetric accuracy regardless of fluid density.
• Eliminating Aeration and Foaming: High-speed filling of oils often introduces air, creating microscopic bubbles that lead to inaccurate volume levels and messy overflows. Our specialized bottom-up diving nozzle technology suppresses foam generation from the very start of the cycle.
• Preventing Product Dripping: Oil residue on the container rim or neck ruins the sealing integrity of capping machines and compromises the final label application. Our positive-cut-off pneumatic nozzles feature an active suck-back mechanism, keeping every bottle and the conveyor surface completely clean.

Step-by-Step Operational Workflow

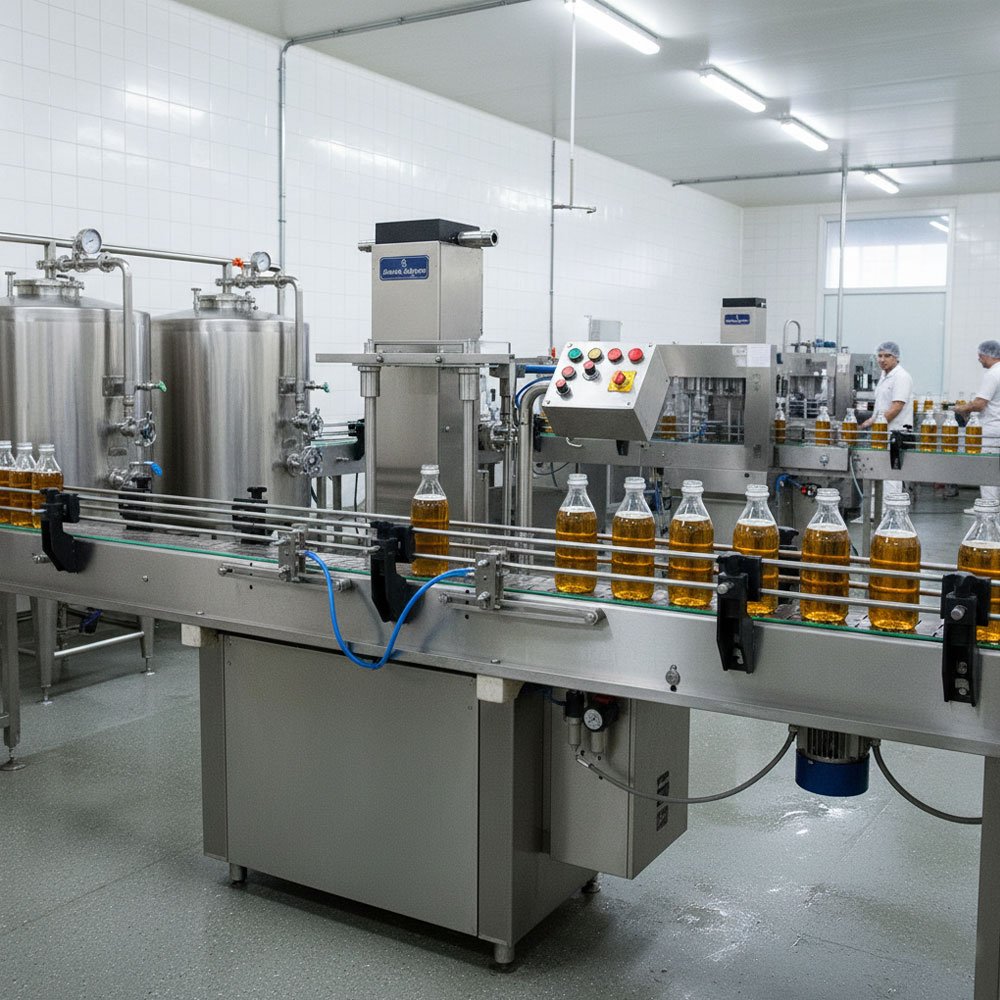

Efficiency in automated packaging relies on continuous, predictable movement. The automated hair oil filling system by Harsiddh Unimach Pvt. Ltd. coordinates container positioning, product dosing, and smooth discharge into a single synchronized sequence:

1. Precision Automatic Indexing

Empty containers are fed onto a heavy-duty Stainless Steel (SS) slat conveyor. As they approach the filling zone, a highly reliable twin-pneumatic stopper system engages. This mechanism accurately counts and spaces the bottles, centering them perfectly beneath the dispensing nozzles to eliminate any risk of misalignment or product spillage.

2. Intelligent Servo-Driven Dosing

Once the containers are securely indexed, the volumetric filling system activates. Unlike mechanical cam-driven pumps, our electronic servo-dosing system accurately measures and dispenses the programmed target volume. Operators can easily adjust parameters via a user-friendly touchscreen interface, accommodating different bottle volumes and product profiles in seconds without mechanical teardowns.

3. Controlled Bottom-Up Filling

To combat the natural foaming tendencies of herbal oils and premium serums, the machine utilizes a dynamic diving nozzle array. The nozzles descend completely to the bottom of the empty container before dispensing begins. As the liquid level rises, the nozzles lift in perfect synchronization with the fluid, keeping the nozzle tip submerged just below the surface. This controlled rise prevents air entrapment, turbulence, and bubble formation.

4. No-Drip Positive Cut-off & Suck-Back

The moment the exact volume is delivered, the pneumatic filling nozzles shut instantly. Simultaneously, an integrated suck-back feature pulls any remaining droplet back into the nozzle orifice. This positive cut-off eliminates stringing and tailing, ensuring a clean break between cycles and leaving bottle necks free from oily contamination.

5. Smooth Container Discharge

With the filling process cleanly completed, the pneumatic bottle stoppers retract. The filled containers advance smoothly along the high-speed conveyor line toward downstream operations, such as automatic capping, induction sealing, and precision labeling, maintaining an uninterrupted production flow.

Key Features & Technological Specifications

• cGMP-Compliant Architecture: Constructed utilizing premium-grade Stainless Steel (SS 304/SS 316L) for all product contact parts, ensuring compliance with international cosmetic and pharmaceutical sanitation regulatory standards.
• Advanced Servo Technology: Replaces traditional pneumatic cylinders or mechanical linkages with high-precision servo motors for superior control over piston stroke lengths and filling velocities.
• Tool-less Changeovers: Designed with operators in mind, the machine supports fast changeovers between different bottle shapes, sizes, and volumes with minimal tool requirements, maximizing overall equipment effectiveness (OEE).
• “No Bottle, No Fill” Protection: An intelligent array of optical sensors monitors the line continuously. If a gap in production occurs or a bottle falls over, the system automatically pauses dispensing for that specific cycle to prevent product waste and machine fouling.
• Integrated PLC & HMI Control Panel: A centralized control system allows production managers to store multiple product recipes, monitor real-time output statistics, adjust filling speeds, and diagnose system warnings from an intuitive touchscreen interface.

Transforming Commercial Production Performance

Investing in an automated hair oil filling line from Harsiddh Unimach Pvt. Ltd. delivers immediate, measurable returns across your manufacturing operations. By automating the delicate liquid filling process, cosmetic brands can scale up production capacities seamlessly, moving from low-volume batch processing to continuous, high-volume market supply.

The micro-adjustability of our servo-driven dosing pumps means product giveaway is virtually eliminated. Over the course of thousands of production runs, saving fractions of a milliliter per bottle adds up to substantial cost savings on expensive essential oils, cold-pressed bases, and active ingredients. Furthermore, the reduction in manual labor and product clean-up tasks allows your production staff to focus on quality assurance and overall plant optimization.

Applications Across the Personal Care & Cosmetic Sectors

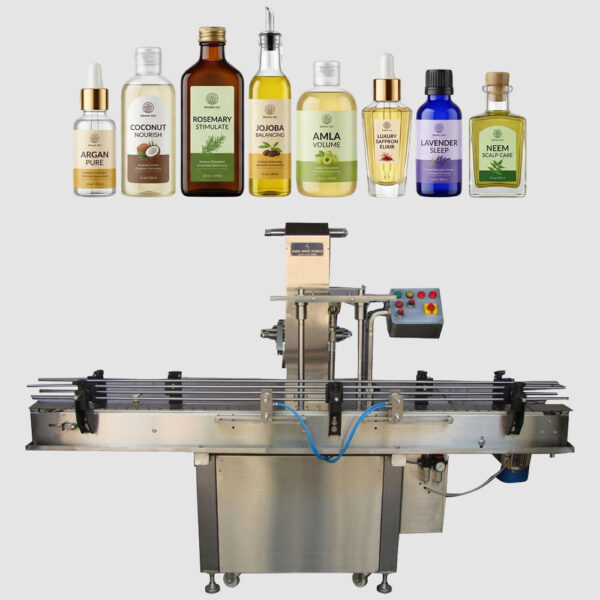

While specifically optimized for hair oils, the inherent adaptability of our filling machinery makes it an incredibly versatile asset for a wide range of liquid products, including:

• Ayurvedic & Herbal Hair Oils (Bhringraj, Amla, Brahmi formulations)
• Lightweight Cosmetic Hair Serums & Argan Oils
• Pure Essential Oils and Aromatherapy Blends
• Body Massage Oils and Baby Oils
• Shampoos, Conditioners, and Liquid Cleansers

Technical Specification

Partner with Harsiddh Unimach Pvt. Ltd.

At Harsiddh Unimach Pvt. Ltd., we understand that high-speed packaging requires more than just high-quality hardware—it demands a deep understanding of product behavior and line integration. Our engineering team works closely with your production specialists to configure a filling machine tailored precisely to your container shapes, production environments, and output targets.

Frequently Asked Questions
