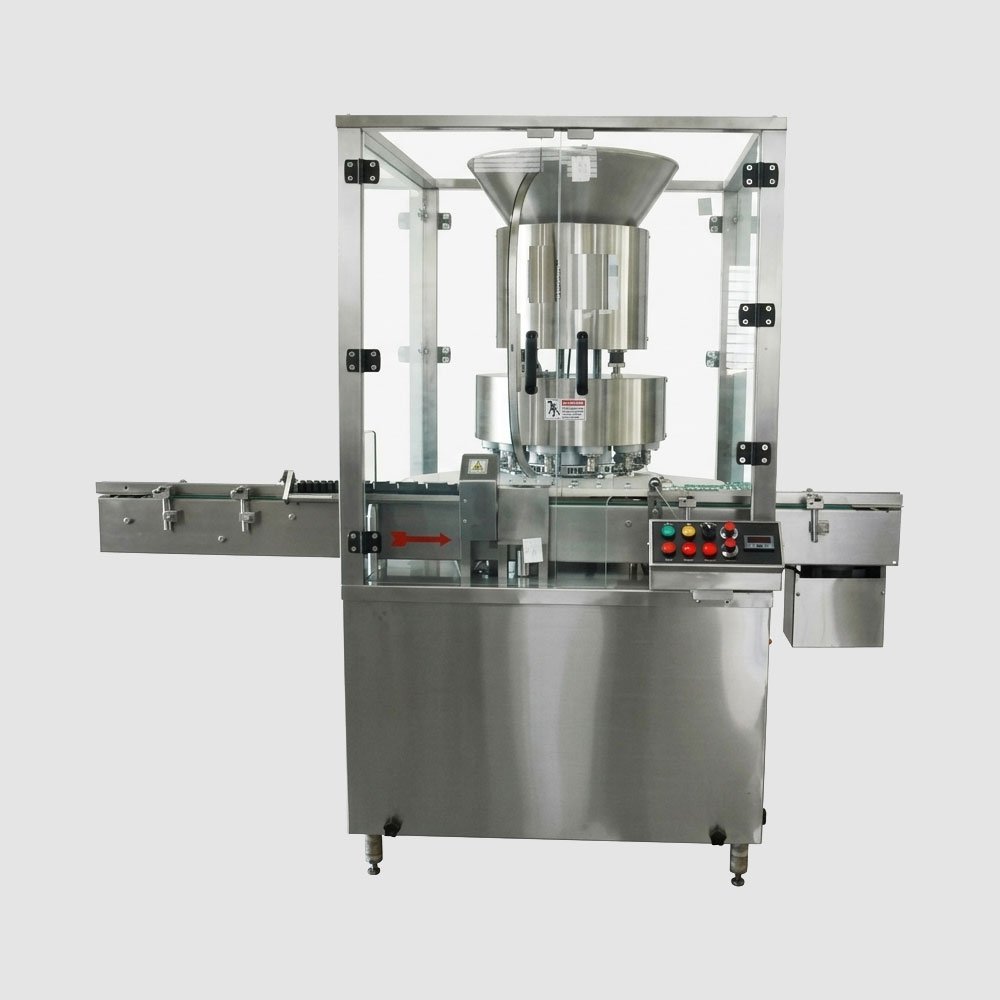

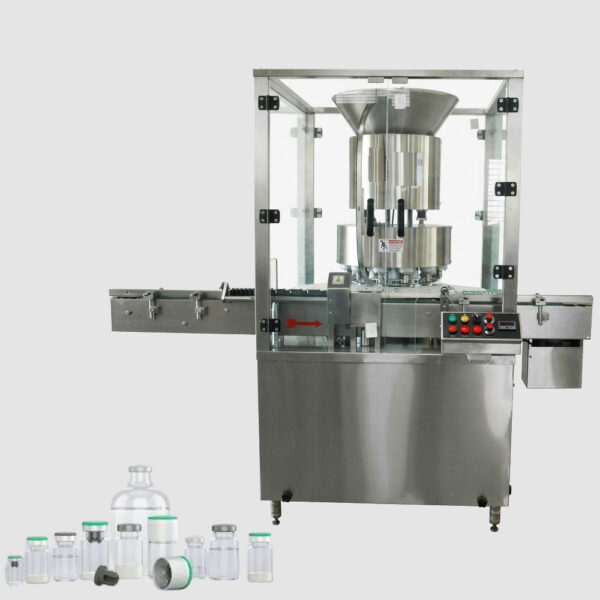

Automatic Four Head Vial Cap Sealing Machine
High-Speed, Sterile Rotative Capping Solutions for Modern Pharmaceutical Lines
In the high-stakes environment of pharmaceutical manufacturing, maintaining sterility, ensuring regulatory compliance, and maximizing throughput are paramount. The Harsiddh Automatic Four-Head Vial Cap Sealing Machine (Model: HVCS-120) stands at the forefront of injectable packaging technology. Engineered specifically for high-volume sterile processing lines, this advanced rotary capping system delivers exceptional sealing integrity while maintaining an incredibly compact cleanroom footprint.
Whether processing liquid injectables, lyophilized biologics, or specialized vaccines, the HVCS-120 offers a reliable, continuous-motion solution tailored for aluminum skirt and flip-off cap applications. By upgrading from single-head or linear systems to our multi-head rotary configuration, manufacturers can dramatically boost their production output without compromising on the clinical precision that modern medicine demands.
The Core Advantage: Why Choose the HVCS-120?
The HVCS-120 is not just a piece of machinery; it is an investment in absolute process reliability. Pharmaceutical vials contain life-saving medications where even a microscopic seal failure can lead to product contamination, costly recalls, or compromised patient safety.
Our four-head rotary sealing mechanism distributes mechanical stress evenly, achieving absolute hermetic seals on every single container. By utilizing independent, spring-loaded roller assemblies, the machine adapts dynamically to the minor dimensional tolerances inherent in glass vials and molded aluminum caps. The result is a smooth, aesthetically perfect, and clinically secure crimp that satisfies the strict inspection standards of international regulatory bodies like the FDA and EMA.
Detailed Step-by-Step Operational Workflow
The HVCS-120 operates on a seamless, continuous-motion principle that minimizes vial-to-vial impact, drastically reducing the risk of glass breakage and cosmetic defects. Below is the precise sequence of operations that transforms a loose, stoppered vial into a perfectly sealed, market-ready product:
[In-Feed Conveyor] ➔ [Star Wheel Indexing] ➔ [Cap Pick & Place] ➔ [4-Head Rotary Sealing] ➔ [Discharge Conveyor]1. Precision Bottle In-Feed & Indexing
Rubber-stoppered vials arrive from the upstream filling and stoppering line via a heavy-duty, variable-speed stainless steel conveyor. A custom-machined feed worm and a high-density star wheel gently index the vials, ensuring they are perfectly spaced and synchronized with the rotation of the main sealing turret.
2. Automated Cap Delivery & Sensor Verification
Concurrently, aluminum or flip-off caps are loaded into a bulk vibratory bowl elevator. The bowl correctly orients the caps and feeds them down a precise delivery chute. As a vial passes beneath the chute, it automatically plucks a cap from the feed mechanism.
Before proceeding to the sealing station, an integrated matrix of smart sensors performs a critical double-check:
- No Vial – No Cap: Prevents the machine from releasing a cap if a vial is missing from the slot.
- No Cap – Machine Stop: Detects if a vial failed to pick up a cap, pausing the cycle to prevent an unsealed vial from advancing.
3. High-Speed Rotary Sealing (The Crimp Station)
The indexed vial and its loosely resting cap enter the four-head rotary sealing turret. As the turret rotates, the specialized sealing heads descend vertically. A spring-loaded hold-down plate secures the vial firmly from the top, compressing the rubber stopper into the vial neck to create a tight pre-seal. Simultaneously, the free-spinning, hardened steel rollers swing inward. These rollers roll and tuck the aluminum skirt flawlessly beneath the glass vial rim, forming a permanent, tamper-evident hermetic seal.
4. Advanced Mechanical Safety & Fail-Safes
To safeguard your high-value product and expensive tooling, the HVCS-120 features an integrated mechanical safety clutch assembly. In the rare event of a line jam, deformed vial, or misaligned component, the safety clutch instantaneously disengages the main drive. This near-zero-latency intervention prevents glass crushing, eliminates structural damage to the machine, and minimizes cleanup downtime.
5. Smooth Discharge and Downstream Transition
Once the sealing cycle is complete, the heads retract smoothly. The sealed containers are guided via a discharge star wheel out of the rotary turret and onto the exit conveyor. From here, the vials are smoothly transitioned to downstream inspection, serialization, and labeling phases.
Key Technical Features and Technical Specifications
To achieve consistent validation in cGMP-regulated facilities, the HVCS-120 is built with top-tier materials and cutting-edge automation controls.
- Production Output: Capable of sealing up to 120 vials per minute (depending on vial size and cap characteristics).
- Vial Range Compatibility: Easily adaptable to process vials ranging from 2 ml up to 100 ml with minimal, quick-change tooling parts.
- Cap Compatibility: Optimized for both standard Aluminum Caps and Flip-Off (plastic-topped) style caps.
- Premium Construction: All product contact parts and external enclosures are crafted from AISI Stainless Steel 316L and 304, ensuring compatibility with aggressive cleanroom sanitization agents and VHP (Vaporized Hydrogen Peroxide) sterilization.
- Drive System: Equipped with a synchronized A.C. variable frequency drive (VFD) for precise, jerk-free speed adjustments.
Engineered for Compliance: cGMP and Validation Friendly

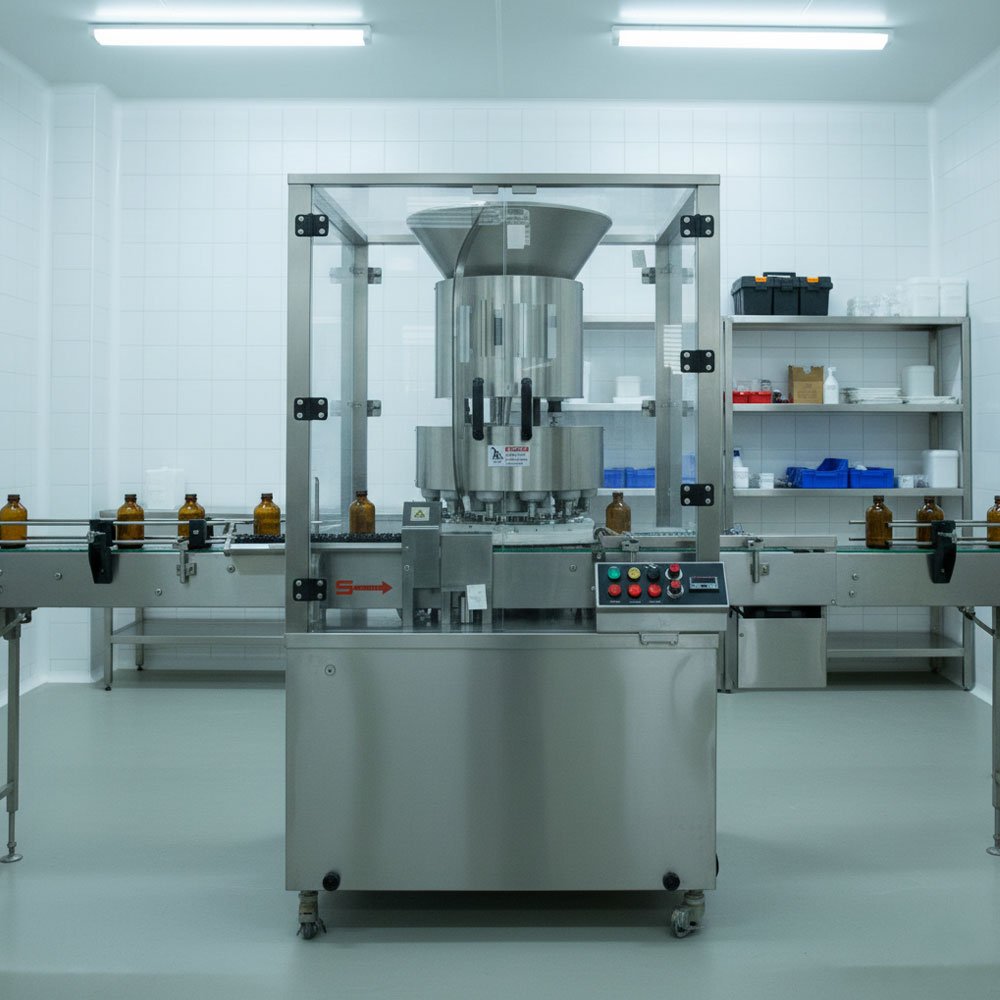

The Harsiddh HVCS-120 is designed from the ground up to integrate flawlessly into Grade A / Class 100 sterile environments.
Minimal Particle Generation
Traditional capping machines can shed metallic or plastic particulates due to friction. The HVCS-120 addresses this by using precisely machined, low-friction rollers and enclosed drive mechanisms located beneath the tabletop working zone. This design ensures that laminar airflow remains undisturbed and free from particulate contamination.
Ergonomic and Accessible Design
The open-tabletop architecture allows operators and validation teams to access all parts easily for routine cleaning, line clearance, and changeovers. The reduction in complex crevices simplifies your daily Clean-in-Place (CIP) protocols.
Validation Documentation Support
We understand that hardware is only half the battle in the pharmaceutical industry. Every HVCS-120 can be supplied with a comprehensive validation documentation package, including Design Qualification (DQ), Installation Qualification (IQ), and Operational Qualification (OQ) protocols to accelerate your plant’s time-to-market.
Technical Specification
| Specification | Details (HVCS-120) |
|---|---|
| Sealing Head | Four Head Rotary |
| Output Per Hour | 2,000 to 4,000 Vials (Size Dependent) |
| Vial Range | 2ml to 100ml (Dia. 16mm to 56mm) |
| Cap Size Compatibility | 13mm, 20mm, 28mm & 32mm |
| Main Motor | 1.0 H.P. / 415 V / 3 Phase |
| Conveyor Motor | 0.25 H.P. (Adjustable Height 800-900mm) |
| Machine Dimensions | 1550mm (L) x 900mm (W) x 1700mm (H) |
| Net Weight | Approx. 285 Kgs |
Elevate Your Sterile Packaging Line Today
When processing injectables, there is no room for compromise. The Harsiddh Automatic Four-Head Vial Cap Sealing Machine (HVCS-120) blends high-speed throughput, rugged mechanical reliability, and pristine cGMP compliance into one unified, compact platform. Optimize your pharmaceutical packaging line, reduce product rejection rates, and guarantee absolute seal integrity for every vial that leaves your facility.
Contact the engineering experts at Harsiddh Unity Machinery today to request a customized quote, schedule a live demonstration, or discuss your specific vial and cap testing requirements. Let us help you secure your production line with clinical precision.
Frequently Asked Questions
How does the "Rotary Spinning" sealing mechanism work?
Unlike simple vertical pressing, our machine uses a Spinning Roller Sealing method. As the vial is lifted into the sealing head, three or four rollers rotate around the neck of the vial, gradually folding the aluminum cap skirt under the vial’s rim. This ensures a uniform, 360-degree seal that is significantly more reliable and aesthetically cleaner than traditional crimping.
What is the production capacity of this Four Head model?
The Four Head Vial Sealer is built for efficiency, typically achieving an output of 70 to 100 vials per minute. This makes it the ideal "mid-range" choice for pharmaceutical labs and manufacturers who have outgrown single-head machines but do not yet require the 200+ VPM speeds of an eight-head rotary system.
Can the machine handle different vial sizes and cap types?
Yes. The Harsiddh Four Head Vial Sealer is highly adaptable. It can handle vial sizes ranging from 2ml to 100ml and standard cap diameters (typically 13mm or 20mm). Changeover between different vial diameters is handled via "Quick-Change" star-wheels and guide rails, allowing for minimal downtime between different product batches.
What safety and quality control features are integrated into the machine?
As a cGMP-compliant model, the machine includes several critical features to ensure product integrity:
"No Vial – No Cap" System: Sensors ensure that an aluminum cap is only released when a vial is present, preventing cap wastage and potential jams.
Spring-Loaded Sealing Heads: Each head is equipped with a spring-buffer to account for slight height variations in glass vials, preventing vial breakage during the sealing process.
Total Enclosure: The machine is housed in a transparent acrylic safety cabinet with interlock switches that stop operation if the doors are opened, maintaining a safe and clean environment.
