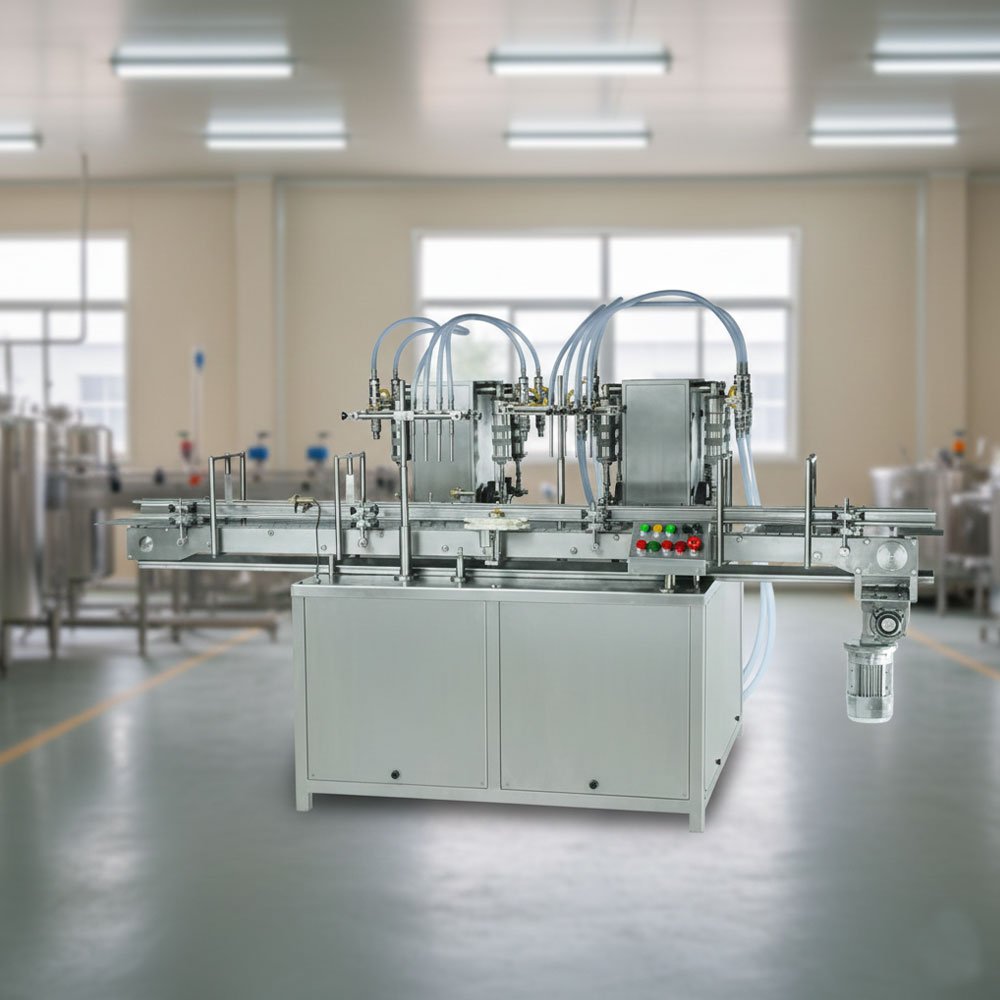

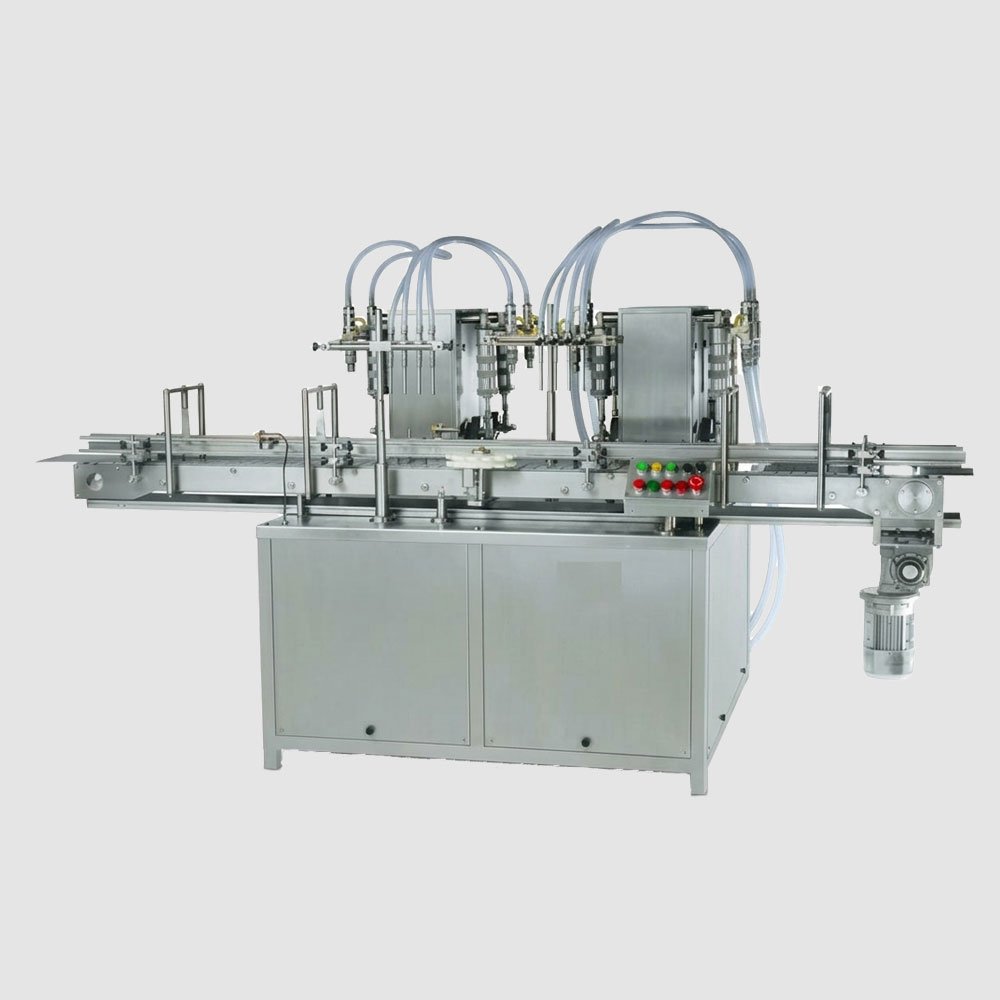

Automatic Edible Oil Filling Machine

Precision Engineering for the Liquid Condiment Industry

In the highly competitive food and beverage sector, packaging precision, hygiene, and operational efficiency are the cornerstones of market success. Harsiddh Unimach Pvt. Ltd. proudly engineers the state-of-the-art Automatic Edible Oil Filling Machine, a premium industrial solution designed to master the unique challenges of bottling culinary oils. From high-viscosity mustard oil to delicate extra virgin olive oil, this robust, automated system delivers unmatched volumetric accuracy, immaculate hygiene standards, and high-speed throughput to keep your production lines running smoothly.

The Edible Oil Bottling Challenge: Solved by Innovation

Bottling edible oils presents distinct engineering hurdles that conventional liquid fillers fail to address. Cooking oils fluctuate in viscosity based on ambient factory temperatures. A machine calibrated for cool morning temperatures might over-fill or under-fill as the factory warms up in the afternoon.

To eliminate this volatility, Harsiddh Unimach Pvt. Ltd. has integrated cutting-edge, servo-based gear pump technology into our filling systems. Rather than relying on simple gravity or time-gravity mechanisms, our servo-driven architecture monitors and controls the exact rotation of the pump head. This eliminates the inaccuracies caused by temperature-driven viscosity shifts, ensuring that every single bottle—whether filled with thick rice bran oil or light sunflower oil—meets your precise weight and volume standards.

Comprehensive Technical Architecture & Workflow

The efficiency of our Automatic Edible Oil Filling Machine lies in its synchronized, automated mechanical workflow. Every stage of the container lifecycle is closely monitored by advanced sensors and PLC controls to ensure a seamless transition from empty bottles to retail-ready, precisely filled packages.

1. High-Efficiency In-Feed and Positioning

The packaging process begins at the in-feed zone. Empty containers (fabricated from PET, HDPE, or glass) are fed into the system via an integrated rotary turn-table or a heavy-duty, variable-speed slat conveyor line. The system utilizes automated pneumatic stopper gates and indexing pins to perfectly align a batch of bottles directly beneath the multi-head filling manifold.

2. No-Bottle-No-Fill Sensor Verification

To maximize resource conservation and maintain a clean working environment, the machine is equipped with advanced photoelectric sensors. These sensors detect the presence of containers at the filling station. If a bottle is missing, damaged, or misaligned, the system automatically bypasses that specific filling nozzle. This “No-Bottle-No-Fill” mechanism prevents costly oil spillage, reduces product wastage, and keeps the conveyor belt completely clean.

3. Bottom-Up Diving Nozzle Technology

Cooking oils are naturally prone to foaming, splashing, and air entrapment when dispensed at high speeds. To counter this, Harsiddh Unimach Pvt. Ltd. utilizes custom-engineered diving nozzles. At the start of the filling cycle, these specialized nozzles descend deep into the neck of the bottle, resting just above the base. As the servo-gear pump dispenses the liquid, the nozzles gradually retract upward in perfect synchronization with the rising oil level. This bottom-up filling technique guarantees a smooth, laminar flow, entirely eliminating air pockets, product aeration, and surface foam.

4. Positive Drip-Cut Mechanical Shut-Off

Oil droplets on the bottle rim or outer threads can ruin labels, compromise the capping seal, and attract dust during transit. Our filling machine solves this with a positive pneumatic drip-cut shut-off mechanism located at the tip of each nozzle. The moment the exact volume is reached, the nozzle valves snap shut instantly, suck back any residual oil, and prevent any trailing drops from falling onto the bottle rim or the conveyor system.

5. Smooth Discharge to Downstream Stations

Once the filling cycle concludes, the pneumatic gates drop, and the filled containers are smoothly accelerated down the conveyor line. The bottles are transitioned toward subsequent downstream automated modules, such as induction sealers, rotary capping systems, and high-speed self-adhesive labeling machinery.

Key Features & Benefits for Your Production Line

Investing in the advanced machinery from Harsiddh Unimach Pvt. Ltd. translates directly to enhanced profitability and reduced overhead. Here is what sets our equipment apart:

• Premium Stainless Steel Construction: All contact parts are meticulously crafted from food-grade Stainless Steel (SS 316), while the main structural frame is built from SS 304. This ensures complete compliance with global food safety standards and provides excellent resistance to corrosion.
• Intuitive HMI and PLC Control Panel: The machine features a user-friendly Touchscreen Human-Machine Interface (HMI) paired with a robust Programmable Logic Controller (PLC). Operators can easily adjust filling volumes, save multiple product recipes, and monitor real-time production analytics with just a few taps.
• Toolless Adjustments for Varied Container Formats: Whether your product line switches from 200ml pet bottles to 1-liter jars or 5-liter jerrycans, our machine offers quick, tool-free changeover adjustments for container height and width, drastically reducing operational downtime.
• Eco-Friendly and Waste-Minimizing Design: By combining servo-precision, drip-free nozzles, and intelligent sensors, our machine minimizes product giveaway and floor cleanup, directly boosting your bottom line.

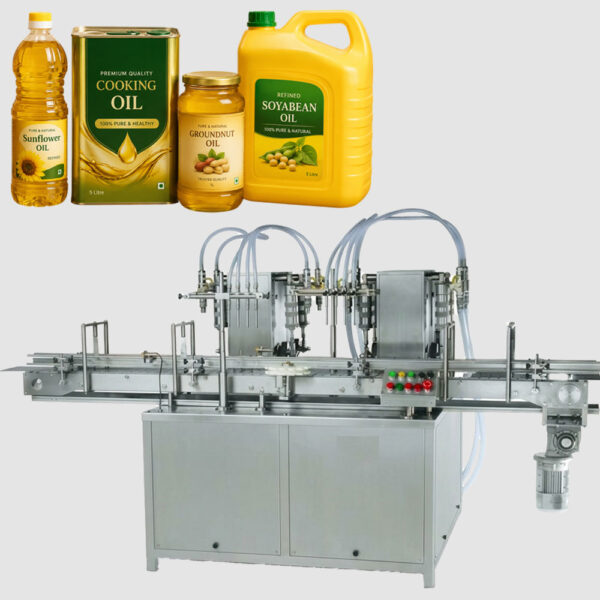

Versatile Application Across the Edible Oil Spectrum

Different culinary oils possess varied textures, weights, and pouring behaviors. The versatile engineering behind the Harsiddh Automatic Edible Oil Filling Machine makes it the perfect match for a diverse range of liquid items:

1. Seed Oils: Sunflower oil, cottonseed oil, sesame oil, and canola oil.
2. Fruit and Nut Oils: Extra virgin olive oil, avocado oil, coconut oil, and peanut/groundnut oil.
3. High-Viscosity Oils: Pure mustard oil, castor oil, and specialized blended frying oils.
4. Alternative Liquid Fats: Liquid ghee and vegetable shortenings.

No matter the thickness or density of your specific product line, our system maintains uniform volume tracking without degrading the organic properties of the food item.

Technical Specification

Specification	Details (Edible Oil Series)
Output / Minute	10 to 100 Containers (Volume & Model Dependent)
Filling Range	10ml to 10,000ml / 10 grams to 10 kgs
Container Types	Glass, PET, Plastic (All Shapes)
Contact Parts	Stainless Steel AISI 316L
Storage Tank	80 Liters (Customizable)
Control System	PLC with Touch Screen HMI
Filling Type	Electronic Servo Based Gear Pump System
Compliance	cGMP Compliant & CE Certified

Elevate Your Manufacturing with Harsiddh Unimach Pvt. Ltd.

As an industry-leading manufacturer of high-performance industrial packaging machinery, Harsiddh Unimach Pvt. Ltd. is dedicated to helping businesses scale up their manufacturing capabilities. We understand that precision is non-negotiable in the food packaging sector. Our equipment undergoes rigorous quality assurance testing to ensure long-term durability, round-the-clock operational readiness, and minimal maintenance requirements.

Are you looking to replace an outdated, inaccurate filling system, or are you constructing a brand-new, fully automated edible oil production plant? Our team of skilled application engineers is here to assist you. We provide end-to-end support, including custom machine tailoring, seamless factory floor integration, operator training, and reliable after-sales spare parts support.
