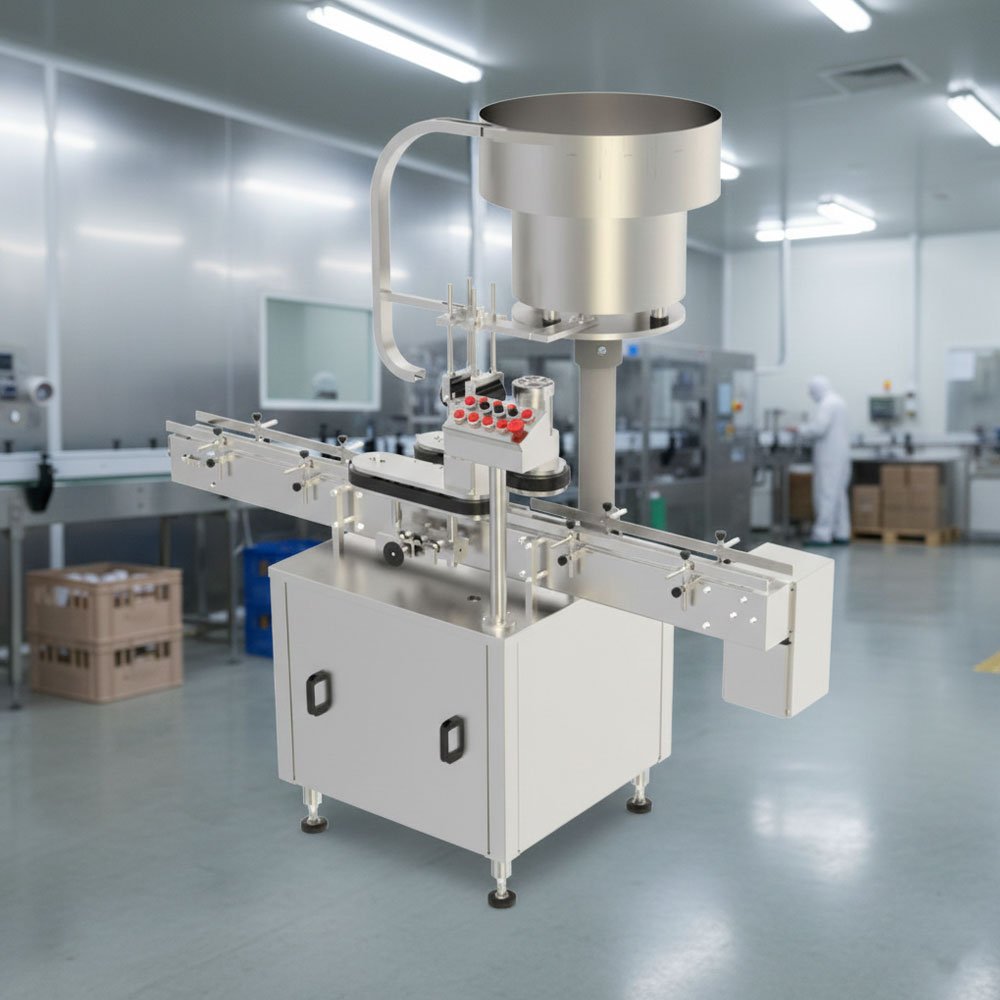

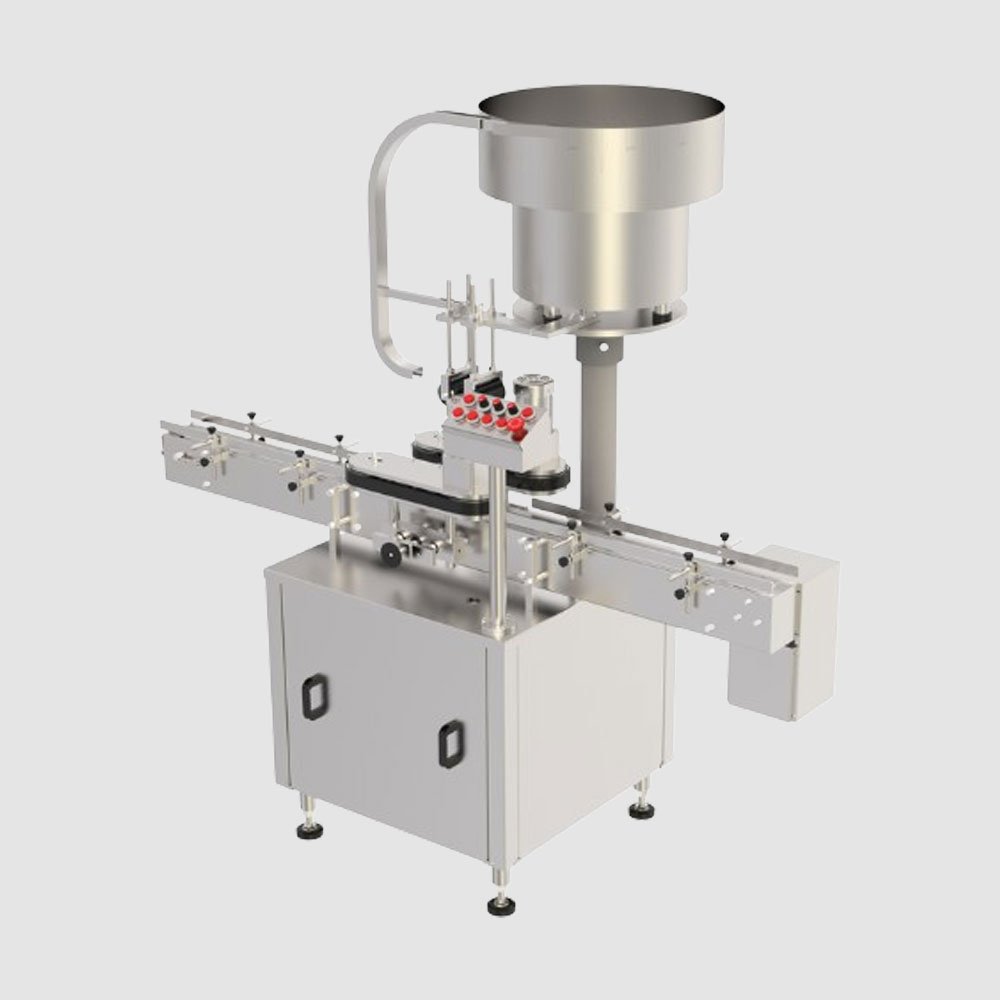

Automatic Dosing Cup Placement And Pressing Machine

Comprehensive Automation for High-Speed Pharmaceutical Packaging Lines

In modern pharmaceutical manufacturing, precision, hygiene, and operational efficiency are non-negotiable. The Harsiddh Automatic Dosing Cup Placement and Pressing Machine stands as a premier solution engineered specifically for high-speed oral liquid, suspension, and dry syrup production lines.

Manual placement of measuring cups is not only labor-intensive but also introduces significant risks of contamination, inconsistent application, and production bottlenecks. The HMCP-150 completely eliminates these vulnerabilities by automating the entire “snap-on” application process. It seamlessly feeds, orients, places, and presses measuring cups onto pre-sealed bottle caps with absolute repetition, speed, and precision.

Featuring a highly adaptable, modular linear architecture, this state-of-the-art machine integrates effortlessly into your existing filling, plugging, and capping lines. By choosing the HMCP-150, manufacturers can ensure a flawless, professional, and completely hygienic finish for every single bottle, meeting the stringent quality standards demanded by global regulatory bodies.

The Critical Role of Automated Dosing Cup Application

For oral liquid medications, the inclusion of a precise measuring or dosing cup is a vital component of user safety and compliance. However, integrating this accessory onto the bottle assembly line can present distinct mechanical challenges.

If a dosing cup is not pressed down uniformly, it can easily dislodge during secondary packaging (cartoning) or transport, leading to rejected batches and increased operational overhead. Furthermore, human handling at this stage compromises the sterile integrity of the pharmaceutical container.

The Harsiddh HMCP-150 addresses these industry pain points by providing an enclosed, automated, and continuous motion system. It ensures that every cup is seated perfectly square against the cap flange, enhancing shelf presentation while guaranteeing that the end-consumer receives a complete and tamper-evident product package.

Step-by-Step Reliable Operational Workflow

The HMCP-150 operates on a continuous, highly synchronized linear pathway. Every mechanism—from initial bottle entry to final discharge—is meticulously timed to prevent container damage, spillage, or mechanical stress.

1. Precision Bottle Alignment and Stabilization

As sealed bottles arrive from the upstream capping machine via the main conveyor, they enter the stabilization zone. Here, a pair of synchronized, adjustable side-holding belts gently but firmly grip the body of the bottles. This eliminates any lateral movement or wobbling, establishing precise center-line alignment and optimal pitch spacing between consecutive containers.

2. Automated Cup Orientation and Pick-up

Simultaneously, bulk dosing cups are loaded into a high-capacity vibratory or mechanical bowl feeder. The feeder automatically aligns the cups so they are uniformly oriented with the open side facing downwards. The cups descend via a custom-machined delivery chute. As the stabilized bottle passes beneath the discharge point, the bottle neck/cap naturally engages with the positioned cup, smoothly picking it up from the chute without stopping.

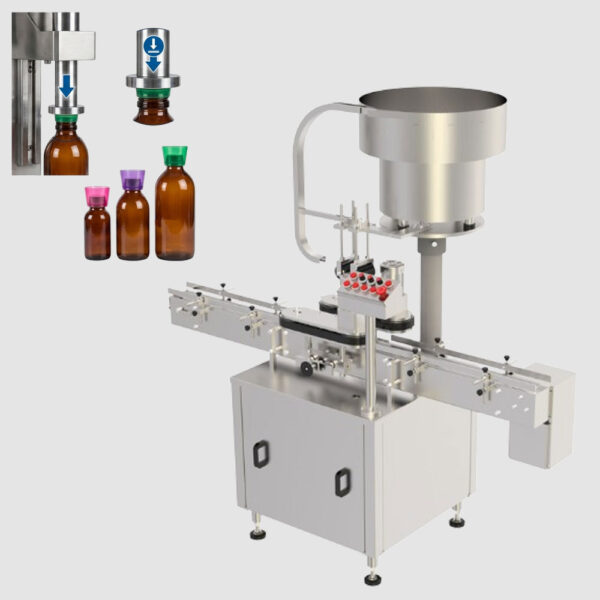

3. Uniform Pressing and Secure “Snap-On” Execution

Once the cup is resting loosely on the cap, the bottle transitions immediately into the heavy-duty pressing zone. A specialized overhead top-belt or rolling assembly applies a uniform, calibrated downward vertical force. This pressure cleanly “snaps” the internal profile of the dosing cup over the rim of the sealed cap. The compression force is fully adjustable to accommodate different plastic elasticities and bottle materials, preventing crushing or deformation.

4. Advanced Security Monitoring and Fail-Safe Mechanisms

To ensure uncompromised quality assurance, the HMCP-150 is outfitted with an array of smart sensors that actively monitor line flow. The system instantly detects anomalies such as downstream bottle jams, fallen containers, or missing caps. When an irregularity is identified, the integrated “Machine Stop” interlocking safety system triggers an instantaneous halt, preventing product damage and alerting operators via the control interface.

5. Smooth Discharge and Outfeed Integration

Bottles that have successfully undergone the pressing operation are released by the side-holding belts and smoothly transition onto the outfeed conveyor. They are then directed forward for downstream secondary packaging operations, such as automated labeling, cartoning, or shrink-wrapping.

Key Features & Technological Advantages

• Modular Linear Architecture: Designed with space-efficiency in mind, its linear configuration allows it to drop into existing production lines without requiring extensive re-routing or large floor space footprints.
• cGMP Compliant Construction: Built entirely utilizing premium-grade AISI 304 and 316 stainless steel and approved non-toxic polymers. All surfaces are smooth, non-crevice, and easy to sanitize, fully complying with current Good Manufacturing Practices (cGMP).
• Variable Speed Synchronization: The conveyor, side-holding belts, and overhead pressing assembly are driven by synchronized variable-frequency drives (VFD) or optional servo systems, allowing perfect speed matching with upstream equipment.
• Tool-Less Changeovers: Engineered for multi-product facilities, the machine supports fast changeover times. Adjustments for different bottle heights, diameters, and cup sizes can be executed rapidly with minimal tools, significantly reducing downtime.</
• Gentle Component Handling: The vibratory feeder and chutes are custom-polished to ensure that plastic dosing cups are handled gently, preventing scratches, scuffs, or aesthetic damage.
• User-Friendly Control Interface: Equipped with a centralized, intuitive control panel (with options for advanced PLC and Touchscreen HMI) that simplifies parameter adjustments, batch counting, and fault diagnostics.

Target Industries and Applications

While specifically optimized for the strict compliance needs of the pharmaceutical sector, the versatility of the Harsiddh Automatic Dosing Cup Placement and Pressing Machine makes it highly beneficial across multiple market segments:

• Pharmaceuticals: Liquid oral drops, pediatric syrups, cough suppressants, antibiotics suspensions, and reconstituted dry syrups.
• Nutraceuticals & Wellness: Liquid vitamins, dietary supplements, herbal extracts, and concentrated mineral liquids requiring precise dosage cups.
• Cosmetics & Personal Care: Special hair serums, chemical exfoliants, and body oils that utilize over-caps or measurement accessories.
• Agrochemicals: Concentrated liquid fertilizers, pesticides, and animal health remedies where accurate dilution measurement devices are bundled with the packaging.

Technical Specification

Specification	Details (HMCP-150)
Output Speed	Up to 150 Bottles Per Minute
Bottle Diameter	Up to 85 mm (Linear – No Change Parts)
Bottle Height	300 mm Maximum
Dosing Cup Size	22mm, 25mm, 28mm (Custom options available)
Power Consumption	2.0 H.P. / 415 V / 3 Phase (or 220 V Single Phase)
Conveyor Height	850 mm to 900 mm (Adjustable)
Dimensions (L x W x H)	1750 mm x 780 mm x 1875 mm
Net Weight	Approx. 350 Kgs

Why Choose Harsiddh Engineering?

Harsiddh is a globally recognized pioneer in manufacturing cutting-edge packaging machinery for the pharmaceutical and allied industries. When you integrate our Automatic Dosing Cup Placement and Pressing Machine into your facility, you are investing in a robust asset backed by decades of engineering expertise, rugged build quality, and responsive after-sales technical support. We offer customized container handling parts and tailored feed chutes designed around your specific bottle and cap profiles to guarantee flawless performance right from day one.

Optimize your packaging line throughput, reduce manual labor dependencies, and secure a flawless seal of quality for your pharmaceutical products with Harsiddh automation.
