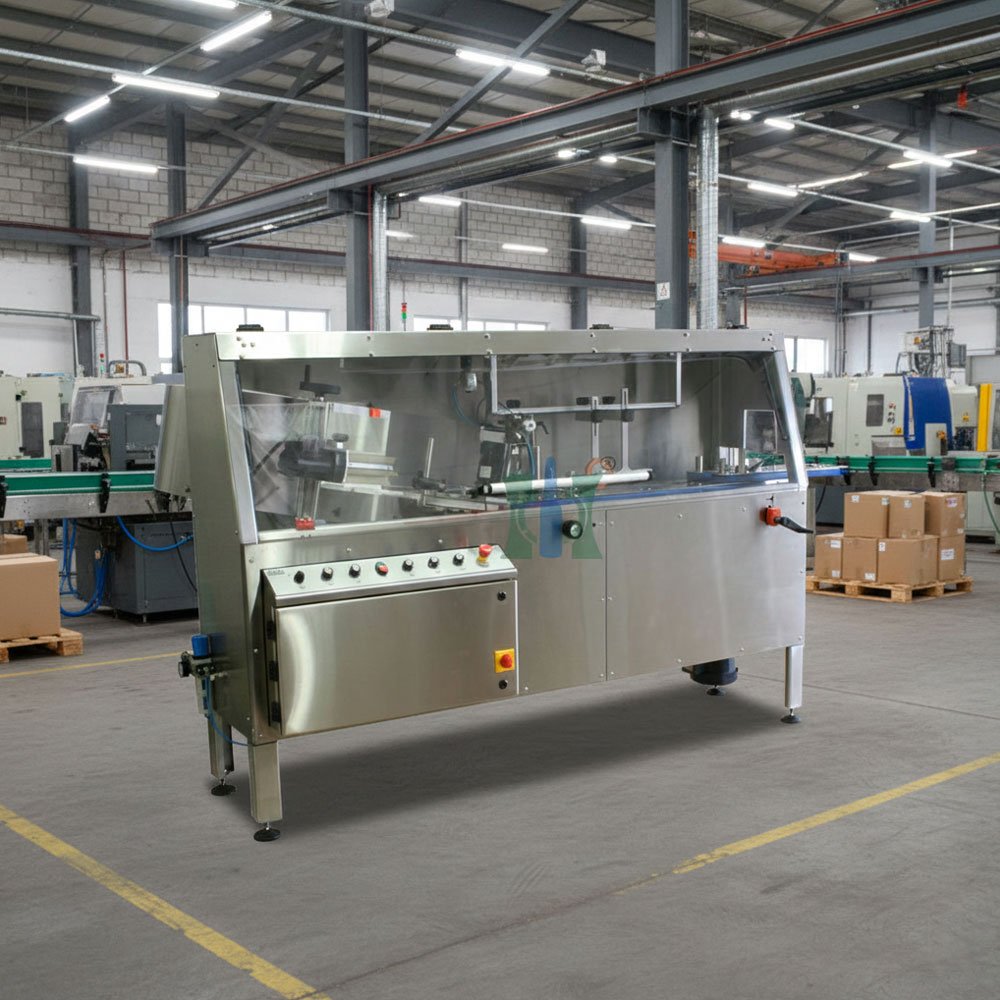

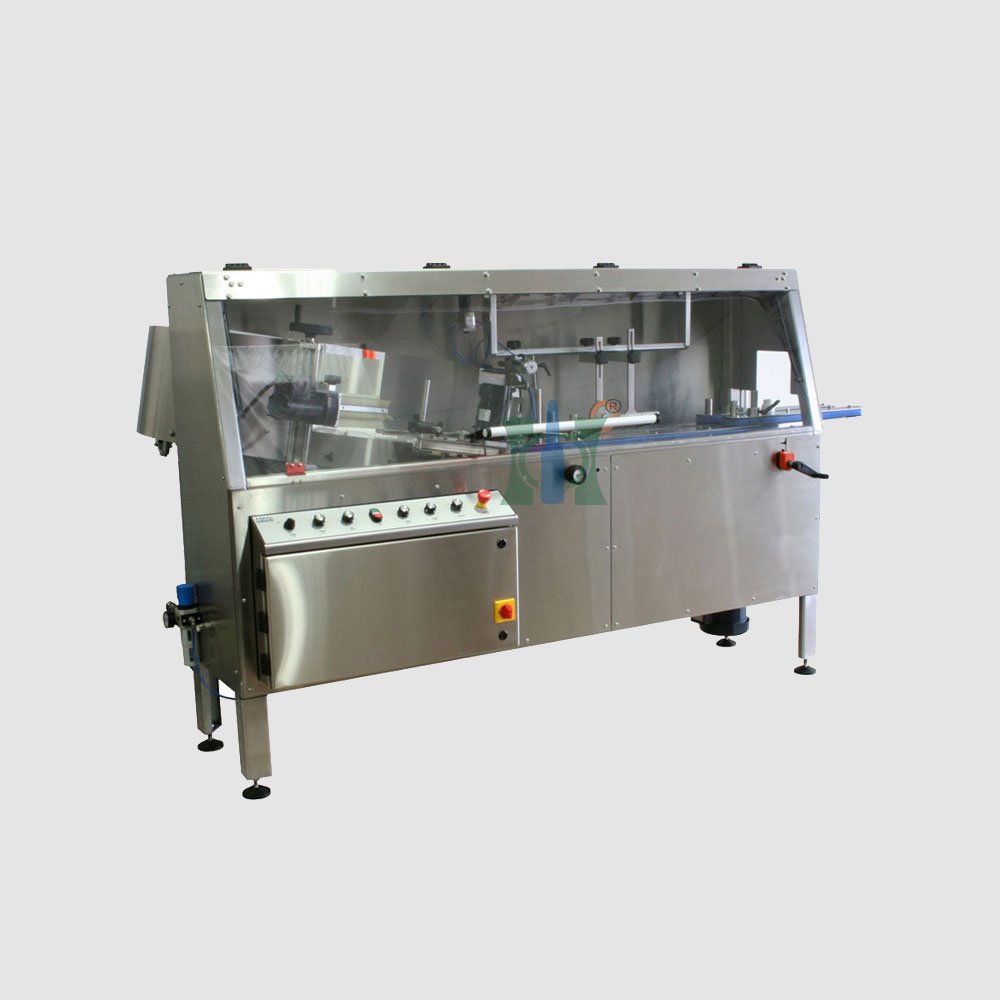

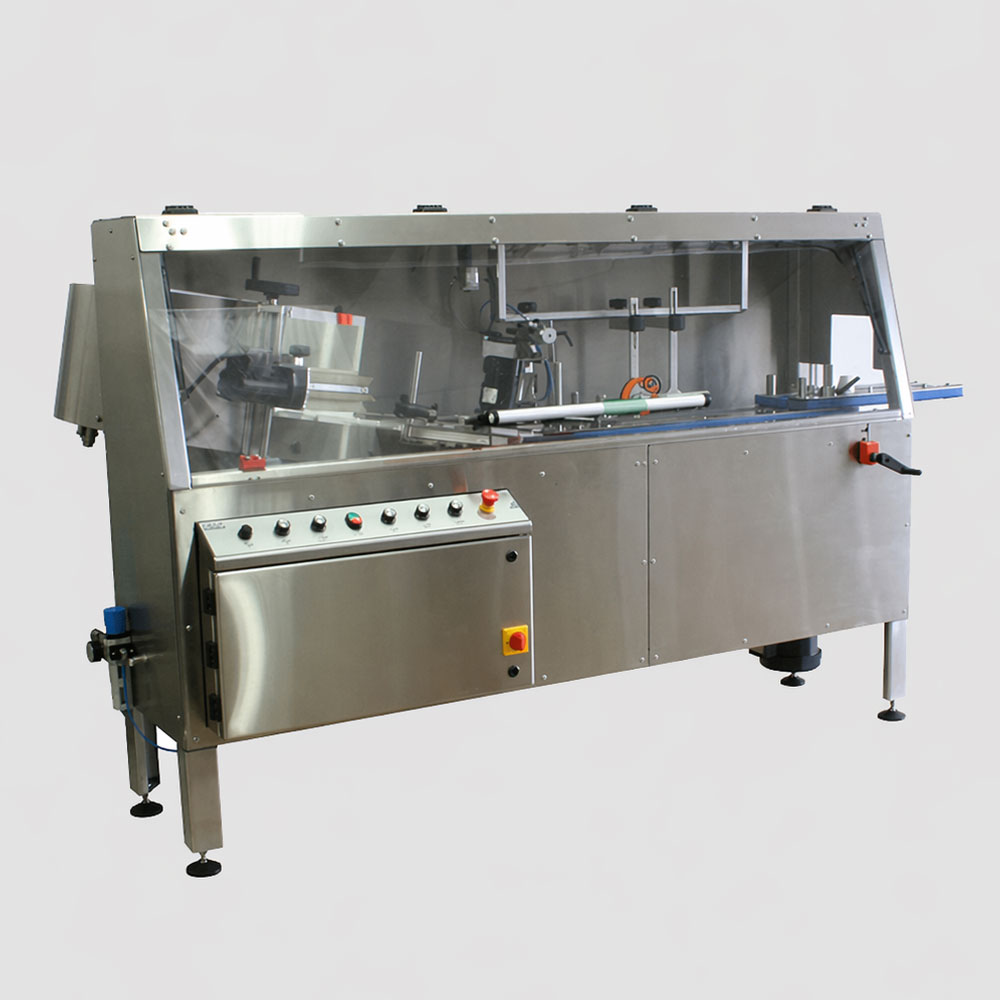

Automatic Bottle Unscrambler
Revolutionize Your Packaging Line with Automated Efficiency
In modern manufacturing, speed, accuracy, and continuity are the pillars of a profitable production line. Manual handling and disorganized container feeding create costly bottlenecks, labor dependencies, and increased risks of product contamination. The Harsiddh Automatic Bottle Unscrambler (HBU-100) is engineered to eliminate these inefficiencies, serving as the high-speed backbone of your automated packaging operations.
Designed to transition bulk-fed containers into a perfectly oriented, single-file stream, this advanced unscrambling system ensures your downstream filling, capping, sealing, and labeling machinery operates at peak capacity without interruption. By replacing manual sorting with precision mechanical automation, the HBU-100 delivers a reliable, upright flow of bottles every single second.
Why Automation Starts with Container Orientation
Before a bottle can be filled with liquid, packed with tablets, or labeled for retail, it must be perfectly positioned on the conveyor belt. When bottles are received in bulk, they are oriented randomly—upside down, sideways, or nested together. Manual sorting is slow, prone to human error, and introduces unwanted hygiene risks into the production environment.
The Harsiddh Automatic Bottle Unscrambler solves this challenge entirely. It accepts bulk, disordered containers dumped into its spacious hopper and utilizes a sophisticated mechanical sorting mechanism to align, upright, and discharge them onto the conveyor belt with 100% orientation accuracy. This seamless automation protects the integrity of your packaging line, dramatically reduces labor costs, and maximizes overall equipment effectiveness (OEE).

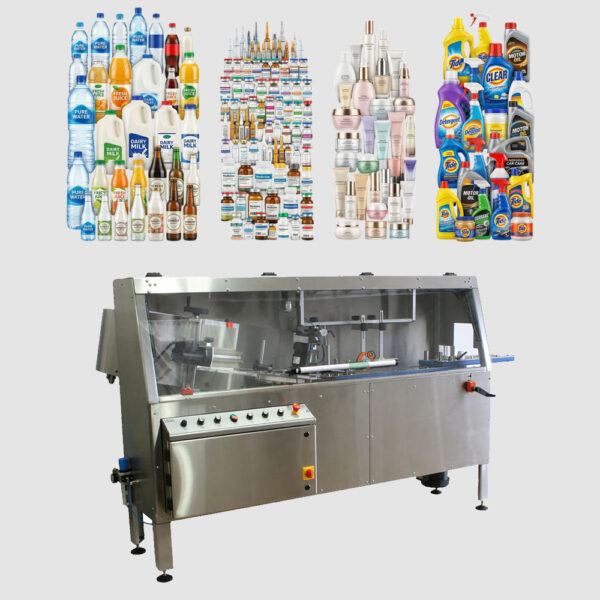

Multi-Industry Applications
The versatility of the HBU-100 makes it an indispensable asset across a diverse range of strict compliance and high-throughput industries.
- Pharmaceutical & Nutraceutical: Ideal for handling solid dosage containers (tablets, capsules) and liquid oral bottles. It maintains strict hygienic standards by minimizing human contact with containers prior to filling.
- Food & Beverage: Perfect for syrup bottles, condiments, spice jars, and beverage containers, keeping pace with rapid-fill food manufacturing demands.
- Cosmetics & Personal Care: Accurately manages uniquely shaped bottles for lotions, shampoos, serums, and creams without scratching or marring delicate surfaces.
- Chemicals & Agrochemicals: Safely feeds high-density plastic containers designed for household cleaners, industrial chemicals, and agricultural fluids.
Container Material Compatibility
The Harsiddh Unscrambler is highly adaptable, seamlessly managing a wide variety of rigid and semi-rigid plastic packaging materials, including:
- HDPE (High-Density Polyethylene): Heavy-duty, opaque bottles commonly used in pharmaceuticals and household chemicals.
- LDPE (Low-Density Polyethylene): Flexible, squeezable containers.
- PET (Polyethylene Terephthalate): Lightweight, crystal-clear bottles standard in the beverage and personal care industries.
Key Performance Features & Technological Advantages
1. High-Speed, Continuous Performance
Time is money on a production line. The HBU-100 is engineered to deliver a blistering output of up to 100 bottles per minute (subject to specific bottle dimensions and geometry). This rapid feeding capability guarantees that your high-speed filling lines are never left waiting for containers. By creating a continuous buffer and supply of perfectly aligned bottles, the Harsiddh Unscrambler acts as the primary heartbeat of your manufacturing facility, maximizing daily output.
2. Intelligent Jam Prevention & Overload Protection
Line stoppages due to jammed or wedged bottles can cost a facility hours of lost productivity. To eliminate this risk, the Harsiddh Automatic Bottle Unscrambler features a specialized, built-in overload clutch mechanism.
- Instant Detection: If an irregularly shaped or deformed bottle causes a potential block within the sorting orientation wheel, the clutch immediately senses the resistance.
- Machine & Container Safety: The mechanism disengages the drive system instantly, preventing damage to the internal machinery and ensuring your plastic containers are not crushed or scuffed.
3. Integrated A.C. Variable Frequency Drive (VFD)
No two production runs are identical. Different products require different processing speeds. With the integration of an A.C. Variable Frequency Drive (VFD), operators gain precise, granular control over the unscrambler’s operational speed. This allows you to effortlessly dial the feeding rate up or down, flawlessly synchronizing the HBU-100 with the exact throughput required by your downstream filling or air-jet cleaning machines.
4. Seamless Upstream & Downstream Integration
The HBU-100 does not operate in isolation; it is built to cooperate. It features universal integration protocols that allow it to fit seamlessly into existing or brand-new packaging lines. It pairs perfectly with Bottle Air Jet Cleaning Machines (for internal container de-dusting) and connects flawlessly to linear or rotary filling systems, capping machines, and labeling setups to form a fully hands-free, synchronized production environment.
Engineered for Compliance and Long-Term Durability
At Harsiddh, we build machinery that lasts. The HBU-100 is constructed using premium, heavy-duty stainless steel, making it highly resistant to wear, corrosion, and the harsh chemical washdowns common in pharmaceutical and food-grade environments.
Its ergonomic layout allows for quick, tool-less changeovers when switching between different bottle sizes, minimizing changeover downtime and keeping your operators productive. The low-profile design also ensures that loading the bulk storage hopper is comfortable and safe for operators, reducing workplace strain.
The Benefits of Integrating the Harsiddh Unscrambler
- Drastic Labor Reduction: Reallocate human resources from tedious manual bottle sorting to high-value quality control and supervisory roles.
- Enhanced Hygiene & Compliance: By eliminating human touch points immediately before the filling stage, you significantly lower the risk of cross-contamination, helping your facility meet rigorous FDA, GMP, and ISO compliance standards.
- Zero Downstream Starvation: Keep your multi-million dollar filling and capping machines running at their highest rated capacities by ensuring they are never starved for bottles.
- Reduced Product Wastage: Smooth mechanical handling prevents containers from tipping over, getting crushed, or falling off the conveyor tracks, protecting your packaging materials from cosmetic and structural damage.
Technical Specifications
| Feature | Specification |
|---|---|
| Production Speed | Up to 100 Bottles / Minute |
| Max Bottle Diameter | Up to 60 mm |
| Max Bottle Height | Up to 150 mm |
| Power Consumption | 2.0 H.P. |
| Electrical Supply | 220V, 1 Phase, 50Hz |
| Air Utility | Approx. 6 Bar |
| Working Height | 875 mm to 950 mm (Adjustable) |
| Machine Dimensions | 1400mm (L) x 1300mm (W) x 1200mm (H) |
Streamline Your Packaging Facility Today
Don’t let manual container feeding hold back your production potential. Upgrade your facility with a machine designed for high throughput, absolute reliability, and ultimate adaptability. The Harsiddh Automatic Bottle Unscrambler (HBU-100) is the strategic investment your packaging line needs to unlock faster cycle times, lower operational overhead, and flawless reliability.
Contact the engineering team at Harsiddh today to discuss your specific bottle shapes, dimensions, and speed requirements. Let us help you design a customized container feeding solution that drives your business forward.
Frequently Asked Questions
Can the Harsiddh Unscrambler handle different bottle shapes and sizes?
Yes. The machine is highly versatile and designed to handle round, oval, square, and rectangular plastic bottles (HDPE, PET, or PP). By using a system of interchangeable "orienting" parts or adjustable guides, it can accommodate a wide range of sizes, typically from 30ml to 1000ml. The changeover process is designed to be efficient, minimizing downtime when switching between different product SKUs.
How does the machine ensure the bottles are not scratched or damaged during the process?
To protect the aesthetic quality of your packaging, Harsiddh utilizes:
Soft-Contact Materials: The internal rotating discs and guiding tracks are lined with non-abrasive materials.
Controlled Agitation: The hopper uses a gentle vibration or centrifugal motion to move bottles toward the orienting unit, preventing the high-impact collisions that cause scuffing or "cloudiness" on clear PET bottles.
What is the production speed, and can it keep up with high-speed fillers?
The machine is built for industrial-scale efficiency. Depending on the bottle dimensions and the specific model, it can achieve speeds ranging from 60 to 200+ bottles per minute. The speed is fully synchronized with the rest of the production line via a Variable Frequency Drive (VFD), ensuring that the unscrambler feeds bottles exactly at the rate the filling machine requires.
What are the key "Smart" and cGMP features of this machine?
As a cGMP-compliant unit designed for regulated industries:
No Bottle – Machine Stop: Sensors detect if the hopper is empty or if the downstream conveyor is jammed, automatically pausing operation to prevent mechanical strain.
Material Integrity: The main frame and all contact parts are fabricated from polished SS 304 or SS 316 stainless steel for easy cleaning and durability.
Low Noise Design: The machine is engineered to operate quietly, contributing to a better working environment for operators.
