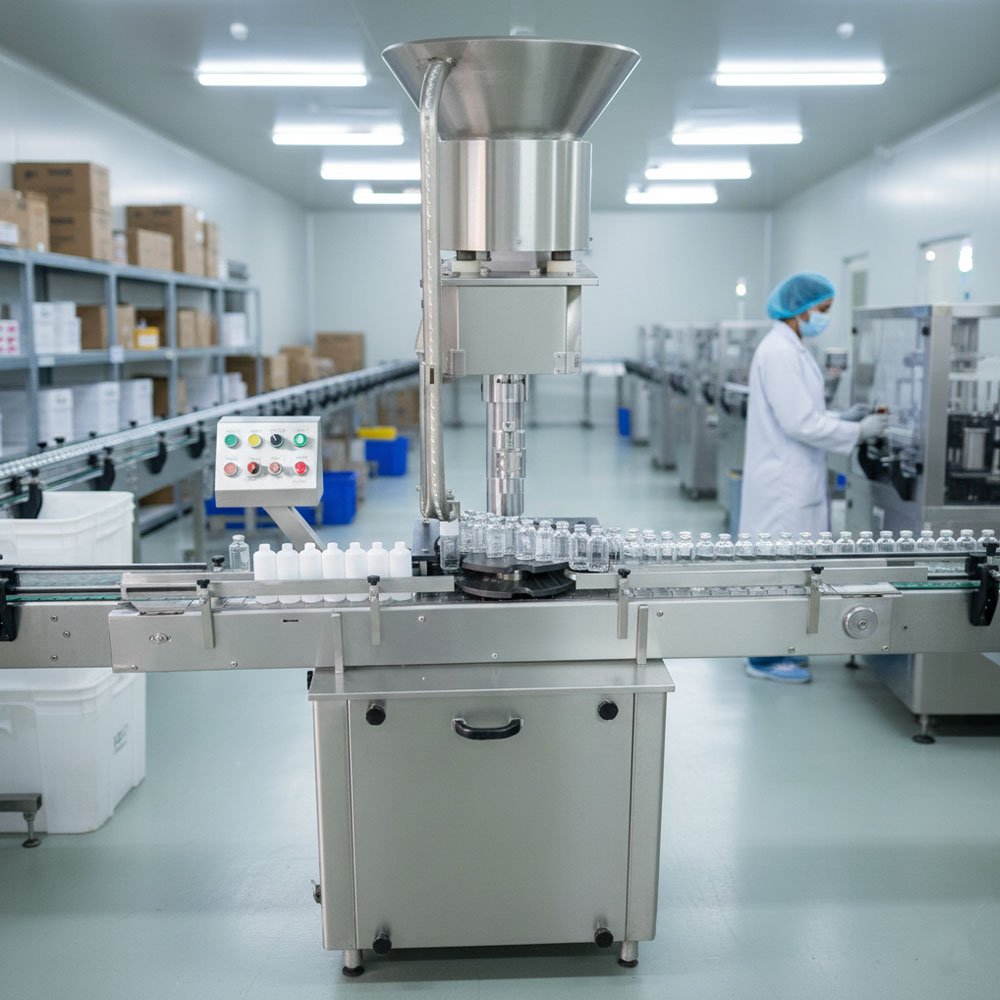

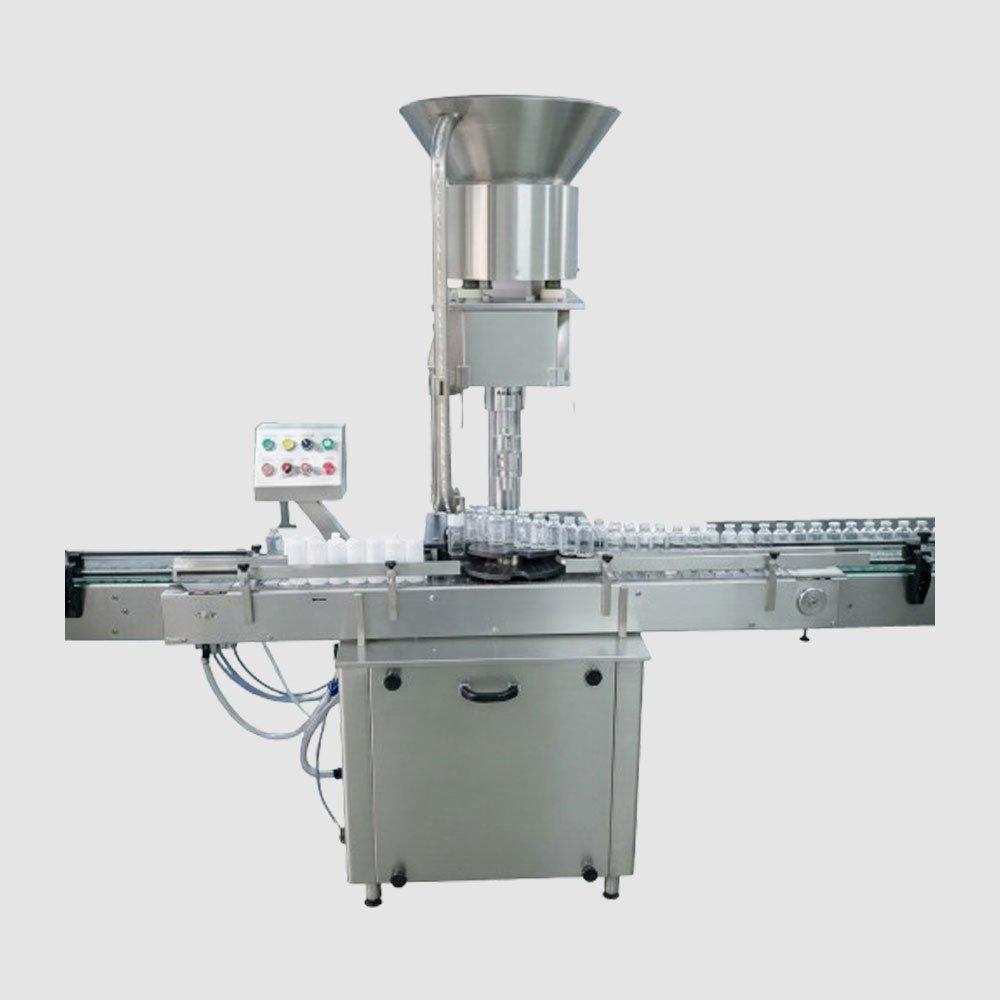

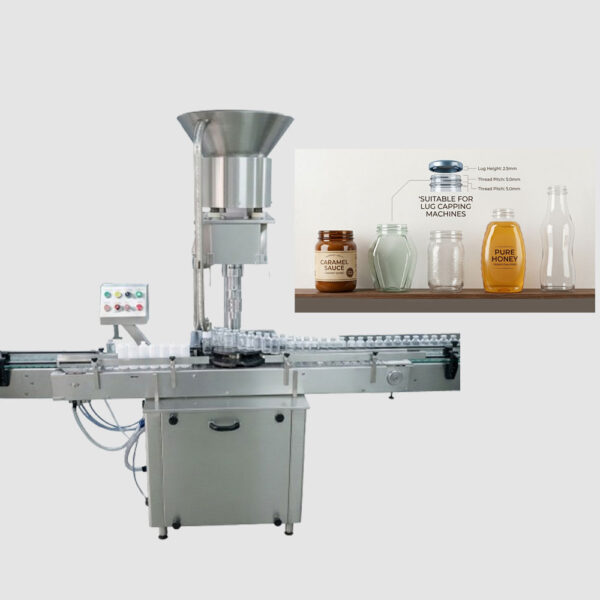

Automatic Bottle Twist Off Capping Machine
High-Speed Vacuum Sealing & Lug Capping Solution for Glass Jars and Bottles
In the competitive food, beverage, and consumer goods manufacturing landscape, product freshness, shelf-life longevity, and spill-proof packaging are non-negotiable. The Harsiddh Automatic Bottle Twist-Off Capping Machine (Model: HLC-100) stands as the premier industry-standard automation solution engineered specifically for securing wide-mouth glass jars and bottles with metal lug caps.
Whether your production line handles artisanal preserves or runs high-volume commercial pasteurized juices, the HLC-100 delivers consistent, vacuum-tight sealing. This robust machinery eliminates the inconsistencies of manual capping, slashes labor costs, minimizes product spoilage, and integrates flawlessly into heavy-duty, high-speed online packaging lines.
The Ultimate Vacuum-Tight Preservation for Your Brand
The primary challenge in packaging perishable food items is preventing oxidation and microbial contamination. The Harsiddh Twist-Off Capping Machine solves this by applying precise mechanical torque to metal lug closures, creating a hermetic seal that locks out air and locks in flavor.
By achieving a commercial-grade, vacuum-tight finish, the HLC-100 significantly extends the shelf life of your goods without requiring excessive chemical preservatives. It is an indispensable asset for processing lines utilizing hot-fill methods, steam-flush vacuuming, or traditional pasteurization.
Versatile Industrial Applications
The HLC-100 is highly versatile and accommodates a broad range of container profiles and closure sizes. While engineered with the stringent hygiene standards of the food industry in mind, its heavy-duty design makes it suitable for various sectors:
- Preserves & Condiments: Ideal for thick, high-viscosity products such as traditional pickles, fruit jams, jellies, marmalades, mayonnaise, mustard, and gourmet spreads.
- Sauces & Dressings: Provides tight seals for hot-filled pasta sauces, tomato ketchups, soy sauces, salsa, and oil-based salad dressings.
- Aqueous Beverages & Dairy: Seamlessly seals glass bottles containing fruit juices, cold-brew coffees, functional health tonics, honey, and pasteurized milk products.
- Nutraceuticals & Pharmaceuticals: Excellent for sealing wide-mouth jars holding powders, dietary supplements, capsules, or specialized medicinal syrups that require airtight security.
Step-by-Step Reliable Operational Workflow
The Harsiddh HLC-100 is built on a foundation of mechanical synchronicity. Every moving component is timed precisely to ensure zero-slip operation, preventing bottle breakage and cap cross-threading.
[Infeed Conveyor] ➔ [Mechanical Stopper] ➔ [Rotary Star Wheel] ➔ [Cap Pick-up Chute] ➔ [Torque Capping Head] ➔ [PLC Safety Check] ➔ [Outfeed Conveyor]
Here is how the automated workflow functions seamlessly on your production floor:
1. Precision Index-Feed Entry
Bottles or jars arrive via the primary infeed conveyor. To prevent collisions or crowding, a heavy-duty mechanical stopper spaces the containers precisely. They are then gently transitioned into a custom-machined rotary star wheel. This ensures each container is perfectly centered under the mechanical axis before capping begins.
2. Synchronized Cap Pick-up
Simultaneously, metal lug caps are sorted and oriented face-up inside a high-capacity bulk cap elevator/feeder. The caps glide down a precisely angled delivery chute. As the moving container passes directly beneath the chute, the neck of the bottle catches the lower edge of a pre-oriented cap, pulling it cleanly from the feeder in a single, fluid motion.
3. High-Torque Twist-Off Sealing
With the cap resting squarely on the glass threads, the specialized capping head engages. The machine utilizes controlled rotational friction to twist the metal cap until its internal lugs lock firmly into the bottle’s neck rings. The torque settings are fully adjustable, ensuring a tight seal that prevents over-tightening or strip-threading.
4. Integrated Smart Security Monitoring
To guarantee zero-defect manufacturing, the HLC-100 features an advanced PLC-controlled sensor suite. The machine continuously checks for anomalies. If a “No Bottle” or “No Cap” scenario occurs, the system pauses instantly. This prevents product spillage, saves caps, and alerts operators via the HMI touchscreen panel, avoiding downstream messes.
5. Smooth Discharge & Downstream Readiness
Once the vacuum-tight sealing process is confirmed, the star wheel guides the container onto the outfeed conveyor. The tightly sealed jars are ready to head straight to downstream processes such as batch sterilization/retorting, external bottle washing, high-speed labeling, or secondary case packing.
Key Technical Features & Benefits
- Robust Stainless Steel Construction: Built with premium-grade Stainless Steel (SS 304/SS 316 contact parts), the machine offers exceptional resistance to acidic food products, high moisture levels, and aggressive washdown protocols.
- Tool-less Adjustments for Quick Changeovers: Minimize downtime when switching container sizes. The HLC-100 allows for rapid height and width adjustments without requiring extensive toolkits, maximizing your Overall Equipment Effectiveness (OEE).
- Advanced PLC & HMI Control: Features an intuitive touchscreen interface that lets supervisors adjust speed, monitor real-time production counts, manage torque parameters, and diagnose system faults instantly.
- Gentle Container Handling: The synchronized rotary star wheels are lined with food-grade, wear-resistant engineering plastics to prevent scratching, chipping, or fracturing of glass containers.
- Variable Speed Drive (VFD): Easily match the capping machine’s throughput with your existing filling and labeling equipment via synchronized AC variable frequency drives.
Technical Specification
| Specification | Details (HLC-100) |
|---|---|
| Production Rate | 60 to 100 Bottles Per Minute (Size Dependent) |
| Sealing Head | Single / Multi-head (Rotary Type) |
| Bottle Compatibility | Round Glass & Plastic Bottles/Jars |
| Container Dimensions | Dia. 24mm to 90mm | Height 50mm to 250mm |
| Cap Compatibility | Standard Twist-Off / Lug Caps |
| Main Motor Power | 1.0 H.P. / 415 V / 3 Phase |
| Working Height | 800mm to 900mm (Adjustable) |
| Weight | Approx. 450 Kgs |
Why Choose Harsiddh for Your Packaging Automation?
When you invest in the Harsiddh Automatic Bottle Twist-Off Capping Machine (HLC-100), you are purchasing more than just machinery—you are integrating reliability, safety, and efficiency into your business.
Unmatched Operational Efficiency
Manual or semi-automatic capping can cause production bottlenecks. The HLC-100 automates the most labor-intensive part of your packaging line, helping you achieve high-throughput targets safely and consistently.
Reduced Product Waste & Recalls
A loose cap can ruin an entire batch of food products, leading to expensive product recalls and damage to your brand’s reputation. Our precise mechanical torque delivery ensures every single jar leaves the facility with its seal integrity fully intact.
Ergonomic & Safe Design
Engineered with operator safety in mind, the HLC-100 includes physical safety interlocking doors, clear acrylic shielding, and easily accessible emergency stop buttons to maintain an accident-free workspace.
Upgrade Your Production Line Today
Don’t let inefficient packaging operations slow down your facility’s growth. Bring world-class efficiency, reliable vacuum seals, and industrial-grade durability to your manufacturing plant with the Harsiddh HLC-100 Twist-Off Capping Machine.
Ready to optimize your packaging process? Contact the engineering experts at Harsiddh today to request a custom quote, arrange a live machinery demonstration, or discuss your container specifications. Let us help you build a faster, smarter, and more profitable production line.
Frequently Asked Questions
Can the machine handle different jar heights and cap diameters?
Yes. The Harsiddh Automatic Twist-Off Capper is highly versatile. It features a motorized or manual height adjustment column to accommodate jars of varying heights. The capping belts and guide rails are adjustable, allowing the machine to handle a wide range of cap diameters (typically 30mm to 100mm) with minimal changeover parts.
Does this machine support vacuum sealing for food preservation?
Absolutely. For food products that require a long shelf life, our machine can be integrated with a Steam Injection System. By injecting high-temperature steam into the jar's headspace just before the twist-off cap is applied, it displaces the oxygen. As the jar cools, a vacuum is created, ensuring the product remains fresh and the "safety button" on the cap stays down.
How does the automatic cap feeding and orientation system work?
The machine includes an Automatic Cap Elevator or Vibratory Bowl Feeder. This system automatically sorts the metal caps, ensures they are facing the correct direction, and feeds them into the capping chute. To prevent wastage, a "No Jar – No Cap" sensor ensures a cap is only released when a container is detected on the conveyor.
What are the construction and hygiene standards of the machine?
As a cGMP-compliant model, the machine is built with a heavy-duty SS 304 stainless steel frame. All components that come into contact with the jars or caps are made of corrosion-resistant materials. The open-frame design allows for easy cleaning and maintenance, making it ideal for high-hygiene food processing environments.
